Click on this option to return to the Input/Output menu.
Livewire
There is but a single control in this submenu: Disable Livewire. If selected, you will be asked if you really
want to disable Livewire.
This is to be used only in non-Livewire systems if the Livewire packets "flood" your network when trying to
use an Ethernet remote control connection.
Stereo Generator (FM Style Only)
SCA Input Gain (Control On Rear Panel)
The SCA Input Gain control is an analog trimpot and does not appear in the menu. This trimpot is located
just above the SCA Input BNC jack on the rear panel. A small flat-blade screwdriver will be needed to
adjust it.
Signals input to the SCA jack are simply mixed into both composite outputs through the Gain trimpot.
The gain range is from 0.034 (-29dB) to 1.35 (+2.6dB). At the lowest gain setting, you can feed it a 10V
SCA signal and get 8.6% injection on a 3.6V composite output setting. At the highest gain setting, you can

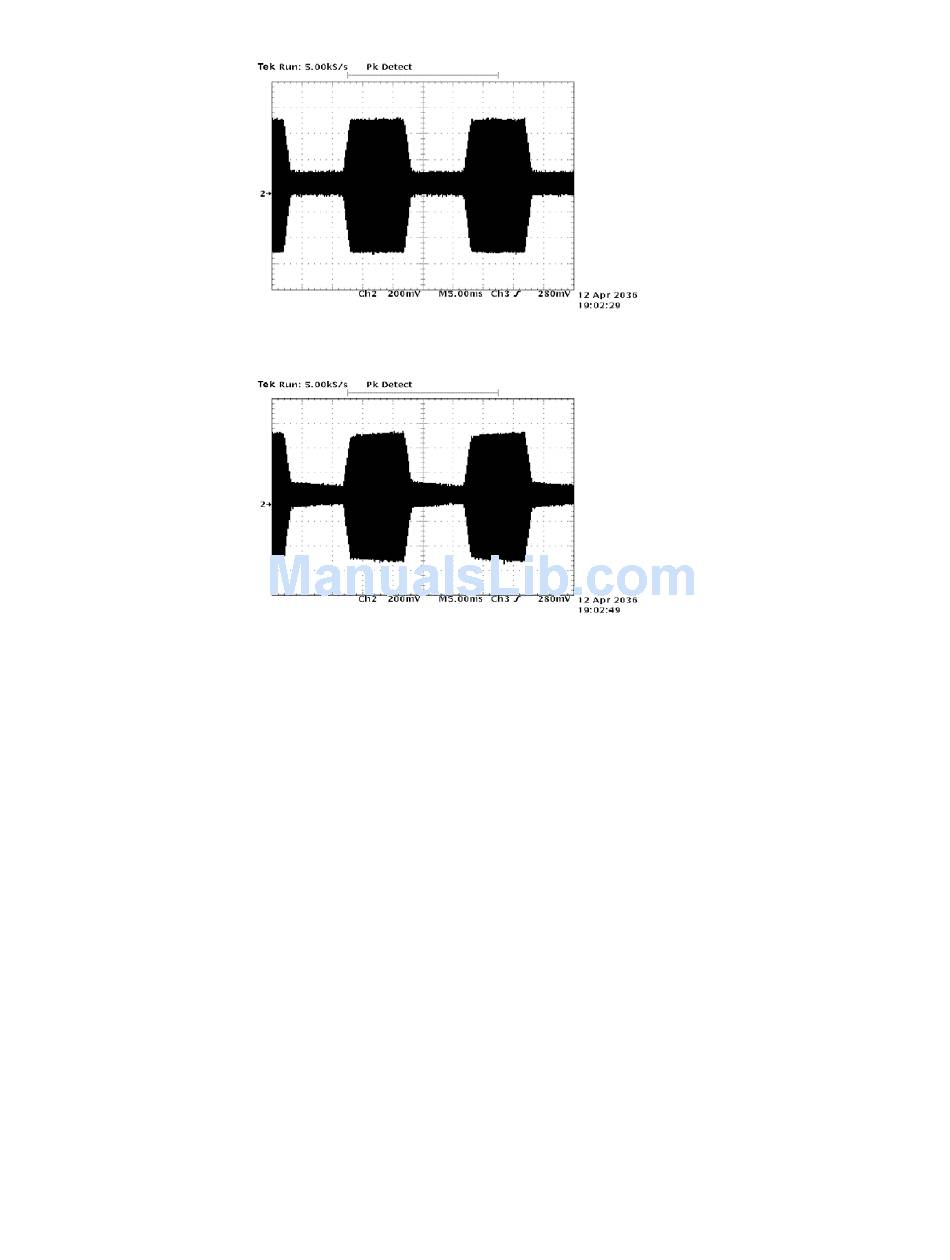

Proper Tilt Equalization
(or a transmitter that does not require it)
Excessive Tilt Equalization
77
