Omnia ONE Quick-Start Setup
We know that you're probably in a hurry to begin using your new Omnia ONE. If you have technical expertise and
previous knowledge of audio processor fundamentals, using our Ten-Point Quick-Start will get you up and running as
quickly as possible. Please refer to the remainder of the Operating Guide for additional installation and setup information.

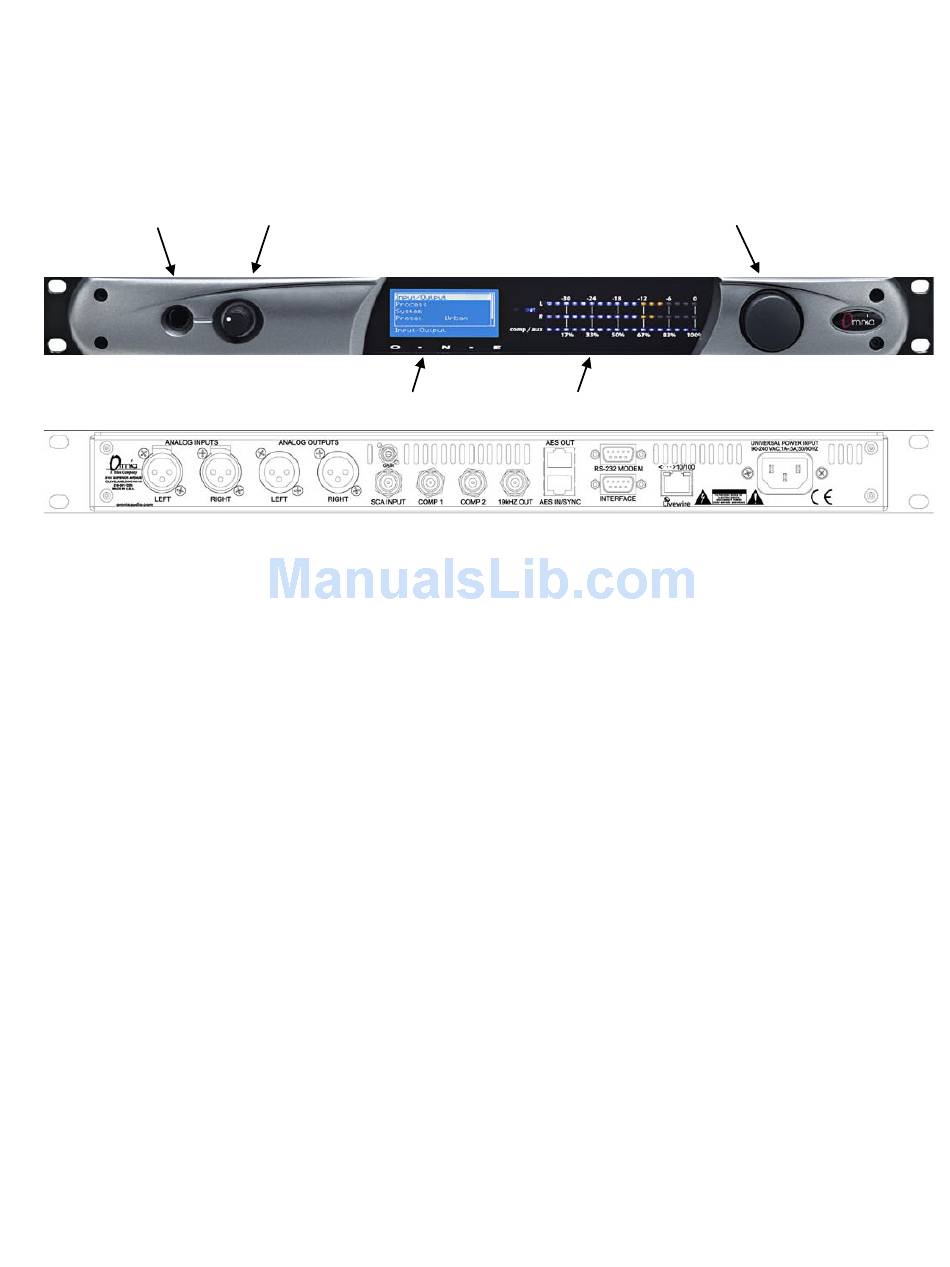

Refer to the following illustration for the location of the various controls and connectors associated with the installation:
Headphone Jack
Main Menu / G/R Metering LCD Display
1.
Install the Omnia ONE in the equipment rack using at least two rack screws. If only two screws are used, they MUST
be installed in the bottom holes of the rack ears!
Connect AC power to the unit (there is no power switch!)
2.
3.
Connect the audio inputs that are appropriate for your installation.
4.
Navigate to the Input/Output / Meter Select setting and select Input.
5.
Navigate to the Input/Output / Input / Input Src setting and select the Analog, AES/EBU or Livewire input as
appropriate for your installation. If your audio source is providing an audio feed you should then see meter activity on
the LED bargraph meters.
6.
While driving the inputs with typical program material at normal operating level, navigate back up to the Input/Output
/ Input menu (by highlighting and clicking on the "<-EXIT" option) and adjust the appropriate input Level control
until the peak-reading input bargraph meters are peaking up to at least –15 and up to –12 dBFS or a little higher.
7.
Connect the audio outputs in a manner that is appropriate for your installation.
(FM Only) Navigate to the Input/Output / Output / FM Options submenu and ensure that the Pre-Emphasis, De-
8.
emphasis and BS-412 settings are correct for your system and your location.
(AM Only) Navigate to the Input/Output / Output / AM Options submenu and ensure that the Output Polarities, LPF
Frequency and Tilt adjustments are correct for your system and your location.
Navigate to the Input/Output / Output menu (All Styles) or Stereo Generator menu (FM Only) and adjust the
9.
appropriate control so that the output level is correct for the equipment that follows the Omnia ONE.
10. Navigate back to the Main Menu, highlight Preset: and click. Rotate the jog wheel to display the preset you would
like to start with and click to select it.
The Omnia ONE Quick-Start Setup is now complete. Please read on to learn about some of the features that make the
Omnia ONE unique and for full details on proper installation and the operation of every control function.
