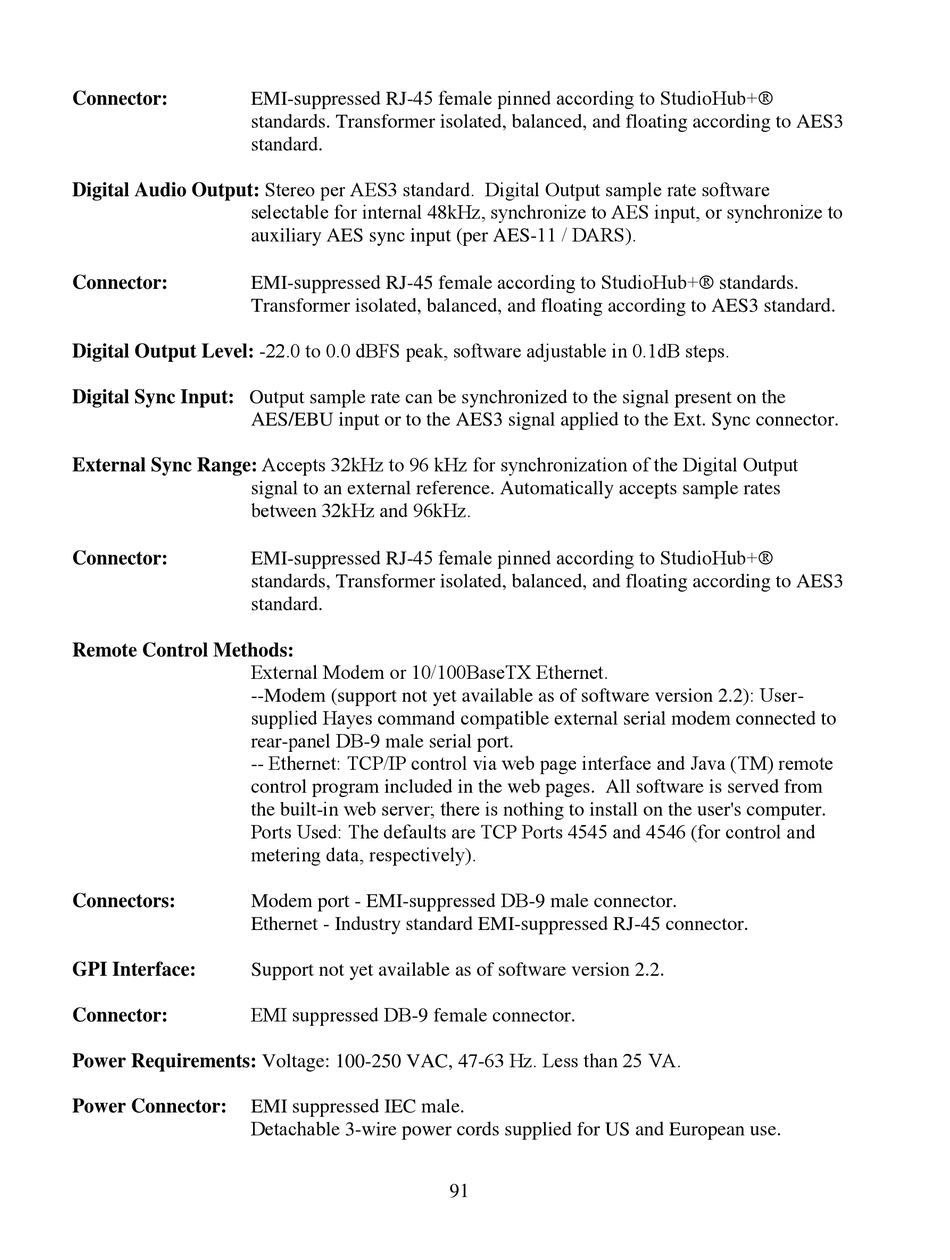

Connector:
Digital Audio Output: Stereo per AES3 standard. Digital Output sample rate software
Connector:
Digital Output Level: -22.0 to 0.0 dBFS peak, software adjustable in 0.1dB steps.
Digital Sync Input: Output sample rate can be synchronized to the signal present on the
External Sync Range: Accepts 32kHz to 96 kHz for synchronization of the Digital Output
Connector:
Remote Control Methods:
Connectors:
GPI Interface:
Connector:
Power Requirements: Voltage: 100-250 VAC, 47-63 Hz. Less than 25 VA.
Power Connector:
EMI-suppressed RJ-45 female pinned according to StudioHub+
standards. Transformer isolated, balanced, and floating according to AES3
standard.
selectable for internal 48kHz, synchronize to AES input, or synchronize to
auxiliary AES sync input (per AES-11 / DARS).
EMI-suppressed RJ-45 female according to StudioHub+ standards.
Transformer isolated, balanced, and floating according to AES3 standard.
AES/EBU input or to the AES3 signal applied to the Ext. Sync connector.
signal to an external reference. Automatically accepts sample rates
between 32kHz and 96kHz.
EMI-suppressed RJ-45 female pinned according to StudioHub+
standards, Transformer isolated, balanced, and floating according to AES3
standard.
External Modem or 10/100BaseTX Ethernet.
--Modem (support not yet available as of software version 2.2): User-
supplied Hayes command compatible external serial modem connected to
rear-panel DB-9 male serial port.
-- Ethernet: TCP/IP control via web page interface and Java (TM) remote
control program included in the web pages. All software is served from
the built-in web server; there is nothing to install on the user's computer.
Ports Used: The defaults are TCP Ports 4545 and 4546 (for control and
metering data, respectively).
Modem port - EMI-suppressed DB-9 male connector.
Ethernet - Industry standard EMI-suppressed RJ-45 connector.
Support not yet available as of software version 2.2.
EMI suppressed DB-9 female connector.
EMI suppressed IEC male.
Detachable 3-wire power cords supplied for US and European use.
91
