Output - Omnia Stereo Audio Processor Installation And Operation Manual

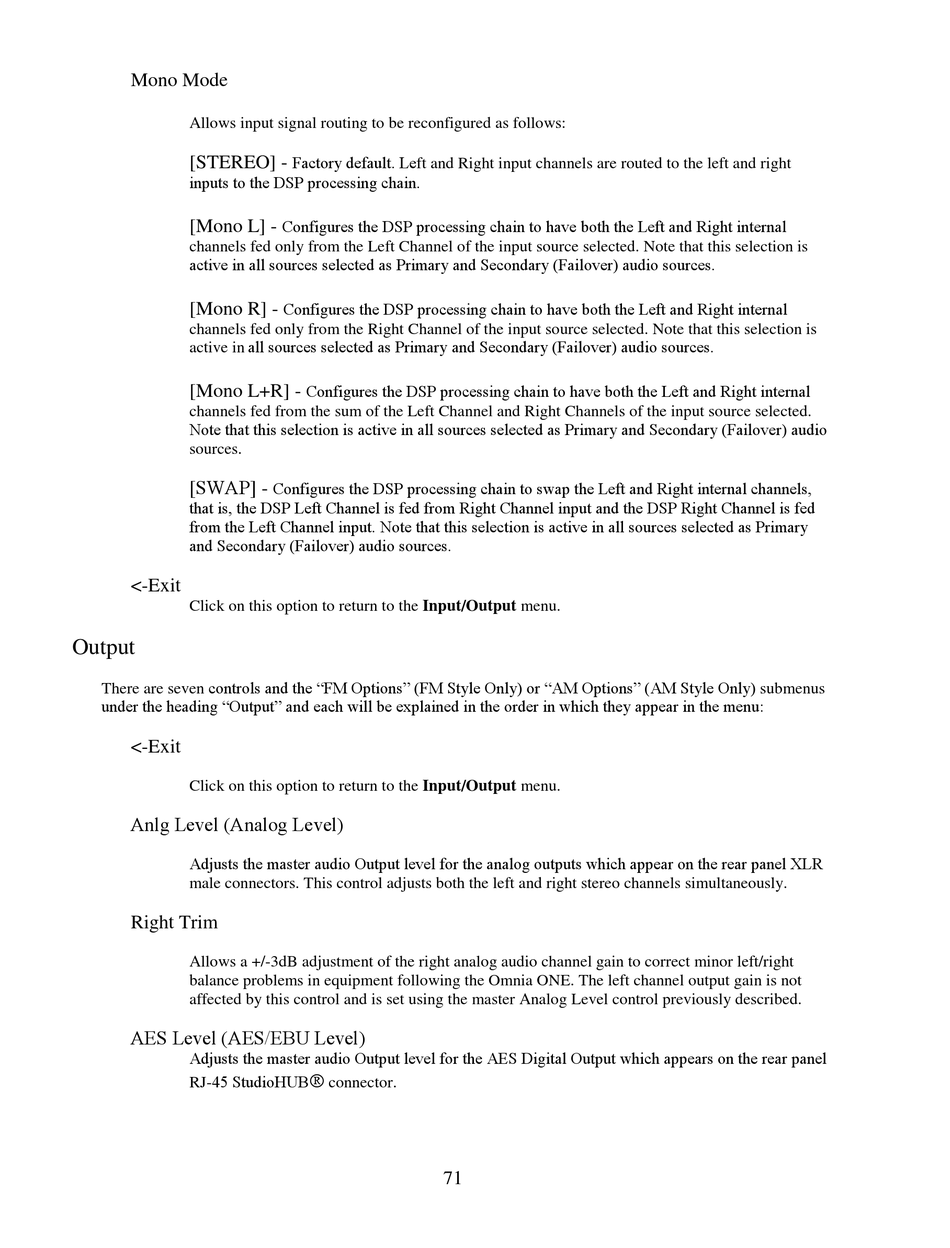

Mono Mode
Allows input signal routing to be reconfigured as follows:
[STEREO] -
inputs to the DSP processing chain.
[Mono L] -
channels fed only from the Left Channel of the input source selected. Note that this selection is
active in all sources selected as Primary and Secondary (Failover) audio sources.
[Mono R] -
channels fed only from the Right Channel of the input source selected. Note that this selection is
active in all sources selected as Primary and Secondary (Failover) audio sources.
[Mono L+R] -
channels fed from the sum of the Left Channel and Right Channels of the input source selected.
Note that this selection is active in all sources selected as Primary and Secondary (Failover) audio
sources.
[SWAP] -
that is, the DSP Left Channel is fed from Right Channel input and the DSP Right Channel is fed
from the Left Channel input. Note that this selection is active in all sources selected as Primary
and Secondary (Failover) audio sources.
<-Exit
Click on this option to return to the Input/Output menu.

Output

There are seven controls and the "FM Options" (FM Style Only) or "AM Options" (AM Style Only) submenus
under the heading "Output" and each will be explained in the order in which they appear in the menu:
<-Exit
Click on this option to return to the Input/Output menu.
Anlg Level (Analog Level)
Adjusts the master audio Output level for the analog outputs which appear on the rear panel XLR
male connectors. This control adjusts both the left and right stereo channels simultaneously.
Right Trim
Allows a +/-3dB adjustment of the right analog audio channel gain to correct minor left/right
balance problems in equipment following the Omnia ONE. The left channel output gain is not
affected by this control and is set using the master Analog Level control previously described.
AES Level (AES/EBU Level)
Adjusts the master audio Output level for the AES Digital Output which appears on the rear panel
RJ-45 StudioHUB
Factory default. Left and Right input channels are routed to the left and right
Configures the DSP processing chain to have both the Left and Right internal
Configures the DSP processing chain to have both the Left and Right internal
Configures the DSP processing chain to have both the Left and Right internal
Configures the DSP processing chain to swap the Left and Right internal channels,

connector.
71
