Omnia ONE Installation And Operation Manual

Stereo audio processor with sensus
Hide thumbs Also See for ONE:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operation & Installation Manual

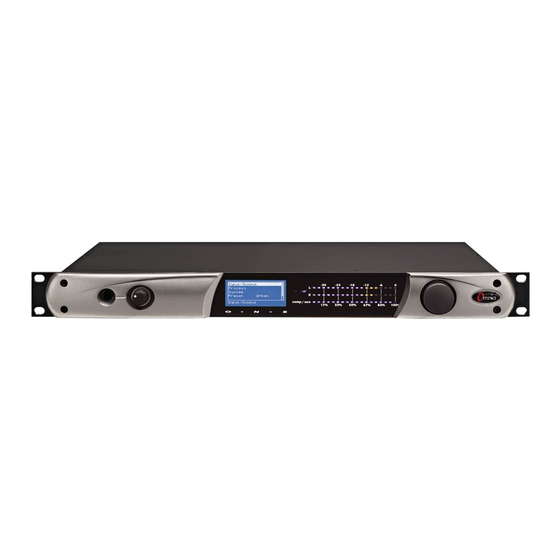

Omnia ONE
Multicast
®
Stereo Audio Processor with
Installation and Operation Manual
Version MC 1.0 / September 2007
Applicable to OmniaONE units running version 1.0 (14) or higher
of the Multicast style software.
A Telos Company
Omnia ● 2101 Superior Avenue Cleveland, Ohio 44114 USA
TEL: +1 216.241.7225 ● FAX: +1 216.241.4103 ● Email info@omniaaudio.com www.omniaaudio.com
Omnia Europe ● Johannistrabe 6 D-85354 Freising Germany
TEL: +49 8161 42467 ● FAX +49 8161 42402 ● Email: europe@omniaaudio.com
www.omniaaudio.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ONE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Omnia ONE

Summary of Contents for Omnia ONE

  • Page 1 Omnia ONE Multicast ® Stereo Audio Processor with Installation and Operation Manual Version MC 1.0 / September 2007 Applicable to OmniaONE units running version 1.0 (14) or higher of the Multicast style software. A Telos Company Omnia ● 2101 Superior Avenue Cleveland, Ohio 44114 USA TEL: +1 216.241.7225 ●...
  • Page 2 OmniaONE Multicast - Use and Operation Manual – Version 0.90...

  • Page 3: Welcome To Omnia.one

    This manual was assembled by a dedicated team of specialists who were instrumental in the development of our newest product, Omnia.ONE. This is our next step in the never-ending quest to build the best signal processor in the world. Considerably more powerful than what its small package implies, Omnia.ONE possesses new hardware and algorithm capabilities that even exceed its predecessors.
  • Page 4 OmniaONE Multicast - Use and Operation Manual – Version 0.90...

  • Page 5: Navigate To The Input/Output / Input / Input Src Setting And Select The Analog Or Aes/Ebu Input

    OmniaONE Quick-Start Setup We know that you’re probably in a hurry to begin using your new OmniaONE Multicast. If you have technical expertise and previous knowledge of audio processor fundamentals, using our Nine-Point Quick- Start will get you up and running as quickly as possible. Please refer to the remainder of the Operating Guide for additional installation and setup information.

  • Page 6: Table Of Contents

    Welcome to Omnia.ONE! ....................3 OmniaONE Quick-Start Setup..................5 Sensus® Technology: Audio Processing ..............9 Overview ........................9 Codec Provisioning ....................9 OmniaONE Multicast and HD® Radio ..............10 So… what’s so smart about Sensus®?..............11 S A F E T Y I N S T R U C T I O N S ...............
  • Page 7 Preset........................33 Processing ........................ 33 Save Preset ......................34 Delete Preset ......................34 Rename Preset....................... 35 <-Exit ........................35 Adjust Processing....................35 <-Exit ........................ 35 Pre-processing....................35 Wideband AGC (Automatic Gain Control) ............36 Enhancers......................37 Xover (Crossover)..................... 37 Low Band AGC ....................38 Mid Band AGC ....................
  • Page 8 Appendix B: Troubleshooting/Service/Warranty............56 Diagnostics and Error Messages................57 Electrical and mechanical safety note!..............58 Narrowing down problems..................58 Obtaining Service....................60 Via the World Wide Web ..................60 Via E-Mail ......................60 Via Phone & Mail (USA and non-European Countries) ........60 Warranty .........................

  • Page 9: Sensus® Technology: Audio Processing X3

    .Multicast Sensus® Technology: Audio Processing Overview Until now, digital signal processing has been a more precise numeric implementation of well-known analog methods. Even relatively recently designed digital audio processors couldn’t veer too far from the comparatively simplistic concepts that analog dynamics processing had utilized… until now! Extremely high power DSP chips have become available and at relatively low cost, and they make it possible to build smarter and more complex processing algorithms that were too difficult or...

  • Page 10: Omniaone Multicast And Hd® Radio

    A broadcaster can choose to transmit a number of multicast channels and select the bitrate for each one. However, the more multicast channels there are, the lower the bitrate each channel must have in order for them to all fit within the total available bandwidth.

  • Page 11: So... What's So Smart About Sensus

    ® So… what’s so smart about Sensus The fact is, Sensus® is smart. In real time it predicts program content that will be troublesome for the codec, and by modifying it’s own algorithms can make appropriate changes to the program material before it ever reaches the codec! The result is consistently high audio quality through a codec-based system, even at very low (18kbps –...

  • Page 12: I N S T R U C T I O N S

    S A F E T Y I N S T R U C T I O N S Read All Instructions. All safety and operating 14. Object and Liquid Entry. Never push objects of any instructions must be read before operating the kind into this product through openings as they may product.

  • Page 13: Hazard / Warning Labels

    HAZARD / WARNING LABELS The Exclamation Point The Lightning Flash With symbol, within an Arrowhead symbol, within an equilateral triangle, alerts equilateral triangle, alerts the the user to the presence of user to the presence of non- important operating and insulated dangerous voltages maintenance (servicing) within the product's enclosure...
  • Page 14 CE CONFORMANCE – This device complies with the requirements of the EEC Council Directives: 93/68/EEC (CE Marking); 73/23/EEC (Safety – low voltage directive); 89/336/EEC (electromagnetic compatibility). Conformity is declared to those standards: EN50081-1, EN50082-1. LITHIUM BATTERY CAUTION – There is a danger of explosion if the internal battery is replaced incorrectly or shorted.

  • Page 15: Manual Update Notification

    Manual Update Notification Audio Processing – a unique art form that we take very seriously! As part of our dedication to the science of audio processing we will continue to improve and update the Omnia product and its documentation based on our ongoing research, real-world field experience, and the valued input from our many thousands of loyal customers.
  • Page 16 OmniaONE Multicast - Use and Operation Manual – Version 0.90...

  • Page 17: Chapter-1: Installation

    OmniaONE (or any other microcomputer-based equipment). A White Paper by one of our Support Engineers can be found on the Telos Systems website at the URL listed below. It details proper grounding and contains links to some surge suppression products for both the power mains and the often-neglected telephone, Ethernet and ISDN line connections that can (and do) conduct powerful surges into the equipment.

  • Page 18: Installation & Connections

    Rack Mounting The OmniaONE requires one RU (1.75" [44.45 mm]) of rack space. Rack mount the unit using four rack screws. If only two screws are going to be used, they should be in the bottom holes in the Omnia front panel. No other two-...

  • Page 19: Rear Panel Connections

    Rear Panel Connections Analog Audio Inputs and Outputs Balanced XLR-type connectors are used as input connectors for the analog audio. Both analog and digital input sources may be connected simultaneously, however, only the input source that has been selected is active. Analog/Digital/Livewire Input source selection is done through the “Source”...

  • Page 20: Aes/Ebu Digital Input, Aes/Ebu External Sync Input, And Aes/Ebu Output

    Input Gain software parameter settings in the Input Menu. There is one AES-3 output on a standard RJ-45 connector that provides an output at selectable sampling rates.

  • Page 21: Rs-232 Modem Connection (Db-9M)

    RS-232 Modem Connection (DB-9M) This DB9-male connector can be used to connect an external dialup modem for a bi-directional computer remote control connection. NOTE: This connector is for a remote control external modem connection only. Please see Appendix B for information on how to use a terminal program along with an internal RS-232 connector for troubleshooting purposes.

  • Page 22: General Purpose Interface (Gpi) (Db-9F)

    This DB9-female connector serves as a four-input, optoisolated interface to the Omnia's internal Trigger Script functions. Four of the pins are “trigger” inputs, one is a bias voltage input, one is a +5V power output, and the remaining three are “ground.” The trigger inputs can be used to dynamically alter the OmniaONE’s operation in response to logic transitions on the interface connection.

  • Page 23: Chapter-2: Getting To Know Your Omniaone

    Chapter-2: Getting To Know Your OmniaONE The OmniaONE User Interface Now that your OmniaONE is rack-mounted, connected to a program audio source, and turned on, you’re ready to learn how to operate it! This chapter covers the Front Panel User Interface, your window into the OmniaONE processor.

  • Page 24: Audio I/O Level Display

    Audio I/O Level Display Either input or output levels can be displayed. The highest LED illuminated indicates digital sample-accurate peak signal levels. The meters are calibrated in decibels below full scale digital (0 dBFS) in 2dB steps. 0 dBFS is the absolute maximum level in the digital domain.

  • Page 25: Using The Jog Wheel

    Using the Jog Wheel The main user control for the OmniaONE is the easy to use jog wheel with its integral push-switch. Using the control is both intuitive and efficient, making it easy to navigate the menu structure of the OmniaONE. Processing changes and system adjustments can be quickly made with ease without having to remember multiple controls, their positions, and what they do in each menu.

  • Page 26: Main Menu

    The OmniaONE menu system has been designed to be intuitive and simple to use. Most operating parameters are found under one of the menu headings and sub-headings, allowing adjustments to be made quickly and with ease. Rotating the jog-wheel sequentially highlights each menu item in turn.

  • Page 27: Proper Setting Of Input Levels

    The factory default selection for Input Source is Analog. To change the input selection to AES/EBU digital, rotate the jog-wheel until [AES/EBU] is displayed and click. If you are using the analog inputs, rotate the jog wheel to display [Analog] and click to reselect the analog inputs. To return to the top level of the Main Menu, rotate the jog-wheel to highlight <-EXIT and click.
  • Page 28 OmniaONE Multicast - Use and Operation Manual – Version 0.90...

  • Page 29: Chapter-3: Getting The Sound You Want

    Chapter-3: Getting The Sound You Want In general, applications requiring audio processing prior to a codec don’t rely heavily on absolute loudness for their overall success. Loudness is still important of course – you do want to be heard – but it is not the most important thing.

  • Page 30: Increasing Density/Loudness

    Once you have satisfactory results in one area (like overall density) you can then move the focus to the next area that you feel needs more tweaking.

  • Page 31: Adding More Detail-When Loudness Isn't The Last Word

    AGC sections. Changing the relative amount of Drive to the individual multi-band limiters. Adjusting one or more bands to have faster release times than the others. Adjusting the settings within the Mixer. All four options will provide a noticeable change in EQ and each will have a different character. We suggest you use the first two listed options before trying others.

  • Page 32: Thunder Bass

    If everything is working properly the vocal quality should not change due to the coding process. If this is noticed, try reducing the Sensus® function value by one adjustment click and then reevaluate.

  • Page 33: Chapter-4: Main Menu Selections

    OmniaONE: 24, 32, 48 and 64 kbps. By starting with one of the factory presets (usually the one named closest to the primary programming and bitrate to be used on the channel the OmniaONE Multicast is processing) and then altering it using the controls in the Processing menu, you may change the sound of a preset and then save it with your changes as a user preset for either immediate use or later recall.

  • Page 34: Save Preset

    " ^ " symbol and click again. The new character appears. Now rotate the knob to select the desired character for it and click to accept. (Note that this inserts a new character before the one selected, and keeps the originally selected character intact as what it was before choosing "^")

  • Page 35: Rename Preset

    Rename Preset A preset in the list of stored user presets can be renamed at any time. Factory presets cannot be renamed. To rename a user preset highlight Rename Preset and click. Rotate the jog wheel to display the preset to be renamed and click.

  • Page 36: Wideband Agc (Automatic Gain Control)

    Wideband AGC (Automatic Gain Control) The wideband AGC rides the incoming audio levels like an automatic “hand on the fader”, keeping the average level more consistent for the following 4-Band AGC stage, enabling it to stay in its “sweet spot”. WB AGC (Bypass, Engage) The wideband Automatic Gain Control (AGC) stage can be bypassed if desired, although more consistency is achieved when this stage is used.

  • Page 37: Enhancers

    Enhancers Deep Bass Adds ‘girth’ to the audio by enhancing very low frequencies such as kick drum fundamentals or very low bass notes that may be present in the input audio program. Phat Bass An Omnia exclusive, Phat Bass adds harmonic overtones to the lower bass frequencies. The addition of these overtones causes small speakers to seem to produce bass response that they are not actually capable of producing because the human brain equates the presence of low frequency harmonics to the missing fundamentals that the small speaker is unable to reproduce.

  • Page 38: Low Band Agc

    Adjusts the amount of gain reduction in the Presence Band AGC. Higher numbers result in more drive and because of the increased compression, a more consistent output from the band. Hi Drive Adjusts the amount of gain reduction in the High Band AGC. Higher numbers result in more drive and because of the increased compression, a more consistent output from the band.

  • Page 39: Mid Band Agc

    RTZ Speed (Return To Zero Speed) RTZ stands for Return To Zero. What RTZ does is return the gain of the AGC band to the selected amount of gain reduction (See RTZ Level below) in the absence of audio. RTZ speed controls how fast this adjustment takes place –...

  • Page 40: Mid Band Limiter

    The release control adjusts how fast the limiter recovers from periods of more gain reduction when the input audio levels fall. Faster release times (higher numbers) result in a more dense sound. Even though the Omnia uses program controlled release algorithms, setting the control for extremely fast release times while driving the limiter hard can result in ‘pumping’...

  • Page 41: Mixer

    The drawback is that it can generate intermodulation distortion in the Final Limiter and increase artifacts in the codec employed after the Omnia ONE Multicast. When both the Girth Clip and Tight Clip settings are both set to “OFF”, the Bass Clipper is effectively bypassed.

  • Page 42: Sensus

    Hi Band Adjusts the output level of the high band limiter into the overall mix. Higher numbers result in more high frequencies and too much mix level can make the following final limiter work unnecessarily hard. <-Exit Click on this option to return to the Adjust Processing submenu. Sensus®...
  • Page 43 OmniaONE Multicast offers this feature as a low pass output filter that can be set to one of seven stop band frequencies. Each of the filters possess minimal passband ripple and are phase linear below cutoff. Response in the filter stop bands is greater than -100dB.

  • Page 44: Exit

    The Nyquist Theorem states that the maximum frequency that may be applied to a sampled data system is one half the sampling frequency. When signals beyond half the sampling frequency are present, aliasing occurs which causes the appearance of an inverted spectral image of the audio spectrum to be “folded around” the...

  • Page 45: Mtr Select (Meter Select)

    Failover Time is a feature that when set to a value other than zero (disabled) allows the OmniaONE to automatically select another input source if the currently selected one fails. Failover Time is the amount of time that will elapse after the failure of audio on the primary input source before the unit makes the decision to switch to the secondary (failover) input source.
  • Page 46 “Both” is typically selected if it sounds “better” to an announcer (monitoring themselves in headphones using the output of the processing) than “None”. One of the two settings should. The goal is to make the relative phase of the headphone feed more in phase with the announcer’s own bone conduction.

  • Page 47: Output

    [Mono L+R] - Configures the DSP processing chain to have both the Left and Right internal channels fed from the sum of the Left Channel and Right Channels of the input source selected. Note that this selection is active in all sources selected as Primary and Secondary (Failover) audio sources.

  • Page 48: Bypass

    Use this to save your I/O configuration as the system default or save more than one configuration if the unit will be used with different external equipment configurations. These saved configurations can be recalled using the Load IO Config option.

  • Page 49: Load Io Config

    Now rotate the knob to select the desired character for it and click to accept. (Note that this inserts a new character before the one selected, and keeps the originally selected character intact as what it was before choosing "^") When you are finished, simply rotate the knob clockwise with the cursor in “select”...

  • Page 50: Exit

    <-Exit Click on this option to return to the Main Menu. Administrative Several maintenance and utility functions are found in this submenu including various Security options to prevent tampering by unauthorized personnel, TCP/IP networking parameters and other system-wide parameters. About Presents a dialog displaying the OmniaONE software style, firmware release version and front panel software version currently active in the unit.

  • Page 51: Security

    When selected, initiates a complete system reset, which includes reloading the internal operating system, DSP processing code, and values from the current processing preset and IO configuration. Security Remote Con (Remote Control) [Enabled] Enables remote control access. [Disabled] Disables remote control access. Enter Password Sets the password for both the front panel and remote control access.

  • Page 52: Unlocking The Front Panel

    English alphabet. Once the desired character is found, click to accept that character, rotate the jog wheel one notch clockwise to advance the cursor to the next position and click again to display the editing cursor.
  • Page 53 Note: All measurements made using "Bypass" mode, which is available in the Input/Output menu. General Audio Specifications Frequency Response: ± 0.50 dB, 20 Hz to 20 kHz with high pass filter disabled. Less than 0.05% THD 20 Hz – 20 kHz bandwidth. Distortion: *Signal-Noise Ratio: Greater than -100 dB, 20 Hz –- 20 kHz bandwidth, referenced to 0dBfs *The measured noise floor will depend upon the settings of the Input and Output Gain controls and is primarily governed...
  • Page 54 EMI-suppressed RJ-45 female pinned according to StudioHub+® Connector: standards. Transformer isolated, balanced, and floating according to AES3 standard. Digital Audio Output: Stereo per AES3 standard. Digital Output sample rate software selectable for internal 48kHz, synchronize to AES input, or synchronize to auxiliary AES sync input (per AES-11 / DARS).
  • Page 55 Humidity: 0-95% RH, non-condensing. 19" wide x 1.75" high x 16" deep (48.26cm wide x 13.335 cm high x Dimensions: 40.64 cm deep) including connectors. Unit requires one EIA rack space for mounting. 10 lbs. / 4.54 kg Shipping Weight: StudioHub®...

  • Page 56: Appendix B: Troubleshooting/Service/Warranty

    Appendix B: Troubleshooting/Service/Warranty Operational problems with the OmniaONE can sometimes be diagnosed using the RS-232 serial port located inside the top cover of the unit (NOTE: This is not the rear panel “RS-232 MODEM” connector) and a common terminal communications program. Detailed information about the Omnia's boot-up progress may be observed at this internal RS-232 port, as well as viewing of any error messages that may be encountered.

  • Page 57: Diagnostics And Error Messages

    troubleshooting techniques for isolating possible OmniaONE problems in the field, and also how to obtain help or repair service from Omnia. To take complete advantage of this functionality, you only need a standard terminal program for DOS, Windows, or other operating system. It must be configured for a default baud rate of 19200, no hardware handshaking, and using ©...

  • Page 58: Electrical And Mechanical Safety Note

    A report similar to the below will be generated. You can select the text and then copy and paste into an email or email a screen shot to if requested to do so by your Telos/Omnia factory Customer Support Engineer. For contact information, see Obtaining Service on Page 60.
  • Page 59 If the signal is dead at all three, then this points to a digital audio problem after the dynamic processing DSP chips. If one of the output sections is not operating, then it can be localized to that specific section.

  • Page 60: Obtaining Service

    Obtaining Service • Omnia Customer Support personnel are available in Cleveland, Ohio, USA, Monday through Friday between 9:00 A.M. and 6:00 P.M., Eastern Time. If outside the U.S.A., please contact the dealer you purchased your Omnia from. • Before contacting Omnia Customer Support, please have the serial number of the unit (located on a barcode sticker on the rear panel in this format: 0218WXXXX) and a description of the symptoms/problems ready for the technician.

  • Page 61: Warranty

    Warranty This Warranty covers "the Products," which are defined as the various audio equipment, parts, software and accessories manufactured, sold and/or distributed by TLS Corp., d/b/a Omnia (hereinafter "Omnia"). With the exception of software-only items, the Products are warranted to be free from defects in material and workmanship for a period of two years from the date of receipt by the end-user.
  • Page 62 OmniaONE Multicast - Use and Operation Manual – Version 0.90...

  • Page 63: Appendix C: Remote Control And Software Update Procedure

    Appendix C: Remote Control and Software Update Procedure Remote Control The above screenshot shows the Processing screen of the OmniaONE’s built-in remote control applet. This is a Java applet that requires the Java Runtime Environment (JRE) from Sun Microsystems, version 1.4 or higher, to be installed on your computer. Once JRE is installed, the Remote Control applet is accessed through the OmniaONE’s built-in web page interface via TCP/IP.

  • Page 64: Preset

    OmniaONE’s front panel. To refresh the front panel preset name, simply click the OmniaONE’s jog wheel to enter one of the menus and then click “<-Exit”. (Or enter the Preset menu, rotate the Jog Wheel to the right and select “Cancel*”...

  • Page 65: Preset Transfer

    To delete a preset, click the “Delete Preset” button. A new applet window will open with a preset list. Highlight the preset to be deleted in this preset list and click the “Delete” button. The preset will be instantly deleted from the unit and the preset list.

  • Page 66: Processing

    Processing Click on the “Processing” tab and the block diagram will appear: Each block is a button that can be clicked to open a new applet window containing the controls for that processing block. Any number of processing block windows may be opened at the same time. When opened, they will minimize automatically to the taskbar.

  • Page 67: Out

    Clicking on the “In” tab will display all of the controls for the OmniaONE’s Input menu in the main applet screen. Adjustment of the controls works the same way as described above in the Processing section. Clicking on the “Out” tab at the top of the applet window will display all of the controls for the OmniaONE’s Output menu...

  • Page 68: Software Update Procedure

    Please note that Trigger Script functionality is not yet implemented in the current software but will be available with a free downloadable software update. Please check the Omnia website for new software announcements, download http://www.omniaaudio.com/ links and manual updates at: Software Update Procedure Software updates for the OmniaONE are performed over an Ethernet connection using any standard Web Browser and an update file downloaded from the Omnia website.
  • Page 69 software is always uploaded to the inactive bank. This is a safeguard against loss of power or other interruption during the update. In this event, the OmniaONE should still boot into the active bank containing the “old” software (but it is best to avoid interruptions in any case). To update the OmniaONE software proceed as follows: 1.
  • Page 70 OmniaONE, the following “Update Initiated” screen should appear: 7. Now the software bank that is not currently in use will be updated with the new file. Read the “Update Initiated” screen and then click on the link: “Click here to monitor the progress of the update.” The “Installation Progress Monitor”...
  • Page 71 You will notice that the previous software (Bank 0 in this case) is still selected and running. You can choose to change to the other bank to activate the new software or keep running the current software and reboot later. NOTE: A reboot is required to activate the new software, and this will interrupt the audio.
