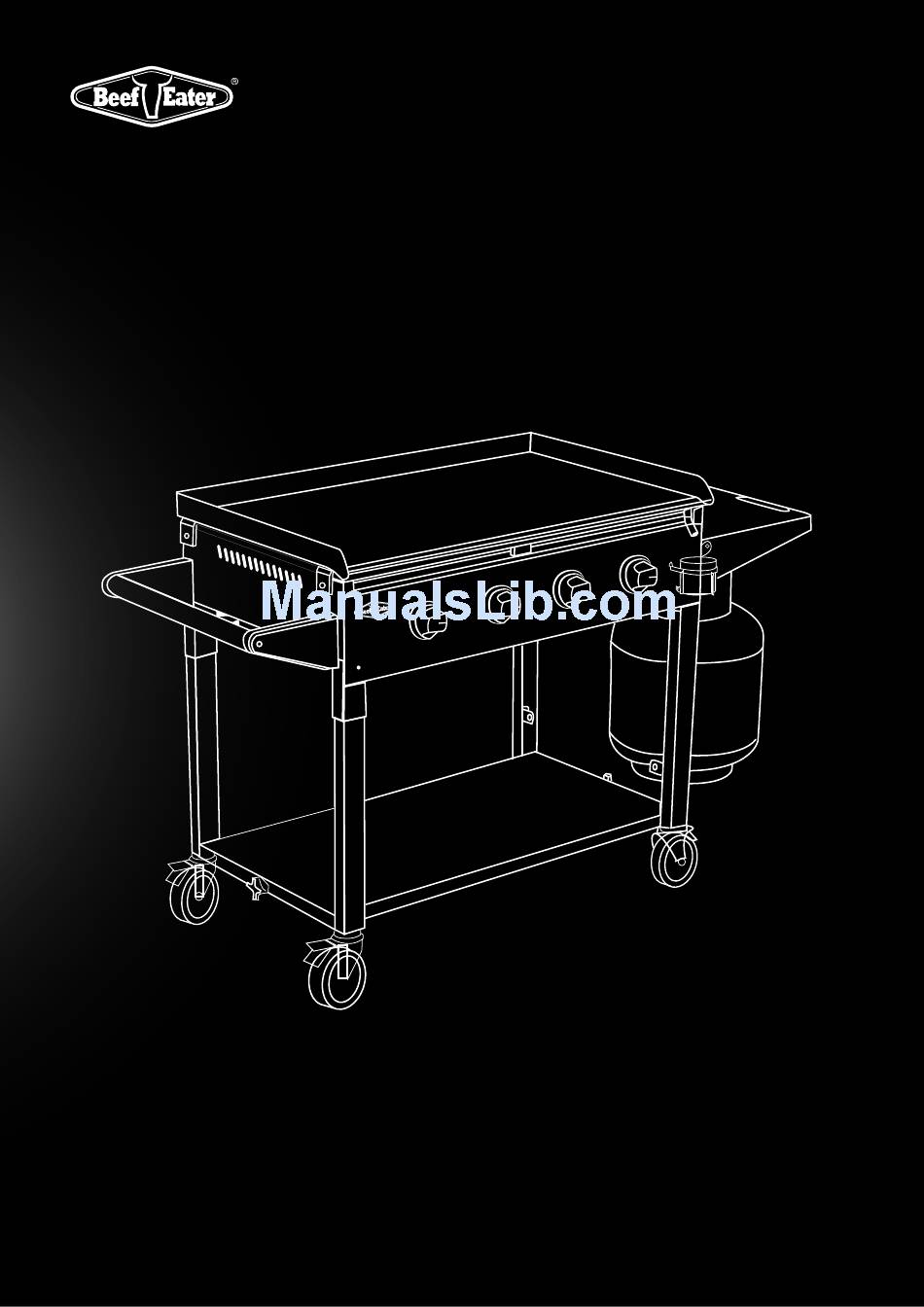

- Page 1 CLUBMAN Assembly and Operating Instructions FOR MODELS: 16440, 16540, 16640 AUSTRALIA / NEW ZEALAND FOR OUTDOOR USE ONLY...
-
Page 2: Table Of Contents
CONGRATULATIONS CONTENTS Dear customer, Important safety instructions ............3 Gas specifications .................4 Congratulations and thank you for choosing our barbecue. Know your clubman barbecue ............ 5 We are sure you will find it a pleasure to use. Before you use the barbecue, we recommend that you read through the Installation instructions .............. -
Page 3: Important Safety Instructions
This appliance must be serviced only by a qualified IMPORTANT TIPS & INFORMATION licensed person. BeefEater barbecues are approved for OUTDOOR USE ONLY Improper installation, adjustment, alteration or and must not be used in a building, garage or any other maintenance can cause injury or property damage and enclosed area. -
Page 4: Gas Specifications
Make connection as described in figures 1 and 2. Leak-test the connection with a soapy water solution. (See Gas Leak Testing Procedure). Hose and regulator replacement must be a genuine part specified for this appliance and is obtainable from your nearest BeefEater stockist. GAS SPECIFICATIONS... -

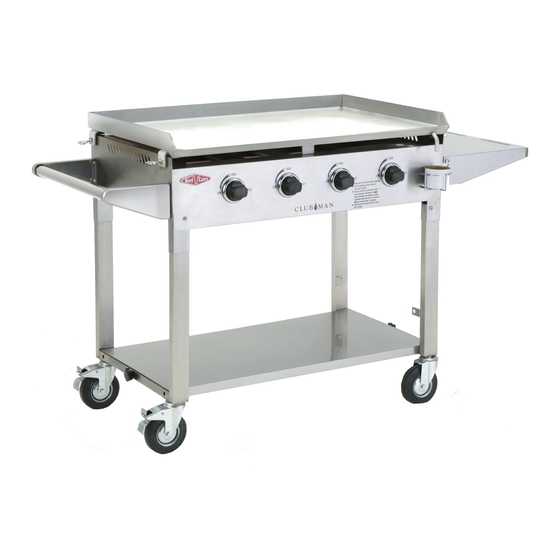

Page 5: Know Your Clubman Barbecue
KNOW YOUR CLUBMAN BARBECUE RH Side wheels Frame Folding shelves LH Side Wheels Frame Thumb screws Cooking Plate Operating Knobs Handle Bottom Shelf or Cross Brace Fat Collecting Cup Cylinder Hook (under RH shelf) KNOW YOUR CLUBMAN BARBECUE... -
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS The legs are folded on the underside of the BBQ. To unfold: Place the BBQ upside down, and release legs by unscrewing the 2 Hand Screws. Pull both Wheels Frames to a vertical position. Place the bottom shelf (or cross-brace) in between the horizontal members, and tighten with a hand-screw on each side. - Page 7 INSTALLATION INSTRUCTIONS Turn back the right way, and install the fat collecting cup holder. Place cup inside. Install the shelf on the right hand side: The shelf should be installed such that the bottom screw in each bracket will go through the hole in the shelf. The top remain free, so the shelf can be folded.
- Page 8 INSTALLATION INSTRUCTIONS Install cylinder hook over the 2 studs under the right-hand side shelf. Fit the handle on left hand side: INSTALLATION INSTRUCTIONS...
- Page 9 INSTALLATION INSTRUCTIONS Assemble the black spacers to the ends of the handle tube. Insert the assembled tube in between the brackets. Insert threaded rod through brackets and handle, and tighten with a nut on each side. The Cooking Plate of this BBQ is designed so it can be removed for easier transportation of the appliance. To remove the plate, you must undo the 5 thumb screws holding it to the body.
-
Page 10: Using Your Barbecue
USING YOUR BARBECUE Ignition: Open Gas Cylinder valve. G. Light each burner by following this procedure (16540, Model 16440 (Stainless Steel) does not require a battery and has a QuartzStart ignition system built into every valve. 16640): For 16540 and 16640 models, A battery must be inserted into •... -
Page 11: Partial Enclosures
PARTIAL ENCLOSURES TECHNICAL INFORMATION This appliance shall only be operated in an above ground, open air situation with natural ventilation, without stagnant WARNING WARNING areas, where gas leakage and products of combustion are Note: Do not modify this appliance. Any deviation from rapidly dispersed by wind and natural convection. -
Page 12: Maintenance
MAINTENANCE Use only soft cloth or sponge to clean the surfaces of barbecue and then carefully dry. Avoid leaving acidic or alkaline substances on the plate. It may cause discolouration and corrosion. Keep the igniters probes clean. Wipe away any apparent water or dirt. -
Page 13: Maintenance Troubleshooting
TROUBLESHOOTING CONDITION POSSIBLE CAUSE SOLUTION Empty gas cylinder Replace cylinder Re-ignite and allow operating for Flame goes out while in use Air mixed in hoses a short while, till clears out Blockage Seek professional assistance Turn off knob button, then open the Gas cylinder valve close cylinder valve Re-ignite and allow operating for a... -
Page 14: Notes
NOTES NOTES... -
Page 15: Warranty
Warranty FOR SALES IN AUSTRALIA AND NEW ZEALAND APPLIANCE: BEEFEATER DISCOVERY BARBECUE 7. You may not make a claim under this warranty unless the defect claimed is This document sets out the terms and conditions of the product due to faulty or defective parts or workmanship. Electrolux is not liable in the warranties for Electrolux Appliances. - Page 16 For more information on all Beefeater products, or for dimension and installation information, call into your retailer, phone or email our customer care team or visit our website: AUSTRALIA phone: 1300 307 939 fax: 1800 356 669 email: customercare@electrolux.com.au web: beefeaterbbq.com...
