Summary of Contents for BeefEater ClubMan 16440

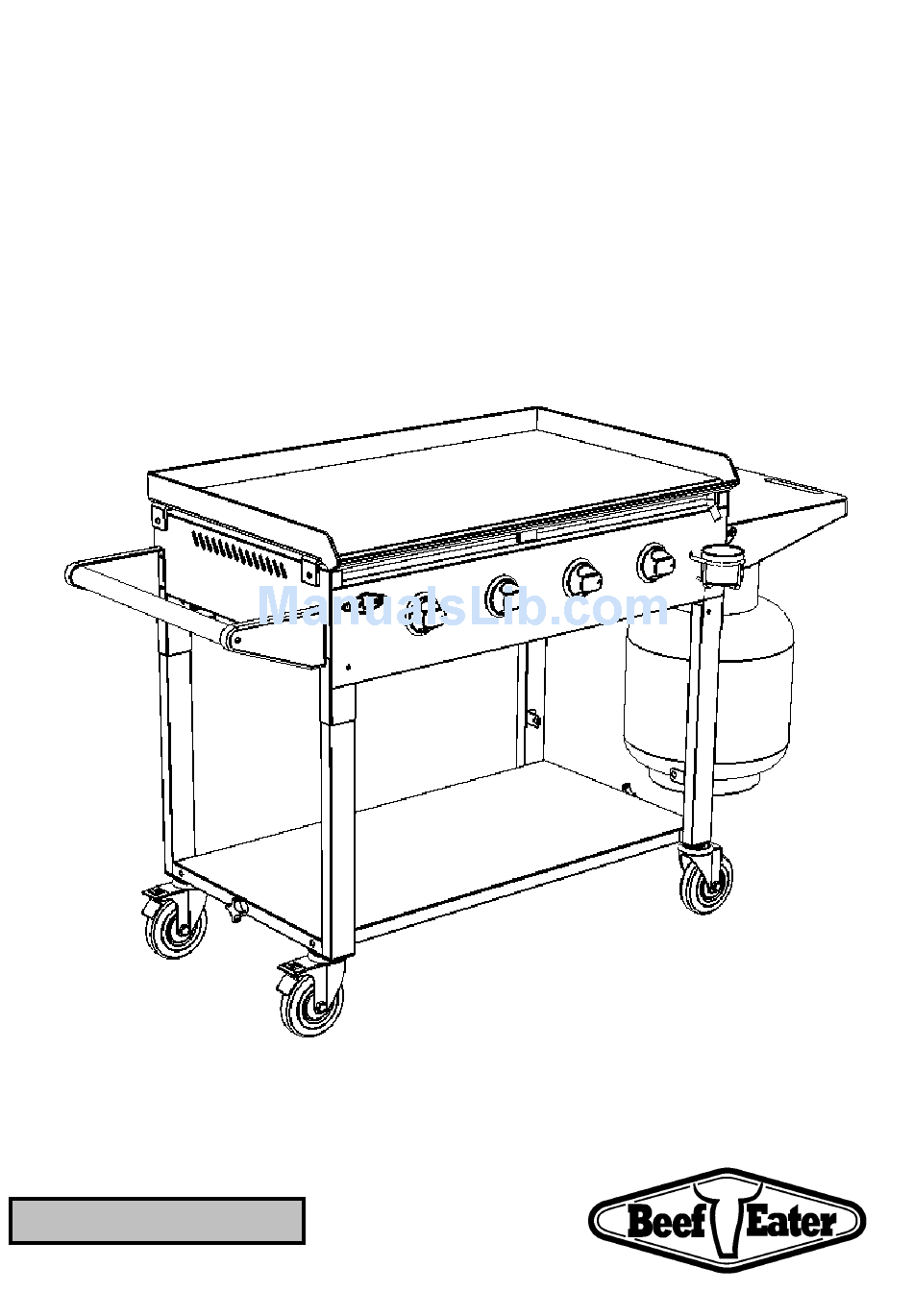

- Page 1 ClubMan Assembly and Operating Instructions For Models: 16440 16540 16640 FOR OUTDOORS USE ONLY...
-
Page 2: Safety Warning
If correct operation can not be achieved, disconnect barbecue from gas supply, and contact your nearest BeefEater dealer. Please only use BeefEater supplied hose(s) to connect this appliance. Natural Gas conversion kits are available from your nearest BeefEater dealer. Leave these instructions with customer... - Page 3 DO NOT • Lean over barbecue when lighting. • Spanner tighten all gas fittings as per • Leave cooking food unattended. instructions. • Delay lighting burners after turning gas on. • Check all gas hoses and line connections • Spray or store aerosols in vicinity of for damage, cuts or cracks each time the barbecue whilst in operation.
-
Page 4: Gas Cylinder Safety Information
4. Make connection as described in figures 1 and 2. 5. Leak-test the connection with a soapy water solution. (See Gas Leak Testing Procedure). Hose and regulator replacement must be a genuine part specified for this appliance and is obtainable from your nearest BeefEater stockist. - Page 5 Gas Leak Test Procedure Use the following procedure to check for gas leaks. Never use a naked flame to check for gas leaks. 1. In a small container, mix up a solution of water and detergent or soap. Mix the solution well. 2.
-
Page 6: Installation Instructions
Installation Instructions The legs are folded on the underside of the BBQ. To unfold: 1. Place the BBQ upside down, and release legs by unscrewing the 2 Hand Screws. 2. Pull both Wheels Frames to a vertical position. Place the bottom shelf (or cross-brace) in between the horizontal members, and tighten with a hand-screw on each side. - Page 7 4. Install the shelf on the right hand side: The shelf should be installed such that the bottom screw in each bracket will go through the hole in the shelf. The top remain free, so the shelf can be folded. 5.
- Page 8 Assemble the black spacers to the ends of the handle tube. Insert the assembled tube in between the brackets. Insert threaded rod through brackets and handle, and tighten with a nut on each side. The Cooking Plate of this BBQ is designed so it can be removed for easier transportation of the appliance.
-
Page 9: Using Your Barbecue
Note: for 16440 and 16540 Barbecues, the plate is made of Mild Steel, and coated with non-toxic paint to protect it from rusting. With use, the coating may come off, and while posing no hazard, it is recommended to keep the plate lightly oiled while not in use, and keep the Barbecue covered, to prevent corrosion of the plate. - Page 10 If ignition does not occur, return to ‘Off’ and repeat after 5 minutes. H. Once the left-hand-side burner is alight, light each successive burner from left to right. I. Light each burner by following this procedure (16440): Read all instructions before lighting. ...
-
Page 11: Technical Information
Operation Gas Pressure: LPG – 2.75 Kpa; NG – 1.0 Kpa Energy Input: 18Mj per Burner. Gas Nozzle orifice size: LPG – Ø1.2mm; NG – Ø1.95mm Appliance LENGTH HEIGHT DEPTH WEIGHT [mm ] [mm] [mm] [ Kg] 4 Burner ClubMan 16440, 16540, 16640... -
Page 12: Maintenance
However, you must retain your receipt or proof of purchase. When claiming warranty for this appliance you must provide a copy of your proof of purchase receipt. No claims for warranty will be accepted without proof of purchase. Service and parts can be obtained at your nearest BeefEater dealer. Model number:... -
Page 13: Troubleshooting
Troubleshooting Condition Possible Cause Solution Empty Gas cylinder. Replace cylinder. Re-ignite and allow operating for a short Flame goes out while in use Air mixed in hoses. while, till clears out Blockage Seek professional assistance. gas cylinder valve Turn off knob button, then open the close cylinder valve Re-ignite and allow operating for a short... -
Page 14: Warranty
Should any part fail due to defective workmanship or faulty materials within the specified period from the date of purchase, BeefEater or its distributor will repair or, (at distributors option), replace the defective part free of charge. -
Page 15: Spare Parts
Spare Parts:... - Page 16 Woodland Home Products 3-5 Birmingham Av, Chester Hill, NSW, Australia, 2162 Phone: 1800 356 660 Facsimile: 02 9724 8899 E-mail: mail@beefeaterbbq.com Website: www.beefeaterbbq.com ClubMan_Inst_V4...
