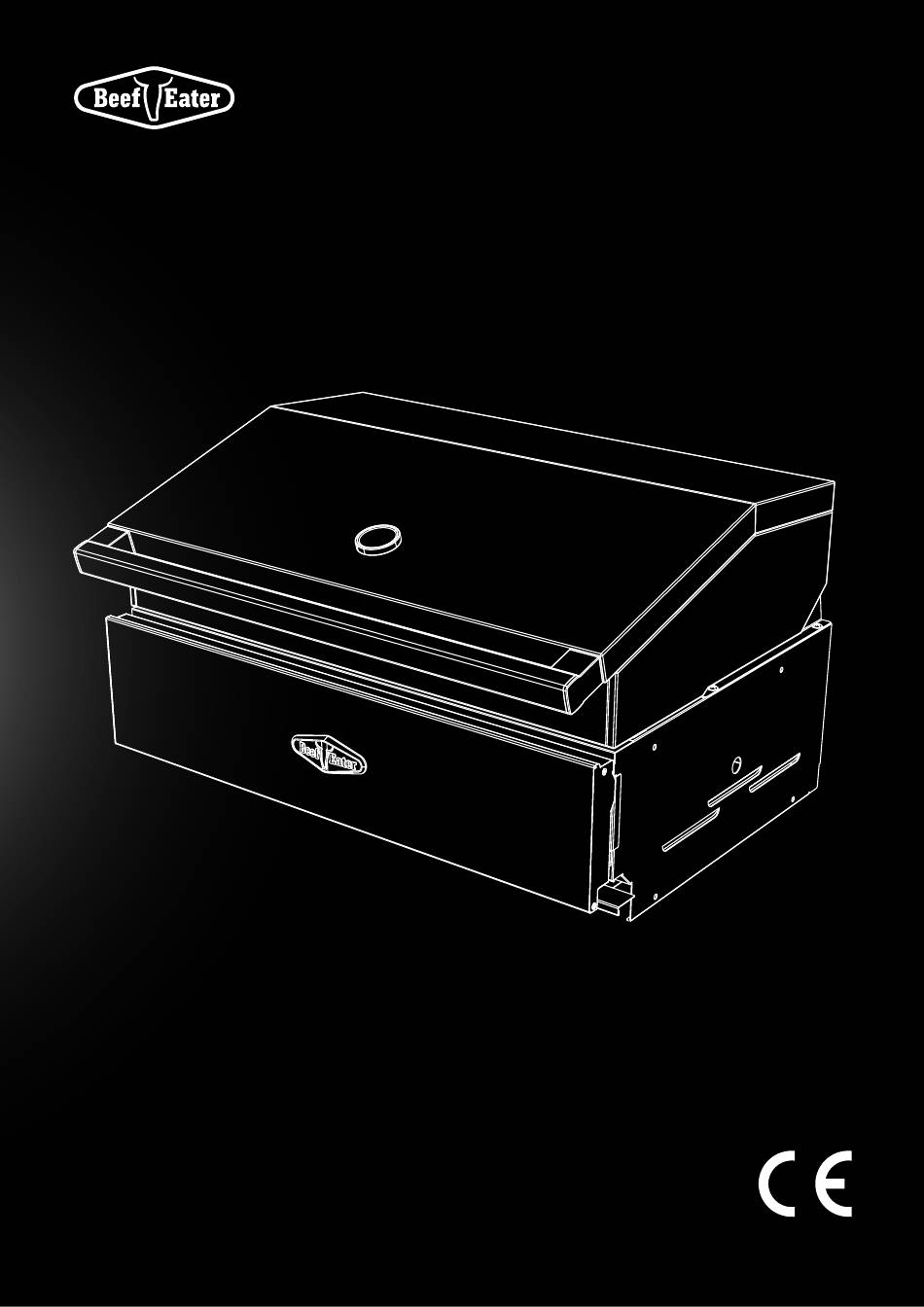

- Page 1 1500 SERIES Assembly and Operating Instructions BUILT IN NATURAL GAS (METHANE) BDB1530GAE, BDB1540GAE & BDB1550GAE FOR OUTDOOR USE ONLY EUROPE BMAN_1500Series_Builtin_NG_EU_Sep20...
-
Page 2: Table Of Contents
Products must be used, installed and operated in accordance with this manual. You may not be able to claim on the BeefEater manufacturer’s warranty in the event that your product fault is due to failure to adhere this manual. -
Page 3: Important Safety Instructions
IMPORTANT TIPS & INFORMATION BeefEater Barbecues are approved for OUTDOOR USE ONLY WARNING WARNING and must not be used in a building, garage or any other This appliance must be serviced only by a qualified enclosed area. - Page 4 Data Plate. BeefEater dealer. The appliance is designed for use by adults, keep • Please only use BeefEater supplied hose(s) to connect children away from the barbecue at all times. this appliance. Use only on a flat, level, stable non-combustible surface.
- Page 5 IMPORTANT SAFETY INSTRUCTIONS • Move the appliance during use. IMPORTANT TIPS & INFORMATION • Obstruct any ventilation of barbecue or the cylinder. Should the appliance go out for any reason, turn off all • Allow the flexible gas supply hose or any electrical cord control knobs and the cylinder gas valve.
- Page 6 Make connection as described in figures 1 and 2. Leak-test the connection with a soapy water solution. (See Gas Leak Testing Procedure). Hose and regulator replacement must be a genuine part specified for this appliance and is obtainable from your nearest BeefEater stockist. GAS CYLINDER SAFETY INFORMATION...
-
Page 7: Product Description

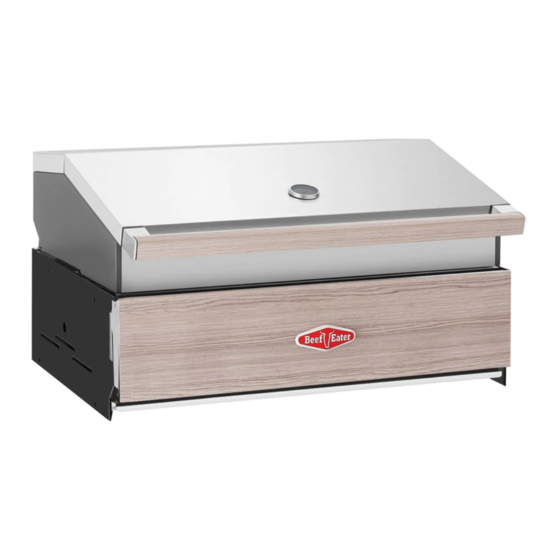

PRODUCT DESCRIPTION 4 burner built-in barbecue Warming rack Burner box Cast iron grill Support bracket and fasteners (purchase kit BAH70HS separately, needed for installation in BeefEater outdoor kitchen) Cast iron hotplate Control panel Vaporisers Flip down control panel cover Burners... -
Page 8: Product Dimensions
PRODUCT DIMENSIONS 584mm 654mm 538mm 3 burner Hood and flip down control panel cover closed 804mm 4 burner 974mm 710mm 5 burner Hood and flip down control panel cover open PRODUCT DIMENSIONS... -
Page 9: Gas Specifications
GAS SPECIFICATIONS NOTES: Gas bottle safety information • This appliance MUST be installed and serviced only • It is recommended to turn off the cylinder valve when by a qualified licensed person. the appliance is not in use. • This product is intended for outdoor use only. •... -
Page 10: Installation Warnings
INSTALLATION WARNINGS WARNING WARNING Choosing a location • This appliance shall only be used in an above ground, When planning the location and preparing the installation open air situation with natural ventilation without structure for this appliance note the following: stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind or natural •... -
Page 11: Mounting Enclosure Guideline
MOUNTING ENCLOSURE GUIDELINES Mounting enclosure dimensions when installed with Beefeater hanging bracket BA70HS 650mm min. 730mm 3 burner 604mm 880mm 4 burner Separation panel 40mm gap min. 1050mm 5 burner Gas bottle Rear wall/splashback to be venting slots Gas bottle... -
Page 12: Assembling The Barbecue
Fasteners supplied (with hanging bracket kit) The barbecue can be mounted into the enclosure by using the M6 x 25MM BeefEater hanging bracket kit BA70HS or by resting the barbecue 8 OFF directly on its base. See step 1-4 for mounting of the hanging... - Page 13 x 3, 4 or 5 ASSEMBLING THE BARBECUE...
- Page 14 ASSEMBLING THE BARBEQUE ASSEMBLING THE BARBECUE...
-
Page 16: Burner Removal And Fitting And Leak Test Procedure
BURNER REMOVAL, FITTING AND LEAK TEST PROCEDURE WARNING IMPORTANT After completing the gas hose connections, conduct a leak test following the leak test procedure before using the appliance. WARNING WARNING To ensure gas tight connections, complete the gas leak test procedure before and after gas hose connection and after every reconnection of the gas cylinder. -
Page 17: Operating Instructions
OPERATING INSTRUCTIONS Control functions Lighting instructions Before lighting the barbecue: • Do not attempt to light burners with the cooking surfaces covered • Check that all hoses and gas fittings are tight • Read instructions before lighting • Open the roasting hood •... -
Page 18: Cooking Methods
COOKING METHODS Direct cooking method Indirect cooking method This method of cooking requires the hood to be closed. This method of cooking can be done with the hood either closed or open. Indirect cooking involves little or no heat directly underneath the food. - Page 19 INDIRECT COOKING / ROASTING Reposition the grill plates You may find it useful to purchase a meat thermometer to help take the guess work out of cooking. To achieve the best heat circulation around the food, it is best Meats such as beef, lamb, veal and pork should be to remove the hotplate from the barbecue and position the about 70˚C/160˚F when medium.
-
Page 20: Cleaning And Care
Burner ports Brushes specifically designed for this purpose can be purchased from your BeefEater retailer. Wipe off remaining residue with a paper towel. • Wash the surface of the grills with a soft sponge and Inspecting the hose and Regulator Assembly and Cylinder a solution of hot water and a mild dishwashing liquid. -
Page 21: Technical Information
TECHNICAL INFORMATION TECHNICAL INFORMATION EUROPEAN SPECIFICATION 1500 SERIES 3 BURNER BBQ AT,CH,CZ,DK, DE,LU, EE,ES,FI,FR, PL,RO GB,GR,HU,IE, COUNTRY IT,LT,LV,NL, NO,PT,RO,SE, SI,SK GAS CATEGORY GAS TYPE METHANE GAS INLET PRESSURE [mbar] INJECTOR 1.40 Ø [mm] 12KW TOTAL HEAT INPUT G20:1.27m3/h WARNING CAUTION READ THE INSTRUCTIONS BEFORE USING THE APPLIANCE. - Page 22 TECHNICAL INFORMATION 1500 SERIES 5 BURNER AT,CH,CZ,DK, DE,LU, EE,ES,FI,FR, PL,RO GB,GR,HU,IE, COUNTRY IT,LT,LV,NL, NO,PT,RO,SE, SI,SK GAS CATEGORY GAS TYPE METHANE GAS INLET PRESSURE [mbar] INJECTOR 1.40 Ø [mm] 20KW TOTAL HEAT INPUT G20:1.693m3/h WARNING CAUTION READ THE INSTRUCTIONS BEFORE USING THE APPLIANCE. USE OUTDOORS ONLY.
-
Page 23: Troubleshooting
- if no spark is present when control knob is turned then the unit may need to be serviced or replaced. Contact your BeefEater dealer. Check that there is a visible flame coming from the pilot ignition tube. Check that the pilot ignition tube is not blocked by spider webs or insect nests. -
Page 24: Notes
NOTES NOTES... - Page 25 NOTES...
- Page 26 NOTES NOTES...
-
Page 27: Warranty
Conditions of Warranty materials within the specified period from the date of purchase, 1. The appliance is delivered to the BeefEater distributor’s service department BeefEater or its distributor will repair or, (at distributors option), or authorised service agent and freight charges both ways are paid by the replace the defective part free of charge. - Page 28 For more information on all Beefeater products, or for dimension and installation information, call into your retailer, phone or email our customer care team or visit our website: EUROPE BeefEater Europe PO Box 1238 Cheddar BS27 9AH United Kingdom phone UK:...
