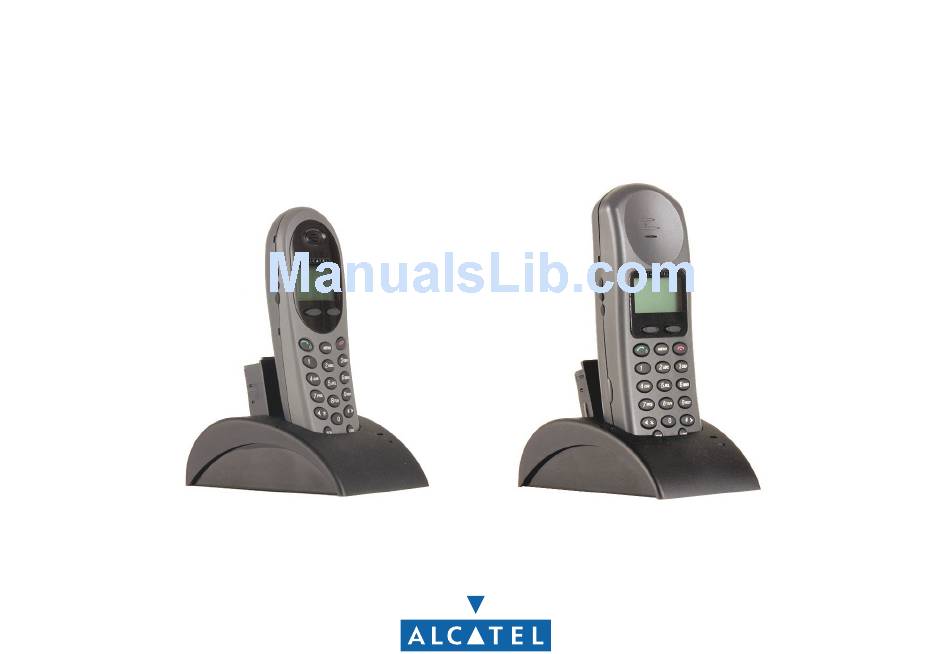

  • Page 1 Alcatel OmniPCX Office First Mobile IPTouch 300/600...

  • Page 3: User Manual

    User manual Introduction Thank you for choosing a telephone from the mobile IP Touch range manufactured by Alcatel. Your telephone has a new ergonomic layout for more effective communication. MIPT 300 MIPT 600 How to use this guide Lift the receiver.
  • Page 5 Contents Getting to know your telephone ....... . p.6 Programming your telephone ........p.19 Using your telephone .

  • Page 6: Getting To Know Your Telephone

    Getting to know your telephone Navigation Telephone Rediallist Appointment Up-down navigation keys: used to navigate within the menus or in a text zone when entering characters. Lock Push to Talk Functions accessible from the 'Menu' key Set idle: Configure the set (personal assistant, voice Make a second call.

  • Page 7: Using Your Telephone

    Using your telephone Other Calling your correspondent by name (company directory) Switch on your telephone Press the on/off-hook key until you hear two beeps. MENU Dialbyname press the 'Call by first letters of your name ' key correspondent’s Switch off your telephone name* Press the off/on-hook key until you hear a beep (the telephone must not be in communication).
  • Page 8 Using your telephone Make a call-back request to a busy number the number you are calling is MENU ¤Callback busy Sending DTMF signals During a conversation you sometimes have to send DTMF signals, such as with a voice server, an automated attendant or a remotely consulted answering machine.

  • Page 9: During A Conversation

    During a conversation Answer the second call: Other Making a second call during a conversation Display the name or number LINE the first call is on hold of the second call to take the during a the first call is on hold call conversation •...
  • Page 10 During a conversation • Recover the call on hold: Transfer a call to the voice mailbox of an absent party your telephone rings LINE automatically after 30 seconds During the call, you want to transfer your correspondent to the voice mailbox of another correspondent. to take the call take the call during a conversation...

  • Page 11: Adjust Audio Volume

    During a conversation * enter the name of your correspondent : Enter the text: the number pad keys have letters that you can display by successive presses (the letter Q is on key 7 and the letter Z is on key 9) Position the cursor in the entry field.

  • Page 12: Answering The General Bell

    Sharing Other Calling a correspondent on his/her loudspeaker Answering the general bell Your internal correspondent does not answer. If authorised, you can remotely activate your correspondent’s phone: When the operator is absent, outside calls to the operator are indicated by a general bell. To answer: your correspondent MENU ForcedAnsw...
  • Page 13 Sharing • Personal message: Send a voice message copy NewMsg create a temporary send message personal message* MENU Message Voice * Create a temporary personal message: personal code Enter the text: the number pad keys have letters that you can display by successive presses. display number of new and MENU Consult...
  • Page 14 Sharing Modify the automated attendant welcome message remotely Sending a recorded message to a number / a distribution list This feature enables a user with the appropriate rights to modify the automated attendant night or day-time message. MENU Message Voice personal code voice mail call number of your...

  • Page 15: Keep In Touch

    Keep in touch Other Diverting your calls to your voice message service Selecting calls to be diverted When a diversion is applied, you can select the types of call to be diverted: outside, internal, all. diversion is MENU Immediate»VM Forward acknowledged type of call diverted is MENU...
  • Page 16 Keep in touch Diverting calls to your pager Activate/disable the personal assistant Callers will thus be able to contact you while you are moving around the company: display of personal MENU Settings Assistant assistant state (active or not actve) MENU Forward Topaging select the 'Diversion' function...

  • Page 17: Do Not Disturb

    Keep in touch • Predefined message: Diverting calls when your line is busy (divert if busy) 4.10 change language of FixedMsg message Callers can be diverted to another telephone if you are already on the line. select the message to be sent MENU Forward...

  • Page 18: Consulting Written Messages

    Keep in touch • The 27 standard messages are shown below: During message consultation, press the 'menu' key to access the following functions: ( MENU Call me back 15 Meeting on ___ (*) Call me back tomorrow 16 Meeting on ___ at _:_ (*) Read the rest of the message.

  • Page 19: Programming Your Telephone

    Programming your telephone Other Modifying your personal code Initializing your voice mailbox Your personal code is used to access your voice mailbox and to lock your telephone. enter your personal code then record MENU Message your name according to voice guide instructions MENU Settings...
  • Page 20 Programming your telephone Activate/deactivate the vibrator: Selecting language Continious Vibrate cadence deactivate activate Options MENU Settings vibrate mode continuous mode Short pulse Language activate select the language apply your choice intermittent of your choice mode Activate/Deactivate the ring: Programming your personal directory Continious Vibrate cadence MENU...
  • Page 21 Programming your telephone • Lock the keypad automatically: you can configure your set so that the keypad is blocked automatically after 5, 10 or 20 seconds. Programming an appointment reminder You can define the time of a temporary reminder (one in 24 hours) or a permanent reminder (every day at the same time). Keypad autolock Phone Options •...
  • Page 22 Programming your telephone Activate/deactivate the Warning tones 5.12 The warning tones inform the user of an abnormal operation (out of range, system activated or halted, etc.). To deactivate these tones: Warning tones Phone Options Enable tones Desable tones...

  • Page 23: Batteries And Chargers

    Removing and replacing the battery in MIPT 300 models. Press the battery latch on the rear of the wireless telephone set. The battery detaches from the telephone. To replace the battery, insert the battery catch into the bottom of the battery compartment.

  • Page 24: Dual Chargers

    The Gang Charger - only on Mobile IPTouch 600 The Dual Charger is a two-slot desktop charger. Two different models are available to charge MIPT 300 and MIPT 600. The Dual The Gang Charger is designed to charge four Nickel Metal Hydride (NiMH) Battery Packs simultaneously. Full charging is chargers are designed to charge the MIPT and a spare Battery Pack.

  • Page 25: Adjusting The Volume

    Push to Talk (Mobile IP Touch 600 only) Adjusting the volume howtoc The Push-to-talk feature allows the Mobile IPTouch 600 to operate in a push-to-talk (PTT) group broadcast mode in addition to the standard telephone operation. The Mobile IPTouch 600 telephone supports 8 multicast channels. The channel used is saved in the telephone memory. A PTT call is initiated by pressing the Talk button located on the right side of the handset.

  • Page 26: Receiving A Call

    Push to Talk (Mobile IP Touch 600 only) Receiving a call Upon receiving a PTT transmission, the phone plays the 'receiving alert' sound and enters the receive state. In this state the phone receives all conversations on the selected channel. The phone will ignore the Talk key while in the receive state. The screen shows the current active channel, the caller ID information of the current transmitter, and an indication that the phone is receiving a broadcast transmission.

  • Page 27: Guarantee And Clauses

    The internal antenna is then positioned properly. Council Electro Magnetic Interference/Compatibility: Alcatel Mobile IPTouch 300 !Nearly every electronic device is susceptible to electromagnetic interference (EMI) if inadequately shielded, designed or Alcatel Mobile IPTouch 600 otherwise configured for electromagnetic compatibility.
