INTRODUCTION

In keeping with our environmental preservation and compliance commitment, we include Start Up Guide in our packaging. More complete instructions and online assistance are available on our website: www.alcatel-home.com

BEFORE 1st USE

Connecting your phone:

  • Connect plugs in corresponding sockets in the base station. Plug the telephone line into telephone socket and insert power plug in an electrical outlet.
  • Insert batteries in Handset.

Before you start to use your telephone, charge batteries continuously for 15 hours.

warning only use plug adapter supplied with the unit and rechargeable batteries with your phone.

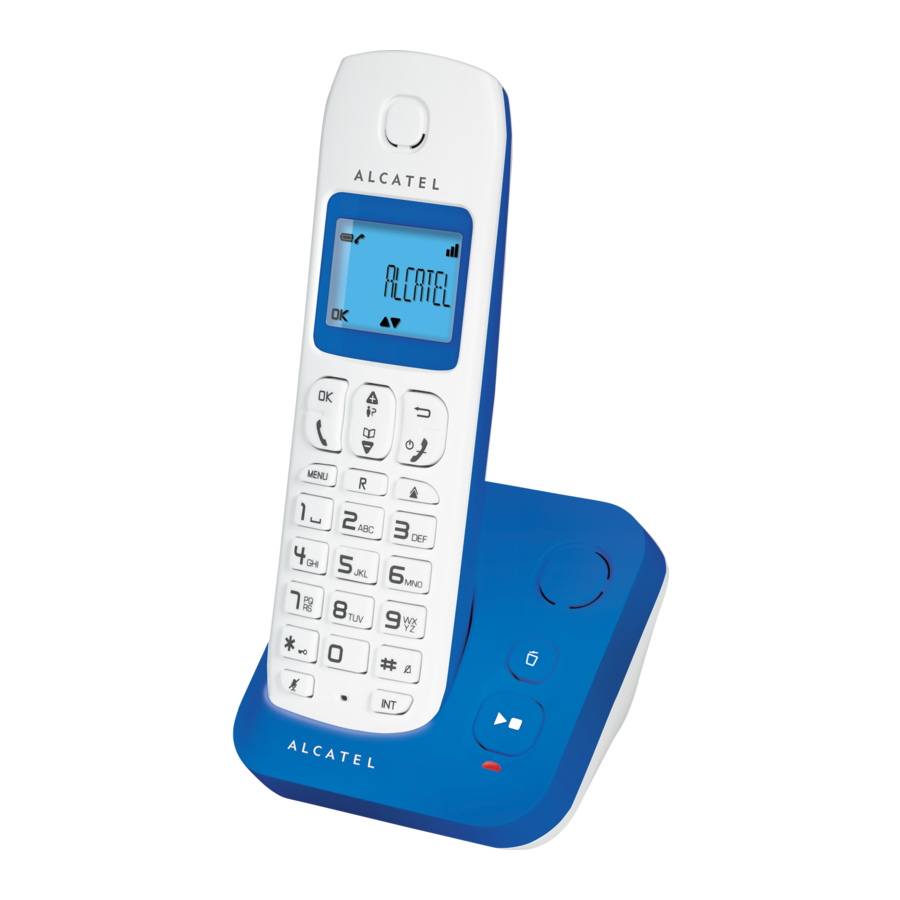

Handset / Base Station Keys

Handset / Base Station Keys

  1. OK key
  2. Back key/Clear key
  3. Navigation key
  4. Talk key/Activate handsfree (E190 only)
  5. Hang-up/Exit key
  6. Recall (Flash) key - To access to operator services*
  7. Menu key
  8. Redial key
  9. Star key - To lock / unlock keypad; toggle between the external and internal calls
  10. Hash key
  11. Mute key
  12. Call transfer/Intercom key
  13. Paging key - To locate handset / to start registration procedure. When multiple handsets are delivered, they are pre-registered on the base station. Handset registration is only necessary when you buy extra handsets or if a handset has become faulty.
  14. Delete message.
  15. Play / Stop message playback.

*Subject to subscription and availability of the service from the fixed line operator.

Display icons

Indicates battery is fully charged.

Indicates battery is fully discharged.

Indicates that an external call is connected or held.
Icon blinks when receiving an incoming call.

Indicates you have a new voice mail message*.

Indicates you have new missed calls*, or the call log is being viewed.

Displays when the phonebook is accessed.

Displays when the alarm clock is activated.

Displays when handsfree is activated (E190 only).

Displays when ringer volume is turned off.

Indicates that the handset is registered and within range of the base station.
Icon blinks when the handset is out of range or is searching for a base.

Displays when in menu mode to confirm your selection.

Indicates that more options are available.
Use the UP / DOWN keys to scroll up / down.

Displays when in menu mode.
Select BACK to return to the previous menu level.

Set language and flashtime to operate correctly on your network:

  • / or select PERSONNALIS. / / or select LANGUE // or/select your desired language / .
  • / or select ADVANCE SET // or select RECALL TIME / / or select SHORT / MEDIUM or LONG / .

Using the phone

Receive and end a call

  • /

Make a call

  • either before or after dialing your number
  • From redial list: / or / .
  • From call log list*:/ or / .
    warning Note: You need to subscribe to Caller Line Identification service to be able to see the caller's number or name in the call log.
  • From direct memories: long press on KEY 1 or KEY 2 in idle mode.
  • From phonebook: / or / .
  • To activate/dsactivate handsfree: (for E190 only)

To make an internal call

  • If only 2 registered handsets: .
  • If more than 2 registered handsets: / enter the handset number.
  • To ring all handsets to intercom: .

To make a three-party conference call: during call, / enter handset number or to ring all handset / on the called handset to answer / long press .

Phonebook settings: 50 entries

To register in phonebook

/ or to select PHONEBOOK / / select NEW ENTRY / enter name of contact // enter number of contact / . ( to delete the characters)

To register the direct memories in keys 1 & 2

/ or select PHONEBOOK // orselect DIRECT MEM // orselect KEY 1 or KEY 2 // or select EDIT NUMBER // edit or enter the number /.

General settings

This phone can be customized according to your preferences, to access the different possibilities press :

  • To customize handset(name, melody, language,...): or select PERSONAL SET / .
  • To set time and alarm: or select CLOCK&ALARM /.
  • To change PIN, registration handset, reset: or select ADVANCED SET / .

Answering machine setting

Answering machine operation by handset
Turn the answering machine on or off

  • / or to select ANSW MACHINE / / or to select ANSW. ON/OFF/ / or to select ON or OFF / / confirmation beep.

Set the answer mode

  • / or to select ANSW MACHINE / / or to select ANSWER MODE // or to select ANSWER ONLY or ANSW.&RECORD/ .

Record a personalised outgoing message

  • / or to select ANSW MACHINE / / or to select RECORD OGM / / orto select ANSWER ONLY or ANSW.&RECORD / / or to select RECORD OGM / to start recording / to end recording.

Playback and delete messages

  • / or to select ANSW MACHINE / / to start playback.
  • During message playback you can press, then or to select options to DELETE the current message.

Set ring delay

  • / or to select ANSW MACHINE / / or to select SETTINGS / / to enter RING DELAY / or to select 2 - 7 RINGS or ECONOMY // confirmation beep.

To check messages remotely

  • Dial your home phone number / while the answering machine playing greeting message / and enter remote access code (master PIN code) / confirmation beep / message start playing.

The remote feature lets you perform the following functions:

To Press this button

Review message

Play back messages

Stop message playback

Erase message

Skip message

Turn on answerer

Turn off answerer

1

2

8

6 (during message playback)

3

7

9

Set the OGM voice language (optional)

  • / or to select ANSW MACHINE / / or to select SETTINGS / / or to select LANGUAGE / / or to select your preferred language / / confirmation beep.

TROUBLESHOOTING

As a general rule, if a problem occurs, remove the batteries from all handsets for about 1 minute, then disconnect and reconnect the power supply to the base and reinstall the handset batteries. For more information, you can download full user guide or get on-line assistance: www.alcatel-home.com
