Alcatel D285 VOICE - Cordless Phone Start Up Guide

Table of Contents

Contents

1 BEFORE 1st USE
2 Handset / Base Station Keys
3 Using the phone
4 TROUBLESHOOTING
5 SAFETY
6 ENVIRONMENT
7 Documents / Resources
- 7.1 References
- 7.2 Download manual

BEFORE 1st USE

Connecting your phone:

Connect plugs in corresponding sockets in the base station. Plug the telephone line into telephone socket and insert power plug in an electrical outlet.
Insert batteries in Handset
Before you start to use your telephone, charge batteries continuously for 15 hours.
only use plug adapter supplied with the unit and rechargeable batteries with your phone.

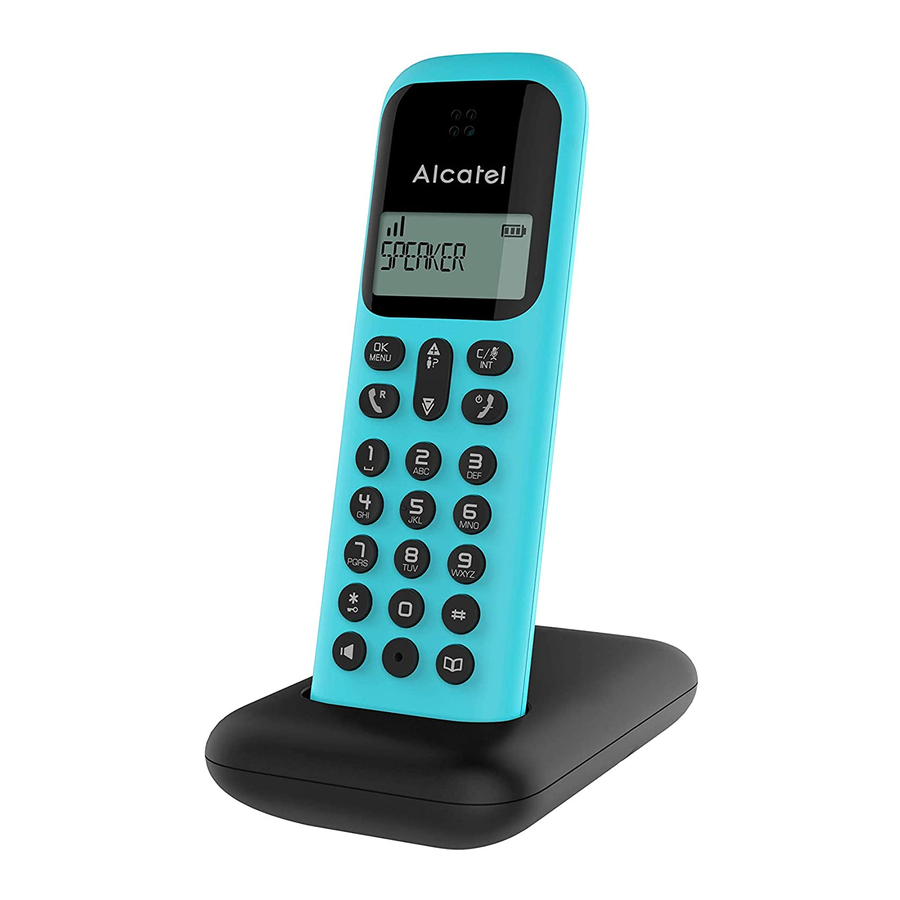

Handset / Base Station Keys

OK/Menu key
Back/Mute/Intercom key
& 4. Navigation key

Hang-up/Exit key
Phonebook key
Direct access key to listen new voice messages - when "NEW MSG" is shown and flashing. (during a call, press once to access to operator services*)
Star key - To lock / unlock keypad by long pressing key.
Talk key / Loudspeaker key
Press to play the message.
Press again to stop the message playback.
Flashing LED for unread messages.
Press once to delete the message during playback. Press and hold to delete all messages.
Note: New voice messages will not be deleted.
Paging key - To locate handset / to start registration procedure. When multiple handsets are delivered, they are pre-registered on the base station. Handset registration is only necessary when you buy extra handsets or if a handset has become faulty.

Display icons

	Indicates battery is fully charged.
	Indicates battery is fully discharged.
	Indicates that an external call is connected or held. Icon blinks when receiving an incoming call.
	Indicates you have a new voice mail message*.
	Displays during browsing call log answered incoming call item.
	Displays during browsing redial list.
	Blinks when you have new missed calls*. Steadily on during browsing call log which has missed calls that have been read.
	Displays when the alarm clock is activated. (After alarm is finished, to turn off Alarm function by /or select CLOCK / ALARM / / SET ALARM / / or select OFF / )
	Displays when handsfree is activated.
	Indicate when the telephone answering machine (TAM) is turned on. Flash when new TAM messages are received.
	Displays when ringer volume is turned off.
	Indicates that the handset is registered and within range of the base station. Icon blinks when the handset is out of range or is searching for a base. If E appears on top of the icon, it means ECO mode is ON.
	Indicates when user enters the menu.
	Indicates the keypad is locked.
	Indicates during browsing phonebook.

*Subject to subscription and availability of the service from the fixed line operator.

Set language and flashtime to operate correctly on your network:

/ or select PERSONNALIS // or select LANGUE // or select your desired language /.
/ or select ADVANCE SET // or select RECALL TIME // or select SHORT / MEDIUM or LONG /.

Using the phone

Receive and end a call

Make a call

either before or after dialing your number
From redial list: / or /.
From call log list*: / or /.
Note: You need to subscribe to Caller Line Identification service to be able to see the caller's number or name in the call log.
From direct memories: long press on KEY 1 or KEY 2 in idle mode.
From phonebook: / or /.
During a call, to activate/dsactivate handsfree: .

To make an internal call

If only 2 registered handsets: .
If more than 2 registered handsets: / enter the handset number.

To make a three-party conference call:
During call:

Long press / or / select handset number / .
Press on the called handset to answer.
Long press on the calling handset to establish conference call.

Phonebook settings: 50 entries
To register in phonebook
/ or to select PHONEBOOK // or / select ADD NEW // enter name of contact // enter number of contact // SAVED.

To register the direct memories in keys 1, 2
/ or select PHONEBOOK // or select EDIT // or select 1_ or 2_ // enter name of contact // enter number of contact // SAVED.

General settings
Long press in idle mode, switch display to show either date/time or Handset name. This phone can be customized according to your preferences, to access the different possibilities press: .

To customize handset (name, melody, language,...): or select PERSONAL SET /
To change PIN, registration handset, reset: or select ADVANCED SET /

Answering machine setting
Answering machine operation by handset
Turn the answering machine off

/ or to select ANSW MACHINE // or to select ANSWER MODE // or to select OFF /.

Set the answer mode

/ or to select ANSW MACHINE // or to select ANSWER MODE // or to select ANSWER ONLY or RECORD ALSO /.

Record a personalised outgoing message

/ or to select ANSW MACHINE // or to select / OGM SETTING // or to select ANSWER ONLY or RECORD ALSO // or to select RECORD / to start recording / to end recording.

Playback and delete messages

NEW MSG(S) displays, press to start playback.
During message playback you can press to DELETE the current message.

Set ring delay

/ or to select ANSW MACHINE // or to select RING DELAY / or to select 3 - 8 RINGS or TOLL SAVER/.

To check messages remotely

Dial your home phone number / while the answering machine playing greeting message and enter remote access code (master PIN code 0000).

The remote feature lets you perform the following functions:

To	Press this button
Play back messages	2
Stop message playback	8
Erase message	6 (during message playback)
Skip message	3
Turn on answerer	7
Turn off answerer	9

Set the OGM voice language

/ or to select ANSW MACHINE // or to select TAM LANGUAGE // or to select your preferred language /.

TROUBLESHOOTING

As a general rule, if a problem occurs, remove the batteries from all handsets for about 1 minute, then disconnect and reconnect the power supply to the base and reinstall the handset batteries. For more information, you can download full user guide or get on-line assistance www.alcatel-home.com

SAFETY

This telephone is not designed for Emergency calls when the main power fails.
Do not use your telephone to notify a gas leak or other potential explosion hazard.
Do not open your device or its power supply to avoid risk of electrical shock. Do not attempt to open the batteries, as they contain hazardous chemical substances.
Your telephone must be located in a dry place away from hot, humide and direct sunlight condition. To avoid radio signal interference, place the phone at least 1 meter away from other electrical appliances or other phones.

ENVIRONMENT

This symbol means that your inoperative electronic appliance must be collected separately and not mixed with the household waste. The European Union has implemented a specific collection and recycling system for which producers are responsible.
Help us protect the environment in which we live!

CONFORMITY

Hereby, ATLINKS EUROPE declares that the radio equipment type DECT is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.alcatel-home.com
Average power per channel: 10mW; Maximum Output Power (NTP): 24dBm;
Frequency Range: 1880-1900MHz

ATLINKS Europe
147 avenue Paul Doumer
92500 RUEIL-MALMAISON France
www.alcatel-home.com
Alcatel is a trademark of Nokia, used under license by ATLINKS.
D285 Voice A/W no.: 10002213 Rev.1 Made in PRC
