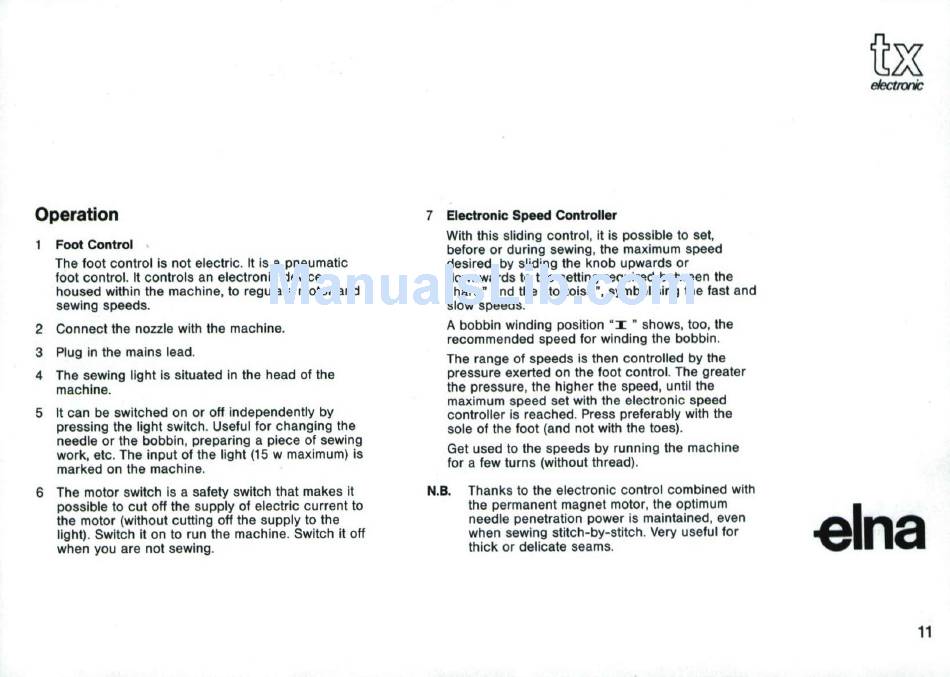

Operation
7 Electronic Speed Controller
1 Foot Control
With this sliding control, It is possible to set,
before or during sewing, the maximum speed
The foot control Is not electric. It is a pneumatic
desired, by sliding the knob upwards or
foot control. It controls an electronic device
downwards to the setting required between the
housed within the machine, to regulate motor and
"hare" and the "tortoise", symbolising the fast and
sewing speeds.
slow speeds.
2 Connect the nozzle with the machine.
A bobbin winding position "I " shows, too, the
recommended speed for winding the bobbin.
3 Plug in the mains lead.
The range of speeds Is then controlled by the
4 The sewing light is situated in the head of the
pressure exerted on the foot control. The greater
machine,
the pressure, the higher the speed, until the
maximum speed set with the electronic speed
5 It can be switched on or off independently by
controller is reached. Press preferably with the
pressing the light switch. Useful for changing the
sole of the foot (and not with the toes).
needle or the bobbin, preparing a piece of sewing
work, etc. The input of the light (15 w maximum) is
Get usedo the speeds by running the machine
marked on the machine.
for a few turns (without thread).
6 The motor switch is a safety switch that makes it
N.B.
Thanks to the electronic control combined with
possible to cut off the supply of electric current to
the permanent magnet motor, the optimum
the motor (without cuffing off the supply to the
needle penetration power is maintained, even
light). Switch it on to run the machine. Switch it off
when sewing stitch-by-stitch. Very useful for
d
n a
when you are not sewing,
thick or delicate seams.
11
