kozy heat Lakefield 56150 Installation And Operation Manual

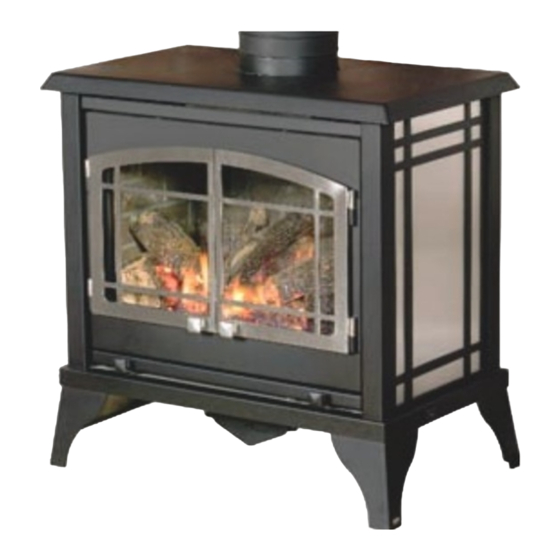

Free-standing direct vent fireplace
Hide thumbs Also See for Lakefield 56150:
Table of Contents

Advertisement

Quick Links

See also: Operation & Installation Manual , Installation Manual
Quality Fireplaces for Life
FREE-STANDING
DIRECT VENT FIREPLACE
WARNING
: This product must be installed by
a licensed plumber or gas fitter when installed
in the Commonwealth of Massachusetts.
IMPORTANT: Installation of a CO detector is
required in the fireplace room when installed in
the Commonwealth of Massachusetts.
WARNING:
If the information in these instructions are not followed exactly, a fire or
explosion may result, causing property damage, personal injury or loss of life.
◙
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
IF YOU SMELL GAS:
◙ Do not light any appliance.
◙ Do not touch any electrical switch: do not use any phone in your building.
◙ Immediately call gas supplier from a neighbors phone. Follow the gas supplier instructions.
◙ If you cannot reach your gas supplier, call the fire department.
◙ Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
This appliance may be installed in an aftermarket permanently located, manufactured (mobile) home,
where not prohibited by local codes.
This appliance is only for use with the type (s) of gas indicated on
the rating plate. A conversion kit is supplied with the appliance.
OPERATION MANUAL
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
www.kozyheat.com
INSTALLATION
AND
April –09
LKF-04-09-R10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lakefield 56150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for kozy heat Lakefield 56150

Summary of Contents for kozy heat Lakefield 56150

  • Page 1 INSTALLATION OPERATION MANUAL INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE. CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE. Quality Fireplaces for Life FREE-STANDING DIRECT VENT FIREPLACE WARNING : This product must be installed by a licensed plumber or gas fitter when installed in the Commonwealth of Massachusetts.
  • Page 3 Please retain this owner’s manual for future reference. CONGRATULATIONS! We welcome you as a new owner of a Kozy Heat gas fireplace. Kozy Heat products are designed with superior components and materials and assembled by trained craftsmen who take pride in their work. The burner and valve assembly are 100% test-fired and the complete fireplace is thoroughly inspected before packaging to ensure that you receive a quality product.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS Introduction / Homeowner Reference Information Safety Requirements Commonwealth of Massachusetts Requirements Specifications / Clearances Venting Guidelines Fan Installation (optional) Position the Unit Chimney Framing Dimensions Remove Glass Frame Assembly Install Chimney Gas Line Installation Requirements Millivolt Board Removal / Installation Log Set Installation Thermostat-Remote Control-Wall Switch Installation Completing the Installation...

  • Page 6: Safety Requirements

    SAFETY INFORMATION This fireplace has been tested to and complies with ANSI Z21.88-2002·CSA 2.33-M02 “VENTED GAS FIREPLACE HEATERS” by Intertek Testing Services, Middleton, Wisconsin. Installation must conform with local building codes or in the absence of local building codes, with the National Fuel Gas Code, ANSIZ223.1/NFPA 54 - Current Edition, or the Natural or Propane Installation Code, CSAB149.1 Installation and repair should be done only by a qualified service person.

  • Page 7: Commonwealth Of Massachusetts Requirements

    COMMONWEALTH OF MASSACHUSETTS REQUIREMENTS NOTE: The following requirements reference various Massachusetts and national codes not contained in this manual. For all sidewall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied: INSTALLATION OF CARBON MONOXIDE DETECTORS...

  • Page 8: Specifications / Clearances

    UNIT SPECIFICATIONS: FIREPLACE DIMENSIONS DESCRIPTION Height Width Depth Depth Vent to unit Unit top to vent (at leg base) (at unit top) back INCHES 27-3/4 27-1/2 17-1/4 16-1/2 2-1/2 FIREPLACE DIMENSIONS MILLIMETERS 27-1/2” 16-1/2” (699 mm) (419 mm) 2-1/2” (64 mm) 4”...

  • Page 9: Venting Guidelines

    APPROVED VENTING FOR HORIZONTAL AND VERTICAL TERMINATIONS: Simpson Dura-Vent Selkirk Security IMPORTANT: Model #56150 is manufactured with the appropriate adaptor for proper connection to chosen approved venting. Contact your dealer for the appropriate vent kit and components part numbers required for your specific venting application.
  • Page 10 TERMINATION VENT CAP LOCATION This gas appliance must not be connected to a chimney serving any other appliance. Terminations against vinyl siding must use a vinyl siding protector. Follow instructions included. DO NOT RECESS TERMINATION KIT INTO OUTSIDE BUILDING MATERIALS - i.e.: brick, stone, siding, etc. If necessary, extend framing so that termination kit will be exposed once building materials are installed.
  • Page 11 HORIZONTAL TERMINATIONS The minimum horizontal venting configuration is 3 ft. vertical from the top of the fireplace followed by a 90-degree elbow, then 1 ft. horizontal thru exterior wall. VERTICAL TERMINATIONS: Minimum vertical vent run: 3 ft. Maximum vertical vent run: 40 ft. RESTRICTOR REQUIREMENTS: Small restrictor: Straight vertical vent runs between 10' - 15'.
  • Page 12 RESTRICTOR USAGE / INSTALLATION The restrictor plate included in the fireplace components packet can be installed as either a large or small restrictor, depending on your specific venting configura- tion. There are several factors which can affect proper draft of the vent system and the burner operation of a fireplace. Installing a restrictor may be necessary to re- solve the problem, even though it may not be required under „normal conditions‟.

  • Page 13: Fan Installation (Optional)

    OPTIONAL FAN INSTALLATION INSTALLATION OF THIS FAN SHOULD BE DONE ONLY BY A QUALIFIED INSTALLER WARNING: MAKE SURE HOUSEHOLD BREAKER IS SHUT OFF PRIOR TO WORKING ON ANY ELECTRICAL LINES. This optional fan kit includes: - Right & left fan assemblies - mounted - Fan cover plate - Temperature control switch with magnet attached - (4) Flange nuts...

  • Page 14: Position The Unit

    POSITION THE UNIT Determine the exact position of your fireplace and location where the chimney will exit to the outside. If possible place the fireplace in such a manner that the piping will be placed between two studs so additional framing is not necessary. NOTE: A hearth or platform is not required.

  • Page 15: Gas Line Installation Requirements

    RUN THE GAS LINE. CAUTION: Installation of the gas line must only be done by a qualified person in accordance with local building codes. NATURAL GAS ONLY: The minimum inlet gas supply pressure: 5.0 inches W.C. The maximum inlet gas supply pressure: 10.5 inches W.C. Manifold Pressure: 3.5 inches W.C.

  • Page 16: Millivolt Board Removal / Installation

    MILLIVOLT BOARD REMOVAL: NOTE: This unit is equipped with the millivolt board system already installed. Follow these procedures should it need replacing or is removed for servicing. CAUTION: If the burner and/or pilot has been burning, the logs will be warm and will continue to hold heat. Use appropriate protection when handling the logs or any component on the millivolt board to avoid personal injury or burns.

  • Page 17: Log Set Installation

    LOG SET INSTALLATION This log set includes 7 logs & 1 packet rock wool embers. The logs are numbered on the bottom and should be installed in order as described below. Place back log ‘#1’ onto the back of the burner cover aligning the mounting holes in the bottom of the log to the mounting studs in the burner cover.

  • Page 18: Thermostat-Remote Control-Wall Switch Installation

    THERMOSTAT / WALL SWITCH / REMOTE CAUTION: DO NOT CONNECT HIGH NOTE: INSTALLATION OF THERMOSTAT OR WALL VOLTAGE (115V) WIRE TO THE GAS SWITCH SHOULD ONLY BE DONE BY A QUALIFIED VALVE! INSTALLER. If desired, a thermostat (wireless style also available), wall switch, or remote control assembly may be used to turn the fireplace „OFF‟...

  • Page 19: Completing The Installation

    COMPLETE THE INSTALLATION THIS STEP SHOULD ONLY BE DONE BY A QUALIFIED INSTALLER OR SERVICE TECHNICIAN Perform lighting and shutdown procedures as described on page 17. This should be done prior to replacing the glass so that any necessary adjust- ments can be made and proper operation verified.

  • Page 20: Lighting And Shutdown Procedures

    NOTE: Read 1-8 before lighting the unit for the first time. Refer to figures below. Access the gas valve by lifting up the „Kozy Heat‟ cover. Push the cover „in‟ slightly and it will stay in position. Set the thermostat, if used, to the lowest setting.

  • Page 21: Manifold (Outgoing) & Inlet )Incoming) Pressure Testing

    PRESSURE TESTING IMPORTANT NOTICE: Pressure check taps for the manifold (outgoing) and inlet (incoming) pressure have been incorporated into the valve. The pressure tap marked „OUT‟ measures outgoing pressure and the pressure tap marked „IN‟ measures incoming pressure. Follow instructions below for proper testing procedures. NOTE: The appliance and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of that system at pressures in excess of ½...

  • Page 22: Maintenance Requirements

    MAINTENANCE The appliance is required to be inspected at least once a year by a MILLIVOLT BOARD SYSTEM professional service person. The compartment below the firebox (behind the lower grill) must be cleaned Annual cleaning of the burner system is at least once a year, more frequent cleaning may be required due to excessive required.

  • Page 23: Troubleshooting

    TROUBLESHOOTING CAUTION: THE FOLLOWING MUST BE PERFORMED BY A QUALIFIED TECHNICIAN NO SPARK FROM ELECTRODE TO PILOT WHEN PIEZO BUTTON IS TRIGGERED. A. Check wiring at back of piezo for proper connection. B. Check wiring at electrode for proper connection. C.
  • Page 24 TROUBLESHOOTING BURNER WILL NOT LIGHT A. Gas control knob not turned to „ON‟. B. „ON‟/„OFF‟ switch not turned on. C. Remote, wall switch or thermostat not turned „ON‟. D. Plugged main burner orifice. E. Remote, wall switch, thermostat or „ON/ OFF‟ switch wires defective. ♦...
  • Page 25 TROUBLESHOOTING PILOT AND BURNER EXTINGUISH WHILE IN OPERATION A. No LP (propane) in tank. ♦ Check tank and refill if necessary. B. Glass frame assembly not installed correctly. ♦ Refer to page 11 in this manual for proper glass frame assembly installment instructions. C.

  • Page 26: Replacement Parts List

    *Consult your dealer for information on optional accessories available for this fireplace. Hussong Mfg. Co., Inc. This appliance tested & certified by: 204 Industrial Park Drive Intertek Testing Services Middleton, Wisconsin Lakefield, Minnesota 56150 507-662-6641 Model #56150 Lakefield LKF-04-09-REV-10 www.kozyheat.com PAGE 23...

  • Page 27: Warranty Policy

    PAGE 24...
  • Page 29 PAGE 25...
