1.4 Connecting Rear Panel I/O Devices

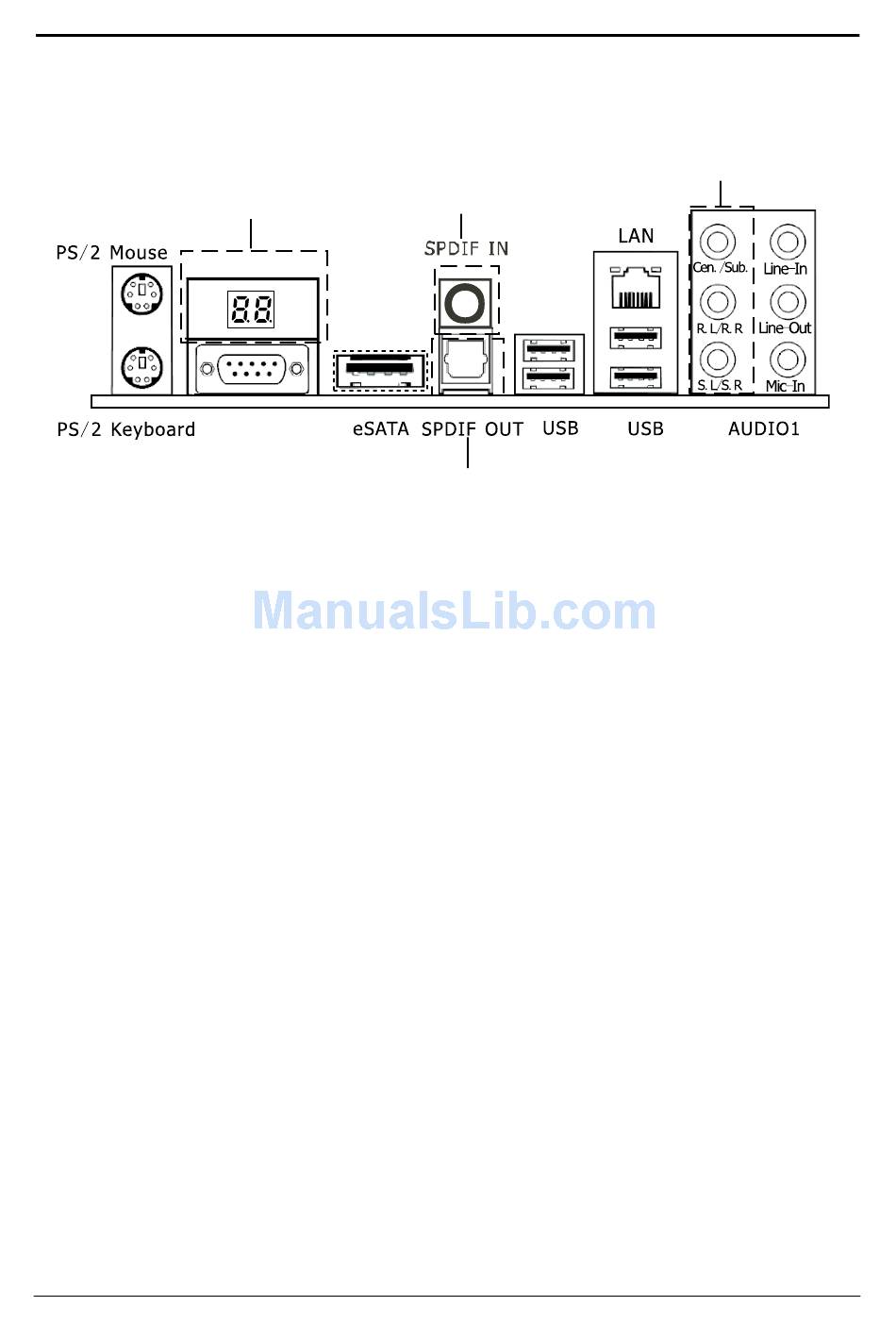

The rear I/O part of these mainboard provides the following I/O ports:
• PS/2 Mouse: Connect to PS/2 mouse.
• PS/2 Keyboard: Connect to PS/2 keyboard.
• Debug LED: Display error code. (please reference attached 1)
• VGA: Connect to monitor input.
• eSATA: Connect to peripherial SATA devices.The peripherial SATA devices must connect
inside SATA connectors.
• SPDIF OUT: Connect to digital audio device.
• LAN: Connect to Local Area Network.
• USB: Connect to USB devices such as scanner, digital speakers, monitor, mouse, keyboard,
hub, digital camera, joystick etc.
• AUDIO1:
Cen./Sub. (Center / Subwoofer): Connect to the center and subwoofer channel in the 7.1
R.L./R.R. (Rear Left / Rear Right): Connect to the rear left and rear right channel in the 7.1
S.L./S.R. (Surround Left / Surround Right): Connect to the surround left and surround right
Line-In: Connect to the line out from external audio sources.
Line-Out: Connect to the front left and front right channel in the 7.1-channel or regular
2-channel audio system.
Mic-In: Connect to the plug from external microphone.
(Optional)
Debug LED
VGA
(This picture is only for reference)
channel audio system.
channel audio system.
(Optional)
(Optional)
channel in the 7.1 channel audio system.
-  -
