  • Page 1 JW-A75GM-USB3 Socket FM1 Processor Motherboard User’s Manual Rev: 1.0, July 2011...
  • Page 2 Disclaimer The intellectual property of this manual belongs to our company. The ownership of all of the products, including accessories and software etc. belong to our company. No one is permitted to copy, change, or translate without our written permission. We compiled this manual based on our careful attitude, but we can not guarantee the accuracy of the contents.
  • Page 3: Table Of Contents

    Table of Contents Chapter 1 Introduction ................... 3 1.1 Package Checklist ....................... 1.2 Specifications ........................1.3 Motherboard Layout ......................1.4 Connecting Rear Panel I/O Devices ................6 Chapter 2 Hardware Setup ..................7 2.1 Choosing a Computer Chassis ....................2.2 Installing Motherboard ......................2.3 Installation of APU and APU fan...................
  • Page 4: Chapter 1 Introduction

    JW-A75GM-USB3   User's Manual Chapter 1 Introduction 1.1 Package Checklist Thank you for choosing our product. Please check the following packing and accessories, if there is any broken or part missing, please contact with your franchiser. • I/O Shield X 1 •...
  • Page 5: Specifications

    JW-A75GM-USB3   User's Manual 1.2 Specifications - Socket FM1 for AMD A-series & E-series APUs - Supports Turbo Core Technology 2.0 - Supports AMD Cool'n'Quiet!™ Technology Chipset - AMD A75 chipset - 4 X 1.5V DDR3 DIMM sockets supporting up to 32GB of system memory...
  • Page 6: Motherboard Layout

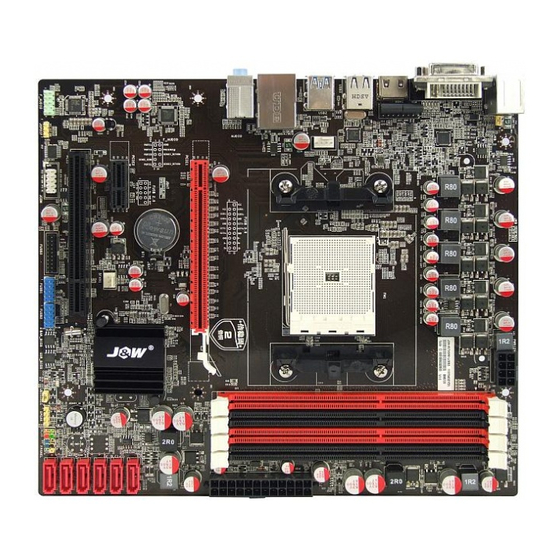

    JW-A75GM-USB3   User's Manual 1.3 Motherboard Layout (This picture is only for reference) -  -...
  • Page 7: Connecting Rear Panel I/O Devices

    JW-A75GM-USB3   User's Manual 1.4 Connecting Rear Panel I/O Devices The rear I/O part of these Motherboard provides the following I/O ports: (This picture is only for reference) • PS/2 Mouse: Connects to a PS/2 mouse. • PS/2 Keyboard: Connects to a PS/2 keyboard.
  • Page 8: Chapter 2 Hardware Setup

    JW-A75GM-USB3   User's Manual Chapter 2 Hardware Setup 2.1 Choosing a Computer Chassis The Motherboard and its component layouts illustrated in this chapter were based mainly on model “A75 Series”, unless specifi cally stated. • Choose a chassis big enough to install this Motherboard.
  • Page 9: Installation Of Apu And Apu Fan

    JW-A75GM-USB3   User's Manual Installation of APU and APU fan Please pay extra attention to the golden triangular mark on the APU should match with the same corner as the white triangular mark of the socket during installation, as illustrated below:...
  • Page 10: Installation Of Memory Modules

    JW-A75GM-USB3   User's Manual 2.4 Installation of Memory Modules This Motherboard provides four 240-pin DDRIII (Double Data Rate) DIMM slots, and supports Dual Channel Memory Technology. For dual channel configuration, you always need to install two identical (the same brand, speed, size and chip-type) memory modules in the DDRIII DIMM slots to activate Dual Channel Memory Technology.
  • Page 11: Connecting Peripheral Devices

    JW-A75GM-USB3   User's Manual 2.5 Connecting Peripheral Devices   2.5.1 Serial ATA Connectors The Serial ATA (SATA) connectors are used to connect Serial ATA drives. Connect one end of the Serial ATA cable to a Serial ATA connector and the other end to your Serial ATA device.
  • Page 12: Chapter 3 Jumpers & Headers Setup

    JW-A75GM-USB3   User's Manual Chapter 3 Jumpers & Headers Setup 3.1 Checking Jumper Settings • For a 2-pin jumper, plug the jumper cap on both pins will make it CLOSE (SHORT). Remove the jumper cap, or plug it on either pin (reserved for future use) will leave it at OPEN position.
  • Page 13: Jbiosslc Jumper

    JW-A75GM-USB3   User's Manual 3.4 JDVI_HDMI Jumper   While JDVI_HDMI jumper be shorted #pin 1-2, it will auto detect DVI device, if JDVI_HDMI jumper be shorted #pin 2-3,it will work at HDMI. JDVI_HDMI Jumper Pin No. Definition Pin1-2 Pin2-3 HDMI 3.5 JBIOSSLC Jumper (for BIOS recovery) This motherboard supports the dual BIOS function, there are one primary user BIOS (USR_BIOS) and one secondary backup BIOS (BAK_BIOS) onboard.
  • Page 14: Fan Power Connectors

    JW-A75GM-USB3   User's Manual 3.6 FAN Power Connectors These connectors each provide power to the cooling fans installed in your system. CFAN or CFAN1: CPU Fan Power Connector SFAN1: System Fan Power Connector These fan connectors are not jumpers. DO NOT place jumper caps on these connectors.
  • Page 15: Additional Usb2.0 Port Headers

    JW-A75GM-USB3   User's Manual 3.8 Additional USB2.0 Port Headers Pin Assignment Pin Assignment Data 0- Data 0- Data 0+ Data 0+ Ground Ground No Pin 3.9 Additional USB3.0 Port Headers 3.10 Front Panel Audio Headers - 1 -...
  • Page 16: Memory Ok Button

    JW-A75GM-USB3   User's Manual Pin No. Header HD Audio Definition AC97 Audio Definition PORT1L Microphone_Left Microphone AGND Ground Ground PORT1R Microphone_Right MIC Power PRESENCE# -ACZ_DET PORT2R Line2_Right Line out (R) SENSE1_RETURN AuD_R_Return SENSE_SEND FAUDIO_JD No Pin PORT2L Line2_Left Line Out(L) SENSE2_RETURN AuD_L_Return 3.11 Memory ok button...
  • Page 17: Serial Port Header

    JW-A75GM-USB3   User's Manual 3.12 Serial Port Header This JCOM1 header supports a serial port module. Pin Assignment Pin Assignment 3.13 S/PDIF Output Connection Header S/PDIF (Sony/Philips Digital Interface) is a standard audio transfer file format. It is usually found on digital audio equipment such as a DAT (Digital Audio Tape) machine or audio processing device.
  • Page 18: Front Panel Audio Headers

    JW-A75GM-USB3   User's Manual 3.14 Power Connectors ATXPWR (ATX Power) connector We recommend to use our motherboard with a power supply that complies with the ATX12V Power Supply Design Guide Version 1.1. Every ATX12V power supply unit has a standard 24-pin ATX main power connector that must be plugged into this connector. If you would like to use an old power supply with only a 20-pin ATX main power connector, then please plug the 20-pin ATX main power connector along with pin 1 and pin 13.
  • Page 19: Chapter 4 Bios Setup Utility

    JW-A75GM-USB3   User's Manual Chapter 4 BIOS Setup Utility BIOS stands for Basic Input and Output System. It was once called ROM BIOS when it was stored in a Read-Only Memory (ROM) chip. Now manufacturers would like to store BIOS in EEPROM which means Electrically Erasable Programmable Memory.
  • Page 20: Bios Setup - Cmos Setup Utility

    JW-A75GM-USB3   User's Manual 4.5 BIOS Setup — CMOS Setup Utility •  In order to increase system stability and performance, our engineering staff is constantly improving the BIOS menu. The BIOS setup screens and descriptions illustrated in this manual are for your reference only, and may not completely match with what you see on your screen.
  • Page 21: Main Setting

    JW-A75GM-USB3   User's Manual 4.5.3 Main Setting After setup procedure, the first showing screen is the main menu (as following picture) Aptio Setup Utility - Copyright (C) 2011 American Megatrends,Inc. Main Advanced Chipset Boot Security JUSTw00t Save&Exit BIOS Information Choose the system default...
  • Page 22: Advanced

    JW-A75GM-USB3   User's Manual 4.5.4 Advanced Setting Aptio Setup Utility - Copyright (C) 2011 American Megatrends,Inc. Main Advanced Chipset Boot Security JUSTw00t Save&Exit ----------------Legacy OpROM Support------------- Enabled or Disabled Boot Option for Legacy Onboard Lan BootROM Control [Disabled] Network Devices. Launch Storage OpROM...
  • Page 23 JW-A75GM-USB3   User's Manual ACPI Sleep State Select the highest ACPI sleep state the system will enter when the suspend button is pressed. Optional for Suspend Disabled、S3(Suspend to RAM). Lock legacy Resources Enabled or disabled lock of legacy resources. optional for Enabled,Disabled.
  • Page 24 JW-A75GM-USB3   User's Manual Aptio Setup Utility - Copyright (C) 2011 American Megatrends,Inc. Advanced CPU configuration Disabled for Windows XP Node0: AMD Engineering Sample Quad Core Running @ 2439 MHz 1375 mV Max Speed:2400MHz Intended Speed:2400 MHz Microcode Patch Level: 3000014...
  • Page 25 JW-A75GM-USB3   User's Manual Legacy USB Support Setting support old input/output devices, such as the mouse, keyboard etc, optional for Enabled,Disabled,Auto. USB3.0 Support USB3.0 Controller support. optional for Enabled,Disabled. XHCI Hand-off Setting XHCI Hand-Off function,optional for Enabled,Disabled. EHCI Hand-off Setting EHCI Hand-Off function,optional for Enabled,Disabled.
  • Page 26 JW-A75GM-USB3   User's Manual Aptio Setup Utility - Copyright (C) 2011 American Megatrends,Inc. Advanced PC Health Status Enabled/Disabled CPU Smart Fan function CPU Temperature : +33 SYS Temperature : +24 CPUFAN Speed : 3355 RPM SYSFAN Speed : N/A VCORE : +1.392 V APU Voltage : +1.258 V...
  • Page 27: Chipset

    JW-A75GM-USB3   User's Manual   Eup Function Power saving function,options:Disabled,Enabled. PWRON After PWR-Fail This item selects the system action after an AC power failure. [Off]: When power returns after an AC power failure, the system’s power remains off. You must press the Power button to power-on the system.
  • Page 28 JW-A75GM-USB3   User's Manual Integrated Graphics Integrated Graphics controller.options:Auto,Disabled,Force. HDMI Audio controller HDMI Audio controller.options:Disabled,Enabled. Primary Video Device Select Primary Video Device that BIOS will use to for output.  Press < ESC> key to return to the Chipset menu ►...
  • Page 29: Boot

    JW-A75GM-USB3   User's Manual  Press < ESC> key to return to the Chipset menu 4.5.6 Boot Aptio Setup Utility - Copyright (C) 2011 American Megatrends,Inc. Main Advanced Chipset Boot Security JUSTw00t Save & Exit Boot Configuration Number of seconds to wait Setup Prompt Timeout for setup activation key.
  • Page 30: Justw00T

    JW-A75GM-USB3   User's Manual Administrator Password This option is used to set an administrator password, as the following steps: 1. Move the cursor to the Administrator Password item, press <Enter>. 2. In the "Create New Password" dialog box, enter 3 to 20 characters or numbers to be setted, press <Enter>, and enter again in the "Confirm Password"...
  • Page 31: Save & Exit

    JW-A75GM-USB3   User's Manual CPU Boost Voltage Memory Frequency To adjust Memory Frequency. Memory Performance Mode To set the relevant parameters of CPU. The default settings are not suggested to change before their functions are understood totally. 4.5.9 Save & Exit Aptio Setup Utility - Copyright (C) 2011 American Megatrends,Inc.
  • Page 32 JW-A75GM-USB3   User's Manual Aptio Setup Utility - Copyright (C) 2011 American Megatrends,Inc. Main Advanced Chipset Boot Security JUSTw00t Save & Exit Save Changes and Exit Exit system setup after Discard Changes and Exit saving the changes. Save Changes and Reset...
  • Page 33 JW-A75GM-USB3   User's Manual Aptio Setup Utility - Copyright (C) 2011 American Megatrends,Inc. Main Advanced Chipset Boot Security JUSTw00t Save & Exit Save Changes and Exit Exit system setup after Discard Changes and Exit saving the changes. Save Changes and Reset...
  • Page 34 JW-A75GM-USB3   User's Manual Aptio Setup Utility - Copyright (C) 2011 American Megatrends,Inc. Main Advanced Chipset Boot Security JUSTw00t Save & Exit Save Changes and Exit Exit system setup after Discard Changes and Exit saving the changes. Save Changes and Reset...
  • Page 35 JW-A75GM-USB3   User's Manual Aptio Setup Utility - Copyright (C) 2011 American Megatrends,Inc. Main Advanced Chipset Boot Security JUSTw00t Save & Exit Save Changes and Exit Exit system setup after Discard Changes and Exit saving the changes. Save Changes and Reset...
  • Page 36: Chapter 5 Driver Installation

    JW-A75GM-USB3   User's Manual Chapter 5 Driver Installation Check your package and there is Driver DVD included. This DVD consists of all drivers you need. In addition, this DVD also include an auto detect software which can tell you which hardware is installed, and which drivers needed so that your system can function properly.
  • Page 37 JW-A75GM-USB3   User's Manual When you choose Motherboard Drivers the drivers menu should appear as below: (This picture is only for reference) From the Drivers MENU you may make 4 selections: Chipset Driver LAN Driver Audio Driver 4. RAID/AHCI Driver(Installation RAID/AHCI model system when used.)...
