Page 1: User Manual

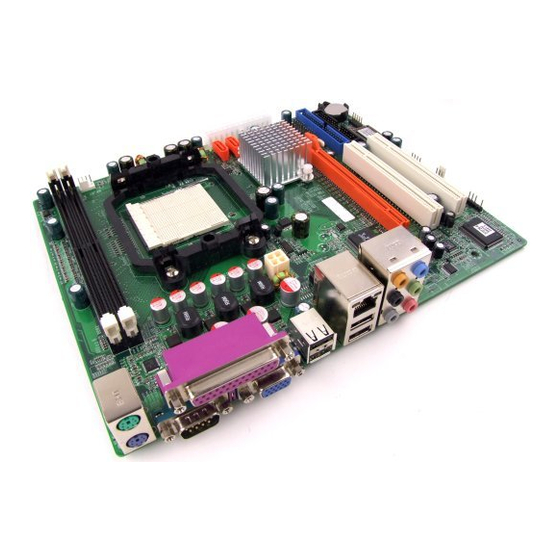

The Possible Of Impossible nVIDIA N61P/N61S/N61V Socket AM2 Processor Mainboard nVIDIA MCP61 Series User Manual Website: http://www.jwele.com Rev: 1.00, Aug 2007 P/N: 80ENN61PV0... - Page 2 Disclaimer The intellectual property of this manual belongs to our company. The ownership of all of the products, including accessories and software etc. belong to our company. No one is permitted to copy, change, or translate without our written permission. We compiled this manual based on our careful attitude, but we can not guarantee the accuracy of the contents.
-
Page 3: Table Of Contents
Table of Contents Chapter 1 Introduction ................ 3 1.1 Package Checklist ....................3 1.2 Specifications ...................... 4 1.3 Mainboard Layout ....................5 1.3.1 nVIDIA N61(V1.0) ......................5 1.3.2 nVIDIA N61(V2.0) ......................6 1.4 Connecting Rear Panel I/O Devices ..............7 Chapter 2 Hardware Setup .............. -
Page 4: Chapter 1 Introduction
N61P/N61S/N61V User Manual Chapter 1 Introduction 1.1 Package Checklist Thank you for choosing our product. Please check the following packing and accessories, if there is any broken or part missing, please contact with your franchiser. • HDD Cable X 1 •... -
Page 5: Specifications
N61P/N61S/N61V User Manual 1.2 Specifications ® - Socket AM2 for AMD Athlon 64/Ahtlon 64 FX/Athlon 64 X2/ Sempron Processor - AMD 64 Architecture enables 32 and 64 bit computing - Supports up to 1GHz Bandwidth - Supports Hyper Transport... -
Page 6: Mainboard Layout
N61P/N61S/N61V User Manual 1.3 Mainboard Layout 1.3.1 nVIDIA N61(V1.0) (This picture is only for reference) - -... -
Page 7: Nvidia N61(V2.0)
N61P/N61S/N61V User Manual 1.3.2 nVIDIA N61(V2.0) (This picture is only for reference) - -... -
Page 8: Connecting Rear Panel I/O Devices
N61P/N61S/N61V User Manual 1.4 Connecting Rear Panel I/O Devices The rear I/O part of this mainboard provides the following I/O ports: • PS/2 Mouse: Connect to PS/2 mouse. • PS/2 Keyboard: Connect to PS/2 keyboard. • LPT: Connect to printer or other devices that support this communication protocol. -
Page 9: Chapter 2 Hardware Setup
N61P/N61S/N61V User Manual Chapter 2 Hardware Setup 2.1 Choosing a Computer Chassis The mainboard and its component layouts illustrated in this chapter were based mainly on model “nVIDIA N61(V1.0)”, unless specifi cally stated. • Choose a chassis big enough to install this mainboard. -
Page 10: Installation Of The Cpu And Cpu Cooler
N61P/N61S/N61V User Manual 2.3 Installation of the CPU and CPU Cooler Before installing the CPU, please comply with the following conditions: 1. Please make sure that the mainboard supports the CPU. 2. Please take note of the one indented corner of the CPU. If you install the CPU in the wrong direction, the CPU will not insert properly. -
Page 11: Installation Of The Cpu Cooler
N61P/N61S/N61V User Manual 2.3.2 Installation of the CPU Cooler For proper installation, please kindly refer to the instruction manuals of your CPU Cooler. 2.4 Installation of Memory Modules This mainboard provides four 240-pin DDRII (Double Data Rate) DIMM slots, and supports Dual Channel Memory Technology. -
Page 12: Connecting Peripheral Devices
N61P/N61S/N61V User Manual 2.5 Connecting Peripheral Devices 2.5.1 Floppy and IDE Disk Drive Connectors Each of the IDE port connects up to two IDE drives at Ultra ATA 66/100/133 mode by one 40-pin, 80-conductor,and 3-connector Ultra ATA/66 ribbon cables. -
Page 13: Chapter 3 Jumpers & Headers Setup
N61P/N61S/N61V User Manual Chapter 3 Jumpers & Headers Setup 3.1 Checking Jumper Settings • For a 2-pin jumper, plug the jumper cap on both pins will make it CLOSE (SHORT). Remove the jumper cap, or plug it on either pin (reserved for future use) will leave it at OPEN position. -
Page 14: Fan Power Connectors
N61P/N61S/N61V User Manual 3.4 FAN Power Connectors These connectors each provide power to the cooling fans installed in your system. CPU_FAN1: CPU Fan Power Connector SYS_FAN1: System Fan Power Connector (Options) SYS_FAN2: System Fan Power Connector These fan connectors are not jumpers. DO NOT place jumper caps on these connectors. -
Page 15: Additional Usb Port Headers
N61P/N61S/N61V User Manual 3.6 Additional USB Port Headers Pin Assignment Pin Assignment Data 0- Data 1- Data 0+ Data 1+ Ground Ground FUSB1 FUSB2 3.7 Front Panel Audio Connection Header This header provides the connection to audio connector at front panel. -
Page 16: Internal Audio Connectors
N61P/N61S/N61V User Manual 3.8 Internal Audio Connectors Connect CD-ROM or DVD-ROM audio out to the connector. Pin No. Definition CD-L CD-R 3.9 IR Connection Header (Optional) Connect the IrDA cable (if available) to this IR connector. Pin No. Definition... -
Page 17: Atx Power Input Connectors
N61P/N61S/N61V User Manual 3.10 ATX Power Input Connectors This mainboard provides two power connectors to connect power supplier. 3 3V 5VSB PWR OK PS ON 3 3V +3 3V 3 3V - 1 -... -
Page 18: Chapter 4 Bios Setup Utility
N61P/N61S/N61V User Manual Chapter 4 BIOS Setup Utility BIOS stands for Basic Input and Output System. It was once called ROM BIOS when it was stored in a Read-Only Memory (ROM) chip. Now manufacturers would like to store BIOS in EEPROM which means Electrically Erasable Programmable Memory. -
Page 19: Bios Setup - Cmos Setup Utility
N61P/N61S/N61V User Manual 4.5 BIOS Setup — CMOS Setup Utility • In order to increase system stability and performance, our engineering staff is constantly improving the BIOS menu. The BIOS setup screens and descriptions illustrated in this manual are for your reference only, and may not completely match with what you see on your screen. -
Page 20: Control Keys
N61P/N61S/N61V User Manual • PC Health Status This setup page is the System auto detect temperature, voltage, fan, speed. • Frequency/Voltage Control This setup page is control CPU clock and frequency ratio. • Load Fail-Safe Defaults Fail-Safe Defaults indicates the value of the system parameters which the system would be in safe configuration. -
Page 21: Standard Cmos Features
N61P/N61S/N61V User Manual 4.5.3 Standard CMOS Features Phoenix - AwardBIOS CMOS Setup Utility Standard CMOS Features Date (mm:dd:yy) Mon, 11 2007 Item Help Time (hh:mm:ss) 13 : 19 : 44 Menu Level ► ► IDE Channel 0 Master [MAXTOR STM380215A] ►... - Page 22 N61P/N61S/N61V User Manual IDE HDD Auto-Detection This item allows you to detect the parameters of IDE drives by pressing <Enter> key. The parameters will be shown on the screen automatically. IDE Channel 0 Master/Slave,SATA Channel 1~4 When set to [Auto], the BIOS will automatically check what kind of IDE or SATA hard drive you are using.
-
Page 23: Advanced Bios Features
N61P/N61S/N61V User Manual 4.5.4 Advanced BIOS Features Phoenix - AwardBIOS CMOS Setup Utility Advanced BIOS Features ► Hard Disk Boot Priority [Press Enter] Press Enter Item Help Virus Warning [Disabled] CPU Internal Cache [Enabled] Menu Level ► External Cache... - Page 24 N61P/N61S/N61V User Manual ・ Swap Floppy Drive If you have 2 floppy drives, you can change A to B, or change B to A. ・ Boot Up Floppy Seek During POST, BIOS will determine if the floppy disk drive installed if choose [Enable].
-
Page 25: Advanced Chipset Features
N61P/N61S/N61V User Manual 4.5.5 Advanced Chipset Features Phoenix - AwardBIOS CMOS Setup Utility Advanced Chipset Features Frame Buffer Size [64M] Item Help GPU Bank Flip [Enabled] [Auto] Menu Level ► PCIE Spread Spectrum [Disabled] SATA Spread Spectrum [Disabled] x HT Spread Spectrum... -
Page 26: Integrated Peripherals
N61P/N61S/N61V User Manual 4.5.6 Integrated Peripherals Phoenix - AwardBIOS CMOS Setup Utility Integrated Peripherals ► IDE Function Setup [Press Enter] Press Enter Item Help ► RAID Config [Press Enter] Onboard Lan Chip [Enabled] Menu Level ► OnChip USB [V1.1+V2.0]... - Page 27 N61P/N61S/N61V User Manual OnChip IDE Channel 0 The mainboard chipset contains a PCI IDE interface with support for two IDE channels. Select “Enabled” to activate the first and/or second IDE interface. Select “Disabled” to deactivate an interface if you are going to install a primary and/or secondary add-in IDE interface.
- Page 28 N61P/N61S/N61V User Manual ・ OnChip USB This option allows you to disabled the USB function or select the mode of USB. ・ USB Memory Type Available options: [Base Memory (640K)] [Shadow]. ・ USB Keyboard Support This item allows you to select [BIOS] for using USB keyboard in DOS environment, or [OS] in OS environment.
- Page 29 N61P/N61S/N61V User Manual ・ IR Transmission Delay Available options: [Disabled] [Enabled] ・ UR2 Duplex Mode This item allows user choose IR mode. Available options: [Full], [Half] ・ Use IR Pins Available options: [IR-Rx2Tx2] [RxD2,TxD2] ・ Onboard Parallel Port This item specifies the I/O address used by the parallel port.
-
Page 30: Power Management Setup
N61P/N61S/N61V User Manual 4.5.7 Power Management Setup Phoenix - AwardBIOS CMOS Setup Utility Power Management Setup ACPI Function [Enabled] Enabled Item Help ACPI Suspend Type S1(POS) Power Management [User Define] Menu Level ► Video Off Method [DPMS Support] HDD Power Down... -
Page 31: Pnp Pci Configuration
N61P/N61S/N61V User Manual ・ Power-On by Alarm The field is used to enable or disable the feature of booting up the system on a scheduled time/date. ・ Date (of Month) Alarm [0]: This option power-on the system everyday according to the time set in the “Time (hh:mm:ss) Alarm”... -
Page 32: Pc Health Status
N61P/N61S/N61V User Manual 4.5.9 PC Health Status Phoenix - AwardBIOS CMOS Setup Utility PC Health Status Disabled Post Show Health Status [Disabled] Item Help Current System Temp. C/ 78 Current CPU Temperture C/102 Menu Level ► Current SYSFAN2 Speed... - Page 33 N61P/N61S/N61V User Manual ► CPU Feature Click <Enter> key to enter its submenu: Phoenix - AwardBIOS CMOS Setup Utility CPU Feature NPT Fid control [Auto] Auto Item Help NPT Vid control [Auto] AMD K8 Cool&Quiet control [Disabled] Menu Level ►►...
-
Page 34: Load Fail-Safe Defaults
N61P/N61S/N61V User Manual 4.5.11 Load Fail-Safe Defaults This option opens a dialog box that lets you install fail-safe defaults for all appropriate items in the Setup Utility: Press <Y> and the <Enter> to install the defaults. Press <N> and then <Enter>... -
Page 35: Save & Exit Setup
N61P/N61S/N61V User Manual To disable password, just press <Enter> when you are prompted to enter password. A message will confirm the password being disabled. Once the password is disabled, the system will boot and you can enter BIOS Setup freely. -
Page 36: Chapter 5 Driver Installation
N61P/N61S/N61V User Manual Chapter 5 Driver Installation Check your package and there is Driver CD included. This CD consists of all drivers you need. In addition, this CD also include an auto detect software which can tell you which hardware is installed, and which drivers needed so that your system can function properly. - Page 37 N61P/N61S/N61V User Manual When you choose Mainboard Driver installation Utility, the drivers menu should appear as below: Back <- nForce Chipset Installation Utility Nvidia VGA Graphics Driver LAN Driver Audio Driver Exit (This picture is only for reference) From the Drivers MENU you may make 4 selections:...
