Summary of Contents for J&W JW-A780LM-D3
- Page 1 JW-A780LM-D3 V2.0 Socket AM3 Processor Mainboard User’s Manual Rev: 1.0, July 2011...
- Page 2 Disclaimer The intellectual property of this manual belongs to our company. The ownership of all of the products, including accessories and software etc. belong to our company. No one is permitted to copy, change, or translate without our written permission. We compiled this manual based on our careful attitude, but we can not guarantee the accuracy of the contents.
-
Page 3: Table Of Contents
Table of Contents Chapter 1 Introduction ................... 3 1.1 Package Checklist ....................... 1.2 Specifications ........................1.3 Mainboard Layout ....................... 1.4 Connecting Rear Panel I/O Devices ................6 Chapter 2 Hardware Setup ..................7 2.1 Choosing a Computer Chassis ....................2.2 Installing Mainboard ......................2.3 Installation of the CPU and CPU Cooler.................. -
Page 4: Chapter 1 Introduction
JW-A780LM-D3 V2.0 User's Manual Chapter 1 Introduction 1.1 Package Checklist Thank you for choosing our product. Please check the following packing and accessories, if there is any broken or part missing, please contact with your franchiser. • Rear I/O Panel X 1 •... -
Page 5: Specifications
JW-A780LM-D3 V2.0 User's Manual 1.2 Specifications - Support AMD(R) Socket AM3 processors - Support AMD Phenom II x4/Phenom II x3/Phenom II x2/Athlon II x4/Athlon II x3/Athlon II x2/ Sempron 1xx ® - AMD 760G+ SB710 Main Chipset Built in Radeon™ HD 3000 Graphics, DirectX ® 10 Ready - Supports 2 x 1.5V DDR3 DIMM sockets supporting up to 4 GB of system memory... -

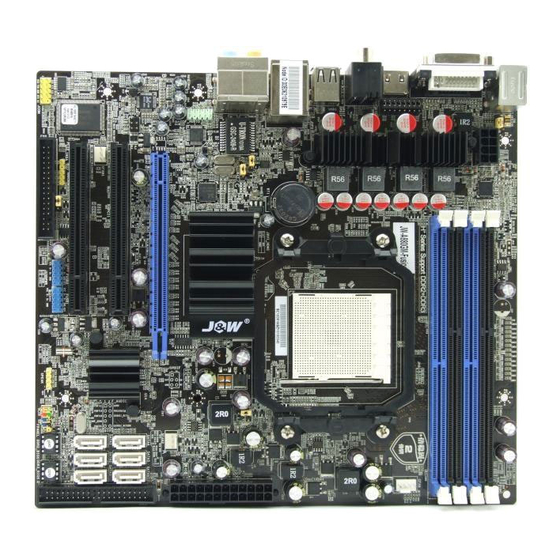

Page 6: Mainboard Layout
JW-A780LM-D3 V2.0 User's Manual 1.3 Mainboard Layout (This picture is only for reference) - -... -
Page 7: Connecting Rear Panel I/O Devices
JW-A780LM-D3 V2.0 User's Manual 1.4 Connecting Rear Panel I/O Devices The rear I/O part of these mainboard provides the following I/O ports: (This picture is only for reference) • PS/2 Mouse: Connects to a PS/2 mouse. • PS/2 Keyboard: Connects to a PS/2 keyboard. -
Page 8: Chapter 2 Hardware Setup
JW-A780LM-D3 V2.0 User's Manual Chapter 2 Hardware Setup 2.1 Choosing a Computer Chassis The mainboard and its component layouts illustrated in this chapter were based mainly on model “760G Series”, unless specifi cally stated. • Choose a chassis big enough to install this mainboard. -
Page 9: Installation Of The Cpu And Cpu Cooler
JW-A780LM-D3 V2.0 User's Manual 2.3 Installation of the CPU and CPU Cooler Before installing the CPU, please comply with the following conditions: 1. Please make sure that the mainboard supports the CPU. 2. Please take note of the one indented corner of the CPU. If you install the CPU in the wrong direction, the CPU will not insert properly. -
Page 10: Installation Of The Cpu Cooler
JW-A780LM-D3 V2.0 User's Manual 2.3.2 Installation of the CPU Cooler For proper installation, please kindly refer to the instruction manuals of your CPU Cooler. 2.4 Installation of Memory Modules This mainboard provides four 240-pin DDRIII (Double Data Rate) DIMM slots, and supports Dual Channel Memory Technology. -
Page 11: Connecting Peripheral Devices
JW-A780LM-D3 V2.0 User's Manual 2.5 Connecting Peripheral Devices 2.5.1 Serial ATA Connectors The Serial ATA (SATA) connectors are used to connect Serial ATA drives. Connect one end of the Serial ATA cable to a Serial ATA connector and the other end to your Serial ATA device. -
Page 12: Chapter 3 Jumpers & Headers Setup
JW-A780LM-D3 V2.0 User's Manual Chapter 3 Jumpers & Headers Setup 3.1 Checking Jumper Settings • For a 2-pin jumper, plug the jumper cap on both pins will make it CLOSE (SHORT). Remove the jumper cap, or plug it on either pin (reserved for future use) will leave it at OPEN position. -
Page 13: Fan Power Connectors
JW-A780LM-D3 V2.0 User's Manual 3.4 FAN Power Connectors These connectors each provide power to the cooling fans installed in your system. CFAN or CFAN1: CPU Fan Power Connector SFAN1: System Fan Power Connector These fan connectors are not jumpers. DO NOT place jumper caps on these connectors. -
Page 14: Additional Usb Port Headers
JW-A780LM-D3 V2.0 User's Manual 3.6 Additional USB Port Headers Pin Assignment Pin Assignment Data 0- Data 0- Data 0+ Data 0+ Ground Ground No Pin 3.7 Front Panel Audio Headers Pin No. Header HD Audio Definition AC97 Audio Definition PORT1L... -
Page 15: Serial Port Header(Jcom1)
JW-A780LM-D3 V2.0 User's Manual 3.8 Serial Port Header This JCOM1 header supports a serial port module. Pin Assignment Pin Assignment 3.9 S/PDIF Output Connection Header S/PDIF (Sony/Philips Digital Interface) is a standard audio transfer file format. It is usually found on digital audio equipment such as a DAT (Digital Audio Tape) machine or audio processing device. -
Page 16: Power Connectors
JW-A780LM-D3 V2.0 User's Manual 3.10 Power Connectors ATXPWR (ATX Power) connector We recommend to use our motherboard with a power supply that complies with the ATX12V Power Supply Design Guide Version 1.1. Every ATX12V power supply unit has a standard 24-pin ATX main power connector that must be plugged into this connector. -
Page 17: Chapter 4 Bios Setup Utility
JW-A780LM-D3 V2.0 User's Manual Chapter 4 BIOS Setup Utility BIOS stands for Basic Input and Output System. It was once called ROM BIOS when it was stored in a Read-Only Memory (ROM) chip. Now manufacturers would like to store BIOS in EEPROM which means Electrically Erasable Programmable Memory. -
Page 18: Bios Setup - Cmos Setup Utility
JW-A780LM-D3 V2.0 User's Manual 4.5 BIOS Setup — CMOS Setup Utility • In order to increase system stability and performance, our engineering staff is constantly improving the BIOS menu. The BIOS setup screens and descriptions illustrated in this manual are for your reference only, and may not completely match with what you see on your screen. -
Page 19: Main Setting
JW-A780LM-D3 V2.0 User's Manual 4.5.3 Main Setting BIOS SETUP UTILITY Main Advanced Boot Security Power JUSTw00T! Exit System Overview ► System Information System Time [21:50:32] System Date [Mon 07/12/2011] Language [English] Power On Beep [Enabled] ► IDE Master : [Not Detected] ►... - Page 20 JW-A780LM-D3 V2.0 User's Manual • Language Allows you to selects the current default language used by the BIOS. • Powe On Beep Options: Disabled,Enabled. ► IDE Master/Slave; SATA Port 1 /2/3/4 This item sets the status of auto detection of SATA/IDE devices while enterting setup, and BIOS will auto detects the presence of SATA/IDE devices.
-
Page 21: Advanced Setting
JW-A780LM-D3 V2.0 User's Manual 4.5.4 Advanced Setting BIOS SETUP UTILITY Main Advanced Boot Security Power JUSTw00T! Exit Advanced Settings Configure CPU. WARNING: Setting wrong values in below sections may cause system to malfunction. ← Select Screen ► CPU Configuration Select Item ↑... - Page 22 JW-A780LM-D3 V2.0 User's Manual ► NorthBridge Configuration Click <Enter> key to enter its submenu, that can select primary graphics adapter from optional items, or set Internal VGA or External VGA CARD to display. BIOS SETUP UTILITY Advanced NorthBridge Chipset Configuration...
- Page 23 JW-A780LM-D3 V2.0 User's Manual • Azalia snoop Available options: Disabled, Enabled • HD Audio Azalia Device Sets the HD Audio has Enabled or Disabled state. • HD Onboard PIN Config Enabled : Display the option for Azalia Front Panel in BIOS.
- Page 24 JW-A780LM-D3 V2.0 User's Manual • Onboard Lan BootROM Control These items can change Boot ROM of the LAN chipset. ► USB Device The items in this menu allows you to change the USB-related features. BIOS SETUP UTILITY Main USB Configuration Enables support for legacy USB.
- Page 25 JW-A780LM-D3 V2.0 User's Manual ► PCIPnP Click <Enter> key to enter its submenu. BIOS SETUP UTILITY Advanced Advanced PCI/PnP Settings Clear NVRAM during System Boot. WARNING: Setting wrong values in below sections may cause system to malfunction. Clear NVRAM [No] Plug &...
-
Page 26: Boot Setting
JW-A780LM-D3 V2.0 User's Manual 4.5.5 Boot Setting BIOS SETUP UTILITY Main Advanced Boot Security Power JUSTw00T! Exit Boot Settings Configure Settings during System Boot. ► Boot Settings Configuration ← Select Screen ► Boot Device Priority Select Item ↑ ↓ ► Hard Disk Drives... -
Page 27: Security Setting
JW-A780LM-D3 V2.0 User's Manual 4.5.6 Security Setting BIOS SETUP UTILITY Main Advanced Boot Security Power JUSTw00T! Exit Security Settings Install or Change the password. Supervisor Password : Not Installed User Password : Not Installed Change Supervisor Password ← User Access Level... - Page 28 JW-A780LM-D3 V2.0 User's Manual ► APM Configuration Click <Enter> key to enter its submenu, APM Configuration Template Manager allows you to manage Power Managerment default or custom configuration templates. BIOS SETUP UTILITY Power ACPI Settings Enable/Disable SMI base power management...
- Page 29 JW-A780LM-D3 V2.0 User's Manual • Specific Key for PowerOn When the Power On function is set to Password, use this item to set the password. • Mouse PowerOn PS/2 mouse activity wakes the computer from an ACPI S1 or S3 state.
-
Page 30: Justw00T!(Overclock) Setting
JW-A780LM-D3 V2.0 User's Manual 4.5.8 JUSTw00t! Setting(OverClock Settings) BIOS SETUP UTILITY Main Advanced Boot Security Power JUSTw00T! Exit OverClock Settings Configure CPU frequency and ► AMD Overclocking Configuration voltage. ► DRAM Timing Configuration ► Memory Configuration Memory CLK :N/A,533 MHz CAS Latency(Tcl) :N/A,8.0 CLK... - Page 31 JW-A780LM-D3 V2.0 User's Manual ► DRAM Timing Configuration Click <Enter> key to enter its submenu. BIOS SETUP UTILITY JUSTw00T! DRAM Timing Configuration Options Memory Clock Mode [Auto] Auto DRAM Timing Mode [Auto] Limit Manual Memory 2T Mode [2T Mode] ←...
-
Page 32: Exit Options
JW-A780LM-D3 V2.0 User's Manual Available options: Disabled,IC,DC,Both. ・Press <Esc> key to return to "JUSTw00T!" menu. • CPU Voltage Control This item allows you to adjust the CPU Voltage. • CPUNB Voltage Control Control CPUNB Working Voltage. • Dimm Voltage Control This item allows you to adjust the DRAM Voltage. - Page 33 JW-A780LM-D3 V2.0 User's Manual Discard Changes and Exit Highlight this item and select <Ok>,then press <Enter> to discard any changes that you have made in the Setup Utility and exit the Setup Utility. Or press <Cancel> to return to the main menu.
- Page 34 JW-A780LM-D3 V2.0 User's Manual Load Optimized Defaults This option opens a dialog box that let you install optimized defaults for all appropriate items in the Setup Utility. Select <OK> and then <Enter> to install the defaults. select <Cancel> and then <Enter> to not install the defaults. The optimized defaults place demand on the system that may be greater than the performance level of the components, such as the CPU and the memory.
-
Page 35: Chapter 5 Driver Installation
JW-A780LM-D3 V2.0 User's Manual Chapter 5 Driver Installation Check your package and there is Driver CD included. This CD consists of all drivers you need. In addition, this CD also include an auto detect software which can tell you which hardware is installed, and which drivers needed so that your system can function properly. - Page 36 JW-A780LM-D3 V2.0 User's Manual When you choose Mainboard Driver installation Utility, the drivers menu should appear as below: Back <- ATI Chipset Installation Utility Onboard LAN Driver Audio Driver Exit (This picture is only for reference) From the Drivers MENU you may make 3 selections:...
-
Page 37: Appendix 1
JW-A780LM-D3 V2.0 User's Manual APPENDIX 1 AMIBIOS Check Point and Code List: 1.Bootblock Initialization Code Checkpoints The Bootblock initialization code sets up the chipset, memory and other components before system memory is available. The following table describes the type of checkpoints that may occur during the bootblock initialization portion of... - Page 38 JW-A780LM-D3 V2.0 User's Manual Checkpoint Description Read error occurred on media. Jump back to checkpoint EB. E9 or EA Determine information about root directory of recovery media. Search for pre-defined recovery file name in root directory. Recovery file not found.
- Page 39 JW-A780LM-D3 V2.0 User's Manual Checkpoint Description Uncompress and initialize any platform specific BIOS modules. Initialize System Management Interrupt. Initializes different devices through DIM. See DIM Code Checkpoints section of document for more information. Initializes different devices. Detects and initializes the video adapter installed in the system that have optional ROMs.
