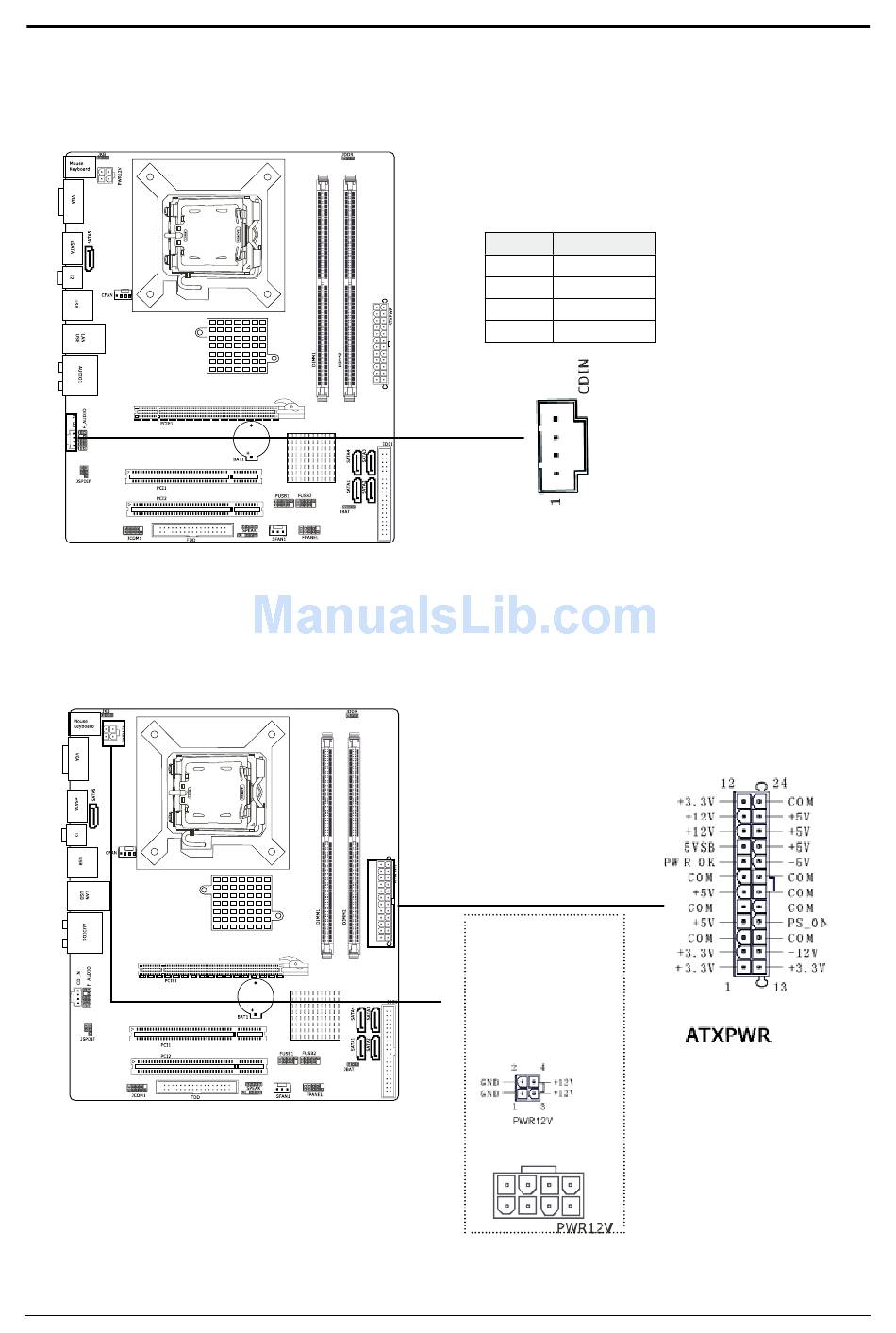

3.10 Internal Audio Connectors

Connect CD-ROM or DVD-ROM audio out to the connector.

3.11 ATX Power Input Connectors

This mainboard provides two power connectors to connect power supplier.
Pin No. Definition
1 CD-L
2 GND
3 GND
4 CD-R
There are two ATX 12V
connectors according
to different Model,
one is 4Pin,another
i s 8 p i n , f o l l o w i n
p i c t u r e s a r e f o r
reference.
1.ATX 4Pin
2.ATX 8Pin
