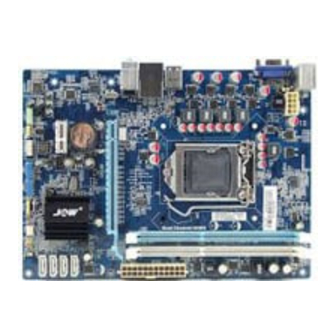

J&W JW-H61M-L3 User Manual

Socket lga1155 processor mainboard
Hide thumbs
Table of Contents

Advertisement

Quick Links

JW-H61M-L3
Socket LGA1155 Processor Mainboard
User's Manual
Rev: 1.0, July 2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JW-H61M-L3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for J&W JW-H61M-L3

Summary of Contents for J&W JW-H61M-L3

  • Page 1 JW-H61M-L3 Socket LGA1155 Processor Mainboard User’s Manual Rev: 1.0, July 2011...
  • Page 2 Disclaimer The intellectual property of this manual belongs to our company. The ownership of all of the products, including accessories and software etc. belong to our company. No one is permitted to copy, change, or translate without our written permission. We compiled this manual based on our careful attitude, but we can not guarantee the accuracy of the contents.

  • Page 3: Table Of Contents

    Table of Contents Chapter 1 Introduction ..................... 3 1.1 Package Checklist ....................3 1.2 Specifications ......................4 1.3 Mainboard Layout ....................5 1.4 Connecting Rear Panel I/O Devices .................6 Chapter 2 Hardware Setup ..................7 2.1 Choosing a Computer Chassis .................7 2.2 Installing the Mainboard ..................7 2.3 Installation of the CPU and CPU Cooler ..............8 2.3.1 Installation of the CPU .................8 2.3.2 Installation of the CPU Cooler................9...

  • Page 4: Chapter 1 Introduction

    JW-H61M-L3 User's Manual Chapter 1 Introduction 1.1 Package Checklist Thank you for choosing our product. Please check with the following list of accessories, if there is any broken or missing part, please contact your dealer or the local distributor. • I/O Shield •...

  • Page 5: Specifications

    JW-H61M-L3 User's Manual 1.2 Specifications ® ® ® /Celeron - Supports Intel Core™ i7 /Core™ i5/Core™ i3/Pentium Processors in the LGA1155 Package ® - Supports Intel Turbo-boost Technology ® Chipset -Intel H61 Express Chipset - Supports Dual Channel DDR3 1600(OC)/1333/1066...

  • Page 6: Mainboard Layout

    JW-H61M-L3 User's Manual 1.3 Mainboard Layout (This picture is only for reference) -  -...

  • Page 7: Connecting Rear Panel I/O Devices

    JW-H61M-L3 User's Manual 1.4 Connecting Rear Panel I/O Devices The rear I/O of the mainboard provides the following I/O ports: (This picture is only for reference) • PS/2 Mouse: Connects to a PS/2 mouse. • PS/2 Keyboard: Connects to a PS/2 keyboard.

  • Page 8: Chapter 2 Hardware Setup

    JW-H61M-L3 User's Manual Chapter 2 Hardware Setup 2.1 Choosing a Computer Chassis The mainboard and its component layouts illustrated in this chapter were based mainly on the model, unless specifi cally stated. • Choose a chassis big enough to install this mainboard.

  • Page 9: Installation Of The Cpu And Cpu Cooler

    JW-H61M-L3 User's Manual 2.3 Installation of the CPU and CPU Cooler Before installing the CPU, please comply with the following conditions: 1. Please make sure that the mainboard supports the CPU. 2. Please take note of the one indented corner of the CPU. If you install the CPU in the wrong direction, the CPU will not insert properly.

  • Page 10: Installation Of The Cpu Cooler

    JW-H61M-L3 User's Manual 2.3.2 Installation of the CPU Cooler For proper installation, please kindly refer to the instruction manuals of your CPU Cooler. 2.4 Installation of Memory Modules This mainboard provides two 240-pin DDRIII (Double Data Rate) DIMM slots, and supports Dual Channel Memory Technology.

  • Page 11: Connecting Peripheral Devices

    JW-H61M-L3 User's Manual 2.5 Connecting Peripheral Devices 2.5.1 Serial ATA Connectors Each SATA connector serves as one single channel to connect one SATA device by SATA cable. 2.5.2 PCI Express slots Install PCI Express X16 graphics card into slot “PCIE1”.

  • Page 12: Chapter 3 Jumpers & Headers Setup

    JW-H61M-L3 User's Manual Chapter 3 Jumpers & Headers Setup 3.1 Checking Jumper Settings • For a 2-pin jumper, plug the jumper cap on both pins will make it CLOSE (SHORT). Remove the jumper cap, or plug it on either pin (reserved for future use) will leave it at OPEN position.

  • Page 13: Fan Power Connectors

    JW-H61M-L3 User's Manual 3.4 FAN Power Connectors These connectors each provide power to the cooling fans installed in your system. CFAN: CPU Fan Power Connector SFAN1: System Fan Power Connector These fan connectors are not jumpers. DO NOT place jumper caps on these connectors.

  • Page 14: Additional Usb Port Headers

    JW-H61M-L3 User's Manual 3.6 Additional USB Port Headers The headers conform to USB 2.0/1.1 specification. Each USB header can provide two USB ports via an optional USB bracket. Pin Assignment Pin Assignment Data 0- Data 0- Data 0+ Data 0+...

  • Page 15: S/Pdif Output Connection Header

    JW-H61M-L3 User's Manual 3.8 S/PDIF Output Connection Header S/PDIF (Sony/Philips Digital Interface) is a standard audio transfer file format. It is usually found on digital audio equipment such as a DAT (Digital Audio Tape) machine or audio processing device. It allows the transfer of audio from one file to another without the conversion to and from an analog format, which could degrade the signal quality.

  • Page 16: Atx Power Input Connectors

    JW-H61M-L3 User's Manual 3.9 ATX Power Input Connectors ATXPWR (ATX Power) connector We recommend to use our motherboard with a power supply that complies with the ATX12V Power Supply Design Guide Version 1.1. Every ATX12V power supply unit has a standard 24-pin ATX main power connector that must be plugged into this connector.

  • Page 17: Chapter 4 Bios Setup Utility

    JW-H61M-L3 User's Manual Chapter 4 BIOS Setup Utility BIOS stands for Basic Input and Output System. It was once called ROM BIOS when it was stored in a Read-Only Memory (ROM) chip. Now manufacturers would like to store BIOS in EEPROM which means Electrically Erasable Programmable Memory.

  • Page 18: Bios Setup - Cmos Setup Utility

    JW-H61M-L3 User's Manual 4.5 BIOS Setup — CMOS Setup Utility •  In order to increase system stability and performance, our engineering staff is constantly improving the BIOS menu. The BIOS setup screens and descriptions illustrated in this manual are for your reference only, and may not completely match with what you see on your screen.This chapter were based mainly on...

  • Page 19: Control Keys

    JW-H61M-L3 User's Manual 4.5.2 Control Keys Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. Control Key(s) Function Description ← → Move cursor left or right to select Screens Move cursor up or down to select items ↑...

  • Page 20: Advanced Setting

    JW-H61M-L3 User's Manual 4.5.4 Advanced Aptio Setup Utility - Copyright (C) 2011 American Megatrends,Inc. Main Advanced Chipset Boot Security JUSTw00t Save&Exit Legacy OpROM Support Enable or Disabe Boot O p t i o n f o r L e g a c y...
  • Page 21 JW-H61M-L3 User's Manual • Enable ACPI Auto Confguration Setting the advanced power management configuration, optional for Enalbed, Disbaled. • Enable Hibernation Eanables or disables system ability to hibernate (OS/S4 sleep state). This option may be not effective with sime OS. Optional for Enalbed, Disbaled.
  • Page 22 JW-H61M-L3 User's Manual • Wake System With Fixed Time Aptio Setup Utility - Copyright (C) 2010 American Megatrends,Inc. Advanced Wake System With Fixed Time [Disabled] Enable or Disabe System wake on alarm event. When enabled,System will Wake system with Dynamic Time...
  • Page 23 JW-H61M-L3 User's Manual This is CPU configuration options, and show processor working states, such as frequency， 64-bit support, maximum/min frequency, stepping, microcode version, code number and hyper-threading technology support, etc. • Hyper-threading Setting hyper-threading technology open or closed，optional for Enalbed, Disbaled.
  • Page 24 JW-H61M-L3 User's Manual • Legacy USB Support Setting support old input/output devices, such as the mouse, keyboard etc, optional for Enabled，Disabled，Auto. • EHCI Hand-off Setting EHCI Hand-Off function,optional for Enabled，Disabled. • Port 60/64 Emulation The item is to increase the USB KBC compatibility，optional for Enabled，Disabled.
  • Page 25 JW-H61M-L3 User's Manual • AC Power Loss Setting the system state choice after powre failure. Setting "Always Off", need to press case panel on the Power switch to boot. Setting "Always On", the supply reply directly boot. Setting "Keep last state", Power reply recovery system State before power off.

  • Page 26: Chipset Setting

    JW-H61M-L3 User's Manual 4.5.5 Chipset Aptio Setup Utility - Copyright (C) 2011 American Megatrends,Inc. Main Advanced Chipset Boot Security JUSTw00T! Save & Exit ► North Bridge North Bridge Parameters ► SB Devices Control ► ME Subsystem ► Serial Port Control →...
  • Page 27 JW-H61M-L3 User's Manual • DVMT Mode Select Select DVMT Mode used by Internal Graphics Device. • DVMT/FIXED Memory Select DVMT/FIXED Mode Memory size used by Internal Graphics Device.  Press < ESC> key to return to the Chipset menu ►...
  • Page 28 JW-H61M-L3 User's Manual • SATA Mode Setting Serial-ATA Mode，optional for Disbaled、IDE Mode、AHCI Mode. • Serial-ATA Controler 0/1 Setting Serial-ATA 0 or 1 controler, optional for Disabled, Enhanced, Compatible. • SATA Port 1/2/3/4 This item is a lists of the system detects the current SATA equipment and device type.

  • Page 29: Boot Setting

    JW-H61M-L3 User's Manual Aptio Setup Utility - Copyright (C) 2011 American Megatrends,Inc. Chipset Serial Port 0 Configuration Enable or Disable Serial Port (COM) Serial Port [Enabled] → ← Device Settings IO=3F8h; IRQ=4; : Select Screen Change Settings [Auto] ESC: Exit Version 2.11.1210.

  • Page 30: Security Setting

    JW-H61M-L3 User's Manual 4.5.7 Security Aptio Setup Utility - Copyright (C) 2011 American Megatrends,Inc. Main Advanced Chipset Boot Security JUSTw00T! Save & Exit Password Description Set Setup Administrator Password. If ONLY the Administrator'password is set, then this only limits access to Setup and is →...
  • Page 31 JW-H61M-L3 User's Manual ► CPU Confguration Press Enter to enter submenu. This item allows you to set the relevant parameters of CPU. The default settings are not suggested to change before their functions are understood totally. Aptio Setup Utility - Copyright (C) 2011 American Megatrends,Inc.

  • Page 32: Save & Exit Setting

    JW-H61M-L3 User's Manual Aptio Setup Utility - Copyright (C) 2011 American Megatrends,Inc. JUSTw00t Platform Voltage Control Graphics Core Ratio Limit Memory Voltage [1.5000V] → ← : Select Screen ↑↓ Select Item Enter: Select 　 ..Version 2.11.1210. (C)Copyright 2011 American Megatrends, Inc.
  • Page 33 JW-H61M-L3 User's Manual • Discard Changes and Exit Select "Discard changes and exit", select "Yes" and press <Enter> to give up on BIOS program changes and exit BIOS setup program. Select "No" or press "ESC" and return to the main menu.
  • Page 34 JW-H61M-L3 User's Manual Aptio Setup Utility - Copyright (C) 2011 American Megatrends,Inc. Main Advanced Chipset Boot Security JUSTw00t Save & Exit Save Changes and Exit Exit system setup after Discard Changes and Exit saving the changes. Save Changes and Reset...
  • Page 35 JW-H61M-L3 User's Manual Aptio Setup Utility - Copyright (C) 2011 American Megatrends,Inc. Main Advanced Chipset Boot Security JUSTw00t Save & Exit Save Changes and Exit Exit system setup after Discard Changes and Exit saving the changes. Save Changes and Reset...
  • Page 36 JW-H61M-L3 User's Manual Aptio Setup Utility - Copyright (C) 2011 American Megatrends,Inc. Main Advanced Chipset Boot Security JUSTw00t Save & Exit Save Changes and Exit Exit system setup after Discard Changes and Exit saving the changes. Save Changes and Reset...

  • Page 37: Chapter 5 Driver Installation

    JW-H61M-L3 User's Manual Chapter 5 Driver Installation Check your package and there is Driver CD included. This CD consists of all drivers you need. In addition, this CD also include an auto detect software which can tell you which hardware is installed, and which drivers needed so that your system can function properly.
  • Page 38 JW-H61M-L3 User's Manual Back <- INTEL Chipset Installation Utility INTEL Chipset VGA Graphics Driver Onboard LAN Driver Realtek HD Audio Driver PCI Simple Communication 　 Controller Exit (This picture is only for reference) From the Drivers MENU you may make 4 selections:...
