The FortiGate-5001C security system is a high-performance Advanced
Telecommunications Computing Architecture (ATCA) compliant FortiGate security system
that can be installed in any ATCA chassis that can provide sufficient power and cooling.
Table 1 lists the FortiGate-5000 series chassis that can support the FortiGate-5001C
board. For most up-to-date list of all chassis that can support the FortiGate-5001C board
see the FortiGate-5001C Release Notes.
Table 1: FortiGate-5000 series chassis that support the FortiGate-5001C board
Chassis
Hardware ID
Model
FG-5140B C4GL51-01BD-0000 P09297-01
FG-5060 C4FN27-01AA-0000 P08588-01
For more information about FortiGate-5000 series chassis see the
Chassis Guides page of the Fortinet Technical Documentation web site.
The FortiGate-5001C security system contains two front panel 10-gigabit SPF+
interfaces, two base backplane 1-gigabit interfaces, and two fabric backplane 10-gigabit
interfaces. The front panel interfaces can also operate as 1-gigabit SPF interfaces. Use
the front panel interfaces for connections to your networks and the backplane interfaces
for communication across the ATCA chassis backplane. The FortiGate-5001C also
includes two front panel RJ45 10/100/1000 management Ethernet interfaces, one RJ45
front panel serial management port, and one front panel USB port.

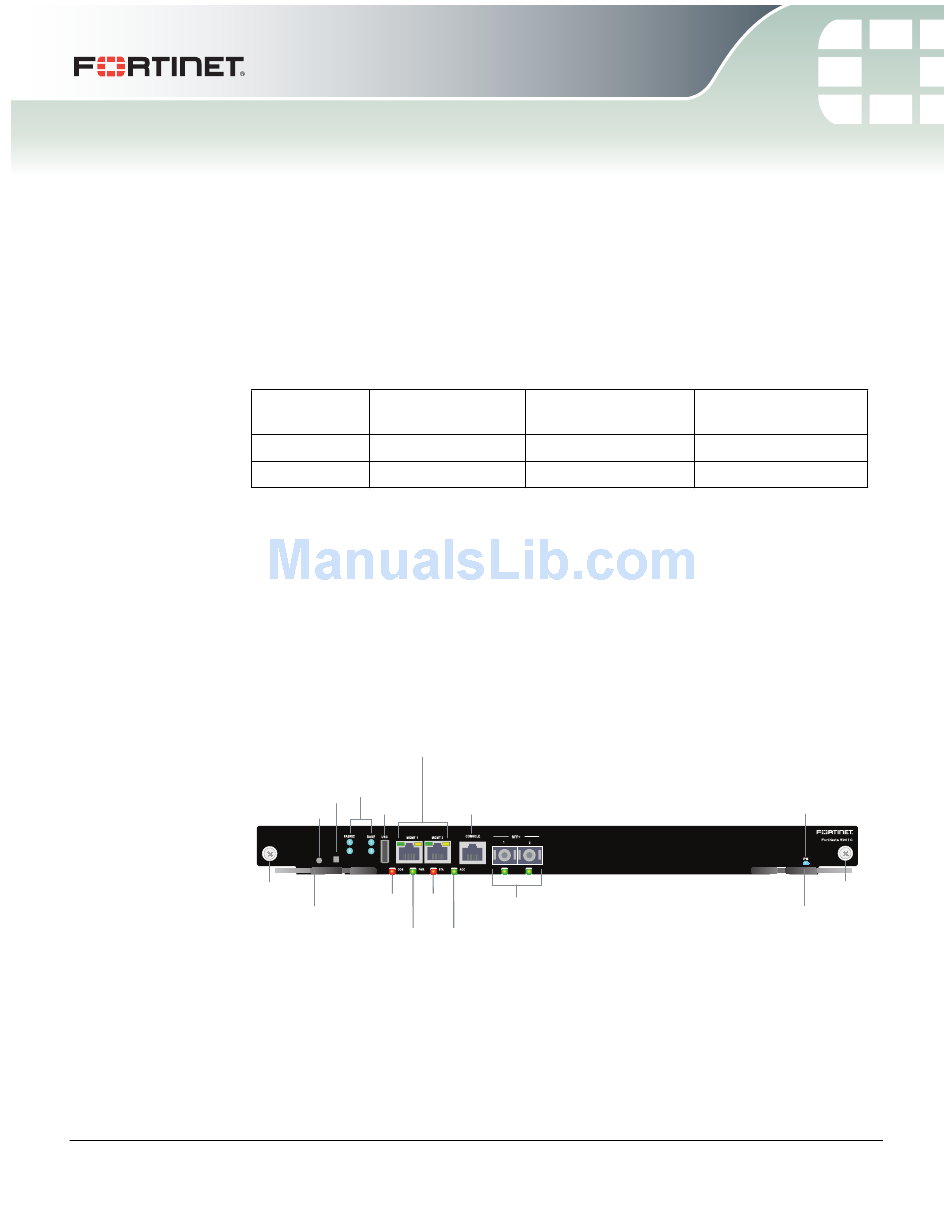

Figure 1: FortiGate-5001C front panel
MGMT 1 and MGMT 2
10/100/1000 Copper
Management Interfaces
Fabric and Base
network activity
LEDs
Factory Use
USB
NMI Switch
Retention
Screw
OOS STA
Extraction LED LED
Lever
PWR
LED
The FortiGate-5001C front panel 10-gigabit interfaces and fabric backplane interfaces
also provide NP4-accelerated network processing for eligible traffic passing through
these interfaces.
FortiGate-5001C
System Part Number Serial Number
RJ-45
Console
1 and 2
10 Gig
SFP+
ACC
Interfaces
LED
FG514B3Y12000xxx
FG50603S1XXXXXXX
FortiGate-5000
IPM
LED
(board
position)
Retention
Screw
Extraction
Lever
