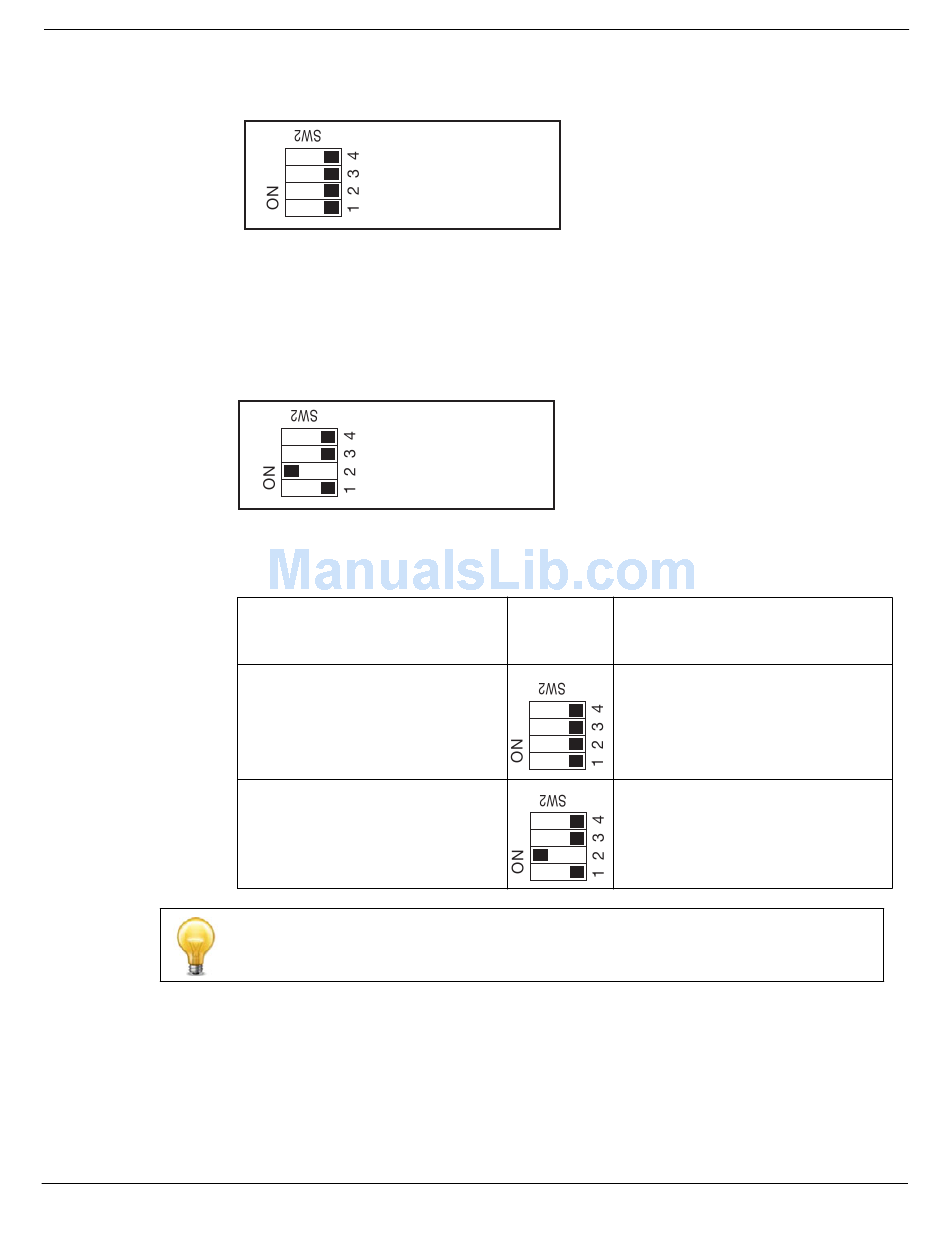

Figure 4: Factory default shelf manager mode setting for SW2

Factory Default

(Requires Shelf
Manager)
By default a FortiGate-5001C board will not start up if the board is installed in a chassis
that does not contain a shelf manager or that contains a shelf manager that is not
operating. Before installing a FortiGate-5001C in a chassis that does not contain an
operating shelf manager you must change the SW2 switch setting to that shown in
Figure 5.
Figure 5: Standalone mode setting for SW2
Standalone Mode
(No Shelf Manager)
In all cases you should confirm that you have the correct SW2 setting before installing the
board in a chassis.
Table 4: FortiGate-5001C SW2 settings
Chassis
FortiGate-5140B or 5060 or a
ATCA chassis with a compatible
operating shelf manager (factory
default shelf manager mode).
Any ATCA chassis without an
operating shelf manager
(standalone mode).
If the shelf manager in a FortiGate-5000 series chassis is missing or not functioning,
FortiGate-5001C boards with factory default SW2 settings will not start up.
To change or verify the SW2 switch setting
To complete this procedure, you need:
• A FortiGate-5001C board
• A tool for changing the SW2 switch setting (optional)
Changing FortiGate-5001C SW2 switch settings
Correct
SW2 Result of wrong jumper setting
Setting
Shelf manager cannot find
FortiGate-5001C board. No shelf
manager information about the
FortiGate-5001C board available.
FortiGate-5001C board will not start
up.
