Fortinet FortiAnalyzer-800 Quick Start Manual

FortiAnalyzer Unit LED Indicators
Light Icon Description
The FortiAnalyzer power indicator. The FortiAnalyzer unit is powered on
when the light is on.
LED currently not in use.
Network activity. The light flashes as network activity is occurring on the
FortiAnalyzer unit.
Hard disk activity. The light flashes as log packets are written to the For-
tiAnalyzer hard disk, and when the FortiAnalyzer unit accesses the hard
disk to generate reports.

Checking the Package Contents

Hard Disk
Power, Error, Network,
LEDs
Power ATX Redundant
Connection Power Supplies
Connector
Ports 1 and 2
CONSOLE
Connecting
Connect the FortiAnalyzer unit to a power outlet and to the network hub or switch.
• Place the FortiAnalyzer unit on a stable surface. It requires 1.5 inches (3.75 cm) clearance
on each side to allow for cooling.
• Make sure the power is not plugged into the wall before connecting the power cable.
• The Status light flashes while the unit is starting up and remains lit when the system is up
and running.

Planning the Configuration

You can add the FortiAnalyzer unit to your local FortiGate network to receive log messages
from your local FortiGate units, or connect the FortiAnalyzer unit to the FortiGate units re-
motely using FortiManager. To connect the FortiAnalyzer unit to the FortiGate units remotely,
you must configure the DNS server and the default gateway.
To manage the FortiAnalyzer unit, you can use a computer within the local network or over
the Internet.

Factory Defaults

User name:
Administrator Account
Password:
IP:
Port 1 Netmask:
Management Access:
IP:
Port 2 Netmask:
Management Access:
Front
LED indicators: LCD Setting
Hard Disk
Panel Switches
LEDs
and Disk Access A and B
Power
Switch
Back
RS-232 SCSI Connector
Serial For Tape Drive
Ethernet Network
Connection For Future Use
Connections
Type Speed
RJ-45 10/100Base-T
DB-9 9600 bps
admin
(none)
192.168.1.99
255.255.255.0
ping, https, http, ssh
192.168.2.99
255.255.255.0
ping, https, http, ssh
© Copyright 2007 Fortinet Incorporated. All rights reserved.
Products mentioned in this document are trademarks or registered trade-
marks of their respective holders.
Regulatory Compliance
FCC Class A Part 15 CSA/CUS
31 July 2007
Power Cable

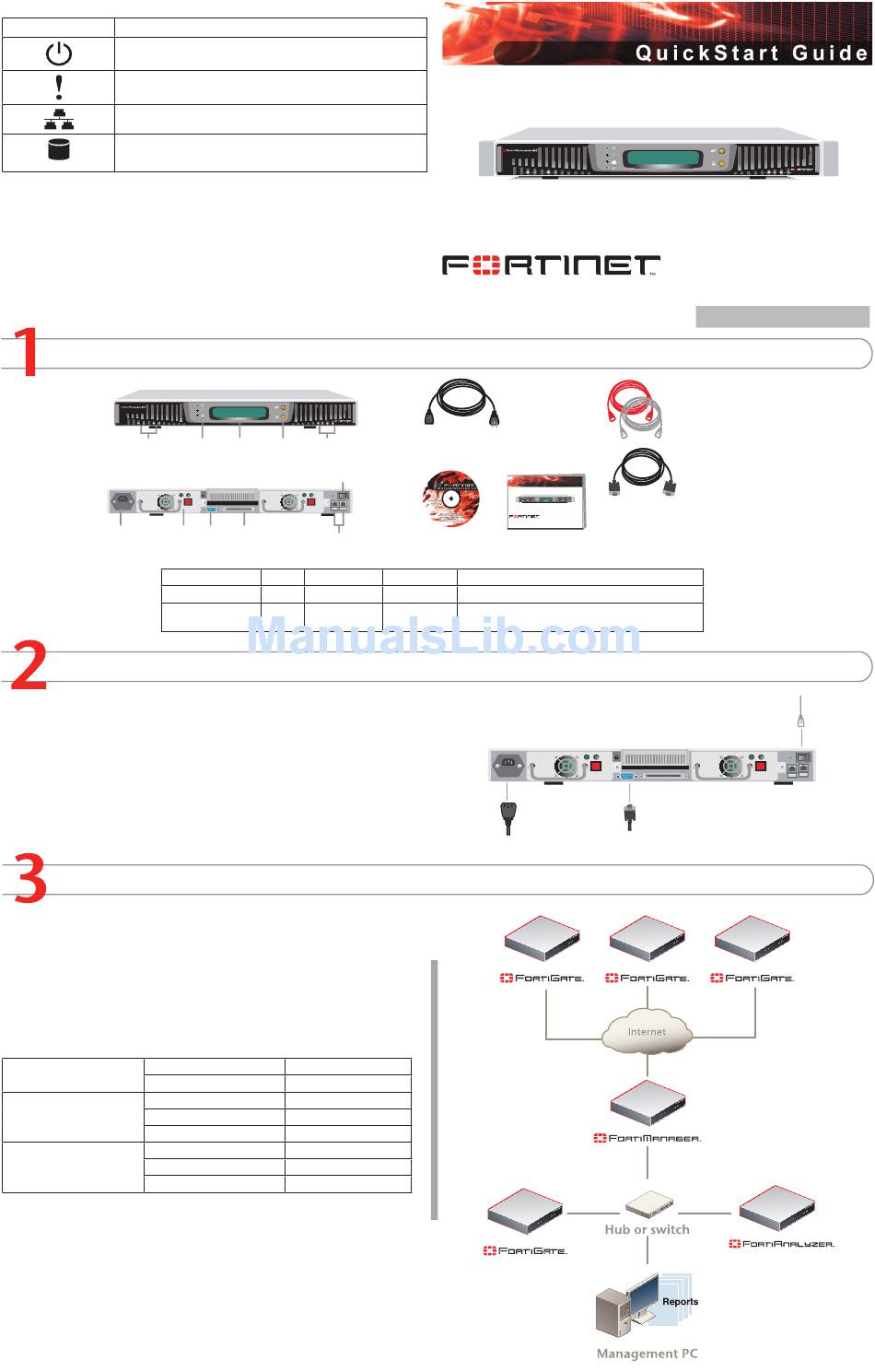

Q u i c k S t a r t G u i d e
FortiAnalyzer-800
Copyright 2006 Fortinet Incorporated. All rights reserved.
Trademarks
Products mentioned in this document are trademarks.
Documentation
Protocol Description
Ethernet Connection to the network
RS-232 serial Connection to the management computer. Provides
access to the command line interface (CLI).
Power cable connects to power outlet
FortiAnalyzer-800
05-30005-0224-20070731
Ethernet Cables:
Orange - Crossover
Grey - Straight-through
Null-Modem Cable
(RS-232)
Straight-through Ethernet cable connects
to hub or switch on the network
Null modem cable connects
to serial port on management computer
