Shutting down and removing a FortiGate-5001C board
18
FortiGate-5001C boards are hot swappable. The procedure for removing
a FortiGate-5001C board from a chassis slot is the same whether or not the chassis is
powered on.
To remove a FortiGate-5001C board from a chassis slot
Do not carry the FortiGate-5001C board by holding the handles or retention screws.
When inserting or removing the FortiGate-5001C board from a chassis slot, handle the
board by the front panel. The handles are not designed for carrying the board. If the
handles become bent or damaged the FortiGate-5001C board may not align correctly in
the chassis slot.
To complete this procedure, you need:
• An ATCA chassis with a FortiGate-5001C board installed
• An electrostatic discharge (ESD) preventive wrist strap with connection cord
FortiGate-5001C boards must be protected from static discharge and physical shock.
Only handle or work with FortiGate-5001C boards at a static-free workstation. Always
wear a grounded electrostatic discharge (ESD) preventive wrist strap when handling
FortiGate-5001C boards.
1 Shut down the operating system running on the FortiGate-5001C board. For example:
• From the web-based manager, go to System > Status and from the Unit Operation
widget, select Shutdown and then select OK.
• From the CLI enter
execute shutdown
2 Attach the ESD wrist strap to your wrist and to an available ESD socket or wrist strap
terminal.
3 Disconnect all cables from the FortiGate-5001C board, including all network cables,
the console cable, and any USB cables or keys.

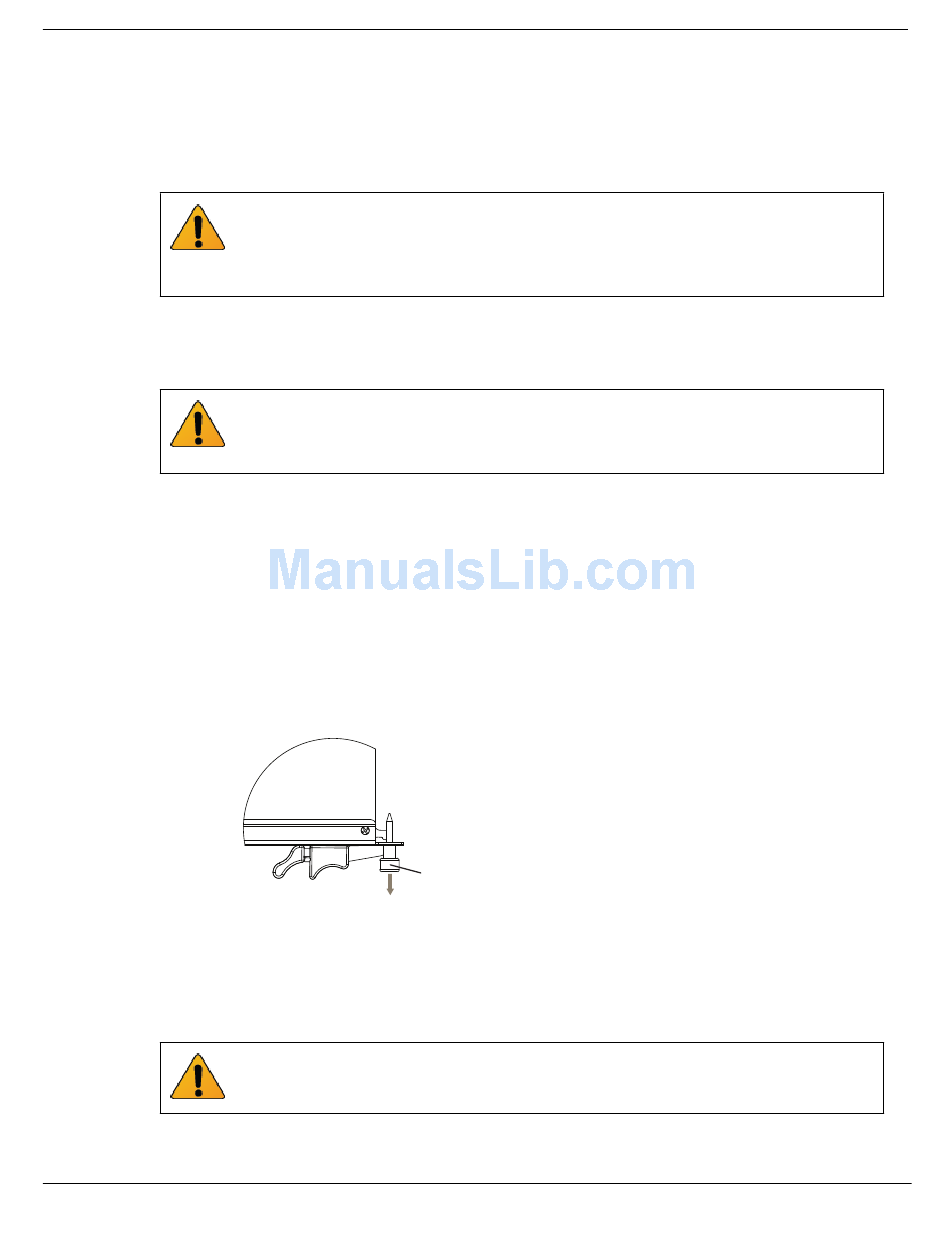

4 Fully loosen the retention screws on the FortiGate-5001C front panel.
Retention
Loosen
5 Unlock the handles by squeezing the handle locks.
6 Slowly open both handles a small amount (about 8 degrees) until the IPM LED flashes
blue.
7 Keep the handles in this position until the IPM LED stops flashing and becomes solid
blue.
Waiting for the IPM LED to change to solid blue makes sure that the board software
shutdowns completely before disconnecting it from backplane power.
Screw
Hardware installation
FortiGate-5001C Security System Guide
01-400-181221-20121130
