Hardware installation

Power cycling a FortiGate-5001C board

FortiGate-5001C Security System Guide
01-400-181221-20121130
http://docs.fortinet.com/

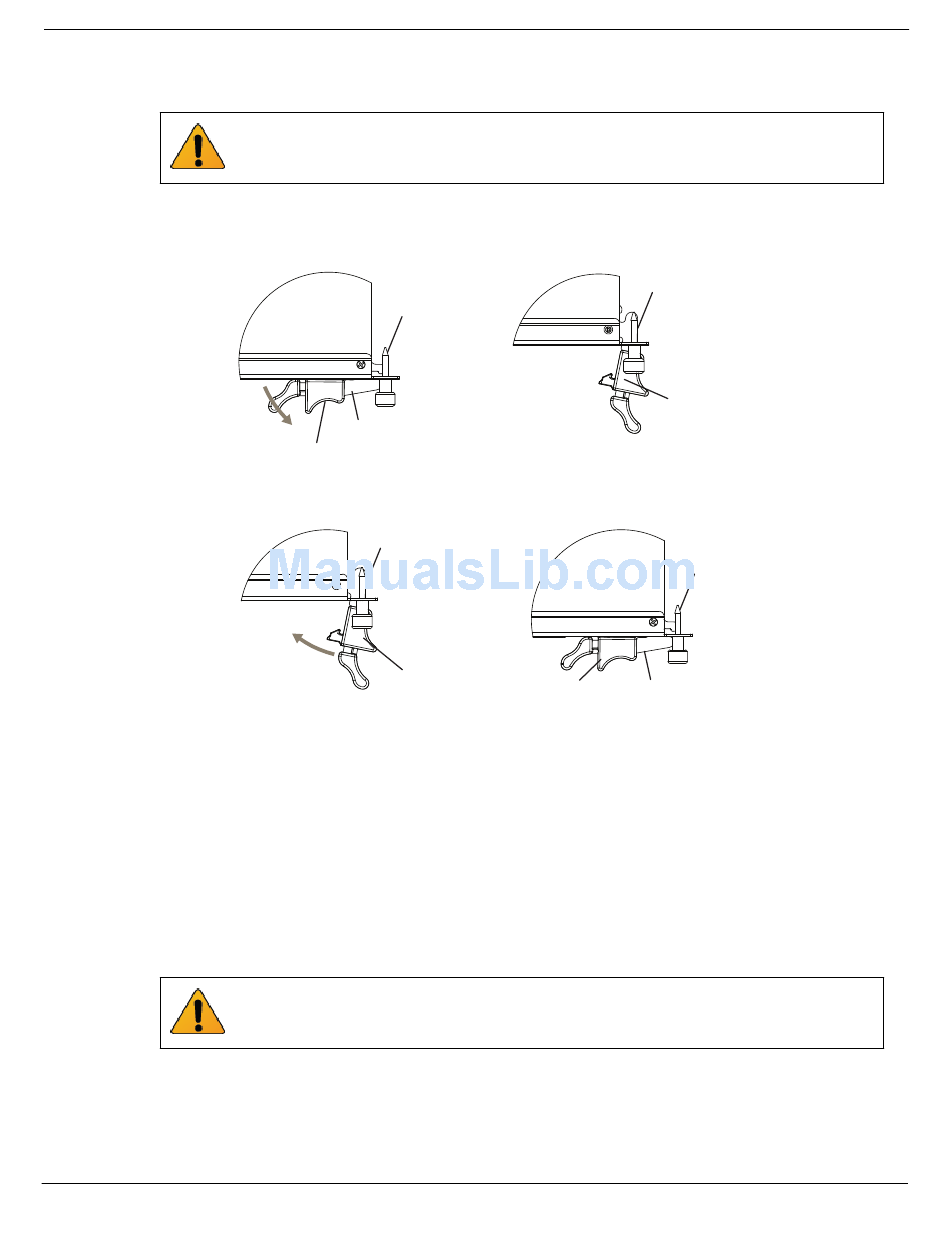

8 Open the handles to their fully open positions.
To avoid damaging the lock, make sure you squeeze the handles fully to unlock them
before opening. The handles should pop easily out of the board front panel.
You need to open the handles with moderate pressure to eject the board from the
chassis. Pivoting the handles turns off the microswitch, turns off all LEDs, and ejects
the board from the chassis slot.
Alignment Pin
Handle
Open
Lock
9 Pull the board about half way out.
10 Turn both handles to their fully-closed positions.
Alignment Pin
Close
Handle
11 Carefully slide the board completely out of the slot.
12 Re-attach the protective metal frame before shipping or storing the FortiGate-5001C
board.
This section describes how to cycle the power on a FortiGate-5001C board by opening
the right handle (the lower handle when the board is installed vertically in a
FortiGate-5140 chassis) to activate a switch that cycles the power without removing the
board from the chassis. The steps recommend loosening the retention screws before
opening the handle to allow the handle to toggle the switch. During this process the
board may move out a small amount (less than 1 mm).
To avoid potential hardware problems, always shut down the FortiGate-5001C operating
system properly before power cycling the FortiGate-5001C board.
To power cycle a FortiGate-5001C board without fully removing the board from the
chassis
To complete this procedure, you need:
Power cycling a FortiGate-5001C board
Alignment Pin
Handle
Alignment Pin
Handle
Fully Closed
and Locked
19
