Electrical Connection - Kenmore W10562368A Installation Instructions Manual

27" wide electric models
Hide thumbs

Advertisement

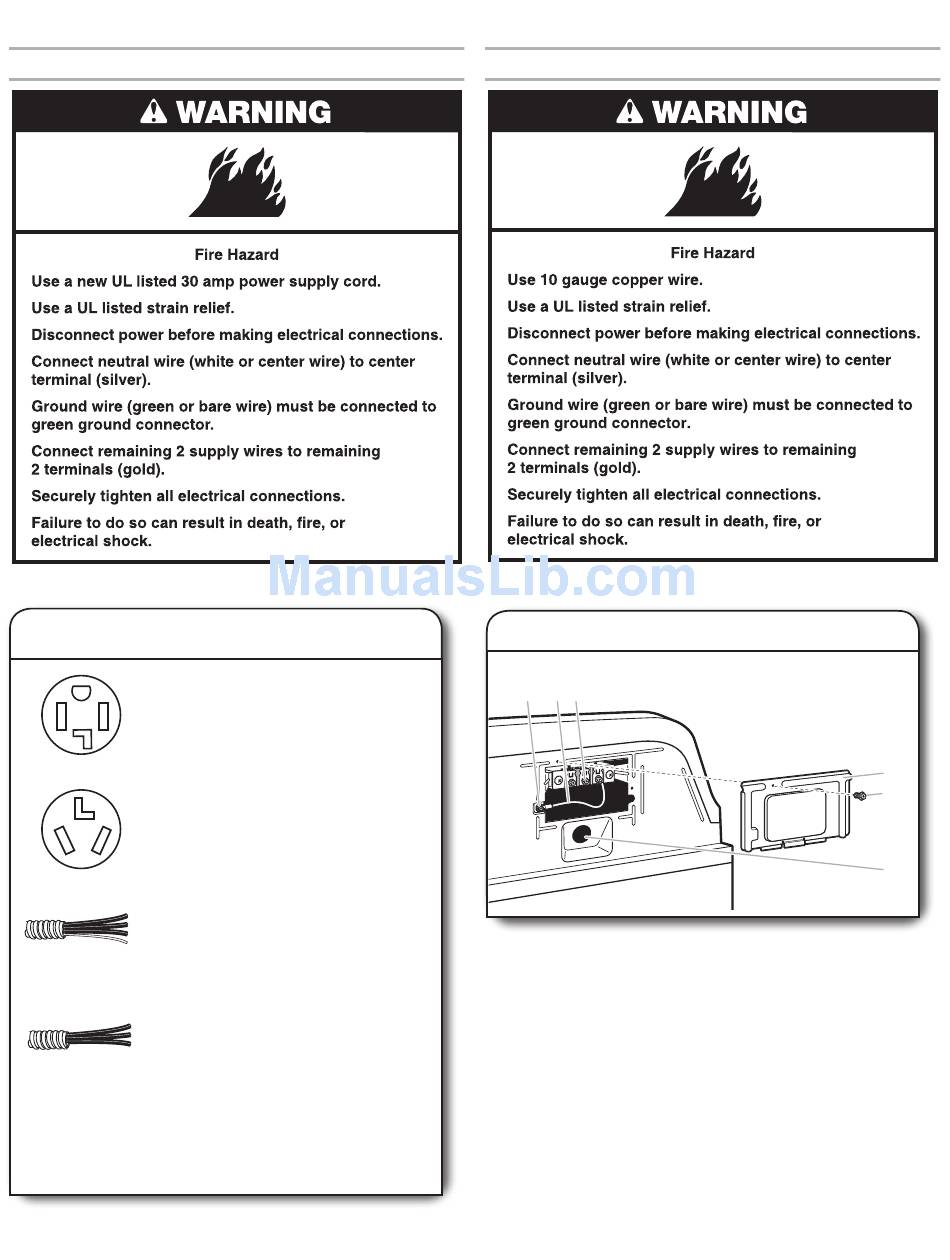

Power Supply Cord
Electrical Connection Options
1.
Choose electrical connection type
Power supply cord 4-wire receptacle
(NEMA Type 14-30R): Go to steps 1–2 on
page 8 for power supply cord strain relief;
then go to the "4-wire Power Supply Cord
Connection" section. Then, go to "Venting
Requirements."
Power supply cord 3-wire receptacle
(NEMA Type 10-30R): Go to steps 1–2 on
page 8 for power supply cord strain relief;
then go to the "3-wire Power Supply Cord
Connection" section. Then, go to "Venting
Requirements."
4-wire direct connection: Go to steps 1–2 on
page 10 for direct wire strain relief; then go
to the "4-wire Direct Wire Connection" section.
Then, go to "Venting Requirements."
3-wire direct connection: Go to steps 1–2 on
page 10 for direct wire strain relief; then go
to the "3-wire Direct Wire Connection" section.
Then, go to "Venting Requirements."
NOTE: If local codes do not permit connection of a
cabinet-ground conductor to neutral wire, go to "Optional
3-wire Connection" section. This connection may be
used with either a power supply cord or a direct wire
connection.

Electrical Connection

Direct Wire
2.
Remove terminal block cover
B
Before you start, disconnect power. Remove hold-down
screw (D) and terminal block cover (A).
E C
A.
Terminal block cover
B.
External ground conductor screw
C.
Center terminal block screw
D.
Hold-down screw
E.
Neutral ground wire
F.
Hole below terminal block cover
A
D
F
7
