2.

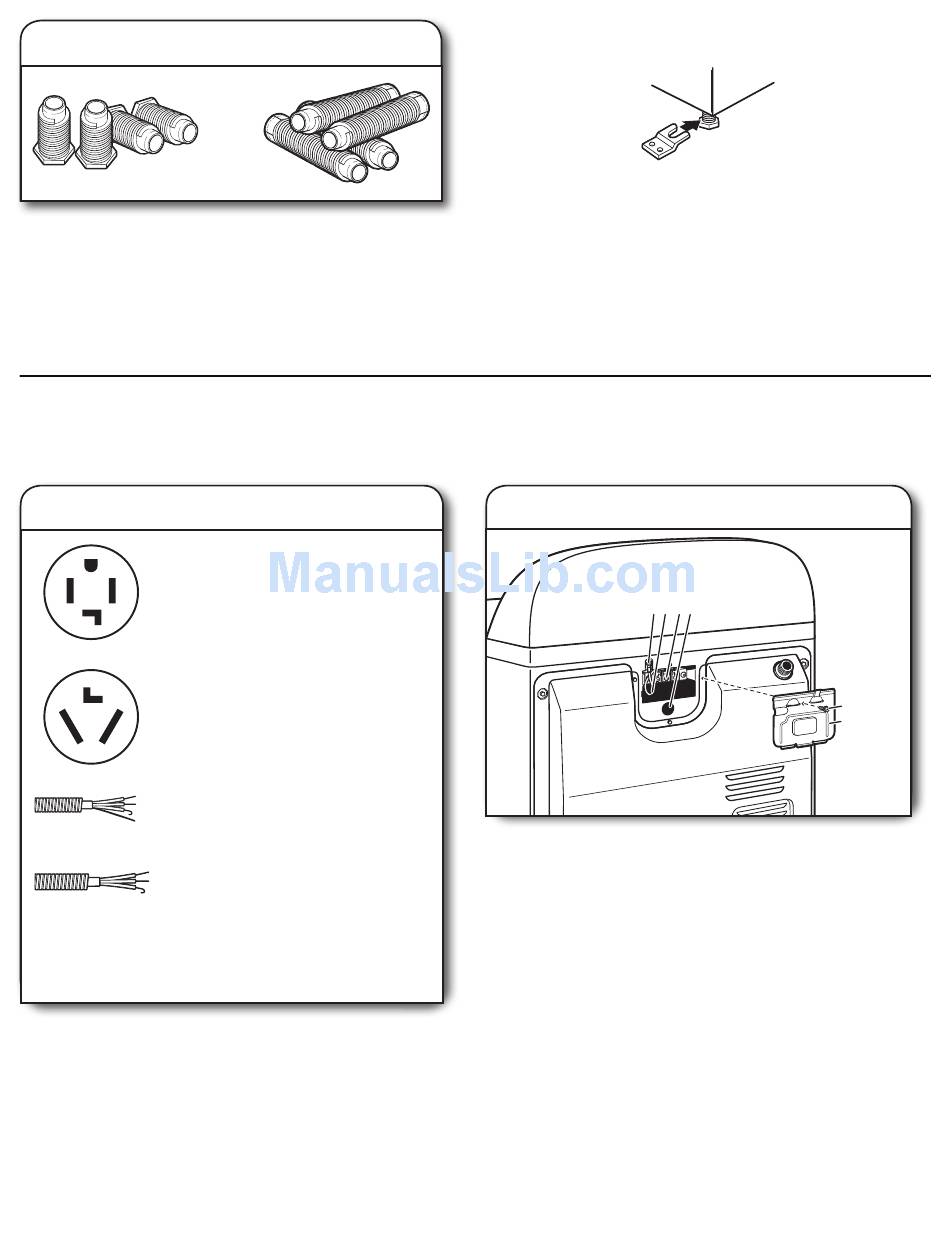

Screw in leveling legs
Using a wrench and tape measure, screw leveling legs into leg
holes until bottom of foot is approximately 1/2" (13 mm) from
bottom of dryer (so that the dryer height matches that of the
accompanying washer).
Now stand the dryer on its feet. Slide the dryer until it is
close to its fi nal location. Leave enough room to connect
the exhaust vent.
MAKE ELECTRICAL CONNECTION – U.S.A. ONLY (EFFECTUER
LE RACCORDEMENT ÉLECTRIQUE – ÉTATS-UNIS SEULEMENT)
Electrical Connection Options
1.
Choose electrical connection type
Power supply cord 4-wire receptacle
(NEMA Type 14-30R):
Go to 4-wire Power Supply Cord
Connection.
Power supply cord 3-wire receptacle
(NEMA Type 10-30R):
Go to 3-wire Power Supply Cord
Connection.
4-wire direct connection:
Go to Direct Wire Connection.
3-wire direct connection:
Go to Direct Wire Connection.
NOTE: If local codes do not permit connection of a
cabinet-ground conductor to neutral wire, go to "Optional
3-wire connection." This connection may be used with
either a power supply cord or a direct wire connection.
10
or
For mobile home use
Gas dryers must be securely fastened to the fl oor.
Mobile home installations require a Mobile Home Installation
Hold-down Kit. For ordering information, call 1-844-553-6667
(U.S.) or 1-800-469-4663 (Canada).
2.
Remove terminal block cover
B
E
Before you start, disconnect power. Remove hold-down screw
(D) and terminal block cover (A).
A. Terminal block cover
B. External ground conductor screw
C. Center terminal block screw
D. Hold-down screw
E. Neutral ground wire
F. Hole below terminal block cover
C C
F
D
A
