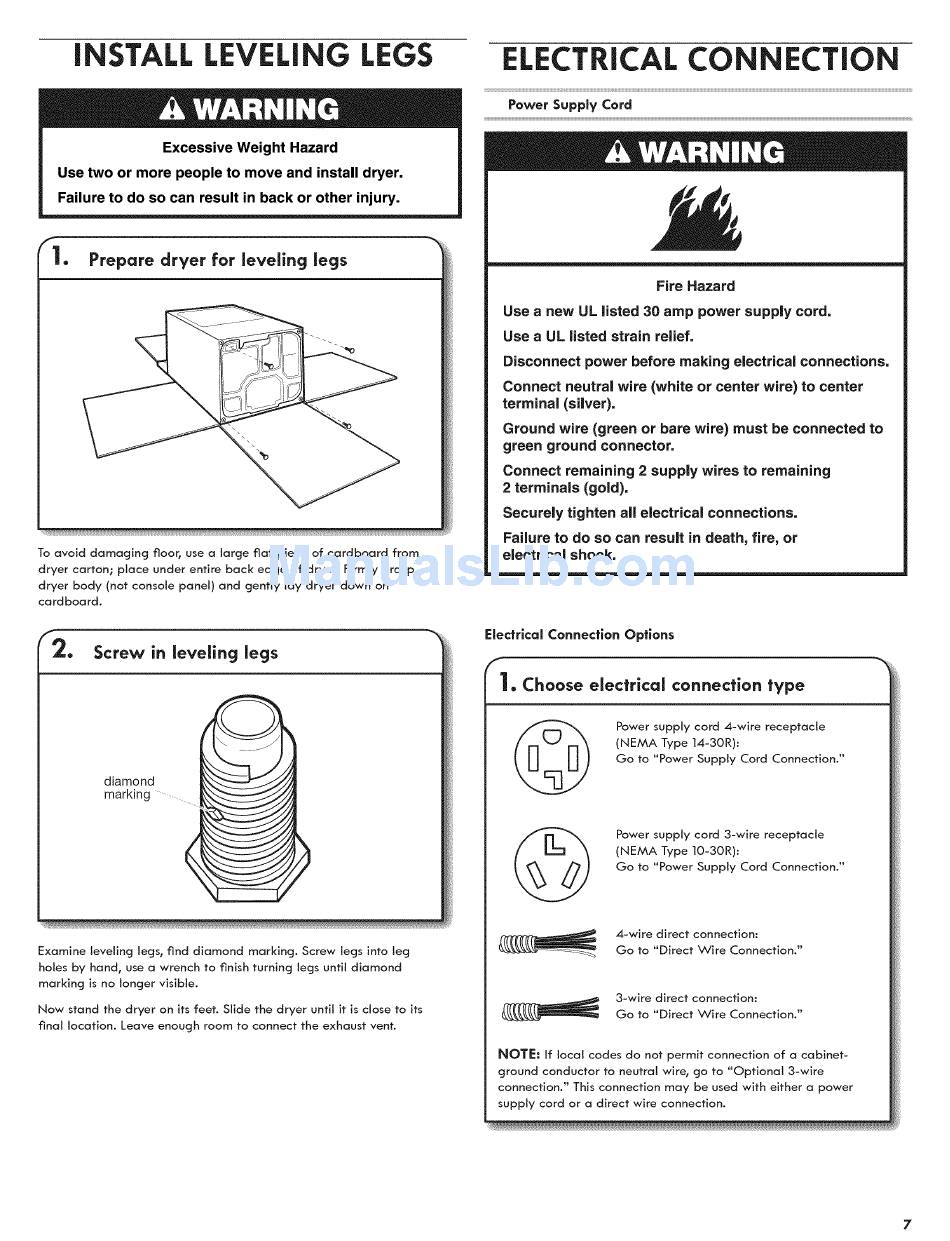

iNSTALL LEVELING LEGS
Excessive Weight Hazard
Use two or more people to move and install dryer.
Failure to do so can result in back or other injury.
i.
Prepare
dryer for leveling
legs
To avoid
damaging
floor,
use a large
fiat
piece
of cardboard
from
dryer
carton;
place
under
entire
back
edge
of dryer.
Firmly
grasp
dryer
body
(not console
panel)
and gently
lay dryer
down
on
cardboard.
_.
Screw in leveling
legs
diamond
marking
........
(
)
Examine
leveling
legs, find
diamond
marking.
Screw
legs into
leg
holes
by hand,
use a wrench
to finish
turning
legs until diamond
marking
is no longer
visible.
Now
stand
the dryer
on its feet.
Slide
the dryer
until it is close
to its
final
location.
Leave
enough
room
to connect
the exhaust
vent.
ELECTRICALCONNECTION
Power Supply Cord
Fire Hazard
Use a new UL listed 30 amp power supply cord.
Use a UL listed strain relief.
Disconnect power before making electrical connections.
Connect neutral wire (white or center wire) to center
terminal
(silver).
Ground wire (green or bare wire) must be connected to
green ground connector.
Connect remaining
2 supply wires to remaining
2 terminals
(gold).
Securely tighten
all electrical connections.
Failure to do so can result in death, fire, or
electrical shock.
Electrical Connection Options
. Choose electrical
connection
type
Power supply cord
4-wire
receptacle
(NEMA
Type 14-30R):
Go to "Power
Supply
Cord
Connection."
Power supply cord
3-wire
receptacle
(NEMA
Type 10-30R):
Go to "Power
Supply
Cord
Connection."
4-wire
direct
connection:
Go to "Direct
Wire
Connection."
3-wire
direct
connection:
Go to "Direct
Wire
Connection."
NOTE:
If local
codes
do not permit
connection
of a cabinet-
ground
conductor
to neutral
wire,
go to "Optional
3-wire
connection."
This connection
may
be used with
either
a power
supply
cord
or a direct
wire
connection.
