Install Leveling Legs; Electrical Connection - Kenmore 11065202310 Installation Instructions Manual

29" wide electric models
Hide thumbs

Advertisement

Table of Contents

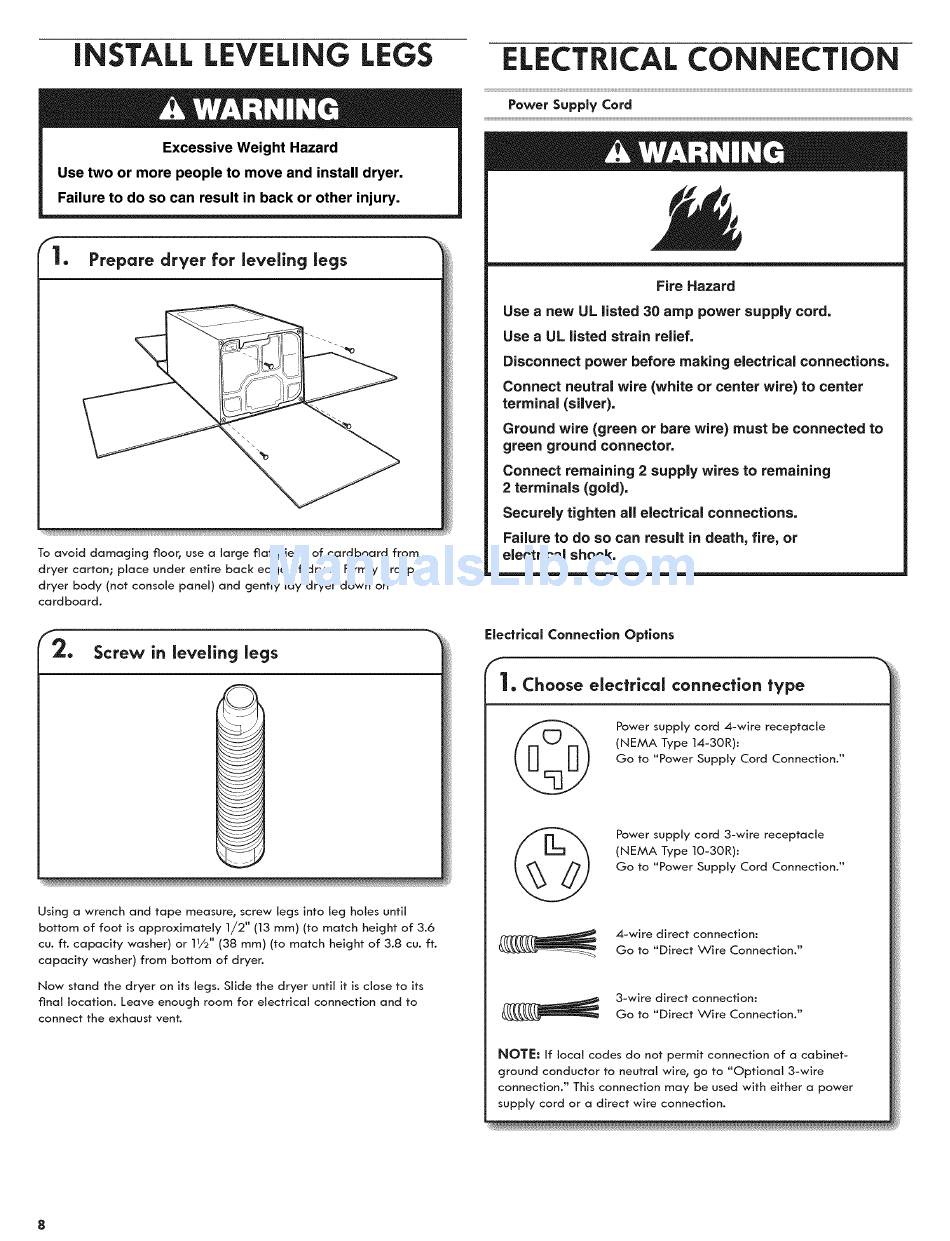

iNSTALL LEVELING LEGS
Excessive Weight Hazard
Use two or more people to move and install dryer.
Failure to do so can result in back or other injury.
1.
Prepare
dryer for leveling
legs
To avoid
damaging
floor,
use a large fiat
piece
of cardboard
from
dryer
carton;
place
under
entire
back
edge
of dryer.
Firmly
grasp
dryer
body
(not console
panel)
and gently
lay dryer
down
on
cardboard.
Screw in leveling
legs
Using
a wrench
and tape
measure,
screw
legs into leg holes until
bottom
of foot
is approximately
1/2"
(13 mm) (to match
height
of 3.6
cu. ft. capacity
washer)
or 11/2'' (38 mm) (to match
height
of 3.8 cu. ft.
capacity
washer)
from
bottom
of dryer.
Now
stand
the dryer
on its legs.
Slide
the dryer
until
it is close to its
final
location.
Leave enough
room
for electrical
connection
and to
connect
the exhaust
vent.
ELECTRICALCONNECTION
Power Supply Cord
Fire Hazard
Use a new UL listed 30 amp power supply cord.
Use a UL listed strain relief.
Disconnect power before making electrical connections.
Connect neutral wire (white or center wire) to center
terminal
(silver).
Ground wire (green or bare wire) must be connected to
green ground
connector.
Connect remaining
2 supply wires to remaining
2 terminals
(gold).
Securely tighten
all electrical connections.
Failure to do so can result in death, fire, or
electrical shock.
Electrical Connection Options
1. Choose electrical
connection
type
Power supply cord
4-wire
receptacle
(NEMA
Type 14-30R):
Go to "Power Supply
Cord
Connection."
Power supply cord
3-wire
receptacle
(NEMA
Type 10-30R):
Go to "Power Supply
Cord
Connection."
4-wire
direct
connection:
Go to "Direct
Wire
Connection."
3-wire
direct
connection:
Go to "Direct
Wire
Connection."
NOTE:
If local
codes
do not permit
connection
of a cabinet-
ground
conductor
to neutral
wire,
go to "Optional
3-wire
connection."
This connection
may
be used with
either
a power
supply
cord
or a direct
wire
connection.
8
