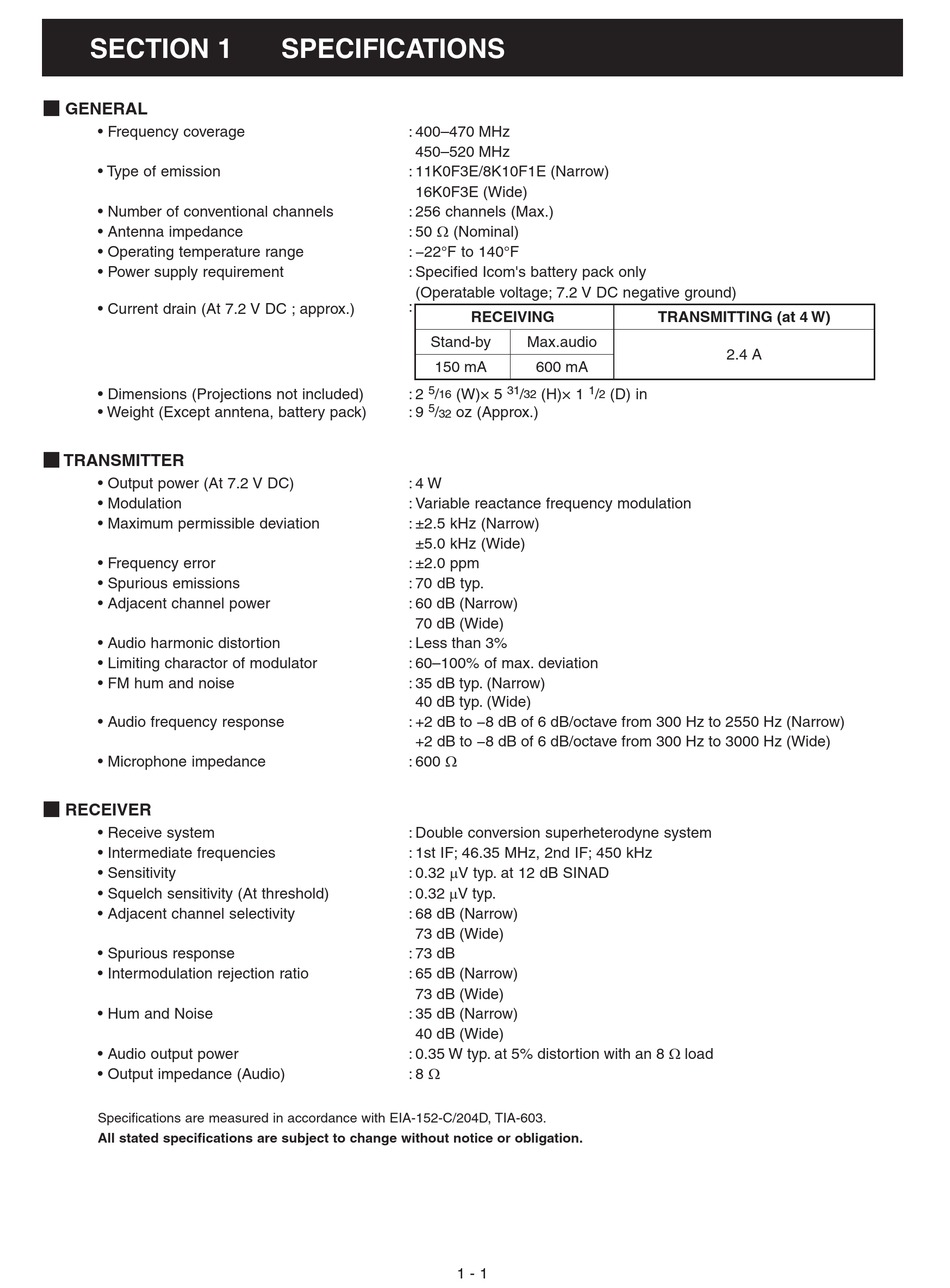

SECTION 1
M GENERAL
• Frequency coverage
• Type of emission
• Number of conventional channels
• Antenna impedance
• Operating temperature range
• Power supply requirement
• Current drain (At 7.2 V DC ; approx.)
• Dimensions (Projections not included)
• Weight (Except anntena, battery pack)
M TRANSMITTER
• Output power (At 7.2 V DC)
• Modulation
• Maximum permissible deviation
• Frequency error
• Spurious emissions
• Adjacent channel power
• Audio harmonic distortion
• Limiting charactor of modulator
• FM hum and noise
• Audio frequency response
• Microphone impedance
M RECEIVER
• Receive system
• Intermediate frequencies
• Sensitivity
• Squelch sensitivity (At threshold)
• Adjacent channel selectivity
• Spurious response
• Intermodulation rejection ratio
• Hum and Noise
• Audio output power
• Output impedance (Audio)
Specifications are measured in accordance with EIA-152-C/204D, TIA-603.
All stated specifications are subject to change without notice or obligation.

SPECIFICATIONS

: 400–470 MHz
450–520 MHz
: 11K0F3E/8K10F1E (Narrow)
16K0F3E (Wide)
: 256 channels (Max.)
: 50 Ω (Nominal)
: −22°F to 140°F
: Specified Icom's battery pack only
(Operatable voltage; 7.2 V DC negative ground)
:
Stand-by
150 mA
5
: 2 / (W)× 5
16
5
: 9 / oz (Approx.)
32
: 4 W
: Variable reactance frequency modulation
: ±2.5 kHz (Narrow)
±5.0 kHz (Wide)
: ±2.0 ppm
: 70 dB typ.
: 60 dB (Narrow)
70 dB (Wide)
: Less than 3%
: 60–100% of max. deviation
: 35 dB typ. (Narrow)
40 dB typ. (Wide)
: +2 dB to −8 dB of 6 dB/octave from 300 Hz to 2550 Hz (Narrow)
+2 dB to −8 dB of 6 dB/octave from 300 Hz to 3000 Hz (Wide)
: 600 Ω
: Double conversion superheterodyne system
: 1st IF; 46.35 MHz, 2nd IF; 450 kHz
: 0.32 µV typ. at 12 dB SINAD
: 0.32 µV typ.
: 68 dB (Narrow)
73 dB (Wide)
: 73 dB
: 65 dB (Narrow)
73 dB (Wide)
: 35 dB (Narrow)
40 dB (Wide)
: 0.35 W typ. at 5% distortion with an 8 Ω load
: 8 Ω
1 - 1
RECEIVING
Max.audio
600 mA
31 1
/ (H)× 1 / (D) in
32 2
TRANSMITTING (at 4 W)
2.4 A
