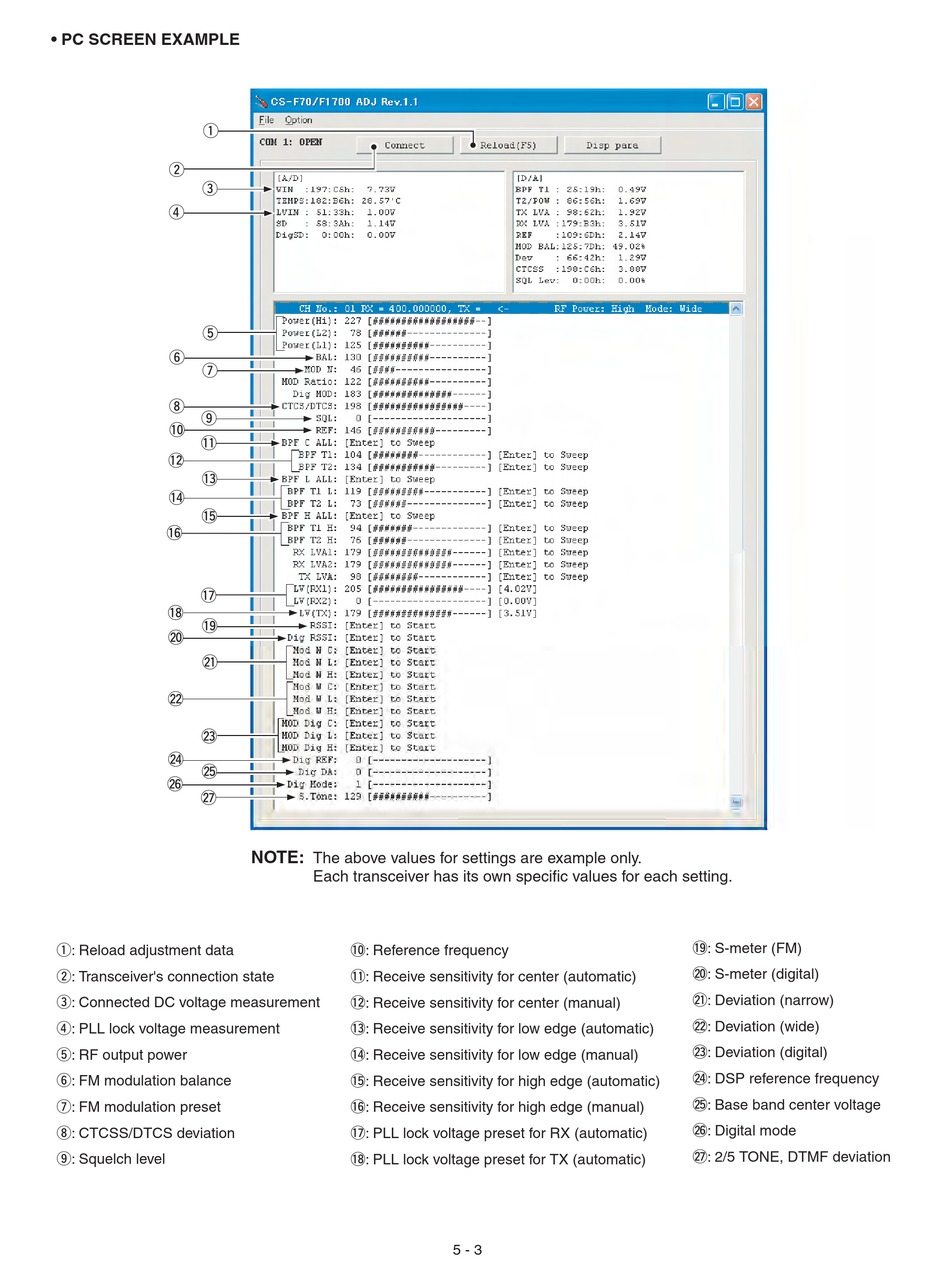

• PC SCREEN EXAMPLE
q
w
e
r
t
y
u
i
o
!0
!1
!3
!4
!5
!6
!7
!8
!9
@0
@1
@2
@3
@4
@5
@6
@7
q: Reload adjustment data
w: Transceiver's connection state
e: Connected DC voltage measurement
r: PLL lock voltage measurement
t: RF output power
y: FM modulation balance
u: FM modulation preset
i: CTCSS/DTCS deviation
o: Squelch level
NOTE:
The above values for settings are example only.
Each transceiver has its own specific values for each setting.
!0 : Reference frequency
!1 : Receive sensitivity for center (automatic)
!2 : Receive sensitivity for center (manual)
!3 : Receive sensitivity for low edge (automatic)
!4 : Receive sensitivity for low edge (manual)
!5 : Receive sensitivity for high edge (automatic)
!6 : Receive sensitivity for high edge (manual)
!7 : PLL lock voltage preset for RX (automatic)
!8 : PLL lock voltage preset for TX (automatic)
5 - 3
!9 : S-meter (FM)
@0 : S-meter (digital)
@1 : Deviation (narrow)
@2 : Deviation (wide)
@3 : Deviation (digital)
@4 : DSP reference frequency
@5 : Base band center voltage
@6 : Digital mode
@7 : 2/5 TONE, DTMF deviation
