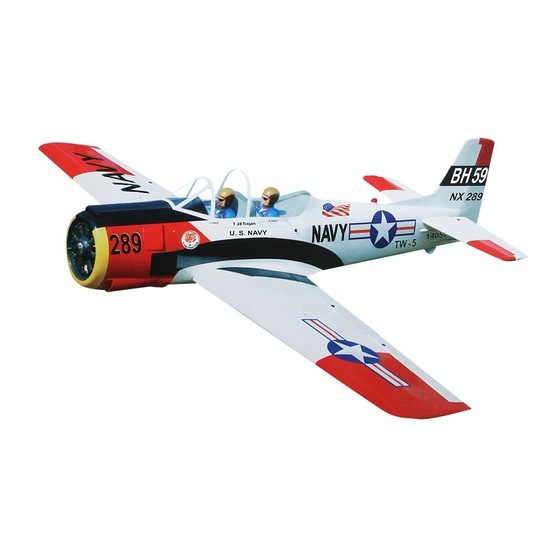

Instruction Manual book
SPECIFICATION
Wingspan :
Length
Weight
Radio
Servo
Engine
200cm
:
162cm
:
5.4 kg
:
07 channels.
:
10 servos.
:
120
20CC -Gas.
78.74 in.
63.78 in.
11.88 Lbs.
2 stroke.
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T-28 Trojan 120 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Horse Model T-28 Trojan 120

Summary of Contents for Black Horse Model T-28 Trojan 120

  • Page 1 Instruction Manual book SPECIFICATION Wingspan : 200cm 78.74 in. Length 162cm 63.78 in. Weight 5.4 kg 11.88 Lbs. Radio 07 channels. Servo 10 servos. Engine 2 stroke. 20CC -Gas. Made in Vietnam.

  • Page 2: Parts List

    T-28 TROJAN Instruction Manual This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly before starting assembly of your T-28 TROJAN 120. Use the parts listing below to identify all parts. WARNING Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is capable of causing injury to people or property.

  • Page 3: Safety Precaution

    T-28 TROJAN. INSTRUCTION MANUAL Caution: this model is not a toy! SAFETY PRECAUTION. If you are a beginner to this type of powered + This is not a toy model, please ask an experienced model flyer + Be sure that no other flyers are using your for help and support.
  • Page 4 T-28 TROJAN Instruction Manual INSTALLING THE AILERON - FLAP SERVO CONTROL HORN. C/A glue Aileron Flap Bottom side C/A glue Aileron C/A glue C/A glue C/A glue C/A glue Flap...
  • Page 5 T-28 TROJAN. INSTRUCTION MANUAL C/A glue Aileron Flap Bottom side 3. Drill 1,5mm pilot holes through the block of wood for each of the four mounting screws INSTALLING THE AILERON SERVO . provided with the servo. Install servo into ai- 1.
  • Page 6 T-28 TROJAN Instruction Manual Repeat the procedure for the other wing Electric wire half. INSTALLING THE AILERON CONTROL HORN. Nilon control clasp. 3 x 40mm 5. Instal servo tray with aileron servo into the wing as same as picture below. 2x10mm.

  • Page 7: Installing The Aileron Linkages

    T-28 TROJAN. INSTRUCTION MANUAL Install aileron control horn as same as picture below. Control horn of the aileron Repeat the procedure for the other wing half. INSTALLING THE AILERON LINKAGES. Installing the aileron linkages as pictures below. M3 lock nut...
  • Page 8 T-28 TROJAN Instruction Manual INSTALLING THE FLAP SERVO . 2x10mm. Flap INSTALLING THE FLAP CONTROL HORN. Nilon control clasp. Thread 3 x 40mm Remove covering Thread Flap Electric wire...
  • Page 9 T-28 TROJAN. INSTRUCTION MANUAL Aileron Flap Bottom INSTALLING AIR RETRACTABLE LANDING GEAR. 3 x 15mm Control horn of the flap Mark point Repeat the procedure for the other wing half. INSTALLING THE FLAP LINKAGES. Installing the aileron linkages as pictures below.
  • Page 10 T-28 TROJAN Instruction Manual C/A glue. 3 x 15mm Epoxy glue Secure Epoxy glue Secure...

  • Page 11: Installing The Engine Mount

    T-28 TROJAN. INSTRUCTION MANUAL Secure Repeat the procedure for the other wing half. INSTALLING THE ENGINE MOUNT. See pictures below: 4 x 30mm 4 x 30mm Drill a hole 5mm diameter ENGINE MOUNT.

  • Page 12: Installing The Stopper Assembly

    T-28 TROJAN Instruction Manual FUEL TANK. INSTALLING THE STOPPER ASSEMBLY 1) The stopper has been pre-assembled at the factory. 2) Using a modeling knife, cut one length of silicon fuel line (the length of silicon fuel line Fuel pick- up tube Vent tube is calculated by how the weighted clunk should rest about 8mm away from the rear of the tank...

  • Page 13: Installing The Engine

    T-28 TROJAN. INSTRUCTION MANUAL INSTALLING THE ENGINE. Locate the long piece of wire used for the throttle pushrod. One end of the wire has been pre-bend in to a “Z” bend at the factory. This “Z” bend should be inserted into the throttle arm of the engine when the engine is fitted onto the engine mount.
  • Page 14 T-28 TROJAN Instruction Manual Pushrod wire. Left side Pushrod wire Right side.
  • Page 15 T-28 TROJAN. INSTRUCTION MANUAL INSTALLING NOSE AIR RETRACTABLE LANDING GEAR. 3 x 15mm 3 x 15mm...
  • Page 16 T-28 TROJAN Instruction Manual 4) Install the muffler and muffler extension onto the engine and make the cutout in the cowl for muffler clearance. Connect the fuel and pressure lines to the carburetor, muffler and fuel filler valve. Secure Top side Trim and cut COWLING.
  • Page 17 T-28 TROJAN. INSTRUCTION MANUAL Left side Bottom side Right side 3 x 12mm Machine screw Left side Right side...

  • Page 18: Installing The Throttle Pushrod

    T-28 TROJAN Instruction Manual Throttle servo Throttle servo Secure INSTALLING THE THROTTLE PUSHROD 1. Install one adjustable metal connector through the third hole out from the center of one servo arm, enlarge the hole in the servo arm using a 2mm drill bit to accommodate the servo connector.

  • Page 19: Elevator Installation

    T-28 TROJAN. INSTRUCTION MANUAL INSTALLING THE SERVO NOSE GEAR. Throttle pushrod Nose gear servo ELEVATOR INSTALLATION. SERVO INSTALLATION. Connector. 1. Install the rubber grommets and brass Servo arm. collets into the elevator servo. Test fit the servo into the servo tray. 2.

  • Page 20: Horizontal Stabilizer

    T-28 TROJAN Instruction Manual HORIZONTAL STABILIZER. See pictures below: C/A glue C/A glue C/A glue 1. Draw a center line onto the horizontal stabilizer. Then slide the horizontal into the fuselage. C/A glue center line 2 Using a modeling knife, cut away the covering from the fuselage for the stabilizer and remove it.
  • Page 21 T-28 TROJAN. INSTRUCTION MANUAL Check to mark sure the wing and stabi- Mark line lizer are paralell. If they are not, lightly sand the opening in the fuselage for the stabilizer until the stabilizer is paralell to the wing. Bottom side 4.

  • Page 22: Elevator Control Horn Installation

    T-28 TROJAN Instruction Manual C/A glue Remove covering Bottom side 6. After the epoxy has fully cured, re- move the masking tape or T-pins used to hold the stabilizer in place and carefully inspect the glue joints. Use more epoxy to fill in any gaps that were not filled previously and clean up the excess using a paper towel and rubbing alcohol.

  • Page 23: Elevator Pushrod Installation

    T-28 TROJAN. INSTRUCTION MANUAL Elevator Elevator control horn control horn ELEVATOR PUSHROD INSTALLATION. Pushrod install as same as method of pushrod wing. See pictures below:...

  • Page 24: Vertical Stabilizer Installation

    T-28 TROJAN Instruction Manual Elevator servo Elevator Elevator pushrod pushrod Elevator pushrod Elevator servo VERTICAL STABILIZER. Top side Vertical stabilizer installation See picture below. C/A glue...
  • Page 25 T-28 TROJAN. INSTRUCTION MANUAL Mark line C/A glue 4. Now, remove the rudder and using a modeling knife, carefully cut just inside the marked lines and remove the film of the rud- der. Just as you did with the horizontal stabi- lizer, make sure you only press hard enough to cut the film, not the balsa rudder.
  • Page 26 T-28 TROJAN Instruction Manual Epoxy glue Remove covering 5) When you are sure that everything is a C/A glue aligned correctly, mix up a generous amount of 30 minute epoxy. Apply a thin layer to the slot in the mounting platform and to the verti- cal stabilizer mounting area.

  • Page 27: Rudder Control Horn Installa- Tion

    T-28 TROJAN. INSTRUCTION MANUAL M3 clevis ( 4pcs for push - pull system ). C/A glue M3 lock nut. Rudder push-pull system install as sams as picture below Remove covering C/A glue RUDDER CONTROL HORN INSTALLA- TION. Rudder control horn install as same as the way of aileron control horn.
  • Page 28 T-28 TROJAN Instruction Manual C/A glue Control horn of rudder Rudder Rudder cable cable...
  • Page 29 T-28 TROJAN. INSTRUCTION MANUAL INSTALLATION SERVO AIR RETRACT- ABLE LANDING GEAR . C/A glue Elevator Elevator pushrod pushrod Rudder Rudder cable cable...
  • Page 30 T-28 TROJAN Instruction Manual...
  • Page 31 T-28 TROJAN. INSTRUCTION MANUAL 3 way conector Air tank Air supply Valve one way Nose gear 4 way conector 4 way conector Secure Left main gear wing Right main gear wing Valve control Valve one way 3way conector 4 way conector 3 way conector Valve one way A hole 5mm...

  • Page 32: Installing The Switch

    T-28 TROJAN Instruction Manual INSTALLING THE SWITCH. 1) Cut out the switch hole using a modeling Tie wrap. knife. Use a 2mm drill bit and drill out the two mounting holes through the fuselage side. 2) Secure the switch in place using the two machine screws provided with the radio system.

  • Page 33: Installing The Receiver And Battery

    T-28 TROJAN. INSTRUCTION MANUAL Switch 4. Using a 2mm drill bit, drill a hole through the side of the fuselage, near the receiver, for INSTALLING THE RECEIVER AND BATTERY. the antenna to exit. 1. Plug the servo leads and the switch lead into the receiver.
  • Page 34 T-28 TROJAN Instruction Manual Top side Drill a hole 3mm diameter 3 x 40mm 3 x 15mm Secure Secure...
  • Page 35 T-28 TROJAN. INSTRUCTION MANUAL WING ATTACHMENT. See picture wing attach to fuselage. Wing bolt. Installing the fuselage hatch as same as pic- ture below.
  • Page 36 T-28 TROJAN Instruction Manual Top fuselage C/A glue Bottom fuselage Insert and secure. C/A glue C/A glue...

  • Page 37: Control Throws

    4) Check the control surface. 5) Check the receiver antenna . It should be fully extended and not coiled up inside the fuselage. 6) Properly balance the propeller. We wish you many safe and enjoyable flights with your T-28 TROJAN 120.
