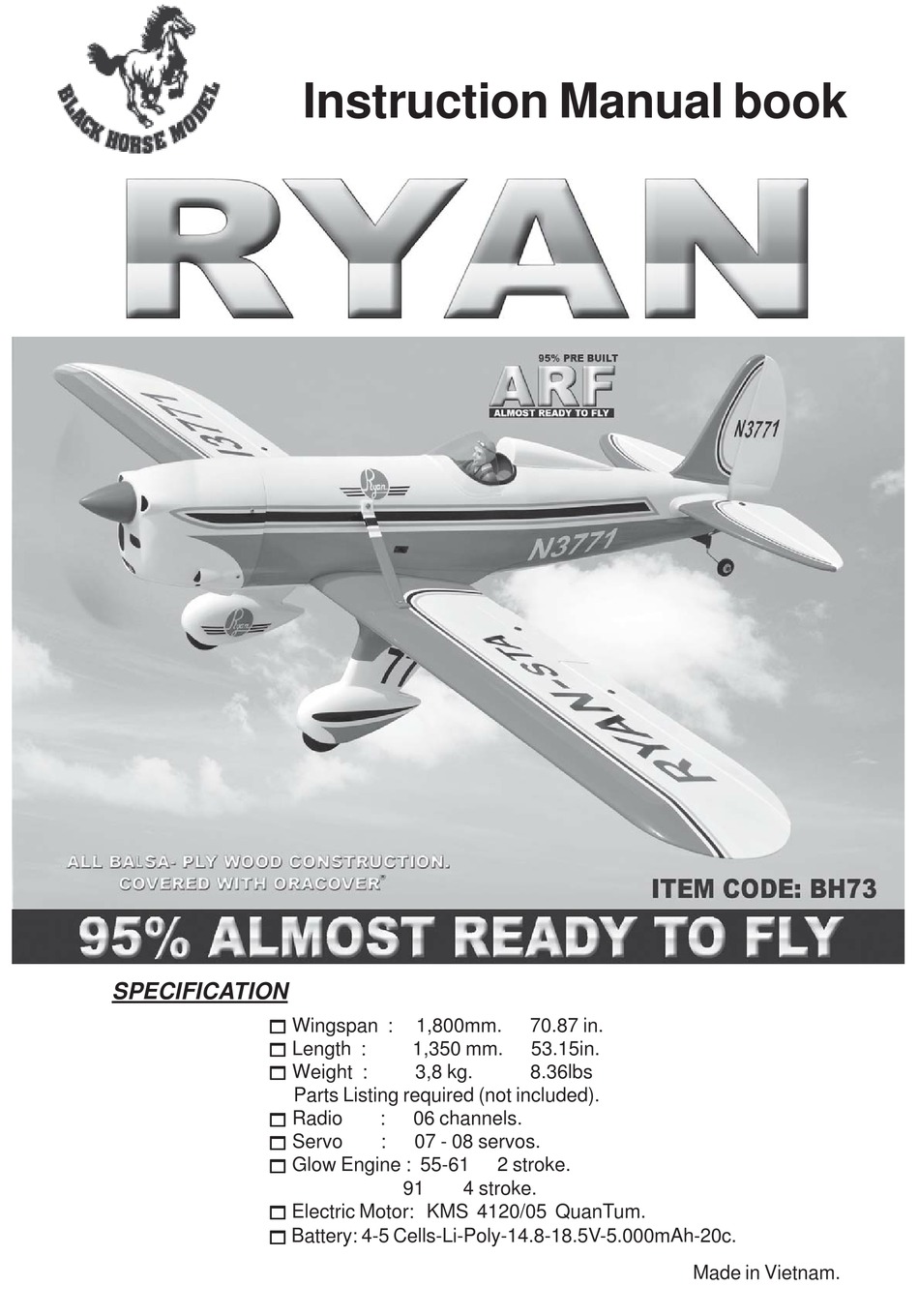

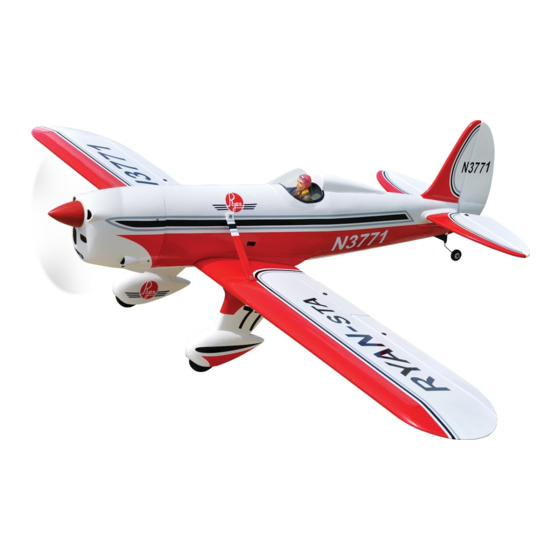

SPECIFICATION
     Wingspan :
     Length :
     Weight :
     Radio
     Servo
     Glow Engine : 55-61
     Electric Motor: KMS 4120/05 QuanTum.
     Battery: 4-5 Cells-Li-Poly-14.8-18.5V-5.000mAh-20c.
Instruction Manual book
1,800mm.
1,350 mm.
3,8 kg.
Parts Listing required (not included).
:
06 channels.
:
07 - 08 servos.
91
4 stroke.
70.87 in.
53.15in.
8.36lbs
2 stroke.
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ryan and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Horse Model Ryan

Summary of Contents for Black Horse Model Ryan

  • Page 1 Instruction Manual book SPECIFICATION      Wingspan : 1,800mm. 70.87 in.      Length : 1,350 mm. 53.15in.      Weight : 3,8 kg. 8.36lbs Parts Listing required (not included).      Radio 06 channels.

  • Page 2: Parts List

    Instruction Manual Item code: BH73 This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly before starting assembly of your RYAN. Use the parts listing below to identify all parts. WARNING. Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is capable of causing injury to people or property.

  • Page 3: Safety Precaution

    RYAN - Instruction Manual Item code: BH73 Caution: this model is not a toy! If you are a beginner to this type of powered model, please ask an experienced model flyer for help and support. If you attempt to operate the model without knowing what you are doing you could easily injure yourself or somebody else.
  • Page 4 RYAN - Instruction Manual Item code: BH73 REPLACEMENT LARGE PARTS E. Rudder. A. Cowling. B. Wing panel. F. Aluminium wing dihedral brace. C. Fuselage. G. Decal sheet. D . Horizontal stabilizer. REPLACEMENT SMALL PARTS 6. Fuel tank. 1. Wheel pants.

  • Page 5: Installing The Aileron Servos

    RYAN - Instruction Manual Item code: BH73 C/A glue I. AILERON. 1.INSTALLING THE AILERON SERVOS.   1) Install the rubber grommets and brass eyelets onto the aileron servos. C/A glue Top side. C/A glue Bottom side C/A glue Aileron...
  • Page 6 RYAN - Instruction Manual Item code: BH73 C/A glue Servo tray.  4) Drill 1,6mm pilot holes through the block of wood for each of the four mounting screws provided with the servo. C/A glue  5. Instal servo tray with aileron servo into the wing as same as picture below.

  • Page 7: Installing The Aileron Linkages

    RYAN - Instruction Manual Item code: BH73 2x10mm. Secure 2.INSTALLING THE AILERON CONTROL HORN. Aileron control horn Aileron control horn. 3.INSTALLING THE AILERON LINKAGES. Installing the aileron linkages as pictures below. M2 lock nut 70 mm Aileron A+B Epoxy PLUS glue...

  • Page 8: Installing The Flap Servos

    RYAN - Instruction Manual Item code: BH73 2.INSTALLING THE FLAP CONTROL HORN. II. FLAP. Flap control horn 1.INSTALLING THE FLAP SERVOS. Servo tray Flap A+B Epoxy PLUS glue Flap Flap control horn. 2x10mm. 3. INSTALLING THE FLAP LINKAGES. Installing the flap linkages as pictures Secure.
  • Page 9 RYAN - Instruction Manual Item code: BH73 Mark point. Flap Aileron Repeat the procedure for the other wing half. MAIN GEAR INSTALATION. PARTS REQUIRED 3 x 15mm 3 x 15mm Secure Remove covering. Secure. Remove covering.
  • Page 10 RYAN - Instruction Manual Item code: BH73 3 x 12mm cut. Secure Mark point...
  • Page 11 RYAN - Instruction Manual Item code: BH73 Secure Drill a hole Secure 2mm diameter.
  • Page 12 RYAN - Instruction Manual Item code: BH73 INSTALLING ENGINE MOUNT. 3.5x25mm. Drill a hole 2mm diameter. 4x30mm. 3x 10mm Secure Drill a hole 4mm diameter. Bottom side Repeat the procedure for the other wing half.

  • Page 13: Installing The Stopper Assembly

    RYAN - Instruction Manual Item code: BH73 FUEL TANK. INSTALLING THE STOPPER ASSEMBLY  1. The stopper has been pre-assembled at the factory.  5. Test fit the stopper assembly into the tank. It may be necessary to remove some of the flashing around the tank opening using a modeling knife.
  • Page 14 RYAN - Instruction Manual Item code: BH73 Blow through one of the lines to ensure the fuel lines have not become kinked inside the fuel tank compartment. Air should flow through easily.  9. To secure the fuel tank in place, apply a...

  • Page 15: Installing The Engine

    RYAN - Instruction Manual Item code: BH73 INSTALLING THE ENGINE. Secure. 120mm Pushrod wire. Mark point Pushrod wire Drill a hole 4mm diameter. Left side. 3.5 x25mm Right side.
  • Page 16 RYAN - Instruction Manual Item code: BH73 INSTALLING THE THROTTLE PUSHROD. Cut.  1. Install one adjustable metal connector through the third hole out from the center of one servo arm, enlarge the hole in the servo arm using a 2mm drill bit to accommodate the servo connector.
  • Page 17 RYAN - Instruction Manual Item code: BH73 Trim and cut after. Drill a hole 2.5mm diameter. Right side 3 x 12mm Secure. Trim cut after. Left side Right side Machine screw. Left side Front view...
  • Page 18 RYAN - Instruction Manual Item code: BH73 INSTALLING THE SPINNER. Install the spinner backplate, propeller and spinner cone. The spinner cone is held in place using two 3mm x 12mm wood screws. 3x 12mm Elevator servo Elevator servo HORIZONTAL STABILIZER INSTALLATION.
  • Page 19 RYAN - Instruction Manual Item code: BH73 C/A glue C/A glue C/A glue Bottom side. C/A glue C/A glue C/A glue C/A glue C/A glue C/A glue...
  • Page 20 RYAN - Instruction Manual Item code: BH73 C/A glue Aluminium 9 mm 220 mm Epoxy glue.

  • Page 21: Elevator Control Horn Installa- Tion

    RYAN - Instruction Manual Item code: BH73 ELEVATOR CONTROL HORN INSTALLA- Epoxy glue. TION. Elevator control horn install as same as the way of aileron control horn. Please see pic- tures below. Control horn of Elevator. A+B Epoxy PLUS glue Secure.

  • Page 22: Elevator Pushrod Installation

    RYAN - Instruction Manual Item code: BH73 ELEVATOR PUSHROD INSTALLATION.  Elevator pushrod install as same as the way Conector. of aileron pushrod. M2 lock nut. Secure. Elevator pushrod E l e v a t o r Elevator pushrod. pushrod.

  • Page 23: Vertical Stabilizer Installation

    RYAN - Instruction Manual Item code: BH73 VERTICAL STABILIZER INSTALLATION. See picture below. Rudder servo install as same as method of elevator servo. See picture below: Push. Rudder servo. Top side. Rudder servo. C/A glue. C/A glue.

  • Page 24: Rudder Cable Installation

    RYAN - Instruction Manual Item code: BH73 RUDDER CABLE INSTALLATION.  1. Rudder pushrod install as same as the way of aileron control horn.  2. Rudder push - pull system install as same as picture below. RUDDER CONTROL HORN INSTALLA- TION.

  • Page 25: Mounting The Tail Wheel Bracket

    RYAN - Instruction Manual Item code: BH73 Cut. R u d d e r cable. Elevator pushrod Mark point. Bottom side MOUNTING THE TAIL WHEEL BRACKET. 3x15mm Drill a hole      1. Set the tail wheel assembly in place 3mm.
  • Page 26 RYAN - Instruction Manual Item code: BH73      3. Secure the tail wheel bracket in place using three 3mm x 12mm wood screws. Be careful not to overtighten the screws. Secure. Bottom side C/A glue. Plastic parts of pushrod.

  • Page 27: Installing The Switch

    RYAN - Instruction Manual Item code: BH73 INSTALLING THE SWITCH.       1. Cut out the switch hole using a modeling knife. Use a 2mm drill bit and drill out the two mounting holes through the fuse- Battery.
  • Page 28 RYAN - Instruction Manual Item code: BH73 Right side Wing struts. 3 x 10mm Left side...
  • Page 29 RYAN - Instruction Manual Item code: BH73 Installing the fuselage top hatch as same as picture below. Top side. 3 x 10mm Insert and secure. Plastic fuselage top hatch. Cut. Cut.
  • Page 30 RYAN - Instruction Manual Item code: BH73 C/A glue. C/A glue. BALANCING.       1) It is critical that your airplane be bal- anced correctly. Improper balance will cause your plane to lose control and crash.

  • Page 31: Control Throws

    5) Check the receiver antenna . It should be fully extended and not coiled up inside the fuselage.       6) Properly balance the propeller. We wish you many safe and enjoy- able flights with your RYAN.
