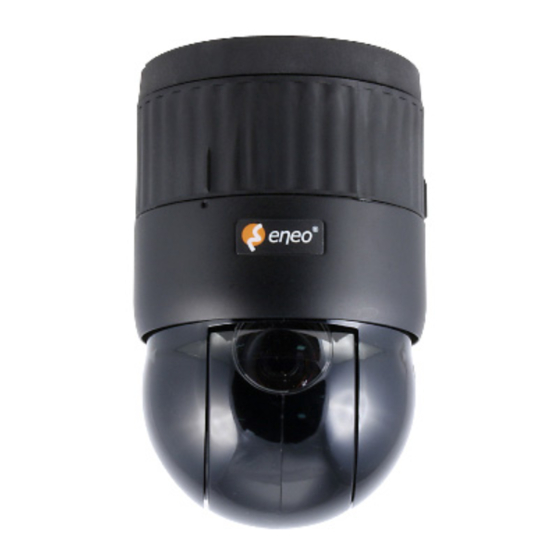

- Page 1 INSTRUCTION MANUAL FASTRAX III SPEED DOME CAMERA Please read this manual thoroughly before use and keep it handy for future reference.
-
Page 3: Warnings And Cautions
Warnings and Cautions WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION EXPLANATION OF GRAPHICAL SYMBOLS The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"... -
Page 4: Fcc Compliance
FCC COMPLIANCE FCC INFORMATION: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. -
Page 5: Important Safeguards
IMPORTANT SAFEGUARDS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. -
Page 6: Table Of Contents
Chapter 1 — Introduction......................1 1.1 Features............................1 Chapter 2 — Installation and Configuration................ 3 2.1 Package Contents..........................3 2.2 Basic Configuration of Fastrax III Dome Camera System...........4 2.3 Setting Dome Camera Termination...................5 2.4 Fail-safe Network ...........................6 2.5 Setting Dome Camera Address (ID) ..................7 2.6 Setting Dome Camera Protocol....................9... -
Page 7: Chapter 1 - Introduction
Chapter 1 — Introduction 1.1 Features The Fastrax III dome camera and the keyboard controller make up the building blocks for any surveillance/security system. Using multiple Keyboard Controllers and multiple dome cameras, no place is too large for monitoring. Extensible and flexible architecture facilitates remote control functions for a variety of external switching devices such as multiplexers and DVRs. - Page 8 Figure 1 – Typical System Configuration push bubble ring ass'y remove camera window screw push remove window assemble bubble ring ass'y Figure 2 –Assemble bubble ring ass’y (Optional) Note: It is recommended to remove camera window for improving picture quality when you use bubble ring ass’y.
-
Page 9: Chapter 2 - Installation And Configuration
2.1 Package Contents The package contains the following. Fastrax III (Dome Camera) ………………………1 Bubble Ring ………………………1(Optional) Instruction Manual (This Document) ………………………1 Assembly Screws for Attaching Fastrax III ………………………3 Plastic Anchor ………………………3 10Pin Connector ………………………1 12Pin Connector ………………………2 CAUTION: Be sure to have caution labels (E version only) on both the body and the base of the camera. -
Page 10: Basic Configuration Of Fastrax Iii Dome Camera System
2.2 Basic Configuration of Fastrax III Dome Camera System Figure 4 – Basic installation diagram The dome camera must be installed by qualified service personnel in accordance with all local and federal electrical and building codes. The system should be installed according to Figures 4 through 9. -
Page 11: Setting Dome Camera Termination
Figure 5 – Layout of Switches 2.3 Setting Dome Camera Termination The device which is connected at end of line, whether it be a dome camera or keyboard controller, must have the cable for communication terminated by setting the appropriate DIP switch. Without proper termination, there is potential for control signal errors. -
Page 12: Fail-Safe Network
2.4 Fail-safe Network When you control the dome by the other device not own keyboard, some error may be existed in the serial communication. The reason is caused by the other device without the fail-safe network. At this time, you solve the problem to set this DIP switch to ON of the nearest dome from the other device only. -
Page 13: Setting Dome Camera Address (Id)
2.5 Setting Dome Camera Address (ID) When the COMMUNICATION MODE is set to S/W Dome camera address (ID) and Protocol can be used by selecting from the MENU. You can call up the On-screen menu utility on your monitor by pressing MENU key on the keyboard controller, the following On-screen menu utility will appear: DOME MENU AUTO SCAN... - Page 14 When the COMMUNICATION MODE is set to H/W Dome camera address (ID) and Protocol can be used by selecting from the Hardware. To prevent damage, each dome camera must have a unique address (ID). When installing multiple dome cameras using a multiplexer, it is suggested that the dome camera address match the multiplexer port number.
-
Page 15: Setting Dome Camera Protocol
2.6 Setting Dome Camera Protocol If a dome camera is to be installed with a Fastrax keyboard controller, select the default protocol. Consult service personnel if a dome camera is installed with device other than a keyboard controller. UNCTION NTSC S4-1 Enable Disable... -
Page 16: Connections
2.7 Connections • Connecting to the RS485/ 422 The dome camera can be controlled remotely by an external device or control system, such as a control keyboard, using RS485 half-duplex, RS422 full duplex or simplex serial communications signals. Connect Marked Tx+, Tx- to Tx+(Rx+) and Tx-(Rx-) of the RS485 control system. If control system is RS422, connect Rx+(Tx+), Rx+(Tx-) and Rx+, Rx- of the dome camera to Rx+, Rx- and Tx+, Tx- of the control device respectively. -
Page 17: Getting Started
2.8 Getting Started Once installed apply power to the dome camera. The dome camera will start a configuration sequence. PRESET TITLE AREA TITLE STATUS of AF AE FUNCTION FOCUS and AE UNDER RUNNING CAMERA TITLE EMPTY DATA INFORMATION DISPLAY CAMERA ID DOMEID:0001 PAN &... -
Page 18: Chapter 3 - Program And Operation
Chapter 3 — Program and Operation 3.1 Dome Camera Selection Before you program or operate a dome camera, you must select the dome camera by pressing the dome camera No. + CAM Example: Pressing 1 , 0 and CAM key sequentially will select dome camera 10. The selected dome camera ID will be displayed on the LCD monitor of the keyboard controller. -
Page 19: Auto Scan (Shortcut: Scan)
3.4 Auto Scan (Shortcut: SCAN ) The Auto scan supports up to 17 programmed angles at user-programmable speeds. Follow these steps to program Auto Scan: AUTO SCAN SETUP NUMBER : 01 TITLE : A01 MODE : NORMAL SPEED 5 STEP START ANGLE : ----- ----- --- END ANGLE : ----- ----- ---... - Page 20 5. Select “MODE” and “SPEED”. 6. Select “START ANGLE”. Hold down the CTRL key while selecting the start position using the Joystick . Current panning position will be displayed. Release CTRL key to complete the selection of the start position. Or Press IRIS Open then the “CTRL” displays. Move the desired position and the zoom position.
-
Page 21: Preset (Shortcut: Prst)
3.5 Preset (Shortcut: PRST ) If you need to view specific places routinely, you should program presets. A preset is a programmed video scene with automatic pan, tilt, zoom, focus, and AE settings. Once programmed, placing the number position and pressing a PRST button on your controller calls up that preset automatically. In addition, presets may be assigned to alarm actions or as the “home”... - Page 22 MOTION SETUP SENSITIVITY : 12 POSITION : ALL DELAY : 00 SEC OUTPUT : OFF HOLD TIME : 03 SEC EXIT(ESC TO EXIT) Set SENSITIVITY: 1~10(22X model) / 1~15(36X model) Set POSITION: ALL, CENTER Set DELAY: 0~5 SEC Set OUTPUT: OFF, OUT1 Set HOLD TIME: 3~99 SEC Select “AE SETUP”...
-
Page 23: Shortcut Of Preset Program
3.6 Shortcut of Preset Program After selecting the desired scene, press No. ( 1 to 240 ), and press CTRL and PRST subsequently. The current view will be stored to the selected preset number if the preset number is empty. If selected preset number is not empty, “... -
Page 24: Pattern (Shortcut: Ptrn)
7. Repeat Step 2 through 5 for each desired position. Each title will be displayed on top of the line. 8. To edit the title, follow the procedure of the auto scan above to edit titles 9. Select Save and Exit and push the Joystick to the right. Press ESC to exit the program without saving. -
Page 25: Alarm
3. Press and hold down the CTRL key while controlling the camera direction and zoom with the Joystick . The dome will be automatically recorded until you release the CTRL key. Or Press IRIS Open then the “CTRL” displays. Move the position and the zoom position. Press IRIS Close then the “CTRL”... -
Page 26: Area Title
The RELAY OUT setup is helpful when the outdoor housing is used with the dome. Ex.) When you connect the relay output of the dome to the heater connector of the outdoor housing, the relay output can operate during the setting time only. RELAY OUT SETUP OUT1 : ALARM... -
Page 27: Privacy Zone
1 . Select the” NUMBER” and set the desired number by pushing the Joystick left or right. 2. To edit the title, follow the procedure of the auto scan above to edit titles. 3. Select “START ANGLE”. Hold down the CTRL key while selecting the start position using the Joystick . Current panning position will be displayed. - Page 28 PRIVACY AREA MENU (CTRL KEY) CONTROL NUMBER 001 354.8 344.8 3. Place the cursor at the title field. Twist the Joystick to enter the title edit mode. Follow the procedure of the auto scan above to edit titles. 4. To turn the stored zone On or Off, twist the Joystick handle or press Tele or Wide Key. 5.
-
Page 29: Camera Menu
3.12 Camera Menu CAMERA SETUP FOCUS CONTROL WB CONTROL AE CONTROL DNR CONTROL LINE LOCK CONTROL SHARPNESS : 05 RESOLUTION : LOW DIGITAL ZOOM : OFF IMAGE FLIP : OFF PRESET FREEZE : OFF STABILIZATION : OFF SAVE AND EXIT(ESC TO CANCEL) The higher the value, the more edges in the picture will be SHARPNESS enhanced (0~15) - Page 30 • WB (White Balance) CONTROL WB SETUP MODE R GAIN B GAIN SAVE AND EXIT(ESC TO CANCEL) AWB / WAWB / INDOOR / OUTDOOR / MANUAL MODE Computes the white balance value output using color information from the entire screen automatically. (2500 to 9500 °K) WAWB Wide range auto white balance mode.(1800 to 10500 °K) INDOOR...
- Page 31 The NIGHT SHOT option removes the IR cutoff filter of the camera and makes the camera sensitive to near infrared. Camera goes in to B&W mode at low light. AUTO Controlled by the keyboard. GLOBAL The operator can enable NIGHT SHOT for all dome cameras at the same time. If the NIGHT SHOT mode is set to GLOBAL, “999”...
-
Page 32: Dome Setup
3.13 Dome Setup CONFIGURATION MENU LANGUAGE : ENGLISH HOME FUNCTION SETUP OSD DISPLAY VIEW ANGLE SETUP INITIALIZE DATA ORIGIN OFFSET DOME RESET SYSTEM MENU SYSTEM INFORMATION SAVE AND EXIT(ESC TO CANCEL) • LANGUAGE SETUP LANGUAGE : Select the language you want. •... - Page 33 • OSD DISPLAY OSD DISPLAY SETUP CAMERA TITLE : DOMEID VIEW DIRECTION : OFF DOME OSD : ON AREA TITLE : OFF PRESET TITLE : CONSTANT FOCUS EXPOSURE : ON OSD POSITION SETUP SAVE AND EXIT(ESC TO CANCEL) : up to 6 characters. CAMERA TITLE : ON / OFF VIEW DIRECTION...
- Page 34 • VIEW ANGLE SETUP VIEW ANGLE SETUP PANNING RANGE FLIP : 90° TILT OVER ANGLE : ON SAVE AND EXIT(ESC TO CANCEL) FLIP : OFF,90 ° ,100 ° ,110 ° ,120 ° ,AUTO(18X,26X,36X MODEL) : ON,OFF(22X MODEL) OFF: the dome camera moves until 90 ° vertically. 90°, 100°, 110°, 120°: allows the image to flip digitally when the camera moves over the setting angle vertically.
- Page 35 • DATA MANAGEMENT DATA MANAGEMENT FACTORY DEFAULT ERASE PROGRAMMED DATA PRESET FOCUS DEFAULT BACKUP RESTORE EXIT (ESC TO CANCEL) ; Upload dome configuration data to the dome base. BACKUP ; Download dome configuration data from the dome base. RESTORE NOTE: BACKUP/RESTORE functions can not be applied according to the version of the dome base board. FACTORY DEFAULT Select the Factory Default to initialize the Data.
- Page 36 PRESET FOCUS DEFAULT This menu set the default mode of the focus when you save the preset. PRESET FOCUS DEFAULT FOCUS : AUTO SAVE AND EXIT(ESC TO CANCEL) FOCUS : AUTO/MANUAL/ONE PUSH • ORIGIN OFFSET OFFSET SETUP (CTRL KEY) PAN OFFSET : 000.0 TILT OFFSET : 000.0...
- Page 37 : ON (Auto origin check) / OFF CALIBRATION : ON (requires the password to enter menu) / OFF PASSWORD ENABLE : ON(5mintues) / OFF( always menu display) MENU TIME OUT ; ON / OFF(no blinking cursor) BLINK CURSOR ; ON / OFF(no acknowledge command from the dome) This option is DOME ANSWER helpful to escape the collision of the command using some DVR.
-
Page 38: Dome Communication
PASSWORD EDIT PASSWORD EDIT SETUP (CTRL KEY) INPUT PASSWORD PASSWORD : A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ( ) SAVE AND EXIT (ESC TO EXIT) You can change the password with 6-digit character in this menu. -
Page 39: Function Run
PROTOCOL : Auto(default) / F2,F2E / Sensormatic / Pelco-P/D / Vicon / Ernitec / F2/ Philips / Dynacolor BAUDRATE : 2400/4800/ 9600(default)/ 19200/38400 bps : None, Even PARITY 3.15 Function Run This Function Run menu allows you to execute the function when you use a keyboard or a DVR without the function keys (Preset, Pattern, Tour and scan). -
Page 40: Motion Setup
3.16 Motion Setup The motion detection function is available in the preset mode only. After you set the motion in any preset, when you call the preset with the motion, the motion detection operates. In the preset setup, you can set the motion setup as below. PRESET SETUP PRESET CAMERA SETUP NUMBER... -
Page 41: Appendix A - Specifications
Appendix A — Specifications 22X Optical Zoom Fastrax Dome System MODEL MODULE 1/4" Super HAD CCD II (Double Scan) CCD Type Optical / Digital Zoom 22X / 16X 700 TVL Resolution (NTSC/PAL) f = 3.9mm ~ 85.8mm Focal length 3.9mm – 49.5° (H) Angle of view 85.8mm –... - Page 42 Electrical Input Voltage 18 to 30VAC; 24VAC nominal, 24VDC Power Requirement 24VAC/VDC 1A Power Consumption Maximum 20W Alarm Output 4 Normal relays 24VDC/1A Max. (selectable NC/NO) Alarm Input 8 Normal dry contact (selectable NC/NO) RS-485/422 baud rate: 2400~38.4k bps Control (default: 9600bps) ID (Camera Address) 999 (3999 by software setting)
-
Page 43: Appendix B - Troubleshooting
Appendix B — Troubleshooting If problems occur, verify the installation of the camera with the instructions in this manual and with other operating equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information. -
Page 44: Appendix C - Glossary
Appendix C — Glossary ALARM ACTIONS The assigned responses for the dome camera when inputs change from normal to abnormal states. The dome may run a Preset, Pattern, or have no assigned action for each of the four dome inputs. The dome may also send alarm states to the host controller for processing. -
Page 45: Slow Shutter
NAME INFORMATION Relates to the display the dome name, the area where the dome is pointing, the name of the preset or pattern that is running, and alarm names. The display of each type of name setting can be enabled or disabled. -
Page 46: Appendix D - Short Cut Key
Appendix D — Short Cut Key Short Cut Key Function Pop up preset setup menu. PRST Pop up Tour setup menu. TOUR Pop up Pattern setup menu. PTRN Pop up Auto Scan setup menu. SCAN Store the current view at the selected number. NO. - Page 47 MEMO...
-
Page 48: Speed Dome Camera
FASTRAX III SPEED DOME CAMERA PRINTED IN KOREA 50303297D...
