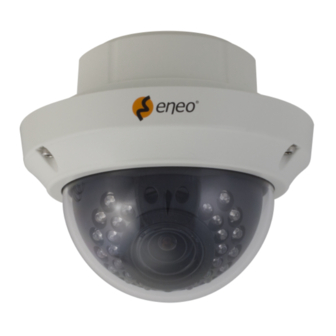

Eneo PXD-2080MIR C User Manual

1/2.9” day/night network dome camera
Hide thumbs Also See for PXD-2080MIR C:
Table of Contents

Advertisement

Quick Links

See also: User Manual
EN
User manual
1/2.9" Day/Night Network Dome Camera
PXD-2080MIR C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PXD-2080MIR C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eneo PXD-2080MIR C

Summary of Contents for Eneo PXD-2080MIR C

  • Page 1 User manual 1/2.9” Day/Night Network Dome Camera PXD-2080MIR C...

  • Page 3: Safety Precaution

    MEGA-PIXEL NETWORK CAMERA Safety Precaution To prevent fire or shock hazard, do not expose the unit to rain or moisture. To prevent electric shocks and risk of fire hazards, do NOT use other than specific power source. CAUTION: TO REDUCE THE RISK OF ELECTIC SHOCK, DO NOT REMOVE COVER (OR BACK).
  • Page 4 MEGA-PIXEL NETWORK CAMERA Safety Precaution NOTICE The image used in this instruction manual are processed to help comprehension and may differ from actual video of the camera. Avoid installing areas where has shock or vibration which results in the problems. Pay attention to safety when laying the connection cable and observe that the cable is not subjected to heavy loads, kinks or damage and no moisture can get in.

  • Page 5: Table Of Contents

    MEGA-PIXEL NETWORK CAMERA Contents p.03~04 Safety Precaution p.05 Contents p.06~07 Features p.07 Composition p.08 Dimensions p.09 Part Names p.10~13 Installation Instructions p.14~27 Operating Instructions p.28~29 Specifications...

  • Page 6: Features

    MEGA-PIXEL NETWORK CAMERA Features Key Features • Full HD, WDR, NETWORK CAMERA 1920 x 1080/25p • ONVIF S & PSIA Conformance • True Wide Dynamic Range • Improved Noise figure with the enhanced 3D-NR • Built-in f=2.8~10mm F1.4 Mega Pixel DC Auto Iris vari-focal lens •...

  • Page 7: General Description

    MEGA-PIXEL NETWORK CAMERA Features General Description • With ICR mechanism, - Enhances its sensitivity about 10x at night time - Can accept the infrared light • With PoE as well as 24VAC/12VDC dual power design, - Offers the flexibility of installation - Ensures the reliability •...

  • Page 8: Dimensions

    MEGA-PIXEL NETWORK CAMERA Dimensions (unit : mm) Ø140 Ø102 Ø140 PCD Ø120 3-Ø4.2...

  • Page 9: Part Names

    MEGA-PIXEL NETWORK CAMERA Part Names OSD CONTROL POWER CABLE JOY STICK IP RESET FLUSH MOUNT FOCUS / ZOOM LENS SAFTY WIRE 3-AXIS GIMBAL REAR VIEW MICRO DOME COVER SD-CARD SLOT Micro BUBBLE DOME SD Card [ BOTTOM VIEW ] ETHERNET &POWER CABLE Power Supply Connector Ethernet...

  • Page 10: Installation Instructions

    MEGA-PIXEL NETWORK CAMERA Installation Instructions 1. Locate the mounting template at the installation position and drill the ceiling or wall if needed. 2. Open the dome cover by loosening screws(4x12mm). Use the torque wrench supplied. - Place the dome base unit on pre-drilled position and fix it through using mounting screws (4x30mm).
  • Page 11 MEGA-PIXEL NETWORK CAMERA Installation Instructions Option 1. Installation with Flush mount / Tilted Junction mount ① Cables are unfixed on the Dome base. ② Disassemble coupler board for LAN cabling. ③ Connect the ethernet and power cables to their repective connections. * Refer to the instruction guide for Tilted Junction mount .
  • Page 12 MEGA-PIXEL NETWORK CAMERA Installation Instructions Limit of pan & tilt 1) Pan limit: Pan is limited to +/- 165°. Do NOT force to rotate the gimbal over the limit to prevent from the internal damage. 2) Tilt limit: Tilt is limited to 25° min ~ 90° max. with reference to the ceiling when the inclination of camera module is 0°, that is, the image is aligned horizontally.

  • Page 13: Installation And Commissioning Instructions

    MEGA-PIXEL NETWORK CAMERA Installation Instructions Installation and commissioning Instructions • Make sure the power is removed before the installation. • After all connections are finished properly, follow the order for applying power. a) Plug the network cable into RJ-45 Ethernet Port. If PoE is the unique power, there will be no need to connect Power terminal.

  • Page 14: Operating Instructions

    MEGA-PIXEL NETWORK CAMERA Operating Instructions Using OSD controller Setup menu can be accessed and controlled by OSD control joy stick on the side of camera unit. Five commands are available with the joy stick. The design of OSD could be different according to the Model. Joy Stick Video Sub-out Connector Description of the joystick operation...
  • Page 15 MEGA-PIXEL NETWORK CAMERA Operating Instructions Quick Network Setup NOTICE After camera is connected with IP, its control is available via WEB Viewer. To access the ADMIN on IP INSTALLER ID: root PW: root The network camera‘s default IP address is: 192.168.1.10. Therefore, to access the camera for the first time, set the PC‘s address as shown.
  • Page 16 MEGA-PIXEL NETWORK CAMERA Operating Instructions 1. Assigning an IP address To assign an IP address to the camera proceeded as follows: Click Network Configuration on the Network Configuration menu. • Depending on the service type, the network configuration can be in any of Static IP, DHCP Client, or PPPoE.

  • Page 17: Administrator Password

    MEGA-PIXEL NETWORK CAMERA Operating Instructions • For DHCP, DHCP server must exist in the same network environment. Select DHCP Client from Network Configuration, click Apply. • PPPoE is used to connect IP products to PPPoE modem provided by ISP. Since PPPoE needs verification, ID and password are necessary to access network.
  • Page 18 MEGA-PIXEL NETWORK CAMERA Operating Instructions 3. Accessing the camera setup menu Camera SETUP menu can be accessed in two ways via web viewer. Most frequent controls are available with the parameters directly in the below table. More complicated settings such as PRIVACY, POINTING ZOOM & SMART MOTION settings are available via ‘ADVANCED CAMERA MENU’...

  • Page 19: Direct Control Menu

    MEGA-PIXEL NETWORK CAMERA Operating Instructions Direct Control menu SPECIAL DEFAULT DESCRIPTION TV SYSTEM NTSC Selects HDTV standards for US(60HZ) or EU(50HZ). By this selection, 2nd analog video output switches to NTSC or PAL accordingly. Lens can be selected either DC or MANUAL lens. LENS DC-Deblur Lens MUST be set to DC for the best image when DC iris lens is...
  • Page 20 MEGA-PIXEL NETWORK CAMERA Operating Instructions ON : Improves the visibility for the dark object by the bright back (Back Light light. Outside area of BLC window can be over saturated. Compensation) Available to set BLC POSITION at ADVANCED CAMERA MENU> BLC POSITION HLC : Cuts out the highlight area with black mask and excludes it from compensation.
  • Page 21 MEGA-PIXEL NETWORK CAMERA Operating Instructions WB Manual Activates when WHITE BALANCE is set to MANUAL. R-Gain/ Adjustable 0~20. B-Gain SHARPNESS Adjusts the sharpness of video. COLOR GAIN Adjusts the color level of video. GAMMA Adjusts the gamma of video. Reverses the video left and right and/or up and down by MIRROR / MIRROR/FLIP.

  • Page 22: Advanced Camera Osd Menu

    MEGA-PIXEL NETWORK CAMERA Operating Instructions Advanced Camera OSD menu Click ‘ADVANCED CAMERA MENU’ bar at CAMERA CONTROL menu to activate the camera OSD menu. Click Up/Down/Left/Right bars to navigate or change the parameters. These options have been pre-configured at the factory for optimal performance. MENU V3.12 ↵...
  • Page 23 MEGA-PIXEL NETWORK CAMERA Operating Instructions Area to be zoomed in by SMART MOTION ZOOM can be set at MOTION> SMART MOTION ZOOM>ZOOM TARGET. Clicking Up/ Down/ Left/ Right or Enter bars for ZOOM TARGET varies the viewing angle to be zoomed when the motion occurs. Set the video left and right and/or up and down by MIRROR/FLIP.
  • Page 24 MEGA-PIXEL NETWORK CAMERA Operating Instructions 7. BLC POSITION (default: SET) Improves the visibility for the dark object by the bright back light. Outside area of BLC window can over saturate. BLC has a target window for compensation and its size and position can be set by H-POS, V-POS, H-SIZE and V-SIZE 8.
  • Page 25 MEGA-PIXEL NETWORK CAMERA Operating Instructions • H-POINTER (10): Moves MOTION ZOOM area(Yellow window) horizontally. • V-POINTER (10):Moves MOTION ZOOM area(Yellow window) vertically. • D-ZOOM RATIO (MZ2.0): Sets the area size to be Digital zoomed when the motion occurs in the black window. •...
  • Page 26 MEGA-PIXEL NETWORK CAMERA Operating Instructions * EXAMPLE OF SMART MOTION & POINTING ZOOM [ At the ATM nearby ENTERANCE ] [ At the LOBBY ]...
  • Page 27 MEGA-PIXEL NETWORK CAMERA Operating Instructions ▐ FOCUS ASSIST Usually cameras are installed in the day time and they often become OUT OF FOCUS at night time and IN FOCUS again at next day time. This problem can occur at any cameras regardless of types or manufacturers. FOCUS ADJ.

  • Page 28: Specifications

    MEGA-PIXEL NETWORK CAMERA Specifications ITEM PXD-2080MIR C Imaging Sensor Sony Exmor 1/2.9" Progressive Scan CMOS Sensor Effective Pixels 1,936(H) x 1,097(V) Min.Illumination 0.0005 Lux @ (AGC MAX, DSS x2) Video Resolution 1,920x1,080 30p/25p TV System 50Hz(switchable to 60Hz) Sync. System...
  • Page 29 MEGA-PIXEL NETWORK CAMERA Specifications Mechanical Feature Solid Aluminum Cast, Hard coated polycarbonate clear Bubble, Flush mount, 3-Axis gimbal, Zoom & Focus adjustment on gimbal, Cooling Fan Power Source PoE(IEEE Std. 802.3af ) AC24V~15VA/DC12V=1A, 12W Circuit protection against faulty connection in power polarity Isolated power supply against ground loop problem.
  • Page 32 Videor E. Hartig GmbH Exclusive distribution through specia- lised trade channels only. Videor E. Hartig GmbH Carl-Zeiss-Straße 8 · 63322 Röder- mark/Germany Tel. +49 (0) 6074 / 888-0 · Fax +49 (0) Technical changes reserved 6074 / 888-100 www.videor.com...
