Eneo FLC-1301A User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

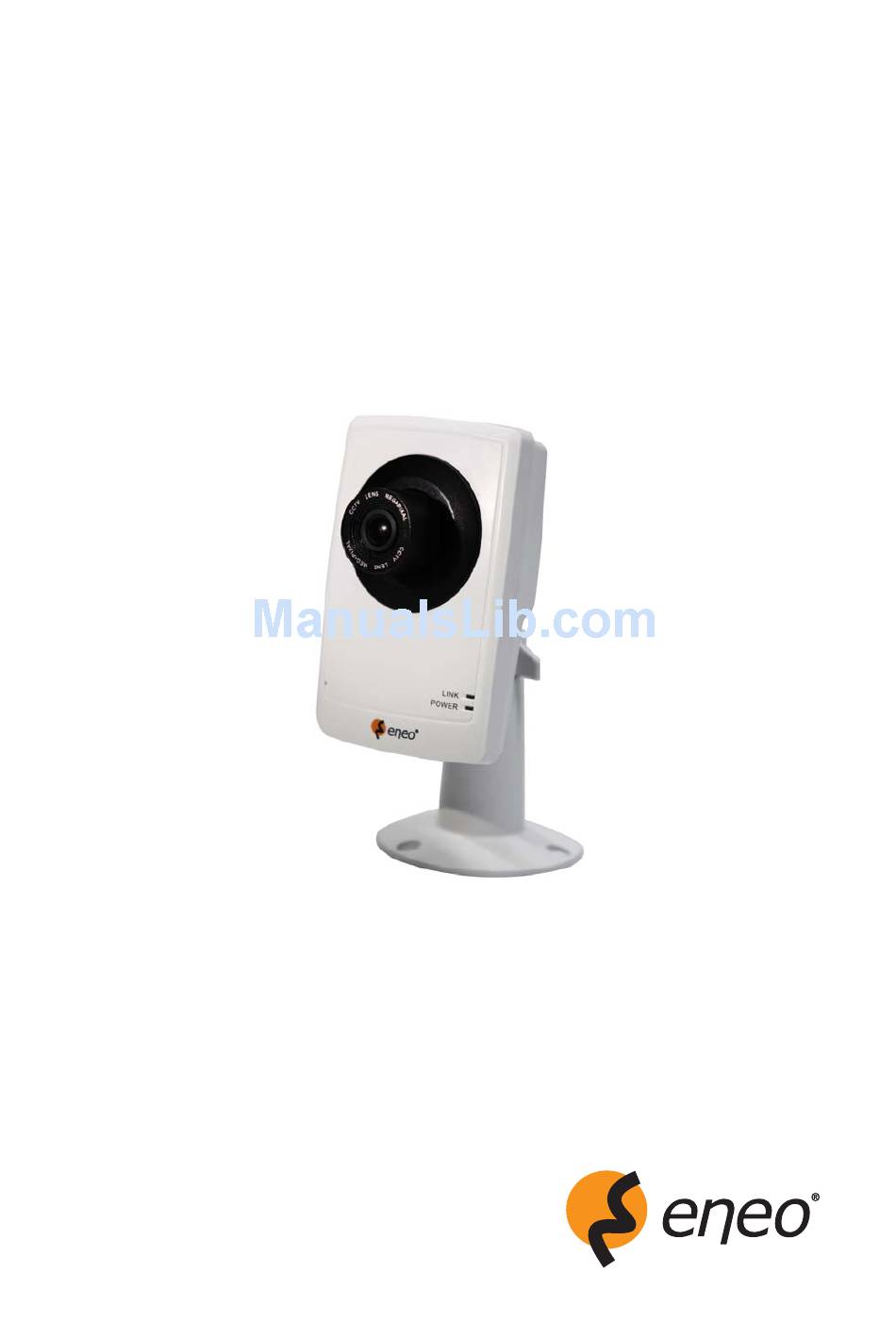

Network Camera

FLC-1301A, FXC-1302A
User Manual
V3.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLC-1301A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eneo FLC-1301A

Summary of Contents for Eneo FLC-1301A

  • Page 1: Network Camera

    Network Camera FLC-1301A, FXC-1302A User Manual V3.0.0...
  • Page 2 User Manual of Network Camera...

  • Page 3: Safety Instructions

    User Manual of Network Camera Safety Instructions • Read these safety instructions and the operation manual first before you install and commission the camera. • Keep the manual in a safe place for later reference. • Protect your camera from contamination with water and humidity to prevent it from permanent damage.
  • Page 4 User Manual of Network Camera NOTE: This is a class A digital device. This digital device can cause harmful interference in a residential area; in this case the user may be required to take appropriate corrective action at his/her own expense.

  • Page 5: Table Of Contents

    User Manual of Network Camera Table of Contents Chapter 1 Introduction ........................... 1 1.1 Network camera Functions and Features ................. 1 1.2 Applications ..........................1 1.3 Package Contents ........................2 Chapter 2 Installation ..........................3 2.1 Camera Description ........................3 2.1.1 Camera Physical Description ...................

  • Page 6: Chapter 1 Introduction

    User Manual of Network Camera Chapter 1 Introduction Network camera is a kind of embedded digital surveillance product that combines the features of both traditional analog camera and network DVS (Digital Video Server). Due to the embedded Linux operation system and the latest Davinci hardware platform of TI, the system operates with high scheduling efficiency.

  • Page 7: Package Contents

    User Manual of Network Camera 1.3 Package Contents 1. Camera × 1 2. Bracket × 1 3. User Manual × 1 4. Quick Start Guide × 1 5. Installation Guide × 1 6. CD × 1...

  • Page 8: Chapter 2 Installation

    User Manual of Network Camera Chapter 2 Installation NOTE: 1. Please check if all the items on the package list have been included with your camera. 2. Read the following contents carefully before the installation. 3. Make sure that all the related equipment is power-off during the installation. 4.

  • Page 9: Camera Connection

    User Manual of Network Camera Serial NO. Description Microphone hole Micro SD card solt LINK: Network status LED indicator. When the network is connected, the LED flickers in green. Power LED indicator, which turns red when power is applied to the unit Lens ETHERNET: 10M / 100M self-adaptive Ethernet interface RESET: Reset all parameters to factory default settings...

  • Page 10: Hardware Installation

    User Manual of Network Camera 2.2 Hardware Installation Cube camera can be fixed in both wall and ceiling, customers can choose different ways to install the camera according to their specific needs. The following section introduces the ceiling mounting, and the wall mounting follows the same way: Step 1: Fix the camera mounting bracket to the ceiling.
  • Page 11 User Manual of Network Camera Step 2: Screw the mounting hole to the mounting bracket, and then adjust the camera to the desired monitoring location and finally tighten the knob on bracket to secure the camera to the ceiling. Fig 2.2.2 Fix the Camera Step 3: Viewing the video on the computer, if the scene is not that you want to monitor, loosen the knob on the mounting bracket and adjust the camera lens to the desired monitoring scene, and finally tighten the knob on bracket.

  • Page 12: Chapter 3 Network Camera Connection

    User Manual of Network Camera Chapter 3 Network Camera Connection Two methods can be used to connect between network camera and PC, shown as below: Fig. 3.1 Cross Line Connection Fig. 3.2 Direct Line Connection Before visiting network camera over network, user should acquire its IP address first. SADP is a software tool which can automatically detect network device in the LAN and give the device’s information like IP address, mask, port number, device serial number, software version, etc., shown as Fig.
  • Page 13 User Manual of Network Camera Fig. 3.3 Select the device, and set its IP address and mask at the same network segment with the PC. For the detailed introduction of SADP, please refer to Appendix 1. Note: The network camera is set with the factory default IP address of “192.0.0.64”, the port of “8000”, the super user name of “admin”...

  • Page 14: Chapter 4 Network Access

    User Manual of Network Camera Chapter 4 Network Access After hardware installation, user can view live video and configure parameters for the network camera, including IP address, subnet mask and port number, etc. The following two methods can be used to access the camera: 1.

  • Page 15: Live View

    User Manual of Network Camera 4.1.1 Live View Step 1: Install Active-X Control Type the IP address of the network camera and press Enter, then the ActiveX mention dialog will pop Click Install to install the ActiveX control. Fig. 4.1.2 Install the ActiveX Control Step 2: Input the Username (default: admin), Password (default: 12345)
  • Page 16 User Manual of Network Camera Step 3: After successful login, user is allowed to view the live video. Refer to Figure 4.1.4. Fig. 4.1.4 Live View Page Icons on Live View Page: Icon Description Full-screen display mode Exit full-screen display mode Start Preview Stop Preview Capture Picture...

  • Page 17: Parameters Configuration

    User Manual of Network Camera Digital Zoom Click mouse in the desired position of live video image and scroll the mouse to realize zoom in and zoom out function. Video Parameters: Icon Description Brightness: 0~100 configurable Contrast: 0~100 configurable Saturation: 0~100 configurable Hue: 0~100 configurable Gain: 0~100 configurable Exposure time: 0~40000...

  • Page 18: Remote Configuration

    User Manual of Network Camera Local Configuration: Parameters Description Protocol type TCP and UTP selectable Stream type Main stream and Sub stream selectable Display mode Full-screen, 4:3 mode, 16:9 mode or adjustable to resolution Package file size 128M, 256M, 512M selectable Transmission Shortest delay mode, good real-time, normal real-time and fluency performance...
  • Page 19 User Manual of Network Camera Channel Parameters Display Setting: According to different requirements, enable the display of Date&Time and Week by clicking the checkbox. Different date formats can be selected. The OSD Status can be set to transparent & flickering, transparent &...
  • Page 20 User Manual of Network Camera Parameter Description Stream type Select stream type to Main stream or Sub stream Resolution Select the resolution for your need, Image Quality Select image quality to Highest, High, Medium, Low, Lower or Lowest Bitrate Type Select the bitrate type to Constant bitrate or Variable bitrate Max.
  • Page 21 User Manual of Network Camera Channel Parameters Text Overlay Setting: Input the characters in the Text Information box and define the OSD location in the image by setting the XPosition and YPosition, and then select the checkbox of OSD Text. After clicking Save to finish the settings, the defined title will be displayed on the image.
  • Page 22 User Manual of Network Camera Network Parameters PPPOE Setting: Click the checkbox of Enable PPPOE to enable this function. Input the PPPOE user name and password in the text box and then click Save to finish settings. After reboot, the camera will obtain a public IP address.
  • Page 23 User Manual of Network Camera Network Parameters Setting: Click the checkbox of Enable NTP to enable this function. Input the Server Address and Port of NTP. If the public network is applied, please input the NTP Server Address with provision of time sync service, e.g., 210.72.145.44.
  • Page 24 User Manual of Network Camera Alarm Output Alarm Output Setting: The Output Delay refers to the length of time that the relay remains in effect after alarm occurs. The output delay time can be set to 5sec, 10sec, 30sec, 1min, 2min, 5min, 10min or Manual (manually disable).
  • Page 25 User Manual of Network Camera Add User: Click Add to enter the settings interface as shown in Fig. 4.1.23. Input the user name, password, IP address, MAC address, and then select user type. Finally, Fig. 4.1.23 Add User click OK to finish the user addition.
  • Page 26 User Manual of Network Camera Restore Default: Select Full Mode or Basic Mode to restore the default settings. Note: The Full Mode refers to restore all parameters to the factory default settings. The Basic Mode refers to restore the parameters to Fig.

  • Page 27: Advanced Configuration

    HDD settings and so on. Please refer to “FINITRA_en_93172.pdf” for a more detailed parameters configuration. You can find the document in the PC Operating System after the installation of eneo FINITRA by selecting “Start”-> “All Programs”-> “eneo FINITRA”.

  • Page 28: Access Over Client Software

    HD2400, HD2600, NVIDIA GeForce 8600GT, 8500GT, 8400GS, 7600, 7300LE, 6600LE, 6200LE, and INTEL915/945G. And the graphics driver must support hardware scaling function. Step 1: Double click ‘eneo FINITRA.exe’ in the Windows Operating System. The ‘Preparing Setup’ dialog box will automatically pop up as shown Fig.4.2.1.
  • Page 29 User Manual of Network Camera Step 3: Select the destination folder and click Next to enter the next step. Fig. 4.2.3 Ready to Install the Program Step 4: Click Install to start installation till finishing the installation. Fig. 4.2.4 Installation...

  • Page 30: Live View

    After the client software has been installed, you can find the remote client software through Start-> Programs from your PC. 4.2.2 Live View After the installation of eneo FINITRA, there is a short-cut icon named “eneo FINITRA” on computer’s desktop. Please double click “eneo FINITRA” to run the software. Step 1:...
  • Page 31 User Manual of Network Camera User login: Input User, Password and click Login to enter the GUI window of the software. Fig. 4.2.7 User Login Fig. 4.2.8 GUI window of the software Step 2: Click Setup to enter the configure mode, and then click Device Management.
  • Page 32 User Manual of Network Camera Step 3: Right click the left area, and then click Add Area. Input Area Name for your need, and then click OK to add area. Fig. 4.2.10 Add Area Step 4: Right click the area that you add, and then click Add Device to add network camera.
  • Page 33 User Manual of Network Camera Fig. 4.2.12 Camera Adding Completed Step 5: Click the Preview, and then double click the device name in the left tree to view the live video. Fig. 4.2.13 Preview...

  • Page 34: Camera Parameters Configuration

    User Manual of Network Camera 4.2.3 Camera Parameters Configuration NOTE: Different types of network cameras maybe have different configuration parameters in the interface of “Config Sensor Parameters”. This section takes a type of network camera for example to introduce configuration parameters in the interface of “Config Sensor Parameters”. If the information in the actual interface of “Config Sensor Parameters”...
  • Page 35 User Manual of Network Camera Step 3: White Balance Configuration Select the mode to Auto1 or Off for your need. Fig. 4.2.16 White Balance Step 4: Exposure Configuration Select “Exposure time” and “Iris mode” for your need. Fig. 4.2.17 Exposure Step 5: Day/Night Mode Configuration Select “Day”, “Night”...
  • Page 36 “E-PTZ” and “Local Output”. Fig. 4.2.19 Other Parameters Please refer to “FINITRA_en_93172.pdf” for more detailed parameters configuration. You can find the document in the PC Operating System after the installation of eneo FINITRA by selecting “Start”-> “All Programs”-> “eneo FINITRA” -> “eneo FINITRA.exe”.

  • Page 37: Chapter 5 Access Over Internet

    User Manual of Network Camera Chapter 5 Access over Internet 5.1 Access network camera with static IP When there is a static IP from an ISP, open some ports (such as 80 and 8000 ports) in the router. Then a user can visit it through a web browser or client software via the internet. The steps for port forwarding are different for each model of router.

  • Page 38: Access Network Camera With Dynamic Ip

    User Manual of Network Camera Fig. 5.3 Selecting Normal IP 5.2 Access network camera with dynamic IP Fig. 5.4 Access IPC through PPPoE Dail-up This camera supports the PPPoE auto dial-up function, connecting the camera to a Modem for dial-up access to an ADSL network to get a public IP address; First, through local network access to the network camera, select “Configure ”...
  • Page 39 User Manual of Network Camera Fig. 5.5 PPPoE configuration Dialog box It is inconvenient to view a network camera with a dynamic IP, therefore, users should register with a dynamic DNS service provider. (Such as DynDns.com) Domain name resolution contains normal domain name resolution and private domain name resolution.
  • Page 40 User Manual of Network Camera Apply a domain name from a domain name provider, then view the camera via the applied domain name. If the camera connects to the internet via a router, users should port forward the router. Please refer to Appendix 2. Input domain names in the client software or IE to view the network cameras.
  • Page 41 User Manual of Network Camera A PC with a static IP which is running the domain name resolution service is necessary. When the network camera connects to the internet through PPPoE and obtains an IP address, it will send its name and IP address to the resolution server. When the client software connects to the network camera, it will connect to the resolution server and tell the resolution server the expected camera’s name.

  • Page 42: Chapter 6 Specifications And Drawings

    User Manual of Network Camera Chapter 6 Specifications and Drawings 6.1 Specifications Type FLC-1301A FXC-1302A Art. No. 203661 203613 Series eneo F Resolution standard System day&night Sensor size 1/3" Imager CMOS Sensitivity (at 50% video signal) 0.1 Lux, (colour); 0.5 Lux at F1.2 0.01Lux (B&W) at F1.2...
  • Page 43 User Manual of Network Camera Type FLC-1301A FXC-1302A Art. No. 203661 203613 Web browser MS Internet Explorer vers. 7.0 or higher Network protocols TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTCP, PPPoE, FTP, SMTP, NTP, SNMP, HTTPS, SIP, IPv4, IPv6 Remote configuration...

  • Page 44: Dimensional Drawings

    User Manual of Network Camera 6.2 Dimensional Drawings 70.4 1/4 20UNC Dimensions: mm...

  • Page 45: Appendix 1 Sadp Introduction

    User Manual of Network Camera Appendix 1 SADP Introduction 1. Brief introduction SADP (Search Active Devices Protocol) is a kind of software which can automatically search network speed dome in LAN. User can modify the IP address, subnet mask and port of the device without visiting IP address of the device.

  • Page 46: Modify Device Information

    User Manual of Network Camera 3. Modify device information Select the device that needs modification in the device list, then basic information of the device will be demonstrated in the information column on the right. Click “modify” button to activate IP address, subnet mask, device port editing and password validating box, as follows: Select the device that needs modification in the device list, then basic information of the device will be demonstrated in the information column on the right.

  • Page 47: Appendix 2 Port Map

    User Manual of Network Camera Appendix 2 Port Map Note: The following setting is about TP-LINK router (TL-R410), which is maybe distinct from other router’s setting. 1. Firstly, select the router’s WAN connection Type. As the following Fig. shows: 2. Set the “network parameter” of the router as the below figure. The setting includes subnet mask and gateway.
  • Page 48 User Manual of Network Camera 3. Set the port map in the virtual severs of Forwarding. By default, camera uses port 80, 8000, 554 and 8200. You can change these ports value with IE or client software. The following figure gives the illustration. One camera’s ports are 80, 8000, 554, 8200 and its IP address is 192.168.1.23.

  • Page 49: Appendix 3 Pin Definition

    User Manual of Network Camera Appendix 3 Pin Definition (1) UTP between the network port of camera and HUB (Direct Cable) (2) UTP between the network port of camera and PC (Cross Cable):...
  • Page 50 User Manual of Network Camera...
  • Page 51 User Manual of Network Camera...
  • Page 52 User Manual of Network Camera eneo is a registered trademark of Videor E. Hartig GmbH ® Exclusive distribution through specialised trade channels only. Videor E. Hartig GmbH Carl-Zeiss-Straße 8 · 63322 Rödermark, Germany Tel. +49 (0) 6074 / 888-0 · Fax +49 (0) 6074 / 888-100 www.videor.com...

This manual is also suitable for:

Fxc-1302a
