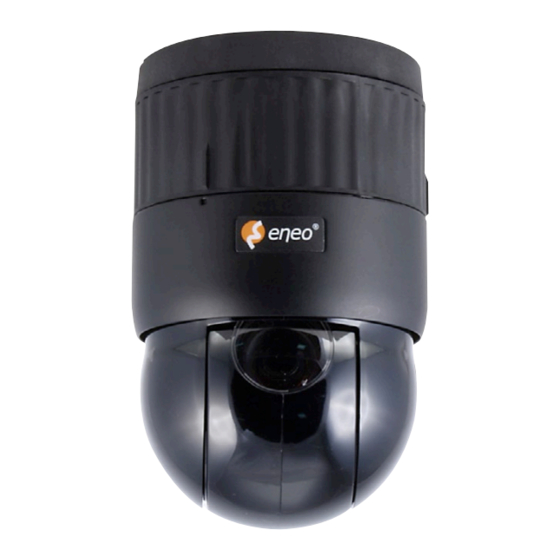

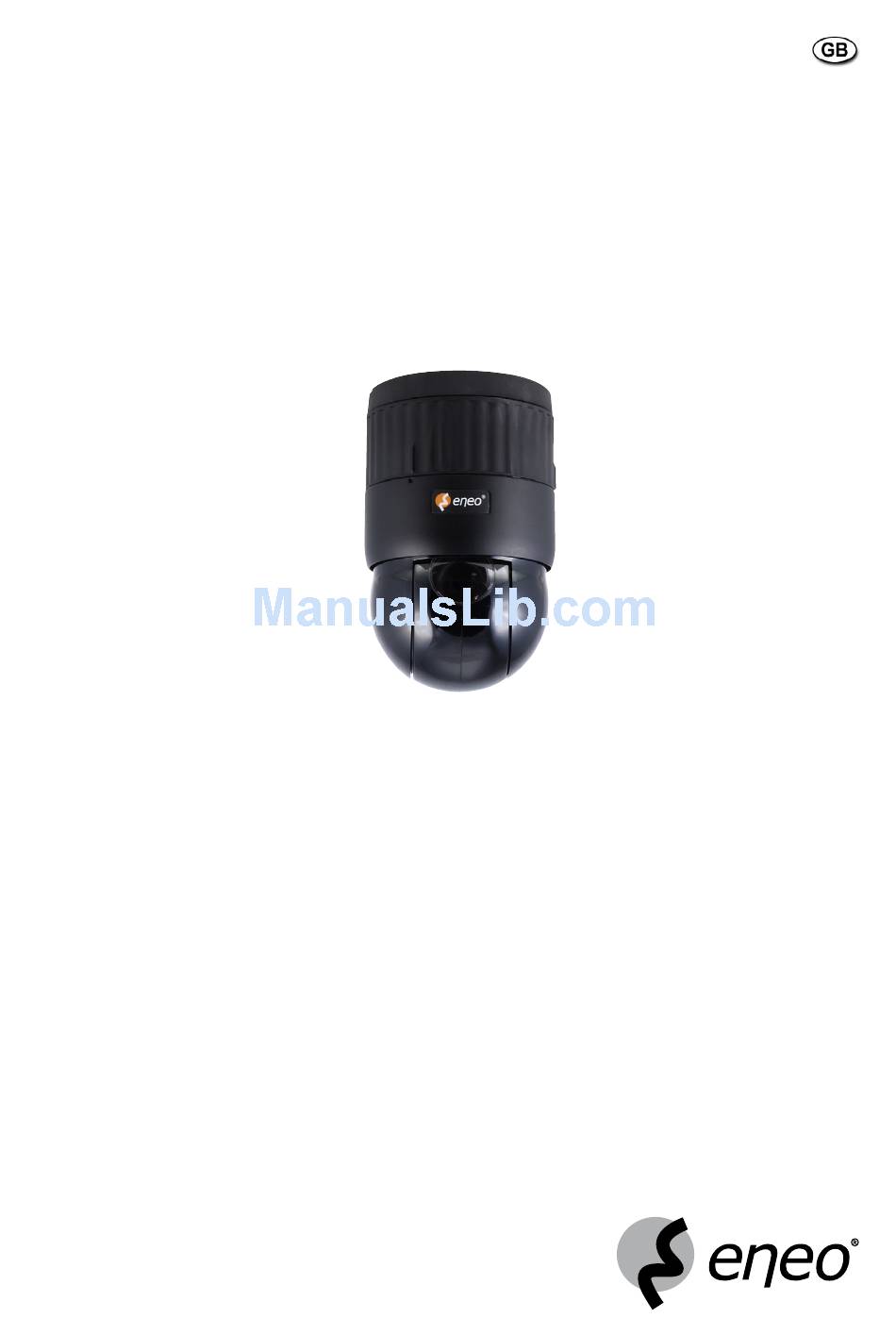

- Page 1 Installation and Operating Manual Fastrax III 1/4” Day/Night High Speed Dome Camera EDC-3222...
-
Page 2: Table Of Contents
4. Privacy Zone ........................................9 4. Camera Menu ........................................0 4.3 Dome Setup ........................................3 4.4 Function Run ........................................9 4.5 Motion Setup ........................................30 Troubleshooting ........................................... 3 Glossary............................................3 Short Cut Key ..........................................33 Specifications ..........................................34 Dimensional Drawings ........................................36 Betriebsanleitung www.videor.com Installation and Operating Instructions ⇒ www.eneo-securitiy.com Mode d’emploi Instrukcja instalacji i obsługi... -
Page 3: Safety Instructions / Maintenance
1. Safety Instructions / Maintenance • Read these safety instructions and the operation manual first before you install and commission the camera. • Keep the manual in a safe place for later reference. • Protect your camera from contamination with water and humidity to prevent it from permanent damage. Never switch the camera on when it gets wet. Have it checked at an authorized service center in this case. • Never operate the camera outside of the specifications as this may prevent the camera functioning. • Do not operate the cameras beyond their specified temperature, humidity or power ratings. • Operate the camera only at a temperature range of 0°C to +50°C and at a humidity of max. 90%. • To disconnect the power cord of the unit, pull it out by the plug. Never pull the cord itself. • Pay attention when laying the connection cable and observe that the cable is not subject to heavy loads, kinks, or damage and no moisture can get in. • Do not attempt to disassemble the camera board from the dome. • The warranty becomes void if repairs are undertaken by unauthorized persons. Do not open the camera housing. • Never point the camera towards the sun with the aperture open. This can destroy the sensor. • Installation, maintenance and repair have to be carried out only by authorized service centers. Before opening the cover disconnect the unit from mains input. • Contact your local dealer in case of malfunction. • Only use original parts and original accessories from Videor E. Hartig GmbH. • Do not use strong or abrasive detergents when cleaning the dome. Use a dry cloth to clean the dome surface. In case the dirt is hard to remove, use a mild detergent and wipe gently. • All openings provided in the housing for assembly purposes must be closed and/or sealed. •... - Page 4 up to 55 multiplexers Alarm Input up to 99 DVRs (up to 8) <Sensor> Alarm <Siren> Output (up to 4) <Flashing light> up to 54 cameras including 64 alarm modes Figure - Typical System Configuration push bubble ring ass’y remove camera window screw push Remove window Assemble bubble ring ass’y Figure - Optional Assemble bubble ring ass’y NOTE: It is recommended to remove camera window for improving picture quality when you assemble bubble ring ass’y. CAUTION: When installing a Fastrax dome on a high pole outside, caution should be taken to avoid vibration and shaking of Fastrax dome due to windload or shock of passing heavy vehicles.
-
Page 5: Installation And Configuration
3. Installation and Configuration 3.1 Package Contents The package contains the following: x Fastrax III (Dome Camera) x Bubble ring (optional) x Instruction manual (this document) 3x Assembly screws for attaching Fastrax III 3x Plastic anchor x 0Pin Connector x Pin Connector CAUTION: Be sure to have caution labels (E version only) on both body and base of the camera. Different version will not support alarm input and output. The dome camera is for use in surface mounting applications and the mounting surface should be capable of supporting loads up to 4.5kg. -
Page 6: Basic Configuration Of Fastrax Iii Dome Camera System
3.2 Basic Configuration of Fastrax III Dome Camera System J-Box Dome Power RS485(+) DOME + RX+(TX+) 4VAC RS485(-) DOME - RX-(TX-) STP AWG #4 Alarm output Alarm input ~ ~ 4 Power 4VAC Sensor Alarm input up to 8 Dome+ Siren Dome– Light Alarm output up to 4 Alarm output Alarm input 3 ~ 4 5 ~ 8 RS-485 Monitor Half Duplex mode: RX+(TX+), RX–(TX–) RS-4... -
Page 7: Setting Dome Camera Termination
SW: Termination switches SW: Fail-Safe Network Addresses (ID) and protocol selection switches Figure 5 - Layout of Switches 3.3 Setting Dome Camera Termination The device which is connected at end of line, whether it be a dome camera or keyboard controller, must have the cable for communication terminated by setting the appropriate DIP switch. Without proper termination, there is potential for control signal errors. Total length of the cable for communication should not exceed .km. Terminated Not terminated Figure 6 - Setting Dome Camera Termination... -
Page 8: Fail-Safe Network
3.4 Fail-safe Network When you control the dome by the other device not own keyboard, some error may be existed in the serial communication. The reason is caused by the other device without the fail-safe network. At this time, you solve the problem to set this DIP switch to ON of the nearest dome from the other device only. PULL-UP PULL-DOWN NONE NONE Figure 7 - Setting Dome Camera Termination Cable for communication Termination ON Termination ON Termination ON Termination ON Dome Port Dome Port Cable for communication Cable for communication Termination ON Repeater/Splitter .km .km Cable for communication Input termination ON Output termination ON Termination ON Termination ON Figure 8 - Termination Diagram... -
Page 9: Setting Dome Camera Address (Id)
3.5 Setting Dome Camera Address (ID) To prevent damage, each dome camera must have a unique address (ID). When installing multiple dome cameras using a multiplexer, it is suggested that the dome camera address matches the multiplexer port number. If you wan to set the address more than 999, you should connect the service provider. Example: Port = Dome , Port = Dome ... Port 6 = Dome 6. If more than 6 dome cameras are installed using two or more multiplexers, ID of the dome camera should be ID of MUX x No. of camera IN. (e.g. multiplexer ID= n, Camera IN= m then ID of Dome =6x (n-) +m) Refer to Figures 4-5 for setting the dome camera address (ID) and protocol selection. Dome ID … … … … Figure 9 - Setting Dome Camera Address (ID) -
Page 10: Setting Dome Camera Protocol
3.6 Setting Dome Camera Protocol If a dome camera is to be installed with a Fastrax keyboard controller, select the default protocol. Consult service personnel if a dome camera is installed with device other than a keyboard controller. Function S4- Enable Disable Alarm S4- NTSC NTSC/PAL S4-3 (Reserved) S4-4 RS-4 RS-485 RS-4/RS-485 Protocol S5-1 S5-2 S5-3 S6-4 F, FE, Pelco-D, Pelco-P: Default F, FE Sensormatic RS-4 Pelco-D, Pelco-P Vicon Ernitec (Reserved) Philips (Bosch) (Reserved) Dynacolor (Reserved) Baud Rate S5-4 S6-1 S6-2... -
Page 11: Connections
3.7 Connections • Connecting to the RS-485/-422 The dome camera can be controlled remotely by an external device or control system, such as a control keyboard, using RS-485 half-duplex, RS-4 full duplex or simplex serial communications signals. Connect Marked Tx+, Tx- to Tx+(Rx+) and Tx-(Rx-) of the RS-485 control system. If control system is RS-4, connect Rx+(Tx+), Rx+ (Tx-) and Rx+, Rx- of the dome camera to Rx+, Rx- and Tx+, Tx- of the control device respectively. • Connecting Video out connector Connect the video out (BNC) connector to the monitor or video input. • Connecting Alarms AL1 to 8 (Alarm In) You can use external devices to signal the dome camera to react on events. Mechanical or electrical switches can be wired to the AL (Alarm In) and GND (Ground) connectors. See Chapter 3 - Program and Operation for configuring alarm input. GND (Ground) NOTE: All the connectors marked GND are common. Connect the ground side of the Alarm input and/or alarm output to the GND connector. NC(NO)1 TO 4 (Normal Close or Normal Open: Alarm Out) The dome camera can activate external devices such as buzzers or lights. Connect the device to the NC(NO) (Alarm Out) and COM (Common) connectors. -
Page 12: Program And Operation
4. Program and Operation 4.1 Dome Camera Selection Before you program or operate a dome camera, you must select the dome camera by pressing the dome camera No. + CAM. Example: Pressing 1, 0 and CAM key sequentially will select dome camera 0. The selected dome camera ID will be displayed on the LCD monitor of the keyboard controller. 4.2 Accessing On-Screen Menu Utility You can call up the On-screen menu utility on your monitor by pressing MENU key on the keyboard controller, the following On-screen menu utility will appear: DOME MENU AUTO SCAN PRESET TOUR PATTERN ALARM AREA TITLE PRIVACY ZONE CAMERA DOME SETUP FUNCTION RUN EXIT (ESC TO EXIT) 4.3 How to control On-Screen Menu Utility Button Function MENU Call on On-screen menu utility... -
Page 13: Auto Scan (Shortcut: Scan)
4.4 Auto Scan (Shortcut: Scan) The Auto scan supports up to 7 programmed angles at user-programmable speeds. Follow these steps to program Auto Scan: AUTO SCAN SETUP NUMBER : 0 TITLE : A0 MODE : NORMAL SPEED : 5 STEP START ANGLE : – – – – – – – – – – – – – END ANGLE : – – – – – – – – – – – – – SCAN DIR : CCW SWAP : OFF DWELL : 03 SEC SAVE AND EXIT (ESC TO CANCEL) NUMBER 0-08, 0-7, 09: AUTO PAN mode TITLE up to characters MODE NORMAL, VECTOR, RANDOM (AUTO PAN mode: NORMAL, RANDOM only) NORMAL: Move from start point to end point in panning only. VECTOR: Move from start point to end point including tilt and zoom simultaneously and linearly. In some models, the zoom is fixed at wider angle and the zoom magnification information is not displayed. RANDOM: Move randomly between the start point and the end point. SPEED - 3 step, the lower number means the slower speed. SCAN DIR Set the scan direction, CCW (Counterclockwise), CW (Clockwise) SWAP... -
Page 14: Preset (Shortcut: Prst)
0. Set „DWELL TIME”. . Select Save and Exit and push the Joystick to the right or press IRIS OPEN. Press ESC or IRIS CLOSE to exit the program without saving. Pressing the HOME key delete stored data at the angle field. To set the position using the preset position: a. Before entering the AUTO SCAN menu, select a preset position as a starting point for Auto Scan. Example: 2 + PRST and do step to 4. In step 5, just press the CTRL key at the start angle position, the current position will be displayed as a start position. b. Save and exit from the menu. c. In normal mode, call a preset to be the end point of scan. Press 3 + PRST then press SCAN key to enter the AUTO SCAN menu. Move the cursor position to END ANGLE. Just press CTRL key at the end angle position. Save and exit from the menu. Press SCAN key on the angle field to display with the small OSD. Then the screen will show as below. AUTO SCAN AREA SETUP (CTRL KEY) NUMBER0 START: – – – – – – – – – – – – – END : – – – – – – – – – – – – – EXIT (ESC TO EXIT) The setting procedure is the same as above. -
Page 15: Shortcut Of Preset Program
Follow steps below to store the Preset positions: . Press the PRST key to enter the preset menu directly. Or press the MENU key to display the main menu on the monitor. Scroll to preset and push the Joystick to the right. . Select the blank preset position to be stored by pushing the Joystick up, down, right, or left. 3. After selecting a blank position, press and hold CTRL, Use the Joystick to control the direction of the camera and lens. 4. After aiming the camera (view direction and lens control), release CTRL. The cursor will be on the Title then twist the Joystick handle or Press Tele or Wide Key to edit the preset title. Follow the procedure of the auto scan above to edit titles. 5. Select „CAMERA SET” and pushing the Joystick left or right. Then the preset camera setup displays. PRESET CAMERA SETUP FOCUS: AUTO AE SETUP SAVE AND EXIT (ESC TO EXIT) Set FOCUS: AUTO, MANUAL, ONE PUSH Select „AE SETUP” and pushing the Joystick left or right. Then the AE setup displays. Refer to the AE SETUP in the camera setup. 6. Set „DWELL TIME”(03-99second) 7. To select the next page of presets, scroll the page by pushing the Joystick to the Left on the first and last columns of the menu. 8. Repeat steps through 7 for each additional preset position. 9. Select SAVE AND EXIT by pushing the Joystick to the right. Press ESC to exit the Preset menu without saving. NOTE: Press the HOME key at programmed preset position (*) to delete a programmed preset view. The position, which is marked with *, already has the preset view assigned. To review the stored preset, press PRST key on the *. The camera will show the stored preset scene. -
Page 16: Tour (Shortcut: Tour)
4.7 Tour (Shortcut: TOUR) There are 8 programmable Tours. Each Tour consists of up to 4 Preset positions, Patterns, Scans or other Tours (second-level). Using second-level tours, it can be expanded to over 300 functions in a single tour. TOUR SETUP NUMBER: TITLE: T0 SCAN TYPE: NORMAL SPEED: 5 STEP DWELL: – – SEC 003 A08 – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – P0 – – – – – – – – – – – – – – – T0 – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –... -
Page 17: Pattern (Shortcut: Ptrn)
4.8 Pattern (Shortcut: PTRN) The Pattern feature records user control of the selected dome camera. Up to four 8 patterns can be stored and played back by pressing No.+ PTRN keys subsequently. PATTERN SETUP (CTRL KEY) NO. TITLE SEC PERCENT 0: P0 000 00.0% 0: P0 000 00.0% 03: P03 000 00.0% 04: P04 000 00.0% 05: P05 000 00.0% 06: P06 000 00.0% 07: P07 000 00.0% 08: P08 000 00.0%... -
Page 18: Alarm
4.9 Alarm ALARM SETUP NO PRI FUN OUT HLD LATCH 00 OFF OFF A0 OUT OFF – – – OFF OUT OFF – – – OFF OUT4 OFF – – – OFF OFF OFF – – – OFF OUT OFF – – – OFF OUT OFF – – – OFF OUT4 DWELL:... -
Page 19: Area Title
4.10 Area Title Enter a specific name on programmed angle between START and END. For the screen below, when the camera points at an angle between 4.3° (PAN), 30.7° (TILT) to 359.5° (PAN), 45.4° (TILT), ABC will be displayed on the screen. AREA TITLE SETUP NUMBER : 0 TITLE : ABC START ANGLE : 4.3 30.7 END ANGLE : 359.5 45.4 SWAP : OFF SAVE AND EXIT (ESC TO CANCEL) NUMBER: 0 - 6 TITLE: up to characters SWAP: Swap the start point for the end point. . Select the” NUMBER” and set the desired number by pushing the Joystick left or right. . To edit the title, follow the procedure of the auto scan above to edit titles. 3. Select „START ANGLE”. Hold down the CTRL key while selecting the start position using the Joystick. Current panning position will be displayed. Release CTRL key to complete the selection of the start position. Or Press IRIS Open then the „CTRL” displays. Move the desired position. Press IRIS Close then the „CTRL” disappears. To adjust at the 0. degree interval, twist the Joystick at the pan field and the tilt field. 4. Select „END ANGLE.” Hold down the CTRL key while moving the Joystick to select the end position. Release the CTRL key to complete the selection of the end position. Or Press IRIS Open then the „CTRL” displays. Move the desired position. Press IRIS Close then the „CTRL” disappears. -
Page 20: Camera Menu
PRIVACY AREA MENU (CTRL KEY) CONTROL NUMBER 00 354.8 344.8 3. Place the cursor at the title field. Twist the Joystick to enter the title edit mode. Follow the procedure of the auto scan above to edit titles. 4. To turn the stored zone On or Off, twist the Joystick handle or press Tele or Wide Key. 5. Set the method, „BLOCK” or „V.OFF (video off)” 6. Select the Save and Exit option by pushing the Joystick up or down. Save and exit the program by pushing the Joystick to the right. Press ESC to exit the program without saving. Press the HOME key to delete programmed privacy zone at the title field. 4.12 Camera Menu NOTE: The features will vary depending on the camera module installed in your dome camera. CAMERA SETUP FOCUS CONTROL WB CONTROL AE CONTROL DNR CONTROL LINE LOCK CONTROL SHARPNESS:... - Page 21 • FOCUS CONTROL FOCUS SETUP MODE: AUTO FOCUS LIMIT: .0M SAVE AND EXIT (ESC TO CANCEL) MODE AUTO / MANUAL / ONE PUSH / CONSTANT MANUAL Use manual mode in normal use. FOCUS LIMIT This distance is approximate value and the focus operate from the setting value. CAUTION: Avoid continuous, 24-hour use of the auto focus. This will shorten the lifespan of the lens. • WB (White Balance) CONTROL WB SETUP MODE: AWB R GAIN: – – –...
- Page 22 • AE CONTROL AE SETUP MODE: MANUAL SLOW SHUTTER: – – – GAIN: MIN BRIGHT: 003 SHUTTER: /60 FLICKERLESS: – – – BACK LIGHT: OFF WDR: – – – WDR LEVEL: – – – NIGHT SHOT: AUTO SAVE AND EXIT (ESC TO CANCEL) MODE AUTO / AUTO / SHUTTER PRIO / MANUAL AUTO: Auto exposure mode (use to normal surroundings: indoor) AUTO: Auto exposure mode (use to high brightness surroundings: outdoor) SHUTTER PRIO: Variable shutter speed, gain MANUAL: Variable shutter speed, gain SLOW SHUTTER ON / OFF GAIN MIN / LOW / MID / HIGH BRIGHT 0, , , 3, 4 ..68, 69, 70 SHUTTER...
-
Page 23: Dome Setup
• LINE LOCK CONTROL LINE LOCK SETUP MODE: INTERNAL PHASE: SAVE AND EXIT (ESC TO CANCEL) MODE INTERNAL / EXTERNAL PHASE Adjusts phase of picture with other cameras in EXTERNAL mode (0~39) 4.13 Dome Setup CONFIGURATION MENU LANGUAGE: ENGLISH HOME FUNCTION SETUP OSD DISPLAY VIEW ANGLE SETUP INITIALIZE DATA ORIGIN OFFSET DOME RESET SYSTEM MENU SYSTEM INFORMATION SAVE AND EXIT (ESC TO CANCEL) • LANGUAGE SETUP LANGUAGE English, French, German, Italian, Spanish, Polish, Portugal Select the language you want. - Page 24 • HOME FUNCTION SETUP HOME FUNCTION SETUP HOME FUNCTION: NONE FUNCTION NUMBER: – – – WATING TIME: 0SEC FUNCTION ENABLE: SAVE AND EXIT (ESC TO CANCEL) HOME FUNCTION NONE / TOUR / PATTERN / AUTO SCAN / PRESET FUNCTION NUMBER – – – WAITING TIME 0~40 seconds FUNCTION ENABLE ON / OFF The HOME FUNCTION can be set so that the camera automatically goes to PRESET, TOUR, PATTERN, AUTO SCAN after the keyboard controller has been idle for a amount of time. For example, if the controller controller is idle for 0 seconds, the camera goes to preset . Follow these steps to program the Home position: . Select HOME FUNCTION by pushing the Joystick to the right or to the left to scroll through the NONE, TOUR, PATTERN, AUTO SCAN or PRESET functions. . Select FUNCTION NUMBER and push the Joystick to the right or to the left. The recorded function number will scroll. 3. Select WATING TIME and push the Joystick to the right or to the left to select from 0 to 40 seconds.
- Page 25 (AREA TITLE) (AF AE) (FUNC TITLE) (CTRL KEY TO MOVE) SAVE AND EXIT (ESC TO CANCEL) (ALARM MESSAGE) DOME ID...XXXX XXX.X XXX.X • VIEW ANGLE SETUP VIEW ANGLE SETUP PANNING RANGE FLIP: 90° TILT OVER ANGLE: SAVE AND EXIT (ESC TO CANCEL) FLIP ON,OFF OFF: The dome camera moves until 90° vertically. 90°, 100°, 110°, 120°: Allows the image to flip digitally when the camera moves over the setting angle vertically. AUTO: When the camera reaches the floor directly above the moving object, it will stop. At that time, release the Joystick handle instantly and pull it down again to run the auto-flip function. When you use the panning range, we recommend using the flip mode to AUTO. TILT OVER ANGLE This option is used to set the limit of the horizontal view angle so that the trim ring or ceiling does not obstruct the horizontal image when zooming out (wide angle). ON: In some installations it is desirable for the dome camera to be able to see above the horizon. When this option is chosen, the dome will tilt up over the horizon (About -0 degrees). When the lens is zoomed out, you can see the ceiling line. But when the lens is zoomed in, the viewing angle is narrower, and the ceiling line disappears.
- Page 26 • INITIALIZE DATA INITIALIZE DATA FACTORY DEFAULT ERASE PROGRAMMED DATA PRESET FOCUS DEFAULT EXIT (ESC TO CANCEL) FACTORY DEFAULT Select the Factory Default to initialize the Data. FACTORY DEFAULT ARE YOU SURE ? CANCEL ERASE PROGRAMMED DATA Erase all stored data from the Flash-ROM of the selected dome camera. You will be asked to enter ON or OFF. If you desire to erase all data then select the Erase Run, otherwise press the ESC key to exit without erasing. The erased data includes all stored data (auto scan, presets, and tours….) except origin offset. The offset value is still valid after all data is erased. The offset value can be zero with default set of Offset origin menu. ERASE PROGRAMMED DATA AUTO SCAN: PRESET: TOUR: PATTERN: ALARM: AREA TITLE: PRIVACY ZONE: CAMERA: DOME SETUP: ERASE SAVE AND EXIT (ESC TO CANCEL) PRESET FOCUS DEFAULT This menu set the default mode of the focus when you save the preset. PRESET FOCUS DEFAULT FOCUS: AUTO SAVE AND EXIT (ESC TO CANCEL) FOCUS AUTO / MANUAL / ONE PUSH...
- Page 27 • ORIGIN OFFSET OFFSET SETUP (CTRL KEY) PAN OFFSET: 000.0 TILT OFFSET: 000.0 ENABLE: SAVE AND EXIT (ESC TO CANCEL) This feature is useful to align a new dome camera exactly the same as the previously installed dome camera. Dome camera’s origin set and all data initialize option do not override offset values. Only the default set option in this menu will set the offset value to zero. This can be used to avoid ceiling obstructions. • DOME RESET DOME RESET ARE YOU SURE ? CANCEL This feature is used to re-calibrate the orientation of a selected dome camera. Origin offset value is not affected by this function. (Offset is still valid after origin set) • SYSTEM MENU SYSTEM MENU MOTOR SETUP PASSWORD EDIT ORIGIN CHECK CALIBRATION: PASSWORD ENABLE: OFF MENU TIME OUT: OFF BLINK CURSOR: DOME ANSWER: SAVE AND EXIT (ESC TO CANCEL) CALIBRATION ON (Auto origin check) / OFF PASSWORD ENABLE ON (requires the password to enter menu) / OFF MENU TIME OUT ON (5 minutes) / OFF (always menu display)
- Page 28 MOTOR SETUP Motor Setup menu provides the pan and tilt speed of a camera. User can set the desired speed with twist the Joystick left or right. During operation, pressing 153 + ON will change the speed to the SLOW mode and pressing 153 + OFF will change the speed to the Normal mode. Holding and pressing CTRL and moving the joystick will operate with the TURBO speed mode. MOTOR SETUP PROPOTIONAL P/T: P/T MODE: NORMAL SLOW PAN MAXIMUM: 40°/SEC SLOW TILT MAXIMUM: 40°/SEC NORMAL PAN MAXIMUM: 90°/SEC NORMAL TILT MAXIMUM : 90°/SEC TURBO PAN MAXIMUM: 360°/SEC TURBO TILT MAXIMUM: 00°/SEC SAVE AND EXIT (ESC TO CANCEL) PROPOTIONAL P/T ON / OFF P/T MODE SLOW / NORMAL / TURBO SLOW PAN MAXIMUM 9˚- 90˚/second SLOW TILT MAXIMUM 9˚- 90˚/second NORMAL PAN MAXIMUM 40˚- 360˚/second NORMAL TILT MAXIMUM 40˚- 00˚/second TURBO PAN MAXIMUM...
-
Page 29: Function Run
• SYSTEM INFORMATION SYSTEM INFORMATION CAMERA TYPE: xxxx H/W VERSION: Vx.xx ROM VERSION: Vx.xx PROTOCOL: xxxx BAUDRATE: 9600 EXIT (ESC TO EXIT) The system information provides essential information about the dome camera if service is required. When you view this screen, you can determine the camera type, ROM version. The information on this screen cannot be modified. 4.14 Function Run This Function Run menu allows you to execute the function when you use a keyboard or a DVR without the function keys (PRESET, PATTERN, TOUR and SCAN). FUNCTION RUN SETUP (CTRL KEY) PRESET: – – – PATTERN: – – – TOUR: – – – SCAN: – – – HOME AUTO PAN: RELAY OUT: – – – EXIT (ESC TO EXIT) . Select the desired Function by pushing Joystick Up or Down. . Select the number by twist the Joystick in PRESET, PATTERN, TOUR and SCAN. 3. Press CTRL or IRIS OPEN to execute. -
Page 30: Motion Setup
• RELAY OUT This function can operate only when the relay output setup has the time in the alarm menu. Example: RELAY OUT SETUP OUT: ALARM OUT: MIN OUT3: ALARM OUT4: 5 MIN EXIT (ESC TO EXIT) You can select OUT or OUT4 and press CTRL or IRIS OPEN then that relay operates during the setting time only. 4.15 Motion Setup The motion detection function is available in the preset mode only. After you set the motion in any preset, when you call the preset with the motion, the motion detection operates. In the preset setup, you can set the motion setup as below. PRESET SETUP PRESET CAMERA SETUP NUMBER: 00 FOCUS: AUTO TITLE: – – – MOTION: OFF CAMERA SET MOTION SETUP DWELL: – – – SEC AE SETUP 3 4 5 6 7 8 9 0 3 4 5 6 7 8 9 0 00 * * – – – – – – – – – – – – – – – – –... -
Page 31: Troubleshooting
5. Troubleshooting If problems occur, verify the installation of the camera with the instructions in this manual and with other operating equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information. Problem Possible Solution Verify that power is connected to all pieces of equipment in the system. No video Verify that the power switches are in the ON position. Check the video connections. Check that the BNC connectors are inserted properly. Check the voltage level of the dome camera. Poor video quality Check that 8 pin cable is connected to the Keyboard. Check 8 pin cable for Keyboard is proprietary. (Cable for video is shielded.) Reset the cameras using the Dome configuration menus. Dome cameras lose their positions. Check that the dome cameras are inserted properly in the base. Check the voltage level of the dome camera. Camera number does not match the multiplexer number. Check the camera ID and insert the BNC cable into the proper input of the multiplexer. Picture is torn when switching Check Line Lock setting and adjust phase of L/L. -
Page 32: Glossary
6. Glossary Alarm Actions The assigned responses for the dome camera when inputs change from normal to abnormal states. The dome may run a Preset, Pattern, or have no assigned action for each of the four dome inputs. The dome may also send alarm states to the host controller for processing. See also Input and Normal Input State. Areas Programmed start and end points of the dome’s field of view around its pan axis. Each area is a part of a circular viewing area that extends around the dome. The areas can be different sizes. Up to 6 areas can be programmed for the dome. Automatic Gain Allows for the amplification of the video signal in scenes with minimal ambient light. Many low-light scenes result in picture noise. Control (AGC) As gain is increased, the picture noise is also amplified. When AGC is enabled, the value of the gain setting is based on feedback from the camera. When AGC is disabled, the camera uses the value set for the manual gain setting. The trade-off between picture level and noise may be adjusted when AGC is disabled. On-screen Menu The text overlay menu system used for setting dome features. The utility is accessed using a keystroke combination. The utility provides settings for camera functions, zoom, alarms, text display, and password protection. Flip Allows the dome to automatically turn 80 degrees when the camera tilts to its lower limit and stays in that position for a brief delay. When the dome flips (rotates), the camera starts moving upward as long as the tilt control is kept in the down position. Once the control is released, the tilt control returns to its normal operational mode. The flip feature is useful when you need to track someone who walks directly beneath of the dome and continues on the other side. Home Position The default position to which the dome camera returns after an assigned period of inactivity passes. The default position may be a Preset, Tour, Pattern, or No Action. Input Alarm A connection point on the dome camera that enables the system to monitor Input Devices. There are four inputs available for the dome camera. Input Devices External devices that provide information about the condition of system components that connect to the inputs on the dome camera. Typical input devices include door contacts, motion detectors and smoke detectors. IR Mode A feature of the camera that permits manual or automatic switching between colour and IR (black-and-white) operation. -
Page 33: Short Cut Key
7. Short Cut Key Short Cut Key Function PRST Pop up preset setup menu TOUR Pop up Tour setup menu PTRN Pop up Pattern setup menu SCAN Pop up Auto Scan setup menu NO.+ PGM + PRST Store the current view at the selected number Short Cut Key Function Short Cut Key Function 1 + ON Turn On Relay 1 + OFF Turn Off Relay 2 + ON Turn On Relay 2 + OFF Turn Off Relay... -
Page 34: Specifications
8. Specifications Type EDC-3222 Art. No. 74193 MODULE CCD Type /4” Type Ex-view CCD Optical / Digital Zoom x/6x Resolution 580TVL Focal length 3.9mm~85.8mm Angle of view 3.9mm-49.5°(H), 85.8mm-.4°(H) F-Number F.6-F3.6 Sensitivity (at 50% video signal) .0 Lux (colour), 0. Lux (B&W), at F. (measured) Motion Detection (in PRESET) Removable IR cut filter DOME Tilt angle -10°... - Page 35 ENVIRONMENT Operating temperature 0°C to 50°C Operating humidity 0 to 90% RH (non-condensing) Storage temperature -0°C to 60°C Optional Accessories The optional accessories currently available can be found on our Homepage: www.videor.com...
-
Page 36: Dimensional Drawings
9. Dimensional Drawings Dimensions: mm eneo is a registered trademark of Videor E. Hartig GmbH ® Exclusive distribution through specialised trade channels only. VIDEOR E. Hartig GmbH Carl-Zeiss-Straße 8 · 633 Rödermark/Germany Tel. +49 (0) 6074 / 888-0 · Fax +49 (0) 6074 / 888-00 Technical changes reserved. www.videor.com © Copyright by VIDEOR E. Hartig GmbH 0/0...
