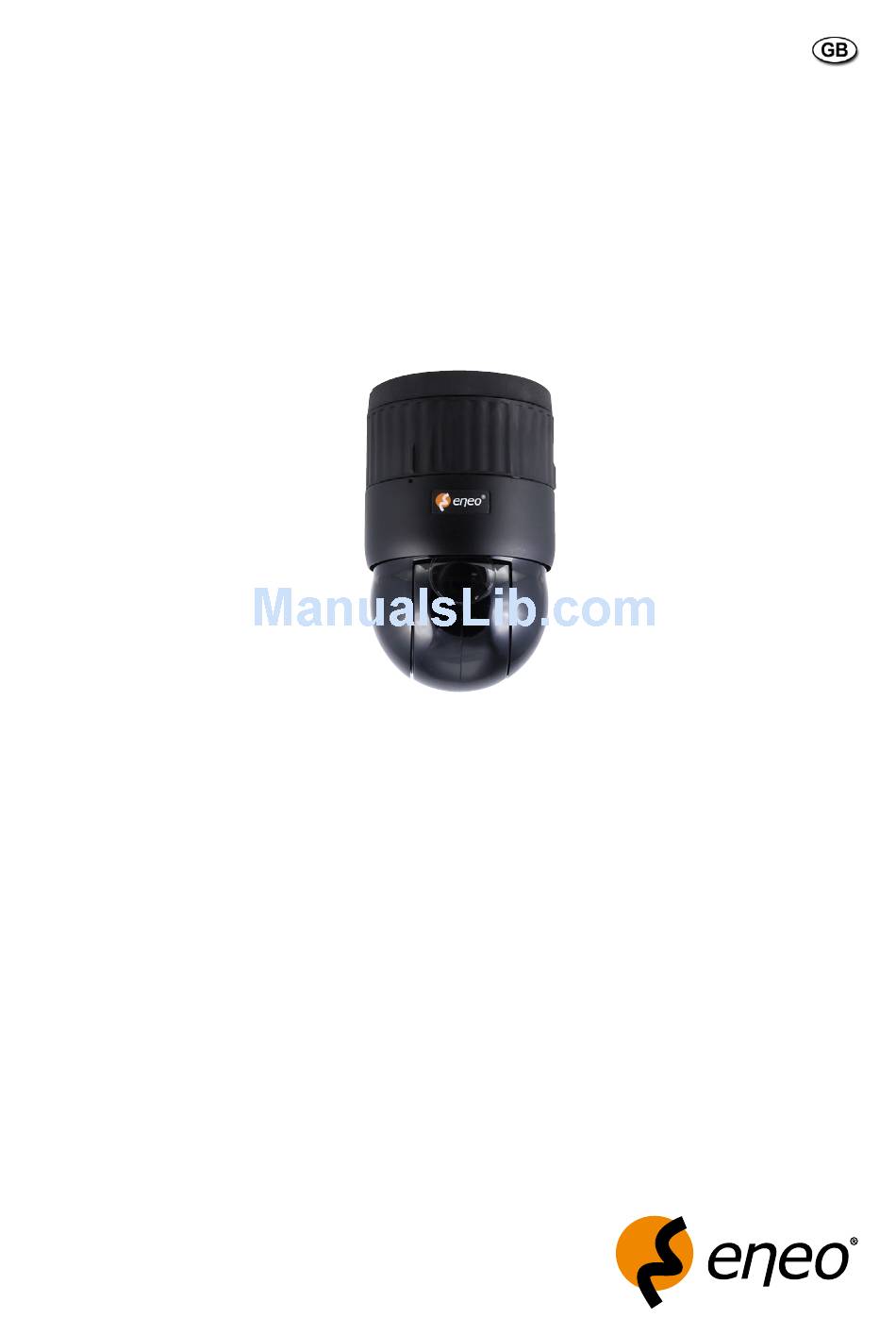

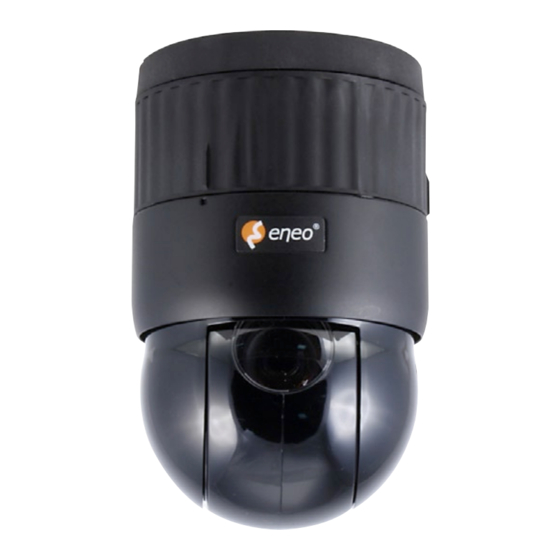

- Page 1 Quick Installation Guide Fastrax III 1/4” Day/Night Dome Camera, PTZ, 37x EDC-3371...
-
Page 2: Table Of Contents
4.3 How to control On-Screen Menu Utility ................................ 4.4 More Information ...................................... Short Cut Key ..........................................3 Specifications ..........................................4 Dimensional Drawings ........................................6 Komplette Betriebsanleitung Full Manual www.videor.com ⇒ www.eneo-security.com Mode d’emploi complète Kompletna Instrukcja instalacji i obsługi NOTE: The full manual is only available in English. -
Page 3: Safety Instructions / Maintenance
1. Safety Instructions / Maintenance • Read these safety instructions and the operation manual first before you install and commission the camera. • Keep the manual in a safe place for later reference. • Protect your camera from contamination with water and humidity to prevent it from permanent damage. Never switch the camera on when it gets wet. Have it checked at an authorized service center in this case. • Never operate the camera outside of the specifications as this may prevent the camera functioning. • Do not operate the cameras beyond their specified temperature, humidity or power ratings. • Operate the camera only at a temperature range of 0°C to +50°C and at a humidity of max. 90%. • To disconnect the power cord of the unit, pull it out by the plug. Never pull the cord itself. • Pay attention when laying the connection cable and observe that the cable is not subject to heavy loads, kinks, or damage and no moisture can get in. • Do not attempt to disassemble the camera board from the dome. • The warranty becomes void if repairs are undertaken by unauthorized persons. Do not open the camera housing. • Never point the camera towards the sun with the aperture open. This can destroy the sensor. • Installation, maintenance and repair have to be carried out only by authorized service centers. Before opening the cover disconnect the unit from mains input. • Contact your local dealer in case of malfunction. • Only use original parts and original accessories from Videor E. Hartig GmbH. • Do not use strong or abrasive detergents when cleaning the dome. Use a dry cloth to clean the dome surface. In case the dirt is hard to remove, use a mild detergent and wipe gently. • All openings provided in the housing for assembly purposes must be closed and/or sealed. •... - Page 4 up to 55 multiplexers Alarm Input up to 99 DVRs (up to 8) <Sensor> Alarm <Siren> Output (up to 4) <Flashing light> up to 54 cameras including 64 alarm modes Figure - Typical System Configuration push bubble ring ass’y remove camera window screw push Remove window Assemble bubble ring ass’y Figure - Optional Assemble bubble ring ass’y NOTE: It is recommended to remove camera window for improving picture quality when you assemble bubble ring ass’y. CAUTION: When installing a Fastrax dome on a high pole outside, caution should be taken to avoid vibration and shaking of Fastrax dome due to windload or shock of passing heavy vehicles.
-
Page 5: Installation And Configuration
3. Installation and Configuration 3.1 Package Contents The package contains the following: x Fastrax III (Dome Camera) x Bubble ring (optional) x Instruction manual 3x Assembly screws for attaching Fastrax III 3x Plastic anchor x 0Pin Connector x Pin Connector CAUTION: Be sure to have caution labels (E version only) on both body and base of the camera. Different version will not support alarm input and output. The dome camera is for use in surface mounting applications and the mounting surface should be capable of supporting loads up to 4.5kg. -
Page 6: Basic Configuration Of Fastrax Iii Dome Camera System
3.2 Basic Configuration of Fastrax III Dome Camera System J-Box Dome Power RS485(+) DOME + RX+(TX+) 4VAC RS485(-) DOME - RX-(TX-) STP AWG #4 Alarm output Alarm input ~ ~ 4 Power 4VAC Sensor Alarm input up to 8 Dome+ Siren Dome– Light Alarm output up to 4 Alarm output Alarm input 3 ~ 4 5 ~ 8 RS-485 Monitor Half Duplex mode: RX+(TX+), RX–(TX–) RS-4... -
Page 7: Setting Dome Camera Termination
SW: Termination switches SW: Fail-Safe Network Addresses (ID) and protocol selection switches Figure 5 - Layout of Switches 3.3 Setting Dome Camera Termination The device which is connected at end of line, whether it be a dome camera or keyboard controller, must have the cable for communication terminated by setting the appropriate DIP switch. Without proper termination, there is potential for control signal errors. Total length of the cable for communication should not exceed .km. Terminated Not terminated Figure 6 - Setting Dome Camera Termination... -
Page 8: Fail-Safe Network
3.4 Fail-safe Network When you control the dome by the other device not own keyboard, some error may be existed in the serial communication. The reason is caused by the other device without the fail-safe network. At this time, you solve the problem to set this DIP switch to ON of the nearest dome from the other device only. PULL-UP PULL-DOWN NONE NONE Figure 7 - Setting Dome Camera Termination Cable for communication Termination ON Termination ON Termination ON Termination ON Dome Port Dome Port Cable for communication Cable for communication Termination ON Repeater/Splitter .km .km Cable for communication Input termination ON Output termination ON Termination ON Termination ON Figure 8 - Termination Diagram... -
Page 9: Setting Dome Camera Address (Id)
3.5 Setting Dome Camera Address (ID) To prevent damage, each dome camera must have a unique address (ID). When installing multiple dome cameras using a multiplexer, it is suggested that the dome camera address matches the multiplexer port number. If you wan to set the address more than 999, you should connect the service provider. Example: Port = Dome , Port = Dome ... Port 6 = Dome 6. If more than 6 dome cameras are installed using two or more multiplexers, ID of the dome camera should be ID of MUX x No. of camera IN. (e.g. multiplexer ID= n, Camera IN= m then ID of Dome =6x (n-) +m) Refer to Figures 4-5 for setting the dome camera address (ID) and protocol selection. Dome ID … … … … Figure 9 - Setting Dome Camera Address (ID) -
Page 10: Setting Dome Camera Protocol
3.6 Setting Dome Camera Protocol If a dome camera is to be installed with a Fastrax keyboard controller, select the default protocol. Consult service personnel if a dome camera is installed with device other than a keyboard controller. Function S4- Enable Disable Alarm S4- NTSC NTSC/PAL S4-3 (Reserved) S4-4 RS-4 RS-485 RS-4/RS-485 Protocol S5-1 S5-2 S5-3 S6-4 F, FE, Pelco-D, Pelco-P: Default F, FE Sensormatic RS-4 Pelco-D, Pelco-P Vicon Ernitec (Reserved) Philips (Bosch) (Reserved) Dynacolor (Reserved) Baud Rate S5-4 S6-1 S6-2... -
Page 11: Connections
3.7 Connections • Connecting to the RS-485/-422 The dome camera can be controlled remotely by an external device or control system, such as a control keyboard, using RS-485 half-duplex, RS-4 full duplex or simplex serial communications signals. Connect Marked Tx+, Tx- to Tx+(Rx+) and Tx-(Rx-) of the RS-485 control system. If control system is RS-4, connect Rx+(Tx+), Rx+ (Tx-) and Rx+, Rx- of the dome camera to Rx+, Rx- and Tx+, Tx- of the control device respectively. • Connecting Video out connector Connect the video out (BNC) connector to the monitor or video input. • Connecting Alarms AL1 to 8 (Alarm In) You can use external devices to signal the dome camera to react on events. Mechanical or electrical switches can be wired to the AL (Alarm In) and GND (Ground) connectors. See Chapter 3 - Program and Operation for configuring alarm input. GND (Ground) NOTE: All the connectors marked GND are common. Connect the ground side of the Alarm input and/or alarm output to the GND connector. NC(NO)1 TO 4 (Normal Close or Normal Open: Alarm Out) The dome camera can activate external devices such as buzzers or lights. Connect the device to the NC(NO) (Alarm Out) and COM (Common) connectors. -
Page 12: Program And Operation
4. Program and Operation 4.1 Dome Camera Selection Before you program or operate a dome camera, you must select the dome camera by pressing the dome camera No. + CAM. Example: Pressing 1, 0 and CAM key sequentially will select dome camera 0. The selected dome camera ID will be displayed on the LCD monitor of the keyboard controller. 4.2 Accessing On-Screen Menu Utility You can call up the On-screen menu utility on your monitor by pressing MENU key on the keyboard controller, the following On-screen menu utility will appear: DOME MENU AUTO SCAN PRESET TOUR PATTERN ALARM AREA TITLE PRIVACY ZONE CAMERA DOME SETUP FUNCTION RUN EXIT (ESC TO EXIT) 4.3 How to control On-Screen Menu Utility Button Function MENU Call on On-screen menu utility... -
Page 13: Short Cut Key
5. Short Cut Key Short Cut Key Function PRST Pop up preset setup menu TOUR Pop up Tour setup menu PTRN Pop up Pattern setup menu SCAN Pop up Auto Scan setup menu NO.+ PGM + PRST Store the current view at the selected number Short Cut Key Function Short Cut Key Function 1 + ON Turn On Relay 1 + OFF Turn Off Relay 2 + ON Turn On Relay 2 + OFF Turn Off Relay... -
Page 14: Specifications
6. Specifications Type EDC-3371 Art. No. 203038 Series eneo Fastrax III System day&night Video standard CCIR/PAL Sensor size /4” Imager Sony ExView HAD CCD Active picture elements 75(H) x 58(V) pixels Horizontal resolution 650 TVL Synchronization internal/external Signal-to-noise ratio 50dB Sensitivity (at 50% video signal) 0.7 Lux, (colour), 0.0Lux (B&W) at F. (measured) Automatic gain control (AGC) - Page 15 Interface protocols Fastrax IIE, Pelco D, Pelco P, Sensormatic RS-4, Vicon, Ernitec, Bosch, Dynacolor Housing material plastic Bubble 4.9” (5mm), clear acrylic plastic Colour (bubble) clear Colour (housing) black Window heater Mounting ceiling mount, housing assy Supply voltage 4VAC, (8 ~30VAC), 50/60Hz Power consumption Temperature range (operation) 0°C ~ +50°C Vandalism resistant Protection rating Weight .5kg Parts supplied Camera, Manual Certificates Optional Accessories The optional accessories currently available can be found on our Homepages: www.videor.com and www.eneo-security.com.
-
Page 16: Dimensional Drawings
7. Dimensional Drawings Dimensions: mm eneo is a registered trademark of Videor E. Hartig GmbH ® Exclusive distribution through specialised trade channels only. VIDEOR E. Hartig GmbH Carl-Zeiss-Straße 8 · 633 Rödermark/Germany Tel. +49 (0) 6074 / 888-0 · Fax +49 (0) 6074 / 888-00 Technical changes reserved. www.videor.com www.eneo-security.com © Copyright by VIDEOR E. Hartig GmbH 05/0...
