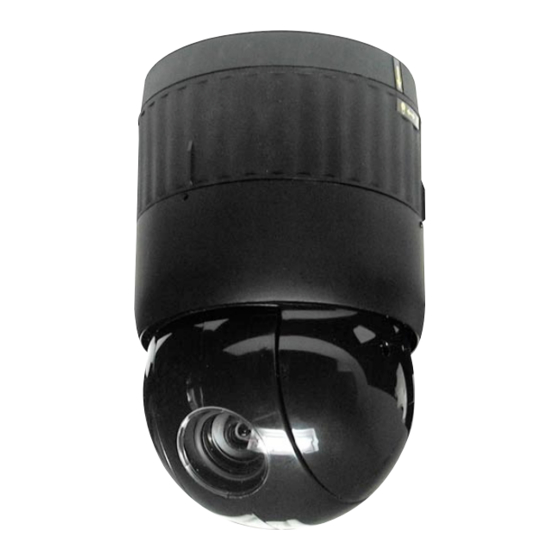

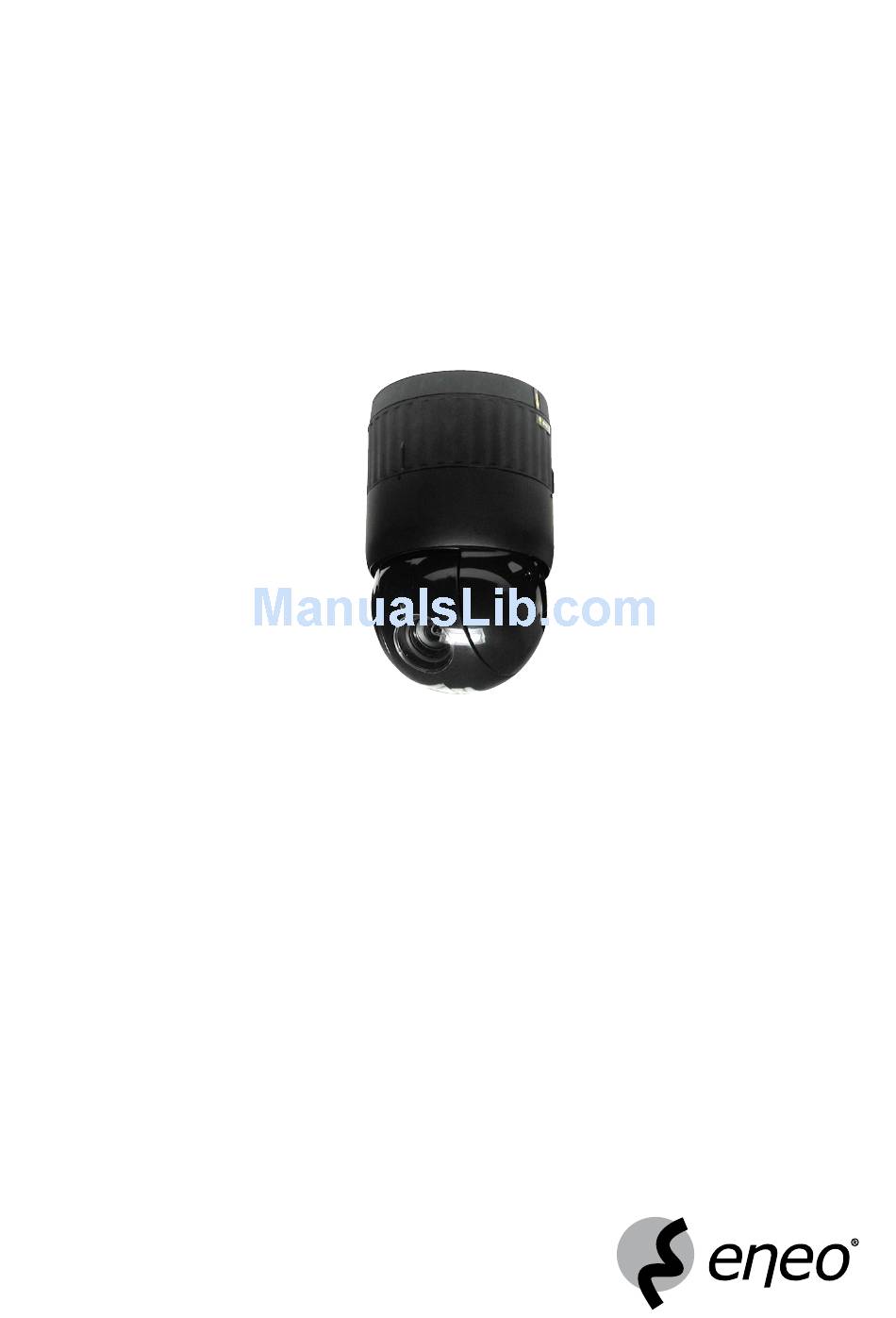

- Page 1 Installation and Operating Manual Fastrax III 1/4” Day/Night High Speed Dome Camera EDC-3182, EDC-3262, EDC-3351, EDC-3362...
-
Page 2: Table Of Contents
Contents Safety Instructions / Maintenance ......................................3 Introduction ............................................ 4 Features ..........................................4 Installation and Configuration ......................................6 Package Contents ........................................ 6 Basic Configuration of Fastrax III Dome Camera System ............................7 Setting Dome Camera Termination..................................8 Fail-safe Network ........................................ 9 Setting Dome Camera Address (ID) .................................. -
Page 3: Safety Instructions / Maintenance
Safety Instructions / Maintenance • Read these safety instructions and the operation manual first before you install and commission the camera. • Keep the manual in a safe place for later reference. • Protect your camera from contamination with water and humidity to prevent it from permanent damage. Never switch the camera on when it gets wet. -
Page 4: Introduction
1. Introduction 1.1 Features The Fastrax III dome camera and the keyboard controller make up the building blocks for any surveillance/security system. Using multiple Keyboard Controllers and multiple dome cameras, no place is too large for monitoring. Extensible and flexible architecture facilitates remote control functions for a variety of external switching devices such as multiplexers and DVRs. - Page 5 up to 55 multiplexers Alarm Input up to 99 DVRs (up to 8) <Sensor> Alarm <Siren> Output (up to 4) <Flashing light> up to 54 cameras including 64 alarm modes Figure - Typical System Configuration push bubble ring ass’y remove camera window screw...
-
Page 6: Installation And Configuration
2. Installation and Configuration 2.1 Package Contents The package contains the following: x Fastrax III (Dome Camera) x Bubble ring (optional) x Instruction manual (this document) 3x Assembly screws for attaching Fastrax III 3x Plastic anchor x 0Pin Connector x Pin Connector CAUTION: Be sure to have caution labels (E version only) on both body and base of the camera. -
Page 7: Basic Configuration Of Fastrax Iii Dome Camera System
2.2 Basic Configuration of Fastrax III Dome Camera System J-Box Dome Power RS485(+) DOME + RX+(TX+) 4VAC RS485(-) DOME - RX-(TX-) STP AWG #4 Alarm output Alarm input ~ ~ 4 Power 4VAC Sensor Alarm input up to 8 Dome+ Siren Dome–... -
Page 8: Setting Dome Camera Termination
SW: Termination switches SW: Fail-Safe Network Addresses (ID) and protocol selection switches Figure 5 - Layout of Switches 2.3 Setting Dome Camera Termination The device which is connected at end of line, whether it be a dome camera or keyboard controller, must have the cable for communication terminated by setting the appropriate DIP switch. -
Page 9: Fail-Safe Network
2.4 Fail-safe Network When you control the dome by the other device not own keyboard, some error may be existed in the serial communication. The reason is caused by the other device without the fail-safe network. At this time, you solve the problem to set this DIP switch to ON of the nearest dome from the other device only. PULL-UP PULL-DOWN NONE... -
Page 10: Setting Dome Camera Address
2.5 Setting Dome Camera Address (ID) To prevent damage, each dome camera must have a unique address (ID). When installing multiple dome cameras using a multiplexer, it is suggested that the dome camera address matches the multiplexer port number. If you wan to set the address more than 999, you should connect the service provider. Example: Port = Dome , Port = Dome ... -
Page 11: Setting Dome Camera Protocol
2.6 Setting Dome Camera Protocol If a dome camera is to be installed with a Fastrax keyboard controller, select the default protocol. Consult service personnel if a dome camera is installed with device other than a keyboard controller. Function S4- Enable Disable Alarm... -
Page 12: Connections
2.7 Connections • Connecting to the RS-485/-422 The dome camera can be controlled remotely by an external device or control system, such as a control keyboard, using RS-485 half-duplex, RS-4 full duplex or simplex serial communications signals. Connect Marked Tx+, Tx- to Tx+(Rx+) and Tx-(Rx-) of the RS-485 control system. If control system is RS-4, connect Rx+(Tx+), Rx+ (Tx-) and Rx+, Rx- of the dome camera to Rx+, Rx- and Tx+, Tx- of the control device respectively. -
Page 13: Program And Operation
3. Program and Operation 3.1 Dome Camera Selection Before you program or operate a dome camera, you must select the dome camera by pressing the dome camera No. + CAM. Example: Pressing 1, 0 and CAM key sequentially will select dome camera 10. The selected dome camera ID will be displayed on the LCD monitor of the keyboard controller. -
Page 14: Auto Scan
3.4 Auto Scan (Shortcut: Scan) The Auto scan supports up to 7 programmed angles at user-programmable speeds. Follow these steps to program Auto Scan: AUTO SCAN SETUP NUMBER : 0 TITLE : A0 MODE : NORMAL SPEED : 5 STEP START ANGLE : –... -
Page 15: Preset
0. Set „DWELL TIME”. . Select Save and Exit and push the Joystick to the right or press IRIS OPEN. Press ESC or IRIS CLOSE to exit the program without saving. Pressing the HOME key delete stored data at the angle field. To set the position using the preset position: a. -
Page 16: Shortcut Of Preset Program
Follow steps below to store the Preset positions: . Press the PRST key to enter the preset menu directly. Or press the MENU key to display the main menu on the monitor. Scroll to preset and push the Joystick to the right. . -
Page 17: Tour
3.7 Tour (Shortcut: TOUR) There are 8 programmable Tours. Each Tour consists of up to 4 Preset positions, Patterns, Scans or other Tours (second-level). Using second-level tours, it can be expanded to over 300 functions in a single tour. TOUR SETUP NUMBER: TITLE: SCAN TYPE:... -
Page 18: Pattern
3.8 Pattern (Shortcut: PTRN) The Pattern feature records user control of the selected dome camera. Up to four 8 patterns can be stored and played back by pressing No.+ PTRN keys subsequently. PATTERN SETUP (CTRL KEY) TITLE PERCENT 00.0% 00.0% 00.0% 00.0% 00.0%... -
Page 19: Alarm
3.9 Alarm ALARM SETUP PRI FUN HLD LATCH OUT – – – OFF OUT – – – OFF OUT4 – – – OFF – – – OFF OUT – – – OFF OUT – – – OFF OUT4 DWELL: RELAY OUT SETUP SAVE AND EXIT (ESC TO CANCEL) Alarm input number PRI (priority):... -
Page 20: Area Title
3.10 Area Title Enter a specific name on programmed angle between START and END. For the screen below, when the camera points at an angle between 4.3° (PAN), 30.7° (TILT) to 359.5° (PAN), 45.4° (TILT), ABC will be displayed on the screen. AREA TITLE SETUP NUMBER: TITLE:... -
Page 21: Camera Menu
PRIVACY AREA MENU (CTRL KEY) CONTROL NUMBER 00 354.8 344.8 3. Place the cursor at the title field. Twist the Joystick to enter the title edit mode. Follow the procedure of the auto scan above to edit titles. 4. To turn the stored zone On or Off, twist the Joystick handle or press Tele or Wide Key. 5. - Page 22 • FOCUS CONTROL FOCUS SETUP MODE: AUTO AF SENSITIVITY: FOCUS LIMIT: 9CM SAVE AND EXIT (ESC TO CANCEL) MODE AUTO / MANUAL / ONE PUSH / CONSTANT MANUAL Use manual mode in normal use. AF SENSITIVITY NORMAL / LOW NORMAL: Use this option when shooting fast motion. LOW: Offers better focus stability.
- Page 23 • AE CONTROL AE SETUP MODE: MANUAL SLOW SHUTTER: – – – IRIS: F5.6 GAIN: 0 DB BRIGHT: AUTO SHUTTER: /60 BACK LIGHT: NIGHT SHOT: AUTO WDR: OFF * SLOW RESPONSE: SAVE AND EXIT (ESC TO CANCEL) MODE AUTO / MANUAL / SHUTTER PRIO / IRIS PRIO / BRIGHT AUTO Auto Iris and Gain, Fixed Shutter speed (NTSC: /60 sec, PAL: /50 sec) MANUAL...
-
Page 24: Camera Menu, Type Edc-335 (35X, Art
• LINE LOCK CONTROL LINE LOCK SETUP MODE: INTERNAL PHASE: SAVE AND EXIT (ESC TO CANCEL) MODE INTERNAL / EXTERNAL PHASE Adjusts phase of picture with other cameras in EXTERNAL mode. (0~55) SAVE AND EXIT (ESC TO CANCEL) 3.13 Camera Menu, Type EDC-3351 (35x, Art. No. 74159) CAMERA SETUP FOCUS CONTROL WB CONTROL... - Page 25 • WB (White Balance) CONTROL WB SETUP MODE: AUTO R GAIN: B GAIN: SAVE AND EXIT (ESC TO CANCEL) MODE AUTO / MANUAL MANUAL: Control of R and B gain AUTO: Computes the white balance value output using colour information from the entire screen automatically (800 to 8000K). RGAIN 0 ~ 55 BGAIN...
- Page 26 • AE CONTROL AE SETUP MODE: AE (DAWN) DSS LIMIT: IRIS: AUTO GAIN: AUTO SHUTTER: /60 IRIS OFFSET: IRIS PEAK: BLC: BLC LEVEL: NIGHT SHOT: WDR: SAVE AND EXIT (ESC TO CANCEL) MODE AE / AE (DSS) / AE (DAWN) / AE (DARK) / IRIS PRIO / SHUTTER PRIO / AGC PRIO Automatic Exposure (available motion detection).
-
Page 27: Camera, Type Edc-36 (6X, Art
AE mode IR Remove O [Manual] AE (DSS) O [auto] O [Manual] AE (DAWN) O [auto] O [auto] : Hi sensitivity AE (DARK) O [auto] O [auto] : Mid sensitivity Shutter priority O [Manual] O [Manual] IRIS priority O [Manual] AGC priority O [Manual] X: not available, O: available... -
Page 28: Dome Setup
3.15 Dome Setup CONFIGURATION MENU LANGUAGE: ENGLISH HOME FUNCTION SETUP OSD DISPLAY VIEW ANGLE SETUP INITIALIZE DATA ORIGIN OFFSET DOME RESET SYSTEM MENU SYSTEM INFORMATION SAVE AND EXIT (ESC TO CANCEL) • LANGUAGE SETUP LANGUAGE English, French, German, Italian, Spanish, Polish, Portuguese Select the language you want. - Page 29 • OSD DISPLAY OSD DISPLAY SETUP CAMERA TITLE: DOMEID VIEW DIRECTION: DOME OSD: AREA TITLE: PRESET TITLE: CONSTANT FOCUS EXPOSURE: OSD POSITION SETUP SAVE AND EXIT (ESC TO CANCEL) CAMERA TITLE Up to 6 characters VIEW DIRECTION ON / OFF „ON”...
- Page 30 • VIEW ANGLE SETUP VIEW ANGLE SETUP PANNING RANGE FLIP: 90° TILT OVER ANGLE: SAVE AND EXIT (ESC TO CANCEL) FLIP OFF, 90°, 00°, 0°, 0°, AUTO [type EDC-3182 (Art. No. 74169), EDC-3262 (Art. No. 74170) and EDC-3362 (Art. No. 74161)] OFF: The dome camera moves until 90°...
- Page 31 • INITIALIZE DATA INITIALIZE DATA FACTORY DEFAULT ERASE PROGRAMMED DATA PRESET FOCUS DEFAULT EXIT (ESC TO EXIT) FACTORY DEFAULT Select the Factory Default to initialize the Data. FACTORY DEFAULT ARE YOU SURE ? CANCEL ERASE PROGRAMMED DATA Erase all stored data from the Flash-ROM of the selected dome camera. You will be asked to enter ON or OFF. If you desire to erase all data then select the Erase Run, otherwise press the ESC key to exit without erasing.
- Page 32 • ORIGIN OFFSET OFFSET SETUP (CTRL KEY) PAN OFFSET: 000.0 TILT OFFSET: 000.0 ENABLE: SAVE AND EXIT (ESC TO CANCEL) This feature is useful to align a new dome camera exactly the same as the previously installed dome camera. Dome camera’s origin set and all data initialize option do not override offset values. Only the default set option in this menu will set the offset value to zero.
- Page 33 MOTOR SETUP Motor Setup menu provides the pan and tilt speed of a camera. User can set the desired speed with twist the Joystick left or right. During operation, pressing 153 + ON will change the speed to the SLOW mode and pressing 153 + OFF will change the speed to the Normal mode. Holding and pressing CTRL and moving the joystick will operate with the TURBO speed mode.
-
Page 34: Function Run
• SYSTEM INFORMATION SYSTEM INFORMATION CAMERA TYPE: xxxx H/W VERSION: Vx.xx ROM VERSION: Vx.xx PROTOCOL: xxxx BAUDRATE: 9600 EXIT (ESC TO EXIT) The system information provides essential information about the dome camera if service is required. When you view this screen, you can determine the camera type, ROM version. -
Page 35: Motion Setup (Type Edc-38, 8X, Art. No. 7469, Edc-36, 6X, Art. No. 7470 And Edc-336, 36X, Art. No. 746)
3.17 Motion Setup (Type EDC-3182, 18x, Art. No. 74169, EDC-3262, 26x, Art. No. 74170 and EDC-3362, 36x, Art. No. 74161) The motion detection function is available in the preset mode only. After you set the motion in any preset, when you call the preset with the motion, the motion detection operates. -
Page 36: Motion Setup (Type Edc-335, 35X, Art. No. 7459)
3.18 Motion Setup (Type EDC-3351, 35x, Art. No. 74159) The motion detection function is available in the preset mode only. After you set the motion in any preset, when you call the preset with the motion, the motion detection operates. In the preset setup, you can set the motion setup as below. -
Page 37: Troubleshooting
4. Troubleshooting If problems occur, verify the installation of the camera with the instructions in this manual and with other operating equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information. Problem Possible Solution Verify that power is connected to all pieces of equipment in the system. -
Page 38: Glossary
5. Glossary Alarm Actions The assigned responses for the dome camera when inputs change from normal to abnormal states. The dome may run a Preset, Pattern, or have no assigned action for each of the four dome inputs. The dome may also send alarm states to the host controller for processing. -
Page 39: Short Cut Key
6. Short Cut Key Short Cut Key Function PRST Pop up preset setup menu TOUR Pop up Tour setup menu PTRN Pop up Pattern setup menu SCAN Pop up Auto Scan setup menu NO.+ PGM + PRST Store the current view at the selected number Short Cut Key Function Short Cut Key... -
Page 40: Specifications
EDC-3182 EDC-3262 EDC-3351 EDC-3362 Art. No. 74169 74170 74159 74161 Series eneo Fastrax III Video standard CCIR/PAL System Day & night Sensor size /4” Imager CCD, Sony ExView HAD Interline Transfer Synchronization Internal/AC line lock, phase adjustment via remote control... - Page 41 Adresses Up to 999 Dome ID’s (3999 by software setting) Keyboard control Direct mode control with Eneo EDC-KBD(M) keyboard series, or in conjunction with the eneo DVR series DLR, DTR and Remote control Camera remote settings via keyboard Serial interfaces RS-4, RS-485, 9600Baud, 999 camera ID adresses selectable.
- Page 42 AK-3 Camera Connection box, 30VAC Input 4VAC-00W, VDC-A Output 74089 EDC-CR1 Converter RS-3/RS-485, Repeater RS-485 74095 EDC-PBP Protocol Converter BiPhase to RS-4, RS-485 for EDC Dome Cameras, VDC 74124 FASTRAX_CONFIG Configuration Software for Eneo Fastrax, Minitrax Dome Cameras and VKC-46...
-
Page 43: Dimensional Drawings
8. Dimensional Drawings Dimensions: mm... - Page 44 Videor E. Hartig GmbH ® Exclusive distribution through specialised trade channels only. Videor E. Hartig GmbH Carl-Zeiss-Straße 8 · 633 Rödermark/Germany Tel. +49 (0) 6074 / 888-0 · Fax +49 (0) 6074 / 888-00 Technical changes reserved.
