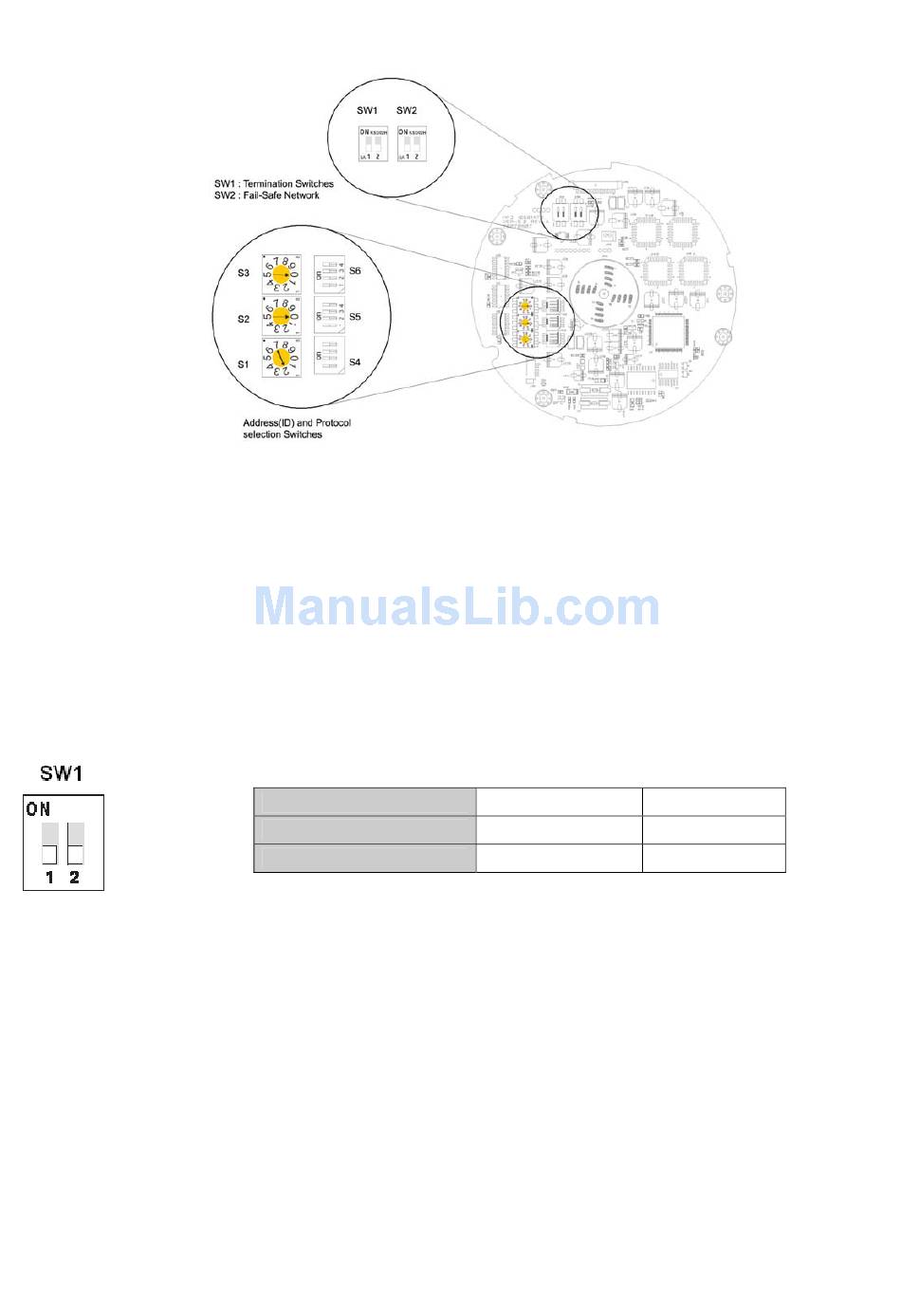

Figure 5 – Layout of Switches

2.3 Setting Dome Camera Termination

The device which is connected at end of line, whether it be a dome camera or keyboard controller, must
have the cable for communication terminated by setting the appropriate DIP switch. Without proper
termination, there is potential for control signal errors. Total length of the cable for communication should
not exceed 4000ft (1.2km).
1 2
SW1
ON ON
Terminated
OFF OFF
Not terminated
Figure 6 – Setting Dome Camera Termination
5
