MBT-4000 Multi-Band Transceiver System
Flash Upgrading

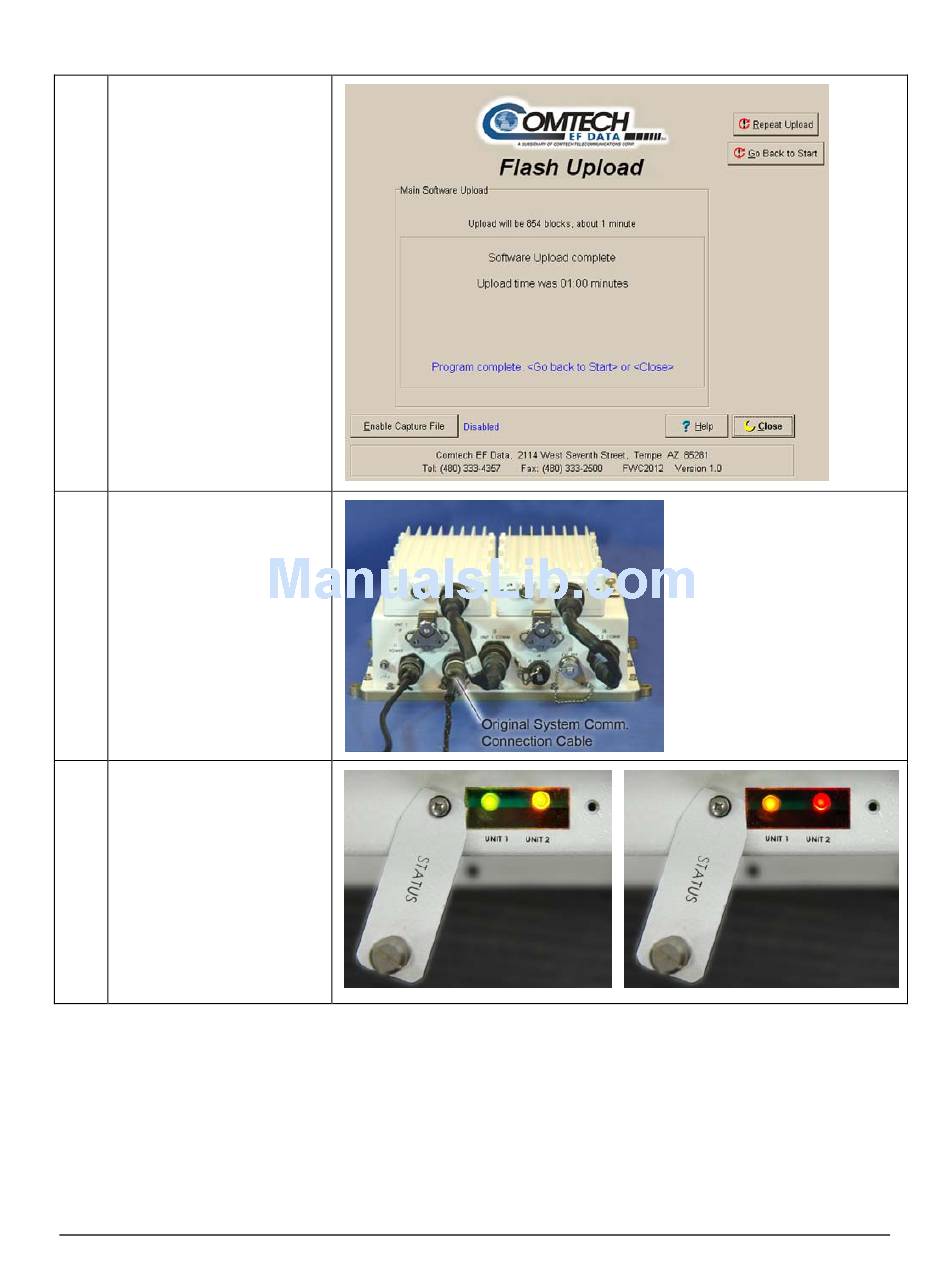

Upon successful completion
of the upload, the user may
click on 'Go Back to Start'
(if, for example, more than
11
one MBT-4000 system
requires upgrade), or 'Close'
(to exit the FLSHCSAT
program).
If needed, disconnect the
System Programming Cable
(CEFD P/N CA/WR12243-1)
12
and reconnect the original
System Communications
Connection Cable.
The LEDs on the MBT-4000
Base Unit will illuminate
GREEN (unmuted) or
YELLOW (muted) to indicate
the current status of the Unit
13
1 and Unit 2 modules.
(Note: If either LED
illuminates RED, refer to
Appendix B. FAULTS/EVENTS
for further information.)
The upgrade process has been successfully completed.
5–6
Revision 4
MN/MBT4000.IOM
