Installation

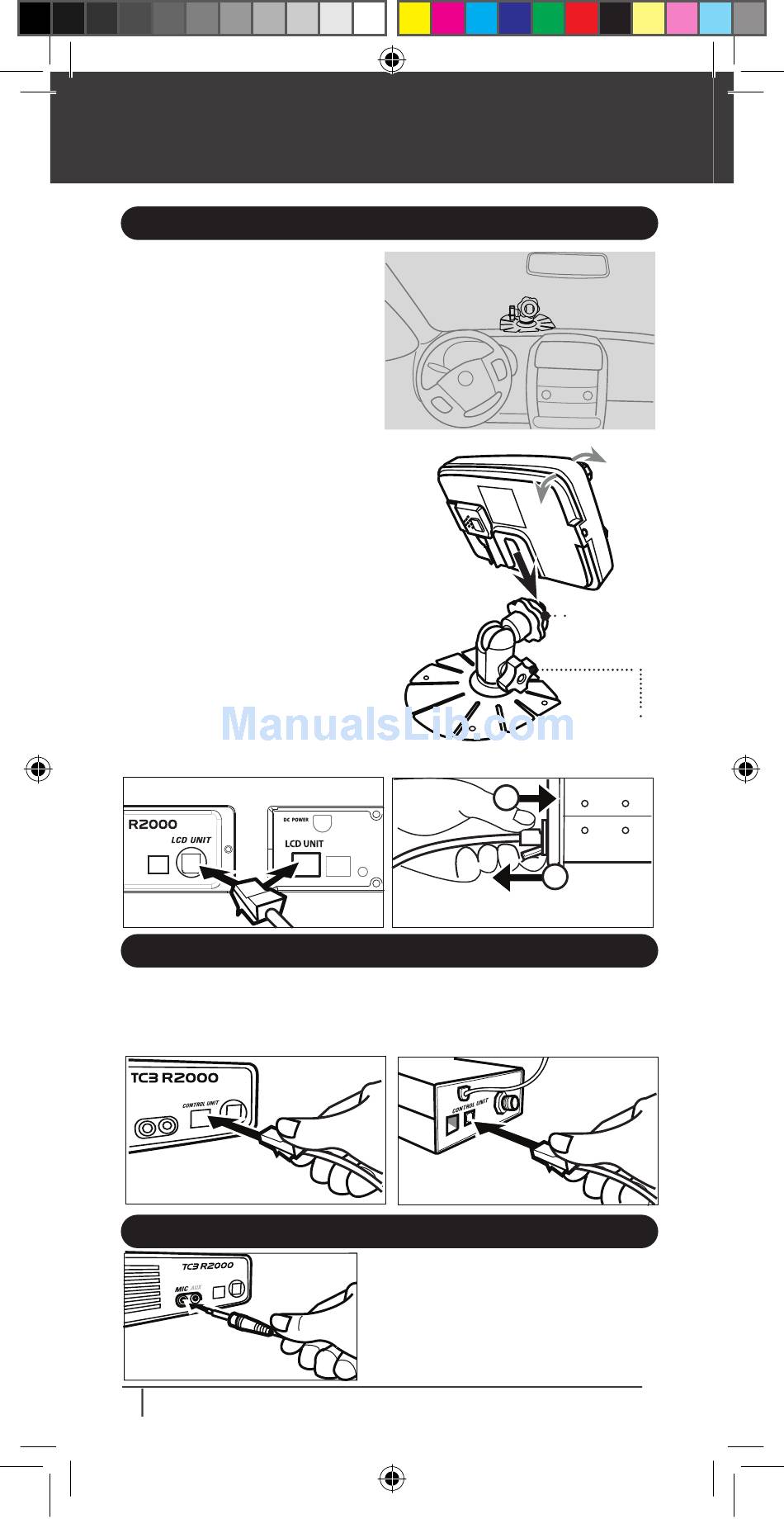

Plan the location of the remote LCD unit
for your convenient use. Use the flat
and even surface to keep the mounting
bracket safely standing against any im-
pacts from road conditions.
Strong adherent tape is used to support
the bracket installation, however the fix-
ing screws are highly recommended to
use to tightly fix the mounting bracket
onto your vehicle.
1
) Insert the mounting rail of the remote
LCD unit into the mounting bracket.
) Locate the LCD unit upright and tightly
fasten the LCD unit fixing knob.
) Slightly unfasten the tilt and swivel
fixing knob and adjust the view angle
of the LCD unit toward the direction you
prefer(up or down and left or right). Then,
tightly fasten the tilt and swivel fixing
knob.
4) Connect the wire of the Remote LCD
unit to either of the unit connectors in-
stalled on the front panel and the rear
panel of the transceiver.
<Front Panel>
Install one Velcro tape on the remote control unit and the other wherever it is con-
venient to use.
Install the wire of the remote control unit to either of control unit connectors installed
on the front panel and the rear panel of the transceiver.
6
TCBR2000 man_reized.indd 6
INSTALLING YOUR REMOTE LCD UNIT
<Rear Panel>
INSTALLING YOUR REMOTE CONTROL UNIT
<Front Panel>
INSTALLING YOUR HANDSFREE MICROPHONE
English
1
*NOTE: Push in slightly and then
pull out the wire to disconnect.
Install the mounting bracket on your sunvi-
sor or any proper place where you feel it is
convenient.
Install the microphone and connect the wire
to the MIC connector arranged on the front
panel of the transceiver.
LCD Unit
Fixing Knob
Tilt &
Swivel Fixing Knob
2
<Rear Panel>
