How To Operate the Transceiver

7. How to operate the Transceiver
1) Make sure the microphone is connected to the microphone jack.
) Make sure the power cable is connected properly.
) Make sure the remote LCD unit and remote control unit are all connected properly.
4) Make sure the antenna is connected to the antenna receptacle.
5) It is better to put the squelch control knob turned fully counter-clockwise.
6) Turn on the transceiver and control the volume level.
7) Adjust the squelch control knob to the optimum level.
8) Select your desired channel.
9) To transmit, press the PTT button and speak to the microphone.
10) Release the PTT button to receive.

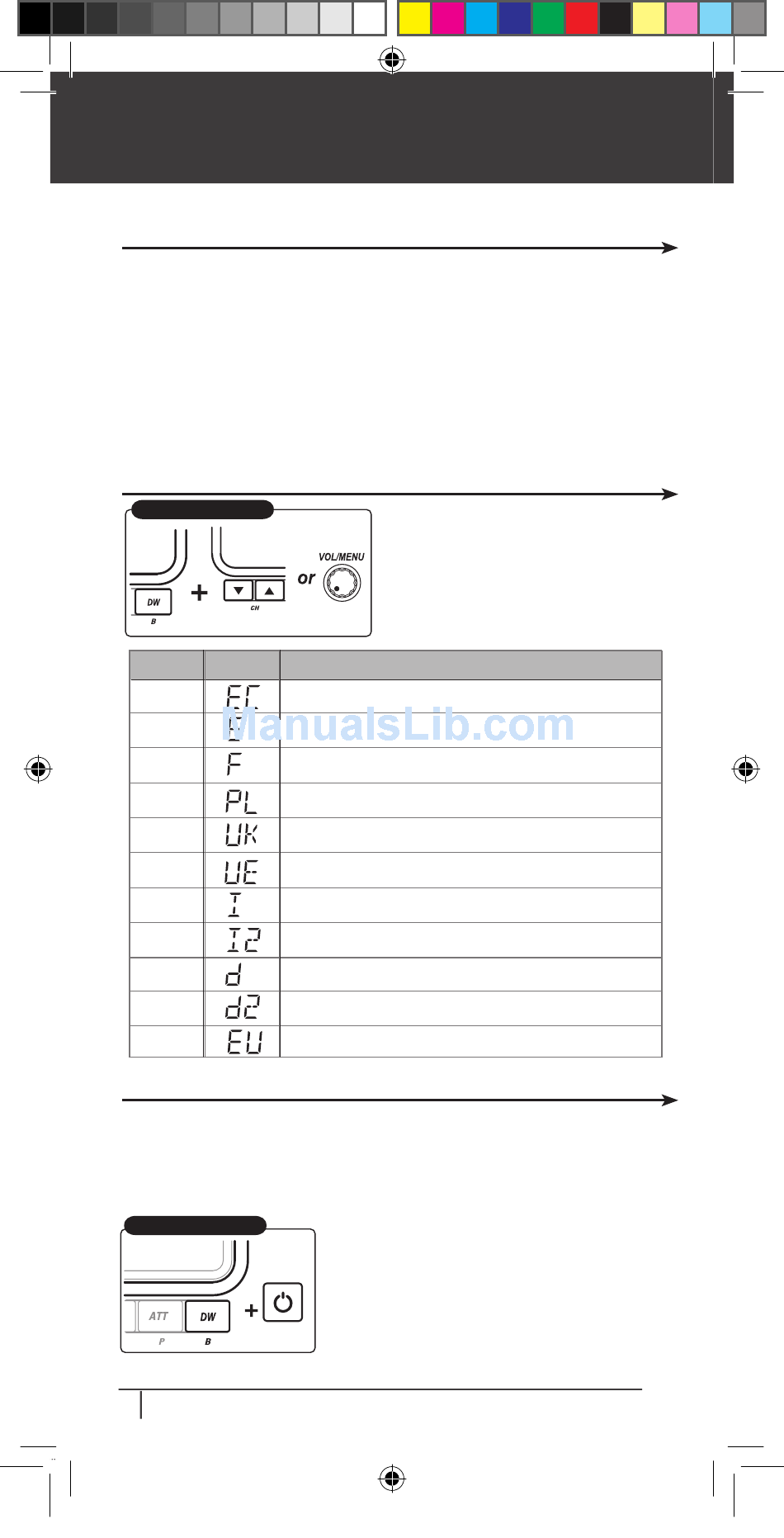

8. Band Selection

Setting
UE(EU/UK

9. Trouble Shooting

If you experience problems with your TCB-R000 transceiver, first check the power sup-
ply source. Poor connection of the power supply source can cause problems such as no
transmission, no reception or poor reception, and weak or no sound. Ensure that the
microphone and antenna are also well connected.
If this does not solve the problem, reset your transceiver as follows.
TROUBLE SHOOTING
16
TCBR2000 man_reized.indd 16
BAND SELECTION
BANDKEUZE
Display
EC
Europe 40 Ch FM 4W
E
Spain 40 Ch AM/FM 4W
France 40 Ch FM 4W, 40 Ch AM 1W
F
PL
Poland 40 Ch AM / FM 4W
UK
UK 40 Ch FM 4W (British Frequencies)
)
UK 40 Ch FM 4W (British Frequencies) +CEPT 40Ch FM 4W(EC)
I
Italy 40 Ch AM / FM 4W
Italy 4 Ch AM / FM 4W
I
D Germany 80 Ch FM 4W, 1 Ch AM 1W
D
Germany 40 Ch FM 4W, 1 Ch AM 1W
EU
Europe 40 Ch FM 4W, 40 Ch AM 1W
English
Press and hold the band selection button to
enter the band selection mode. The "BAND"
icon displays.
Use the volume knob or channel up/down but-
ton to change the band.
Press the PTT or Menu button or wait for
about 10 seconds to store your selection.
Band
1) Switch off the transceiver.
) Pressing the DW/BAND button and turn on the
transceiver.
This will reset the transceiver, so all the memories are erased
and the parameters return to the initial factory setting.
This should fix most problems.
In case of further difficulty, please consult your dealer
or visit our website.
