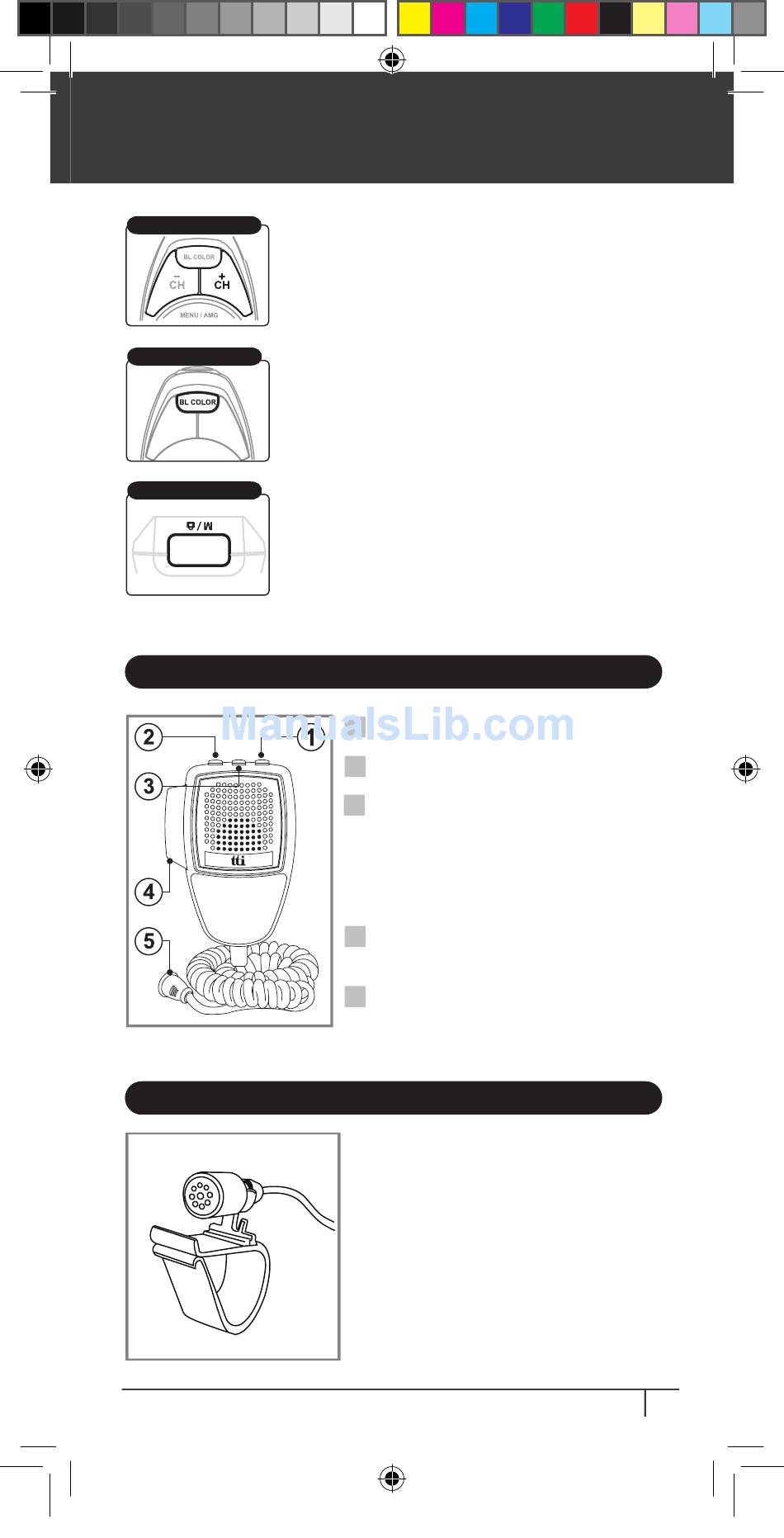

Transceiver System Controls and Functions
CHANNEL UP BUTTON
BACKLIGHTING COLOR
SPEAKER MUTE & LOCK
TCB-R2000
TCBR2000 man_reized.indd 13
4) Channel Up Button
Momentarily press this button to move up the channel.
The channel changes one by one.
Press and hold this button to quickly scroll up the channel.

5) Backlighting Color Button

There are three colors available : Blue, Green and Red.
Momentarily press this button to change the color.
6) Speaker Mute & Lock Button
Speaker Mute : Momentarily press this button to make
mute the speaker of the transceiver.
Lock : Press and hold this button to lock the major but-
tons.
The PTT, volume and squelch buttons are free from the lock
function activation.

MICROPHONE

Down Button : Use this button to change the
1
channels downward.
Up Button : Use this button to change the

channels upward.
Mute and Lock Button : Press and hold the

button. This locks the up button and down
button of the microphone. Also, this lock
works same as the lock button on the trans-
ceiver front panel.
Momentarily press the button to make mute
the speaker of the transceiver.
PTT&CALL(PAGE) Button : While pressing this
4
button, you can transmit.
Double-click this button to call(page) others.
6 Pin Microphone Connector :
5
Connect this to the microphone jack on the
front panel of the transceiver.

HANDSFREE MICROPHONE

This is used for handsfree(VOX) microphone. The
transceiver should be in the VOX activated mode
to use this handsfree microphone.
English 1
