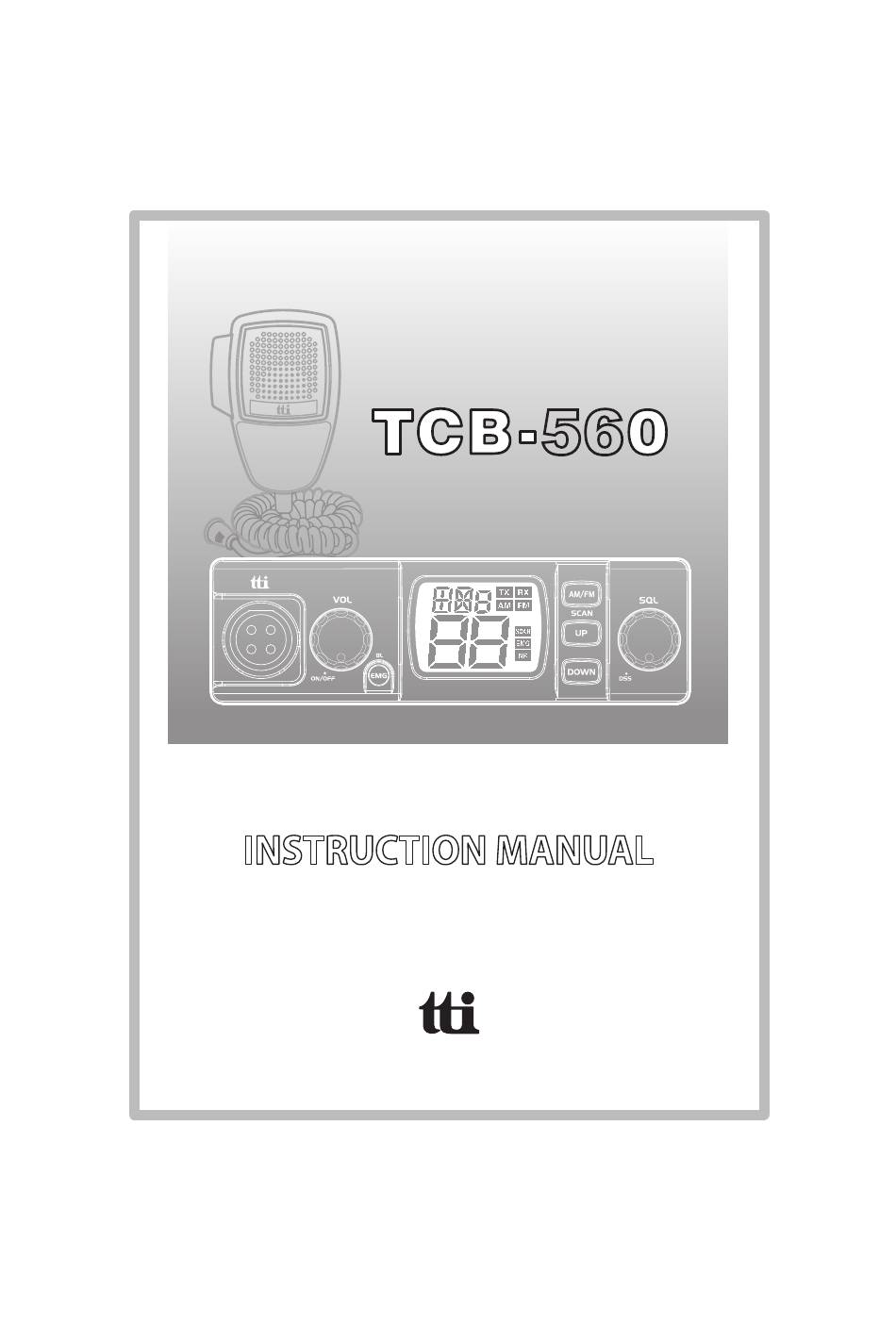

- Page 1 4W MOBILE CB TRANSCEIVER www.ttikorea.co.kr...
-
Page 2: Table Of Contents
CONTENTS Introduction Supplied Accessories Installation Transceiver Controls and Functions Microphone Jack Volume and Power On/Off Knob Emergency & Backlighting Button LCD Display AM/FM and Scan Button Up Button Down Button Squelch /DSS Knob Antenna Connector Power 13.2DC EXT-SPK Jack LCD Display Microphone Menu Setting Mode How to Operate the Transceiver... -
Page 3: Introduction
The transceiver should normally be mounted horizontally, but may be mounted vertically. The bracket supplied can be fitted above or below the case allowing the TCB-560 to be cradled by the bracket or suspended from it. - Page 4 The same colours are shown on the battery and in the fuse box of the car.) Mount the microphone bracket on one side of the transceiver, or near it using two screws included. Connect the microphone to the transceiver’s microphone receptacle. Now you are ready to operate the transceiver. TCB-560...
- Page 5 Make sure that you have a solid metal-to-metal ground connection. Be careful not to damage the cable during the installation. Warning : Never try the operation of your transceiver before connecting a proper antenna in order not to cause any damage. TCB-560...
-
Page 6: Transceiver Controls And Functions
Emergency Pressing this button momentarily once will lead you to the emergency channel, "CH 9"("CH 19" in some bands) and the EMG icon will be displayed. Pressing this button twice will lead you to the calling channel “CH19”(“CH9”in some bands) will be displayed. TCB-560... -
Page 7: Lcd Display
Use the up/down buttons to resume scanning immediately. If you press the PTT button during scanning, the radio will return to your original channel. Scanning will resume after the scan receive time TCB-560... -
Page 8: Up Button
DSS : In FM mode, turn the knob counter-clockwise until you hear the click. The squelch level of your transceiver is dynamically adjusted. 9) Antenna Connector Insert the male connector of the antenna cable into this female antenna connector. TCB-560... -
Page 9: Power 13.2Dc
FM Mode AM Mode Scan Emergency Channel Display Noise Blanker 6. Microphone PTT Button : While pressing this button, you can transmit. 4 Pin Microphone Connector : Connect this to the microphone jack on the front panel of the transceiver. TCB-560... -
Page 10: Menu Setting Mode
Press the PTT button of the Microphone to complete the selections and changes and return to the stand-by mode. Or the selections and changes will be automatically confirmed after 5 seconds of the selections and changes. TCB-560... -
Page 11: How To Operate The Transceiver
Settings Display Band Europe 40 Ch FM 4W Spain 40 Ch AM/FM 4W France 40 Ch FM 4W, 40 Ch AM 4W Poland 40 Ch AM/FM 4W ( Polish frequencies : 5KHz) TCB-560... -
Page 12: Trouble Shooting
Europe 40 Ch FM 4W, 40 Ch AM 4W 10. Trouble Shooting If you experience problems with your TCB-560 transceiver, first check the power supply source. Poor connection of the power supply source can cause problems such as no transmission, no reception or poor reception, and weak or no sound. -
Page 13: Ce Declaration
11. CE Declaration CE versions of the TCB-560 which display the CE 0678 symbol on the product label, comply with the essential requirements of the European Radio and Telecommunication Terminal Directive 1999/5/CE. This warning symbol indicates that this equipment operates in non-harmonised frequency bands and/or may be subject to licensing conditions in the country of use. -
Page 14: Specification
60 dB Adjacent Channel Rejection 60 dB Conducted Spurious More than 60 dB Frequency Response 300 to 2500Hz Built-in Speaker 8 Ohms, round Squelch Adjustable; Threshold less than 1 microvolt * Specification is subject to change without prior notice. TCB-560... -
Page 15: Restrictions On The Use
40 Ch - 4W AM - Individual licence is required 40 Ch - 4W FM - Individual licence is required UK-RA-MPT 1382/MPT1320; UK-R&TTE - S.IL. 2000:730 POLAND PL EU 40 Ch - 4W FM / AM - Free use TCB-560... -
Page 16: Frequency Table
27.365 27.365 27.365 27.365 27.360 27.95125 27.375 27.375 27.375 27.375 26.925 27.375 27.370 27.96125 27.385 27.385 27.385 27.385 26.935 27.385 27.380 27.97125 26.945 27.395 27.395 27.395 27.395 27.395 27.390 27.98125 27.405 27.405 27.405 27.405 26.955 27.405 27.400 27.99125 AM/FM TCB-560... - Page 17 DECLARATION OF CONFORMITY We, TTI Tech Co.,Ltd (4F, JuWon Bldg, 1188, Gaepo-dong, Gangnam-gu, Seoul, Korea) declare on our sole responsibility that this equipment complies with the essential requirements of the Radio and Telecommunications Terminal Equipment Directive, 1999/5/EC, and that any applicable Essential Test Suite measurements have been performed.
- Page 18 P/N:820-C560-000...
