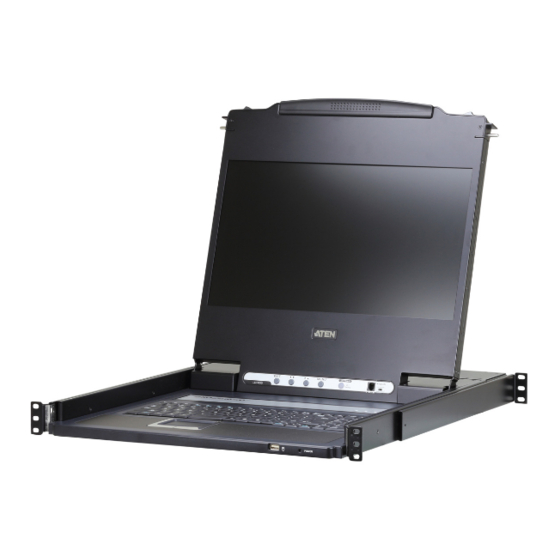

ATEN CL6700MW User Manual

Dvi full hd lcd console
Hide thumbs Also See for CL6700MW:
Table of Contents

Advertisement

Quick Links

Download this manual

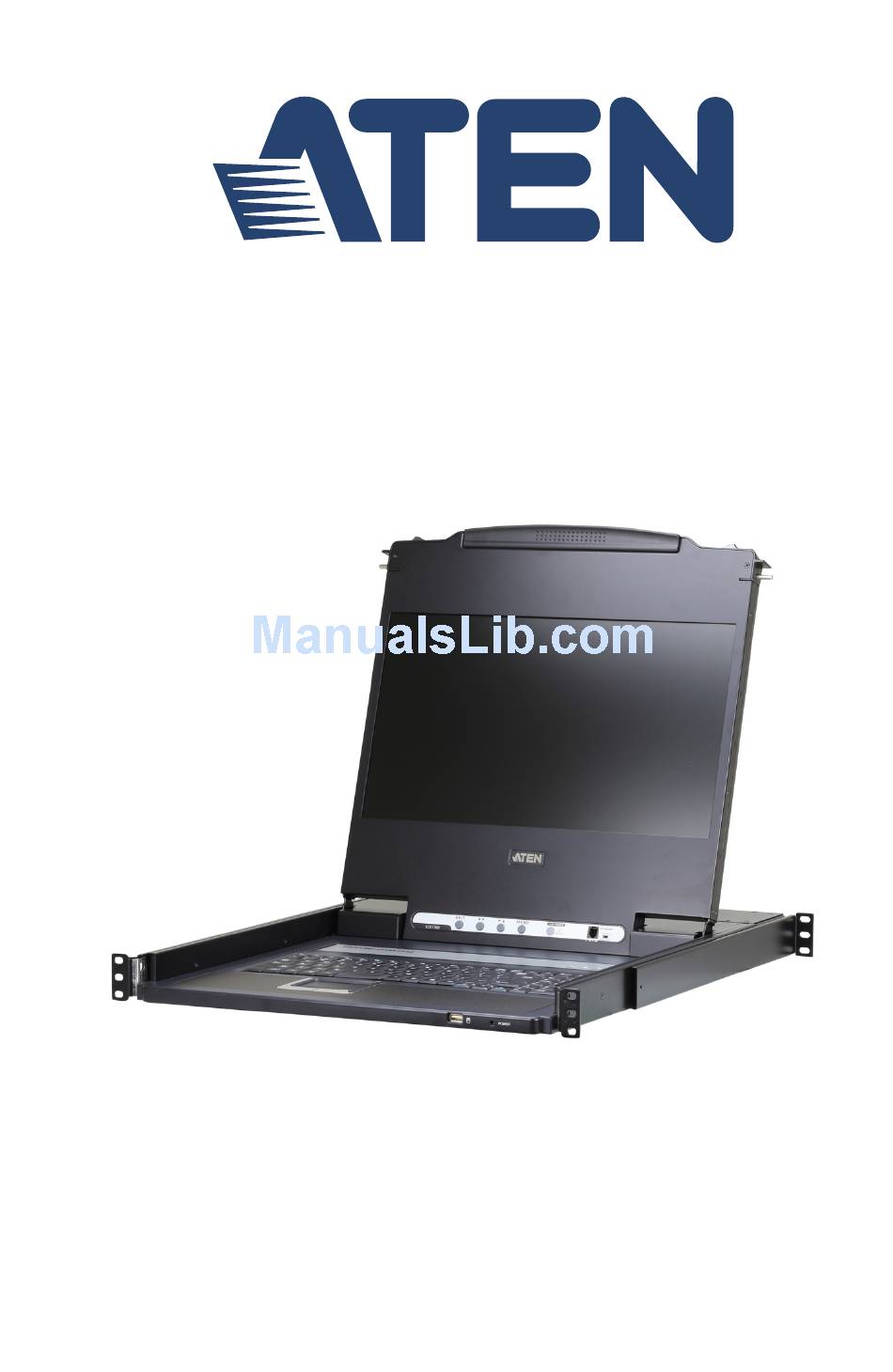

DVI Full HD LCD Console
CL6700MW
User Manual
www.aten.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CL6700MW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ATEN CL6700MW

Summary of Contents for ATEN CL6700MW

  • Page 1 DVI Full HD LCD Console CL6700MW User Manual www.aten.com...

  • Page 2: Rohs

    CL6700MW User Manual FCC, CE Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 3: User Information

    CL6700MW User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-10-5255-0110 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988...

  • Page 4: User Notice

    CL6700MW User Manual User Notice All information, documentation, and specifications contained in this manual are subject to change without prior notification by the manufacturer. The manufacturer makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties as to merchantability or fitness for any particular purpose.

  • Page 5: Package Contents

    © Copyright 2014 ATEN® International Co., Ltd. Manual Part No. Manual Date: 2014-08-20 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners.

  • Page 6: Table Of Contents

    CL6700MW User Manual Contents FCC Information ..........ii RoHS .
  • Page 7 CL6700MW User Manual Chapter 4. Firmware Upgrade The Firmware Upgrade Utility ........21 Before You Begin .

  • Page 8: About This Manual

    CL6700MW User Manual About this Manual This User Manual is provided to help you get the most from your CL6700MW system. It covers all aspects of installation, configuration and operation. An overview of the information found in the manual is provided below.

  • Page 9: Conventions

    For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com...
  • Page 10 CL6700MW User Manual This Page Intentionally Left Blank...

  • Page 11: Chapter 1 Introduction

    ATEN website. Setup is fast and easy. Simply use the custom cables included with your device to connect the CL6700MW to the console ports of your KVM switch and you are ready to go!

  • Page 12: Features

    DDC2B Standard rack mount kit included – optional Easy Rack Mounting (single person installation) rack mount kit available (requires separate purchase) Compatible with most ATEN DVI KVM Switches Adjustable depth to fit within the rack Audio support for connecting speakers Standard 105-key keyboard;...

  • Page 13: Requirements

    Chapter 1. Introduction Requirements LCD Console The LCD console supports most ATEN DVI KVM switches. If you are unsure whether your switch is supported or not, check with your dealer. The integrated LCD monitor's maximum resolution is 1920 x 1080 @60Hz.

  • Page 14: Operating Systems

    CL6700MW User Manual Operating Systems Supported operating systems are shown in the table, below. Version Windows NT and higher Linux RedHat 9.0 and higher SuSE 10 and higher Mandriva (Mandrake) 9.0 and higher UNIX 4.3 and higher FreeBSD 5.5 and higher...

  • Page 15: Components

    Chapter 1. Introduction Components Front View...
  • Page 16 CL6700MW User Manual Component Description Upper Handle Pull to slide the LCD module out; push to slide it in. See Opening the Console, page 13, for details on sliding the console in and out Module Release In order to slide the console out, you must first release it by Catches sliding these catches to the inside.

  • Page 17: Rear View

    KVM Port The custom KVM cable supplied with the package for linking Section the CL6700MW to a computer or switch plugs in here. An additional HDMI and VGA port are provided. Grounding The grounding wire (used to ground the unit) attaches here.
  • Page 18 CL6700MW User Manual This Page Intentionally Left Blank...

  • Page 19: Chapter 2. Hardware Setup

    Keyboard Power On function. Standard Rack Mounting A standard rack mounting kit can be purchased separately for your CL6700MW. The kit enables the CL6700MW to be mounted in rack with a depth of 52–85 cm. L Brackets...
  • Page 20 CL6700MW User Manual To rack mount the CL6700MW, do the following: 1. While one person positions the CL6700MW in the rack and holds it in place, the second person loosely screws the front brackets to the rack. 2. While the first person still holds the CL6700MW in place, the second...

  • Page 21: Connecting Up

    3) into the KVM ports located in the CPU section on the rear of the CL6700MW. Note: The CL6700MW supports speakers only. It does not support a microphone. Connect the KVM cable’s speaker jack (green) to the CL6700MW’s audio port.

  • Page 22: Installation Diagram

    CL6700MW User Manual Installation Diagram DVI-D, VGA, or HDMI CL6700MW Rear View HDMI HDMI DVI-D CS1768 Rear View...

  • Page 23: Chapter 3. Operation

    Chapter 3 Operation Opening the Console The CL6700MW's console is located under the top cover. To access the console, slide the console module out and raise the cover. Note: As a safety precaution, to keep the console from accidentally sliding out, the console is locked into the In position.

  • Page 24: Closing The Console

    CL6700MW User Manual Closing the Console To slide the console module back in, close the cover and do the following: 1. Pull the safety catches on the unit's side rails toward you and push the module in until it stops.

  • Page 25: Operating Precautions

    Chapter 3. Operation Operating Precautions The maximum load bearing capacity of the keyboard module is 30 kg. Failure to heed the information below can result in damage to the keyboard module. Right! Rest your hands and arms lightly on the keyboard module as you work.

  • Page 26: Lcd Osd Configuration

    CL6700MW User Manual LCD OSD Configuration The LCD Buttons The LCD OSD allows you to set up and configure the LCD display. Four buttons are used to perform the configuration, as described in the table, below: Button Function MENU When you have not entered the LCD OSD Menu function, pressing this button invokes the Menu function, and brings up the Main Menu.
  • Page 27 Chapter 3. Operation Setting Explanation V-Position Positions the display area on the LED panel vertically (moves the display area up or down). Color Temperature Adjusts the color quality of the display. You can adjust the warmth value, color balance, etc. The Adjust Color selection has a further submenu that lets you fine tune the RGB values.

  • Page 28: Hot Plugging

    CL6700MW. Powering Off and Restarting If it becomes necessary to Power Off the CL6700MW (to upgrade the firmware, for example), simply turn off the power to the unit using the rear panel power switch. To restart the CL6700MW, turn the rear panel power switch back on.

  • Page 29: Hotkeys

    Note: 1. Press the keys in sequence – one key at a time. First [Ctrl], then [Alt], then [Shift], etc. 2. Console selections are not saved. If the CL6700MW is powered off, it reverts to the default setting of both consoles enabled when it is powered on again.
  • Page 30 CL6700MW User Manual 4. If the KVM switch connected to the CL6700MW uses the [Ctrl] [Alt] [Shift] combination to invoke its hotkey mode, you won't be able to access any of its hotkey operations because the CL6700MW will capture the combination for console selection first.

  • Page 31: The Firmware Upgrade Utility

    Before You Begin To prepare for the firmware upgrade, do the following: 1. From a computer that is not part of your CL6700MW installation go to ATEN’s Internet support site and choose the model name that relates to your device to get a list of available Firmware Upgrade Packages.

  • Page 32: Firmware Upgrade Mode

    Firmware Upgrade Recovery Switch (see page 6) must be set to the Normal position. 1. Turn off the power to the CL6700MW using the power switch located on the back side of the console. 2. Slide the firmware switch to RECOVER (see page 6).

  • Page 33: Performing The Upgrade

    Performing the Upgrade Starting the Upgrade: 1. With the CL6700MW in Firmware Upgrade Mode, run the downloaded Firmware Upgrade Package file from your computer - either by double clicking the file icon, or by opening a command line and keying in the full path and filename.
  • Page 34 CL6700MW User Manual (Continued from previous page.) 3. Click Next. The Firmware Upgrade Utility main screen appears: The Utility inspects your installation. All the devices capable of being upgraded by the package are listed in the Device List panel. 4. Click Next to perform the upgrade.

  • Page 35: Upgrade Succeeded

    Chapter 4. Firmware Upgrade Upgrade Succeeded: After the upgrade has completed, a screen appears to inform you that the procedure was successful: Click Finish to close the Firmware Upgrade Utility.

  • Page 36: Upgrade Failed

    CL6700MW User Manual Upgrade Failed: If the upgrade failed to complete successfully the Upgrade Failed screen appears: Click Cancel to close the Firmware Upgrade Utility. See the next section, Firmware Upgrade Recovery, for how to proceed.

  • Page 37: Firmware Upgrade Recovery

    3. Slide the Firmware Upgrade Recovery Switch to the Recover position. 4. Power the CL6700MW back on and repeat the upgrade procedure. 5. After the CL6700MW has been successfully upgraded, power it off, and slide the Firmware Upgrade Recovery Switch back to the Normal position.
  • Page 38 CL6700MW User Manual This Page Intentionally Left Blank...

  • Page 39: Appendix

    Appendix Safety Instructions General This product is for indoor use only. Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result.
  • Page 40 CL6700MW User Manual If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.

  • Page 41: Rack Mounting

    Appendix Rack Mounting Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack.

  • Page 42: Technical Support

    CL6700MW User Manual Technical Support International For online technical support – including troubleshooting, documentation, and software updates: http://support.aten.com For telephone support, see Telephone Support, page iii. North America Email Support support@aten-usa.com Online Troubleshooting http://www.aten-usa.com/support Technical Documentation Support Software Updates Telephone Support...

  • Page 43: Specifications

    Appendix Specifications Function CL6700MW Computer Connections Console Selection Hotkey Connectors External Keyboard 1 x USB Type A Female Console Ports Mouse 1 x USB Type A Female Monitor 1 x DVI-D Female (White) 1 x HDB-15 (VGA) Female (Blue) 1 x HDMI Female (Black)
  • Page 44 CL6700MW User Manual Function CL6700MW Physical Housing Metal Properties Weight 11.38 kg Dimensions (L x W x H) 58.92 x 48.00 x 4.40 cm...

  • Page 45: Optional Rack Mounting

    9. While it takes two people to perform a standard installation, with an Easy- Installation, kit, one person can mount the CL6700MW. To install the Easy- Installation kit, do the following: 1. Remove the standard sliding L brackets (not shown) and the side mounting brackets from both sides of the CL6700MW.
  • Page 46 CL6700MW User Manual 2. Attach the left and right easy-installation mounting rails to the inside of the rack. The flange that supports the CL6700MW will be to the inside. Rear Flange Slide Bar Front Flange Rear Attachment Sliding Bracket LEFT...
  • Page 47 Appendix 3. Slide the CL6700MW onto the support flanges. Use the screws supplied with this package to loosely attach the front of the CL6700MW to the front of the rack (only tighten the screws part way). Phillips I head M4L6 4.
  • Page 48 CL6700MW User Manual 5. Slide the CL6700MW open and closed a couple of times to be sure that it is properly aligned and operating smoothly. (See Opening the Console, page 13, for opening and closing procedures.) 6. After determining that the CL6700MW is lined up and operating correctly,...

  • Page 49: Sun Keyboard Emulation

    Appendix Sun Keyboard Emulation The PC compatible (101/104 key) keyboard can emulate the functions of the Sun keyboard when the Control key [Ctrl] is used in conjunction with other keys. The corresponding functions are shown in the table below. PC Keyboard Sun Keyboard [Ctrl] [T] Stop...

  • Page 50: Mac Keyboard

    CL6700MW User Manual Mac Keyboard The PC compatible (101/104 key) keyboard can emulate the functions of the Mac keyboard. The emulation mappings are listed in the table below. PC Keyboard Mac Keyboard [Shift] Shift [Ctrl] Ctrl [Ctrl] [1] [Ctrl] [2]...

  • Page 51: Troubleshooting

    There are ghost images on the The distance between the external console and the external monitor. CL6700MW is too great. The maximum DVI cable distance should not exceed 20m and, in some cases, may need to be shorter. Replace the DVI cable with one of an appropriately short length.

  • Page 52: Limited Warranty

    CL6700MW User Manual Limited Warranty ATEN warrants this product against defects in material or workmanship for a period of one (1) year from the date of purchase. If this product proves to be defective, contact ATEN's support department for repair or replacement of your unit. ATEN will not issue a refund. Return requests can not be processed without the original proof of purchase.
