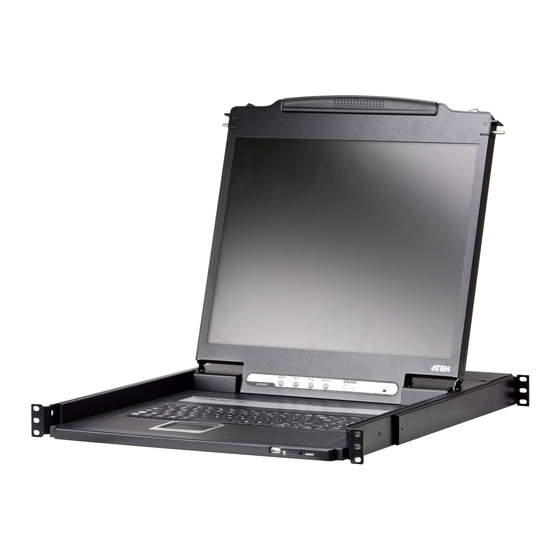

Lightweight ps/2-usb lcd console
Hide thumbs Also See for CL3000:
Table of Contents

Advertisement

Quick Links

Download this manual
Lightweight PS/2-USB LCD Console
CL3000
User Manual
www.aten.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CL3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ATEN CL3000

Summary of Contents for ATEN CL3000

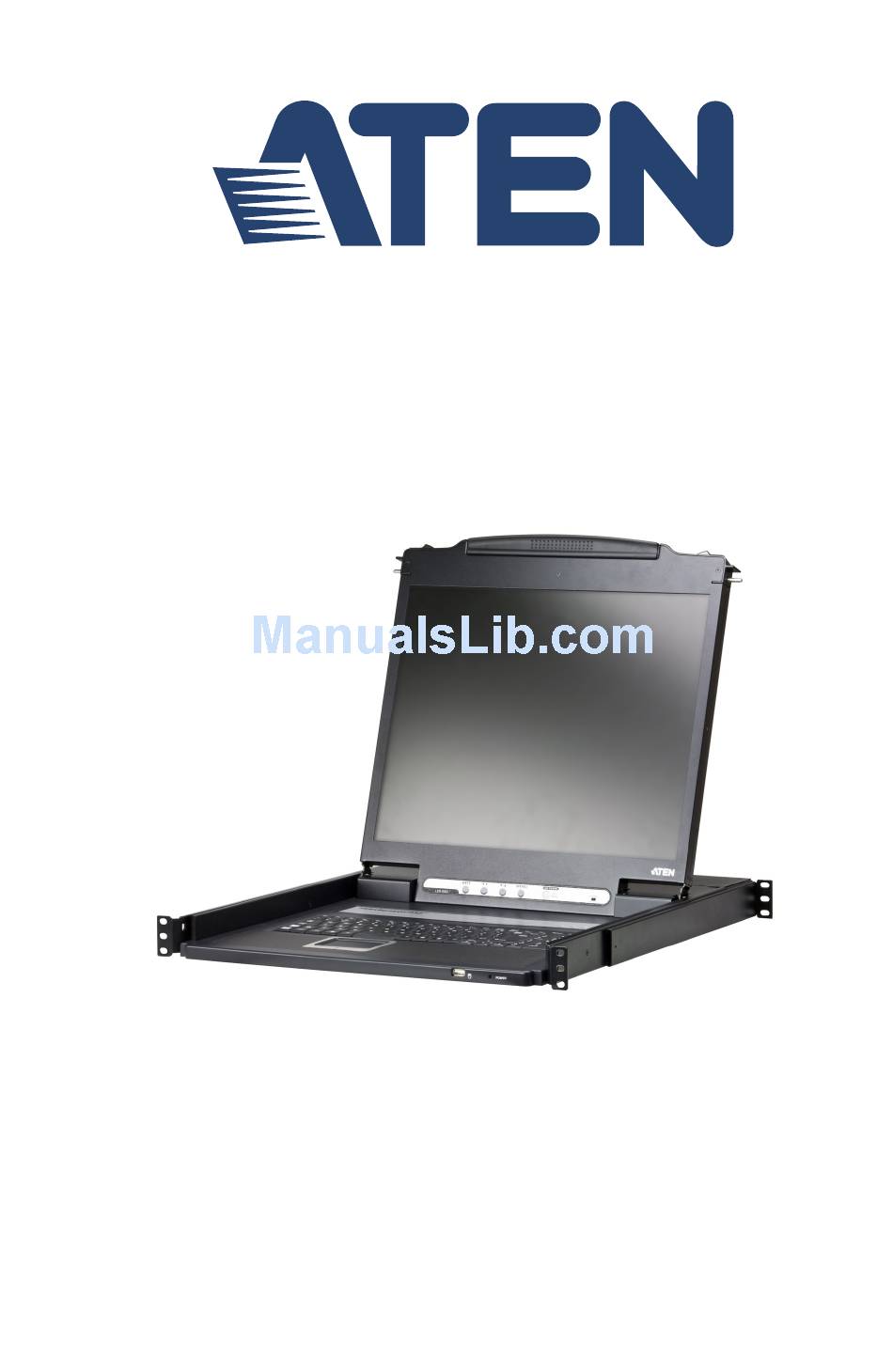

  • Page 1 Lightweight PS/2-USB LCD Console CL3000 User Manual www.aten.com...

  • Page 2: Rohs

    CL3000 User Manual FCC, CE Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 3: User Information

    CL3000 User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-10-5255-0110 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988...

  • Page 4: Package Contents

    © Copyright 2012 ATEN® International Co., Ltd. Manual Part No. PAPE-0342-AT2G Manual Date: 2013-11-01 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners.

  • Page 5: Table Of Contents

    CL3000 User Manual Contents FCC Information ..........ii RoHS.
  • Page 6 CL3000 User Manual 4. The Firmware Upgrade Utility Introduction ..........21 Before You Begin .

  • Page 7: About This Manual

    CL3000 User Manual About this Manual This User Manual is provided to help you get the most from your CL3000 system. It covers all aspects of installation, configuration and operation. An overview of the information found in the manual is provided below.

  • Page 8: Conventions

    For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com...

  • Page 9: Introduction

    There is no better way to save time and money than with a CL3000 installation. By using the CL3000 with its light weight and green power LED-backlit LCD monitor to manage your installation, you: (1) eliminate the expense of having to purchase a separate keyboard, monitor, and mouse for each computer;...

  • Page 10: Features

    CL3000 User Manual Features Integrated KVM console featuring a 19” LED-backlit LCD monitor in a Single-Rail Slideaway housing Green power LED-backlit LCD monitor saves energy Lightweight design for easier installation MIL-STD-810G Standard Certified Testing Dual Interface – supports computers with PS/2 or USB keyboards and mice...

  • Page 11: Requirements

    Chapter 1. Introduction Requirements LED-backlit LCD Console The LED-backlit LCD console supports most KVM switches. If you are unsure whether your switch is supported or not, check with your dealer. The integrated LED-backlit LCD monitor's maximum resolution is 1280 x 1024 @ 75Hz.

  • Page 12: Operating Systems

    CL3000 User Manual Operating Systems Supported operating systems are shown in the table, below: Version Windows 2000 and higher Linux RedHat 9 and higher SuSE 10 and higher Debian 3.1, 4.0 Ubuntu 7.04, 7.10 UNIX AIX 4.3, 5L FreeBSD 4.2 and higher...

  • Page 13: Components

    Chapter 1. Introduction Components Front View...
  • Page 14 CL3000 User Manual Component Description Upper Handle Pull to slide the LED-backlit LCD module out; push to slide it in. See Opening the Console, page 19, for details on sliding the console in and out Module Release In order to slide the console out, you must first release it by Catches sliding these catches to the inside.

  • Page 15: Rear View

    Grounding The grounding wire used to ground the switch attaches here. Terminal KVM Port The cable that links the CL3000 to the KVM switch plugs in Section here. Note: The shape of this SPHD connector has been specifically modified so that only KVM cables designed to work with this switch can plug in (see Cables, page 3, for details).
  • Page 16 CL3000 User Manual This Page Intentionally Left Blank...

  • Page 17: Hardware Setup

    You must unplug the power cords of any computers that have the Keyboard Power On function. Standard Rack Mounting A standard rack mount kit is provided with your CL3000. The kit enables the console to be mounted in rack with a depth of 42–72 cm. L Brackets...
  • Page 18 CL3000 User Manual To rack mount the console, do the following: 1. While one person positions the CL3000 in the rack and holds it in place, the second person loosely screws the front brackets to the rack. 2. While the first person still holds the CL3000 in place, the second person...

  • Page 19: Connecting Up

    4. If you are using an external USB mouse or USB peripheral in your installation, plug it into the USB port located on the CL3000’s front panel. 5. Plug the power cord into the CL3000's power socket and into an AC power source.
  • Page 20 CL3000 User Manual...

  • Page 21: Operation

    Chapter 3 Operation Opening the Console The CL3000's console is located under the top cover. To access the console, slide the console module out and raise the cover. Note: As a safety precaution, to keep the console from accidentally sliding out, the console is locked into the In position.

  • Page 22: Closing The Console

    CL3000 User Manual Closing the Console To slide the console module back in, close the cover and do the following: 1. Pull the safety catches on the unit's side rails toward you and push the module in until it stops.

  • Page 23: Operating Precautions

    Chapter 3. Operation Operating Precautions The maximum load bearing capacity of the keyboard module is 30 kg. Failure to heed the information below can result in damage to the keyboard module. Right! Rest your hands and arms lightly on the keyboard module as you work.

  • Page 24: Led-Backlit Lcd Osd Configuration

    CL3000 User Manual LED-backlit LCD OSD Configuration The LED-backlit LCD Buttons The OSD allows you to set up and configure the LED-backlit LCD display. Four buttons are used to perform the configuration, as described in the table, below: Button Function...

  • Page 25: The Adjustment Settings

    Chapter 3. Operation The Adjustment Settings An explanation of the LED-backlit LCD OSD adjustment settings is given in the table below: Setting Explanation Brightness Adjusts the background black level of the screen image. Contrast Adjusts the foreground white level of the screen image. Phase If pixel jitter or horizontal line noise is visible on the display, your LED-backlit LCD may have the wrong phase setting.

  • Page 26: Hot Plugging

    CL3000. Powering Off and Restarting If it becomes necessary to Power Off the CL3000 (to upgrade the firmware, for example), simply turn off the power to the unit using the rear panel power switch. To restart the CL3000, turn the rear panel power switch back on.

  • Page 27: Hotkeys

    Note: 1. Press the keys in sequence – one key at a time. First [Ctrl], then [Alt], then [Shift], etc. 2. Console selections are not saved. If the CL3000 is powered off, it reverts to the default setting of both consoles enabled when it is powered on again.
  • Page 28 CL3000 User Manual This Page Intentionally Left Blank...

  • Page 29: The Firmware Upgrade Utility

    Introduction The purpose of the Windows-based firmware upgrade utility is to provide an automated process for upgrading the CL3000 firmware. As new firmware versions become available, new firmware upgrade packages are posted on our website. Check the website regularly to find the latest information and packages.

  • Page 30: Firmware Upgrade Mode

    Firmware Upgrade Recovery Switch (see page 6) must be set to the Normal position. 1. Turn off the power to the CL3000 using the power switch located on the back side of the console. 2. Slide the firmware switch to NORMAL (see page 6).

  • Page 31: Starting The Upgrade

    Chapter 4. The Firmware Upgrade Utility Starting the Upgrade To upgrade the firmware: 1. Run the downloaded firmware upgrade package file either by double clicking the file icon, or by opening a command line and entering the full path to it. The Firmware Upgrade Utility welcome screen appears: Note: The screens shown in this section are for reference only.
  • Page 32 CL3000 User Manual The Firmware Upgrade Utility main screen appears. The devices capable of being upgraded are listed in the Device List panel: 4. Click Next to perform the upgrade. If you enabled Check Firmware Version, the utility compares the device's firmware level with that of the upgrade files.

  • Page 33: Upgrade Succeeded

    Chapter 4. The Firmware Upgrade Utility Upgrade Succeeded After the upgrade has completed, a screen appears to inform you that the procedure was successful: Click Finish to close the firmware upgrade utility. Upgrade Failed If the Upgrade Succeeded screen doesn't appear, it means that the upgrade failed to complete successfully.

  • Page 34: Firmware Upgrade Recovery

    To exit the Firmware Upgrade Mode, do the following: 1. Slide the Firmware Upgrade Recovery Switch (see page 6) to the Normal position. 2. Power off and restart the CL3000 according to the instructions given in the Powering Off and Restarting section (see page 18).

  • Page 35: Appendix

    Appendix Safety Instructions General This product is for indoor use only. Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, or other surfaces).
  • Page 36 CL3000 User Manual If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.

  • Page 37: Rack Mounting

    Appendix Rack Mounting Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack.

  • Page 38: Technical Support

    CL3000 User Manual Technical Support International For online technical support – including troubleshooting, documentation, and software updates: http://support.aten.com For telephone support, Telephone Support, page iii North America Email Support support@aten-usa.com Online Troubleshooting http://www.aten-usa.com/support Technical Documentation Support Software Updates Telephone Support...

  • Page 39: Specifications

    Appendix Specifications Function CL3000 Computer Connections Console Selection Hotkey Connectors External Keyboard 1 x 6-pin Mini-DIN Female (Purple) Console Ports 1 x USB Type A Female (Black) Video 1 x HDB-15 Female (Blue) Mouse 1 x 6-pin Mini-DIN Female (Green)

  • Page 40: Optional Rack Mounting

    9. While it takes two people to perform a standard installation, with an Easy- Installation, kit, one person can mount the CL3000. To install the Easy- Installation kit, do the following: 1. Remove the standard sliding L brackets (not shown) and the side mounting brackets from both sides of the CL3000.
  • Page 41 Appendix 2. Attach the left and right easy-installation mounting rails to the inside of the rack. The flange that supports the CL3000 will be to the inside. Rear Flange Slide Bar Front Flange Rear Attachment Sliding Bracket LEFT Support RAIL...
  • Page 42 CL3000 User Manual 3. Slide the CL3000 onto the support flanges. Use the screws supplied with this package to loosely attach the front of the CL3000 to the front of the rack (only tighten the screws part way). Phillips I head M4L6 4.
  • Page 43 Appendix 5. Slide the CL3000 open and closed a couple of times to be sure that it is properly aligned and operating smoothly. (See Opening the Console, page 13, for opening and closing procedures.) 6. After determining that the CL3000 is lined up and operating correctly,...

  • Page 44: Sun Keyboard Emulation

    CL3000 User Manual Sun Keyboard Emulation The PC compatible (101/104 key) keyboard can emulate the functions of the Sun keyboard when the Control key [Ctrl] is used in conjunction with other keys. The corresponding functions are shown in the table below.

  • Page 45: Troubleshooting

    Appendix Troubleshooting Symptom Action Some characters I enter from The keyboard layout setting for the port does not the keyboard do not display match the keyboard you are using. On your switch, correctly. change the keyboard layout setting for the port to match the layout of the keyboard you are using.
  • Page 46 CL3000 User Manual This Page Intentionally Left Blank...
  • Page 47 Hot Plugging, 18 Safety Instructions General, 27 Installing, 11 Rack Mounting, 29 SJ/T 11364-2006, ii Specifications Keyboard Emulation, 36 CL3000, 31 Standard rack mounting, 9 System Requirements Buttons, 16 Cables, 3 OSD configuration, 16 External Console, 3 Online Technical Support, 30...
