Summary of Contents for ATEN CL6700
- Page 1 DVI LCD Console CL6700 User Manual www.aten.com...
-
Page 2: Fcc Information
CL6700 User Manual FCC Information This is an FCC Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. -
Page 3: User Information
CL6700 User Manual User Information Online Registration Be sure to register your product at our online support center: International http://support.aten.com North America http://www.aten-usa.com/product_registration Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-10-5255-0110 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America... -
Page 4: User Notice
CL6700 User Manual User Notice All information, documentation, and specifications contained in this manual are subject to change without prior notification by the manufacturer. The manufacturer makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties as to merchantability or fitness for any particular purpose. -
Page 5: Package Contents
© Copyright 2011 ATEN® International Co., Ltd. Manual Part No. PAPE-0343-AT1G Manual Date: 2011-07-28 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners. -
Page 6: Table Of Contents
CL6700 User Manual Contents FCC Information ..........ii RoHS . - Page 7 CL6700 User Manual Chapter 4. Firmware Upgrade The Firmware Upgrade Utility ........21 Before You Begin .
-
Page 8: About This Manual
CL6700 User Manual About this Manual This User Manual is provided to help you get the most from your CL6700 system. It covers all aspects of installation, configuration and operation. An overview of the information found in the manual is provided below. -
Page 9: Conventions
For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... - Page 10 CL6700 User Manual This Page Intentionally Left Blank...
-
Page 11: Chapter 1 Introduction

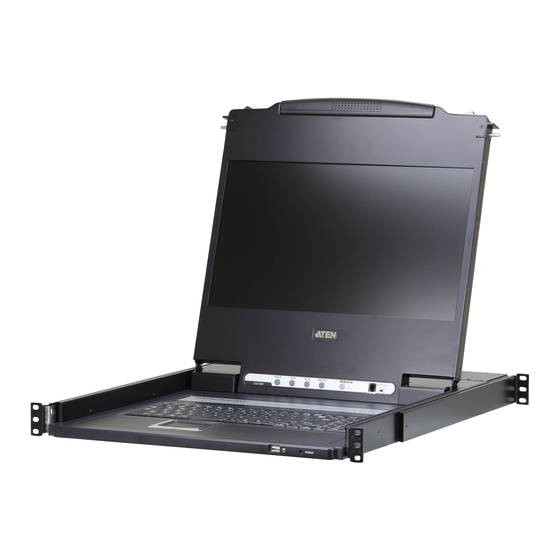

Introduction Overview The CL6700 Single Rail DVI LCD Console is a KVM control unit featuring an integrated 19" DVI LCD panel, a full keyboard, and a touch pad in a 1U rack- mountable sliding housing with an AC based input power source and audio support. -
Page 12: Features
Audio support (speakers) Standard 105-key keyboard; Sun keyboard emulation Multiplatform support – Windows, Linux, Mac, and Sun Compatible with most ATEN DVI KVM Switches Adjustable depth to fit within the rack Firmware upgradeable Console lock – enables the console drawer to remain securely locked away in position when not in use DDC emulation –... -
Page 13: Requirements
Chapter 1. Introduction Requirements LCD Console The LCD console supports most ATEN DVI KVM switches. If you are unsure whether your switch is supported or not, check with your dealer. The integrated LCD monitor's maximum resolution is 1280 x 1024 @75Hz. -
Page 14: Operating Systems
CL6700 User Manual Operating Systems Supported operating systems are shown in the table, below. Version Windows NT and higher Linux RedHat 9.0 and higher SuSE 10 and higher Mandriva (Mandrake) 9.0 and higher UNIX 4.3 and higher FreeBSD 5.5 and higher... -
Page 15: Components
Chapter 1. Introduction Components Front View... - Page 16 CL6700 User Manual Component Description Upper Handle Pull to slide the LCD module out; push to slide it in. See Opening the Console, page 13, for details on sliding the console in and out Module Release In order to slide the console out, you must first release it by Catches sliding these catches to the inside.
-
Page 17: Rear View
This is a standard 3 prong AC power socket. The power cord from an AC source plugs in here. Power Switch This is a standard rocker switch that powers the CL6700 on and off. External For flexibility and convenience, the CL6700 supports an Console Section independent, external, KVM console. - Page 18 CL6700 User Manual This Page Intentionally Left Blank...
-
Page 19: Chapter 2. Hardware Setup
Keyboard Power On function. Standard Rack Mounting A standard rack mounting kit can be purchased separately for your CL6700. The kit enables the CL6700 to be mounted in rack with a depth of 52–85 cm. L Brackets Side Mountng Brackets Note: 1. - Page 20 CL6700 User Manual To rack mount the CL6700, do the following: 1. While one person positions the CL6700 in the rack and holds it in place, the second person loosely screws the front brackets to the rack. 2. While the first person still holds the CL6700 in place, the second person...
-
Page 21: Connecting Up
The DVI monitor will display a DVI-D signal only. A DVI-A signal will display on the VGA monitor 4. Plug the CL6700’s power cord into the CL6700's power socket and into a power source. 5. Power up your KVM installation. -
Page 22: Installation Diagram
CL6700 User Manual Installation Diagram DVI-D or DVI-A CL6700 Rear View CS1768 Rear View... -
Page 23: Chapter 3. Operation
Chapter 3 Operation Opening the Console The CL6700's console is located under the top cover. To access the console, slide the console module out and raise the cover. Note: As a safety precaution, to keep the console from accidentally sliding out, the console is locked into the In position. -
Page 24: Closing The Console
CL6700 User Manual Closing the Console To slide the console module back in, close the cover and do the following: 1. Pull the safety catches on the unit's side rails toward you and push the module in until it stops. -
Page 25: Operating Precautions
Chapter 3. Operation Operating Precautions The maximum load bearing capacity of the keyboard module is 30 kg. Failure to heed the information below can result in damage to the keyboard module. Right! Rest your hands and arms lightly on the keyboard module as you work. -
Page 26: Lcd Osd Configuration
CL6700 User Manual LCD OSD Configuration The LCD Buttons The LCD OSD allows you to set up and configure the LCD display. Four buttons are used to perform the configuration, as described in the table, below: Button Function MENU When you have not entered the LCD OSD Menu function, pressing this button invokes the Menu function, and brings up the Main Menu. - Page 27 Chapter 3. Operation Setting Explanation V-Position Positions the display area on the LED panel vertically (moves the display area up or down). Color Temperature Adjusts the color quality of the display. You can adjust the warmth value, color balance, etc. The Adjust Color selection has a further submenu that lets you fine tune the RGB values.
-
Page 28: Hot Plugging
CL6700. Powering Off and Restarting If it becomes necessary to Power Off the CL6700 (to upgrade the firmware, for example), simply turn off the power to the unit using the rear panel power switch. To restart the CL6700, turn the rear panel power switch back on. -
Page 29: Hotkeys
Note: 1. Press the keys in sequence – one key at a time. First [Ctrl], then [Alt], then [Shift], etc. 2. Console selections are not saved. If the CL6700 is powered off, it reverts to the default setting of both consoles enabled when it is powered on again. - Page 30 CL6700 User Manual This Page Intentionally Left Blank...
-
Page 31: The Firmware Upgrade Utility
Before You Begin To prepare for the firmware upgrade, do the following: 1. From a computer that is not part of your CL6700 installation go to ATEN’s Internet support site and choose the model name that relates to your device to get a list of available Firmware Upgrade Packages. -
Page 32: Firmware Upgrade Mode
Firmware Upgrade Recovery Switch (see page 6) must be set to the Normal position. 1. Turn off the power to the CL6700 using the power switch located on the back side of the console. 2. Slide the firmware switch to RECOVER (see page 6). -
Page 33: Performing The Upgrade
Performing the Upgrade Starting the Upgrade: 1. With the CL6700 in Firmware Upgrade Mode, run the downloaded Firmware Upgrade Package file from your computer - either by double clicking the file icon, or by opening a command line and keying in the full path and filename. - Page 34 CL6700 User Manual (Continued from previous page.) 3. Click Next. The Firmware Upgrade Utility main screen appears: The Utility inspects your installation. All the devices capable of being upgraded by the package are listed in the Device List panel. 4. Click Next to perform the upgrade.
-
Page 35: Upgrade Succeeded
Chapter 4. Firmware Upgrade Upgrade Succeeded: After the upgrade has completed, a screen appears to inform you that the procedure was successful: Click Finish to close the Firmware Upgrade Utility. -
Page 36: Upgrade Failed
CL6700 User Manual Upgrade Failed: If the upgrade failed to complete successfully the Upgrade Failed screen appears: Click Cancel to close the Firmware Upgrade Utility. See the next section, Firmware Upgrade Recovery, for how to proceed. -
Page 37: Firmware Upgrade Recovery
To exit the Firmware Upgrade Mode, do the following: 1. Slide the Firmware Upgrade Recovery Switch (see page 6) to the Normal position. 2. Power off and restart the CL6700 according to the instructions given in the Powering Off and Restarting section (see page 16). - Page 38 CL6700 User Manual This Page Intentionally Left Blank...
-
Page 39: Appendix
Appendix Safety Instructions General Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. Do not use the device near water. - Page 40 CL6700 User Manual (Continued from previous page.) If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.
-
Page 41: Rack Mounting
Appendix Rack Mounting Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack. -
Page 42: Technical Support
CL6700 User Manual Technical Support International For online technical support – including troubleshooting, documentation, and software updates: http://support.aten.com For telephone support, see Telephone Support, page iii. North America Email Support support@aten-usa.com Online Troubleshooting http://www.aten-usa.com/support Technical Documentation Support Software Updates Telephone Support... -
Page 43: Specifications
Appendix Specifications Function CL6700 Computer Connections Console Selection Hotkey Connectors External Keyboard 1 x USB Type A Female (White) Console Ports Mouse 1 x USB Type A Female (White) Monitor 1 1 x DVI-D Female (White) Monitor 2 1 x HDB-15 Female (Blue) -
Page 44: Optional Rack Mounting
9. While it takes two people to perform a standard installation, with an Easy- Installation, kit, one person can mount the CL6700. To install the Easy- Installation kit, do the following: 1. Remove the standard sliding L brackets (not shown) and the side mounting brackets from both sides of the CL6700. - Page 45 Appendix 2. Attach the left and right easy-installation mounting rails to the inside of the rack. The flange that supports the CL6700 will be to the inside. Rear Flange Slide Bar Front Flange Rear Attachment Sliding Bracket LEFT Support Flange...
- Page 46 CL6700 User Manual 3. Slide the CL6700 onto the support flanges. Use the screws supplied with this package to loosely attach the front of the CL6700 to the front of the rack (only tighten the screws part way). Phillips I head M4L6 4.
- Page 47 Appendix 5. Slide the CL6700 open and closed a couple of times to be sure that it is properly aligned and operating smoothly. (See Opening the Console, page 13, for opening and closing procedures.) 6. After determining that the CL6700 is lined up and operating correctly,...
-
Page 48: Mac Keyboard Emulation
CL6700 User Manual Mac Keyboard Emulation The PC compatible (101/104 key) keyboard can emulate the functions of the Mac keyboard. The emulation mappings are listed in the table below. PC Keyboard Mac Keyboard [Shift] Shift [Ctrl] Ctrl [Ctrl] [1] [Ctrl] [2]... -
Page 49: Sun Keyboard Emulation
Appendix Sun Keyboard Emulation The PC compatible (101/104 key) keyboard can emulate the functions of the Sun keyboard when the Control key [Ctrl] is used in conjunction with other keys. The corresponding functions are shown in the table below. PC Keyboard Sun Keyboard [Ctrl] [T] Stop... -
Page 50: Troubleshooting
There are ghost images on the The distance between the external console and the external monitor. CL6700 is too great. The maximum DVI cable distance should not exceed 20m and, in some cases, may need to be shorter. Replace the DVI cable with one of an appropriately short length. -
Page 51: Limited Warranty
Appendix Limited Warranty ATEN warrants this product against defects in material or workmanship for a period of one (1) year from the date of purchase. If this product proves to be defective, contact ATEN's support department for repair or replacement of your unit. ATEN will not issue a refund. Return requests can not be processed without the original proof of purchase. - Page 52 CL6700 User Manual This Page Intentionally Left Blank...
- Page 53 Index Operating Precautions, 15 AC Power Models Specifications, 33 Port ID Numbering & Selection, 18 Powering Off, 18 Connecting Up, 11 Precautions, 15 Console Selection, 19 Rack Mounting Features, 2 Optional, 34 Firmware upgrade Standard, 9 cable, 21 Reset Switch, 6 Mode, 22 Restarting, 18 recovery, 27...
