ATEN CL1000M User Manual

Single rail lcd console
Hide thumbs Also See for CL1000M:
Table of Contents

Advertisement

Quick Links

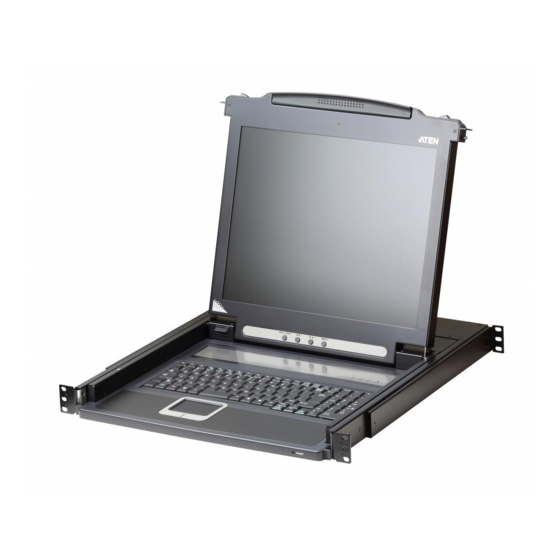

CL1000M / CL1000N
Single Rail LCD Console
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CL1000M and is the answer not in the manual?

Questions and answers

Related Manuals for ATEN CL1000M

Summary of Contents for ATEN CL1000M

  • Page 1 CL1000M / CL1000N Single Rail LCD Console User Manual...

  • Page 2: Compliance Statements

    LCD Console User Manual Compliance Statements FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 3: User Information

    Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988 1-949-428-1111 User Notice All information, documentation, and specifications contained in this manual are subject to change without prior notification by the manufacturer. The manufacturer makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties as to merchantability or fitness for any particular purpose.

  • Page 4: Product Information

    For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com...

  • Page 5: Package Contents

    Check to make sure that all components are in working order. If you encounter any problem, please contact your dealer. CL1000M The CL1000M package consists of:  1 CL1000M 17" LCD Console with Standard Rack Mount Kit  1 custom KVM cable set  1 power cord  1 user instructions...

  • Page 6: About This Manual

     The product may have been updated, with features and functions added, improved, or removed since the release of this manual. For an up-to-date user manual, visit https://www.aten.com/global/en.

  • Page 7: Conventions

    LCD Console User Manual Conventions This manual uses the following conventions: Indicates text that you should key in. Monospaced Indicates keys you should press. For example, [Enter] means to press the Enter key. If keys need to be chorded, they appear together in the same bracket with a plus sign between them: [Ctrl+Alt].

  • Page 8: Table Of Contents

    CL1000M Front View ........
  • Page 9 LCD Console User Manual Adjustment Settings ........18 Manufacturing Number .
  • Page 10 LCD Console User Manual This Page Intentionally Left Blank...

  • Page 11: Chapter 1 Introduction

    KVM switch module. Setup is fast and easy. Simply use the KVM cable set supplied with this package to link the CL1000M / CL1000N’s KVM port to the console port of your KVM switch and you are ready to go.

  • Page 12: Features

    CL1000M / CL1000N User Manual Features  Exclusive LED illumination light — designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions  Integrated KVM console with a 17”(CL1000M) or 19" (CL1000N) LED- backlit LCD monitor in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack ...

  • Page 13: Requirements

    Chapter 1. Introduction Requirements Switches and Computers  The CL1000M / CL1000N supports most KVM switches that have PS/2 console port connectors. If you are unsure whether your switch is supported or not, check with your dealer.  The integrated LCD monitor's maximum resolution is 1280 x 1024 @ 75 Hz.

  • Page 14: Components

    CL1000M / CL1000N User Manual Components CL1000M No. Component Description handle Pull to slide the KVM module out; push to slide the module in. slide release In order to slide the console out, you must first release it by moving this tab sideways. See page 15 for details on sliding the console in and out.

  • Page 15: Cl1000M Rear View

    This is a standard rocker switch that powers the unit on and off. KVM port The cable that links the CL1000M to the KVM switch plugs in here. Note: The shape of this SPHD connector has been specifically modified so that only KVM cables designed to work with this switch can plug in (see Cables, page 3, for details).

  • Page 16: Cl1000N Front View

    CL1000M / CL1000N User Manual CL1000N No. Component Description handle Pull to slide the KVM module out; push to slide the module in. slide release In order to slide the console out, you must first release it by moving this tab sideways. See page 15 for details on sliding the console in and out.

  • Page 17: Cl1000N Rear View

    Chapter 1. Introduction rack mount The rack mount brackets located at each corner of the unit brackets secure the chassis to a system rack. lock LEDs The Num Lock, Caps Lock, Scroll Lock LEDs are located here. LCD On / Off Push this button to turn the LCD monitor on and off.
  • Page 18 CL1000M / CL1000N User Manual This Page Intentionally Left Blank...

  • Page 19: Chapter 2. Hardware Setup

    A standard rack mount kit is provided with your CL1000M / CL1000N. The kit mounts the CL1000M in a rack with a depth of 42 – 72 cm or CL1000N in a rack with a depth of 52 – 85 cm.
  • Page 20 If you need additional screws or cage nuts, contact your rack dealer. To install the CL1000M / CL1000N using the standard rack mount kit, follow the steps below: 1. Have one person position the unit in the rack and hold it steady. Have the second person screw the front brackets to the rack.

  • Page 21: Optional Rack Mount Kits

    Chapter 2. Hardware Setup 3. After the L-shaped brackets are secured, tighten all the screws. Allow at least 5.1 cm on each side for proper ventilation, and at least 12.7 cm at the back for the power cord and cable clearance. Optional Rack Mount Kits For convenience and flexibility, optional rack mount kits are available and are listed in the table below:...

  • Page 22: Cl1000M / Cl1000N Installation

    3. Plug the power cord into the CL1000M / CL1000N's power socket and into an AC power source and power up your KVM LCD console.* Note: Use the Power Switch on the CL1000M’s rear panel to turn the unit on. 4. Power up your KVM installation.

  • Page 23: Chapter 3. Operation

    Chapter 3 Operation CL1000M Opening the Console The CL1000M’s console is located under the top cover. To access the console, slide the console module out and raise the cover. Note: As a safety precaution, to keep the console from accidentally sliding out, the console is locked into the In position.

  • Page 24: Closing The Console

    CL1000M / CL1000N User Manual Closing the Console To slide the CL1000M module back in, close the cover and do the following: 1. Pull the safety catches on the unit's side rails toward you and push the module in until it stops.

  • Page 25: Cl1000N Opening The Console

    Chapter 3. Operation CL1000N Opening the Console The CL1000N’s console is located under the top cover. To access the console, slide the console module out and raise the cover. Note: As a safety precaution, to keep the console from accidentally sliding out, the console is locked into the In position.

  • Page 26: Closing The Console

    CL1000M / CL1000N User Manual Closing the Console To slide the CL1000N module back in, do the following: 1. Close the cover. 2. Push the module all the way in.

  • Page 27: Operating Precautions

    Chapter 3. Operation Operating Precautions The maximum load bearing capacity of the keyboard module is 30 kg. Failure to heed the information below can result in damage to the keyboard module. Right! Rest your hands and arms lightly on the keyboard module as you work.

  • Page 28: Lcd Osd Configuration

    CL1000M / CL1000N User Manual LCD OSD Configuration LCD Buttons The LCD OSD allows you to set up and configure the LCD display. Four buttons are used to perform the configuration, as described in the table, below: Button Function ...

  • Page 29: Manufacturing Number

    Manufacturing Number The “MFG Number” (Manufacturing Number) is an internal serial number used by ATEN’s factory and technical support staff to identify products. This number does not affect products’ warranty. If your product requires after-sales services, you may provide the MFG Number to ATEN’s sales or technical...

  • Page 30: Port Id Numbering & Port Selection

    CL1000M / CL1000N User Manual Port ID Numbering & Port Selection Port ID numbering and Port Selection follow the method used by the KVM switch connected to the CL1000M / CL1000N. Consult your KVM switch's User Manual for details.

  • Page 31: Appendix

    Appendix Safety Instructions General  This product is for indoor use only.  Read all of these instructions. Save them for future reference.  Follow all warnings and instructions marked on the device.  To prevent damage to your installation it is important that all devices are properly grounded.
  • Page 32 CL1000M / CL1000N User Manual  If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.

  • Page 33: Rack Mount

    Appendix Rack Mount  Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack.

  • Page 34: Consignes De Sécurité

    CL1000M / CL1000N User Manual Consignes de sécurité Général  Ce produit est destiné exclusivement à une utilisation à l’intérieur.  Veuillez lire la totalité de ces instructions. Conservez-les afin de pouvoir vous y référer ultérieurement.  Respectez l’ensemble des avertissements et instructions inscrits sur l’appareil.
  • Page 35 Appendix  L’équipement doit être installé à proximité de la prise murale et le dispositif de déconnexion (prise de courant femelle) doit être facile d’accès.  La prise murale doit être installée à proximité de l’équipement et doit être facile d’accès. ...
  • Page 36 CL1000M / CL1000N User Manual  L’unité a été exposée à la pluie ou à l’eau.  L’unité est tombée ou le boîtier a été endommagé.  Les performances de l’unité sont visiblement altérées, ce qui indique la nécessité d’une réparation.

  • Page 37: Montage Sur Bâti

    Appendix Montage sur bâti  Avant de travailler sur le bâti, assurez-vous que les stabilisateurs sont bien fixées sur le bâti, qu’ils sont étendus au sol et que tout le poids du bâti repose sur le sol. Installez les stabilisateurs avant et latéraux sur un même bâti ou bien les stabilisateurs avant si plusieurs bâtis sont réunis, avant de travailler sur le bâti.

  • Page 38: Technical Support

    CL1000M / CL1000N User Manual Technical Support International  For online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com  For telephone support, see page vi. North America Email Support support@aten-usa.com Online Troubleshooting http://www.aten-usa.com/support Technical Documentation Support Software Updates...

  • Page 39: Specifications

    Appendix Specifications Function CL1000M CL1000N Connector KVM Ports 1 x SPHD-15 Female 1 x SPHD-15 Female (Yellow) (Yellow) Power 1 x 3-prong AC Socket 1 x 3-prong AC Socket Switches Power 1 x Rocker LCD Adjust 4 x Pushbutton 4 x Pushbutton...
  • Page 40 CL1000M / CL1000N User Manual Function CL1000M CL1000N Environment Operating Temp. 0 – 50 0 – 50 Storage Temp. -20 – 60 -20 – 60 Humidity 0–80% RH, Non- 0–80% RH, Non- condensing condensing Physical Housing Metal + Plastic Metal + Plastic...

  • Page 41: About Sphd Connectors

    Appendix About SPHD Connectors This product uses SPHD connectors for its KVM and/or Console ports. We have specifically modified the shape of these connectors so that only KVM cables that we have designed to work with this product can be connected.

  • Page 42: Limited Warranty

    © Copyright 2021 ATEN® International Co., Ltd. Released: 2021-08-27 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners.
