Summary of Contents for Clarke contractor CON100

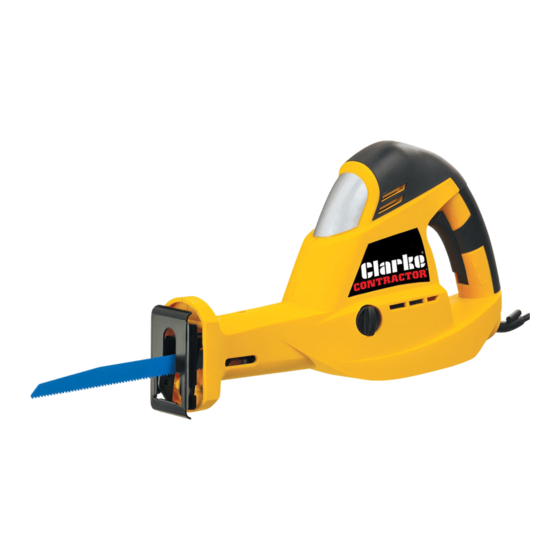

- Page 1 RECIPROCATING SAW RECIPROCATING SAW Part No. 6460200 MODEL No. CON100 Part No. 6459000 OPERATING & MAINTENANCE INSTRUCTIONS LS0610...
-
Page 2: Specifications
Sound pressure level ......... 95.02 dB (A) Sound power level ..........106.02 dBLwA Please note that the details and specifications contained herein, are correct at the time of going to print. However, CLARKE International reserve the right to change specifications at any time without prior notice. -
Page 3: General Safety Precautions
GENERAL SAFETY PRECAUTIONS WARNING: As with all machinery, there are certain hazards involved with their operation and use. Exercising respect and caution will considerably lessen the risk of personal injury. However, if normal safety precautions are overlooked or ignored, personal injury to the operator or damage to property, may result. -
Page 4: Additional Warnings For Reciprocating Saws
GENERAL SAFETY PRECAUTIONS ALWAYS remove plug from electrical outlet when adjusting, changing parts, or working on the machine. NEVER operate machine while under the influence of drugs, alcohol or medication. NEVER leave machine running unattended. Turn power off. Do not leave the machine until it comes to a complete stop. -
Page 5: Electrical Connections
Should you wish to replace a detachable fuse carrier, ensure that the correct replacement is used (as indicated by marking or colour code). Replacement fuse covers can be obtained from your local Clarke dealer or most electrical stockists. FUSE RATING The fuse in the plug must be replaced with one of the same rating (5 amps) and this replacement must be ASTA approved to BS1362. -
Page 6: Before Use
BEFORE USE FITTING THE BLADE WARNING! Before removing, or installing a blade, make sure that the mains plug has been removed from the mains supply. Shoe adjustment screws Loosen the blade securing screw, using the hexagonal key provided. With the blade teeth facing downwards, push the blade shank into the blade locating clip as far as possible. -
Page 7: Operation
OPERATION ON/OFF SWITCH Trigger Slide the trigger switch down and switch back. The saw will run at the speed selected with the variable speed selector. To switch off the reciprocating saw, release the trigger switch. WARNING! The blade will continue to run for a short period after the trigger has been release. - Page 8 OPERATION PENDULUM SWITCH The pendulum switch adjusts the cutting stroke for each type of material. This improves the quality of the cut, and increases the blade life. t i s c i l To adjust the pendulum setting Rotate the pendulum switch to the desired setting.
- Page 9 OPERATION TIPS Cutting wood • Clamp the workpiece securely and remove all nails and metal objects. • Holding the tool with both hands, work with the saw shoe pressed against the workpiece. Plunge cutting in wood • Rest the saw shoe on the workpiece in such a position that the blade forms an appropriate angle for the plunge cut.
-
Page 10: Maintenance
• Resin and glue on the blade causes poor cutting results. Clean the blade after use. • Refer to your CLARKE dealer if internal maintenance is required. REPLACEMENT BLADES Replacement blades are available from your CLARKE dealer. Please quote the... -
Page 11: Parts Diagram
PARTS DIAGRAM PARTS & SERVICE For Spare Parts and Service, please contact your nearest dealer, or CLARKE International, on one of the following numbers. PARTS & SERVICE TEL: 020 8988 7400 or e-mail as follows: PARTS: parts@clarkeinternational.com SERVICE: service@clarkeinternational.com... -
Page 12: Parts List
PARTS LIST s i l l l o t f i i l e... -
Page 13: Vibration Emissions
VIBRATION EMISSIONS HAND-ARM VIBRATION Employers are advised to refer to the HSE publication “Guide for Employers”. All hand held power tools vibrate to some extent, and this vibration is transmitted to the operator via the handle, or hand used to steady the tool. Vibration from about 2 to 1500 hertz is potentially damaging and is most hazardous in the range from about 5 to 20 hertz. - Page 14 VIBRATION EMISSIONS You will note that a third value is given in the specification - the highest measured reading in a single plane. This is the maximum level of vibration measured during testing in one of the axes, and this should also be taken into account when making a risk assessment.
-
Page 15: Declaration Of Conformity
DECLARATION OF CONFORMITY When disposing of this product, ensure it is disposed of according to all local ordinances. It must not be disposed of with general household waste.
