Summary of Contents for Clarke CONTRACTOR CON850B
- Page 1 850W (230V) RECIPROCATING SAW MODEL NO: CON850B PART NO: 6459015 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS DL 0122...
-
Page 2: Environmental Protection
INTRODUCTION Thank you for purchasing this CLARKE 850W Reciprocating Saw. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: Electrical Connection
ELECTRICAL CONNECTION WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. -
Page 4: General Safety Rules
GENERAL SAFETY RULES WORK AREA 1. ALWAYS keep the work area clean and well lit. Cluttered and dark areas invite accidents. 2. DO NOT operate power tools in explosive atmospheres such as in the presence of flammable liquids, gasses or heavy dust. Power tools create sparks which may ignite dust or fumes. - Page 5 Any damage should be properly repaired or the part replaced. If in doubt, DO NOT use the machine. Consult your local CLARKE dealer. SERVICE 1. When necessary, have your power tools serviced or repaired by a qualified person using identical replacement parts.
-
Page 6: Reciprocating Saw Safety Instructions
2. Use the appropriate saw blade for the material being cut. Different blades are available from your CLARKE dealer. 3. Only use saw blades in perfect working condition. Discard and replace any cracked or bent saw blades. -
Page 7: Safety Symbols

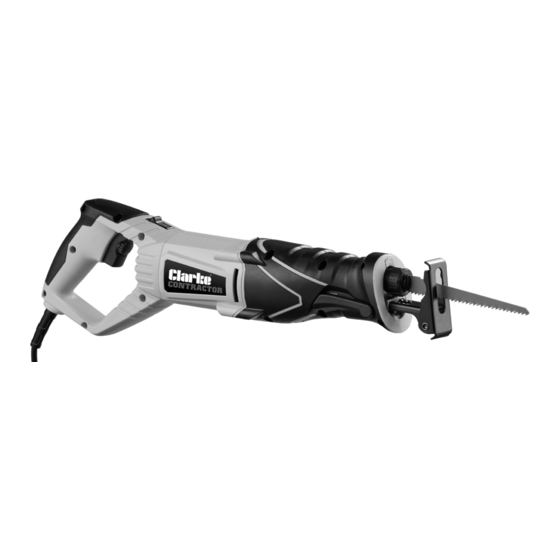

8. Cutting sheet materials. DO NOT cut workpiece less than at least twice the pitch of the saw blade. i.e. at least two teeth must be in contact with the workpiece at all times. 9. Beware of foreign objects. When cutting pre-used wood, ensure all nails have been removed beforehand. - Page 8 OVERVIEW The CLARKE CON850B is a variable-speed reciprocating saw fitted with a lock- on button for continuous operation. The saw is equipped with a quick-release blade retention system for convenient replacement of saw blades. When unpacking, check for damage or shortages etc. Any found should be reported to your CLARKE dealer where the tool was originally purchased.
-
Page 9: Before Use
BEFORE USE CAUTION: USE ONLY RECIPROCATING SAW BLADES WITH THE CORRECT FITTING AS SHOWN BELOW. ALWAYS ENSURE THE SAW IS DISCONNECTED FROM THE POWER SUPPLY BEFORE INSTALLING/REMOVING THE BLADE. INSTALLING/CHANGING BLADES 1. Twist the quick release chuck a 1/4 turn anti-clockwise and hold open. -
Page 10: Adjusting The Handle
ADJUSTING THE GUIDE SHOE WARNING: ALWAYS ENSURE THE SAW IS DISCONNECTED FROM THE POWER SUPPLY BEFORE MAKING ADJUSTMENTS. 1. To adjust the shoe, unlock by releasing the locking lever on the side of the saw. Adjust the shoe to the desired position and then push the locking lever back into position. -
Page 11: Operation
3. Slide handle locking switch forward to lock the handle into place. OPERATION IMPORTANT: DO NOT plug into the mains, unless you have ensured the saw is switched OFF. To do this, squeeze the trigger fully, then release it. NOTE: The LED work light will be illuminated once the tool is plugged into the mains. -
Page 12: Starting And Stopping
STARTING & STOPPING 1. To start the saw, squeeze the trigger. 2. Maintain the saw at a constant speed by pressing in the lock button. • You can then release your finger pressure on the trigger. 3. To stop the saw if the lock button is used, squeeze the trigger fully in, then release it and the motor will stop. - Page 13 CUTTING DIFFERENT MATERIALS Adjust the speed controller wheel to suit the material being cut using the following suggested settings as a starting point. However, the optimum speed will be determined with practice. • Plastic: Slow - Medium • Steel: Slow - Medium •...
-
Page 14: General Maintenance
• Only use replacement blades specified for this product (consult your CLARKE dealer). • Refer to your CLARKE dealer if internal maintenance is required. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 15: Fault Finding
Problem Possible Cause Remedy Tool will not operate. No power supply. Check power supply. Switch is faulty. Consult your CLARKE dealer Fuse blown. Check and replace Motor is faulty Consult your CLARKE dealer Motor becomes hot. Unduly heavy use Reduce the force applied to the tool. -
Page 16: Parts Diagram
PARTS DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 17: Parts List
PARTS LIST PART PART DESCRIPTION DESCRIPTION Guide Shoe Assembly Stator Chuck Assembly Screw ST4 x 53 Screw ST4 x 20 Lamp Lense Split Washer LED Lamp PCB Baffle Left Body Casing Split Washer Positioning Sleeve Screw Screw M4 x 6 Washer Right Body Casing Lower Slide... -
Page 18: Specifications
Vibration Uncertainty Value (K) 1.5 m/s² Please note that the details and specifications contained herein, are correct at the time of going to print. However, CLARKE International reserve the right to change specifications at any time without prior notice. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 19: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
